Amplifiers

SKU	Image	Frequency Bandwidth	Rise Time	Max. effective Value of AC	Peak-Peak	Range Switch	DC Accuracy	Power Supply	Max. rated Voltage to earth	Conductor Size	Stock	Price	Category
CP4020		DC-200kHz	1.75μS	20 Arms	60 A	50mV/A；5mV/A	±2%±0.4A at 50mV/A ±2%±1A at 5mV/A	9V battery	CAT III 600V, CAT II 600V	10.3mm	On Backorder	£344.00	Siglent Current Oscilloscope Probes
CP4050		DC-1MHz	0.35μS	50 Arms	140 A	500mV/A；50mV/A	±3%±20mAat 500mV/A ±4%±200mAat 50mV/A ±15% max at 50mV/A	9V battery	CAT III 300V, CAT II 600V	10.3mm	On Backorder	£857.00	Siglent Current Oscilloscope Probes
CP4070		DC-300kHz	1.2μS	70 Arms	200 A	50mV/A；5mV/A	±2%±0.4A at 50mV/A ±2%±1A at 5mV/A	9V battery	CAT III 600V, CAT II 600V	10.3mm	On Backorder	£526.00	Siglent Current Oscilloscope Probes
CP4070A		DC-300kHz	1.2μS	70 Arms	200 A	100mV/A；10mV/A	±3%±50mAat 100mV/A ±4%±50mAat 10mV/A ±15% max at 10mV/A	9V battery	CAT III 600V, CAT II 600V	11mm	On Backorder	£596.00	Siglent Current Oscilloscope Probes
CP6030		DC-50MHz	≤ 7nS	30 Arms	50 A	5A(1X)/30A(10X)	5A(±1%±1mA) 30A(±1%±10mA)	DC 12V/1A	300V CAT I	5mm	On Backorder	£1,751.00	Siglent Current Oscilloscope Probes
CP6030A		DC-100MHz	≤ 3.5nS	30 Arms	50 A	5A(1X)/30A(10X)	5A(±1%±1mA) 30A(±1%±10mA)	DC 12V/1A	300V CAT I	5mm	On Backorder	£2,405.00	Siglent Current Oscilloscope Probes
CP6150		DC-12MHz	≤ 29nS	150 Arms	300 A	30A(10X)/150A(100X)	30A(±1%±10mA) 150A(±1%±100mA)	DC 12V/1A	300V CAT III 600V CAT II	20mm	On Backorder	£3,366.00	Siglent Current Oscilloscope Probes
CP6500		DC-5MHz	≤ 70nS	500 Arms	750 A	75A(10X)/500A(100X)	75A(±1%±10mA) 500A(±1%±100mA)	DC 12V/1A	300V CAT III 600V CAT II	20mm	On Backorder	£4,504.00	Siglent Current Oscilloscope Probes
SCP5030		DC-50 MHz	≤ 7 ns	30 Arms	50 A	5A(1X)/30A(10X)	5A ±1%±1 mA 30A ±1%±10 mA	Directly powered by the oscilloscope through SAPBUS	300 V CAT I	5 mm	On Backorder	£1,584.00	Siglent Current Oscilloscope Probes
SCP5030A		DC-100 MHz	≤ 3.5 ns	30 Arms	50 A	5A(1X)/30A(10X)	5A ±1%±1 mA 30A ±1%±10 mA	Directly powered by the oscilloscope through SAPBUS	300 V CAT I	5 mm	On Backorder	£2,174.00	Siglent Current Oscilloscope Probes
SCP5150		DC-12 MHz	≤29 ns	150 Arms	300 A	30A(10X)/150A(100X)	30 A ±1%±10mA 150 A ±1%±100mA	Directly powered by the oscilloscope through SAPBUS	600 V CATII 300 V CATIII	20 mm	On Backorder	£2,511.00	Siglent Current Oscilloscope Probes
SCP5500		DC-2 MHz	≤175 ns	500 Arms	750 A	75A(10X)/500A(100X)	75 A ±1%±10mA 500 A ±1%±100mA	Directly powered by the oscilloscope through SAPBUS	600 V CATII 300 V CATIII	20 mm	On Backorder	£3,944.00	Siglent Current Oscilloscope Probes
TBMDA3B		-	-	-	-	-	-	-	-	-	On Backorder	£851.00	Amplifiers
TBMDA4B		-	-	-	-	-	-	-	-	-	On Backorder	£839.00	Amplifiers
TBWA2-20dB-40dB		-	-	-	-	-	-	-	-	-	5+	£279.00	Amplifiers

Showing all 3 results

•

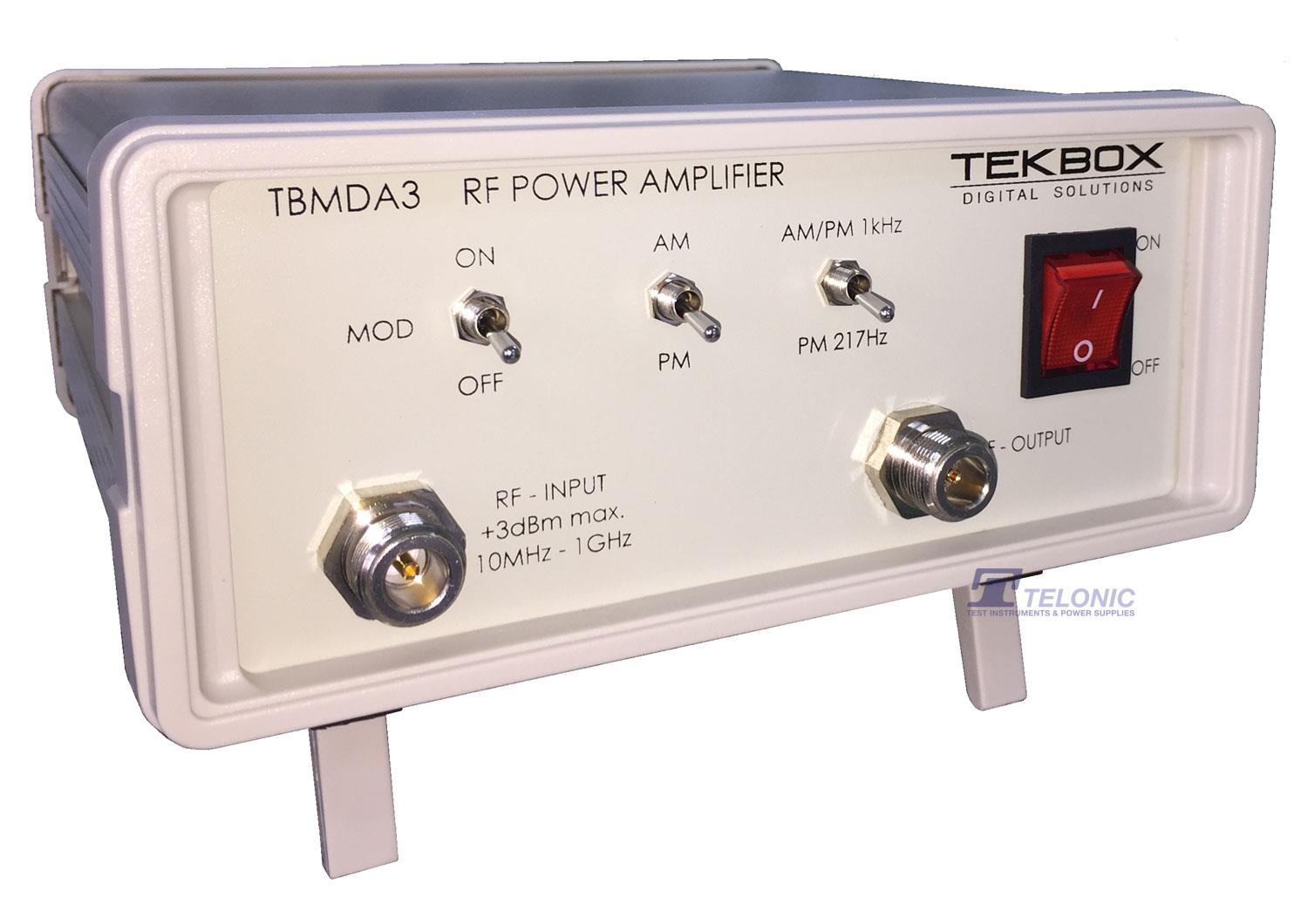

  TEKBOX TBMDA3B Modulated Wideband Power Amplifier

  £851.00

  Available on back-order, delivery normally 1 - 2 weeks

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Add to basket
  Add to Request Quote
•

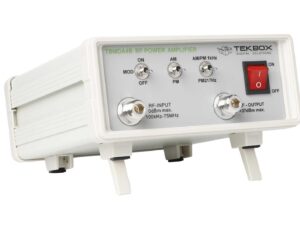

  TEKBOX TBMDA4B Modulated Wideband Power Amplifier

  £839.00

  Available on back-order, delivery normally 1 - 2 weeks

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Add to basket
  Add to Request Quote
•

  TEKBOX TBWA2/20dB/40dB Wideband Amplifier Bundle Set

  £279.00

  5+ In UK Stock

  Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

  Add to basket
  Add to Request Quote
