Digital Oscilloscopes

ManufacturerSeriesChannelsBandwidthMax Sample RateMemoryInterfaceWaveform Refresh RatePrice From
SiglentBattery Scope SHS800X
2100MHz, 200MHz1GSa/s12MptsUSB Device, USB Host—£615.00
SiglentIsolated Inputs Battery Scope

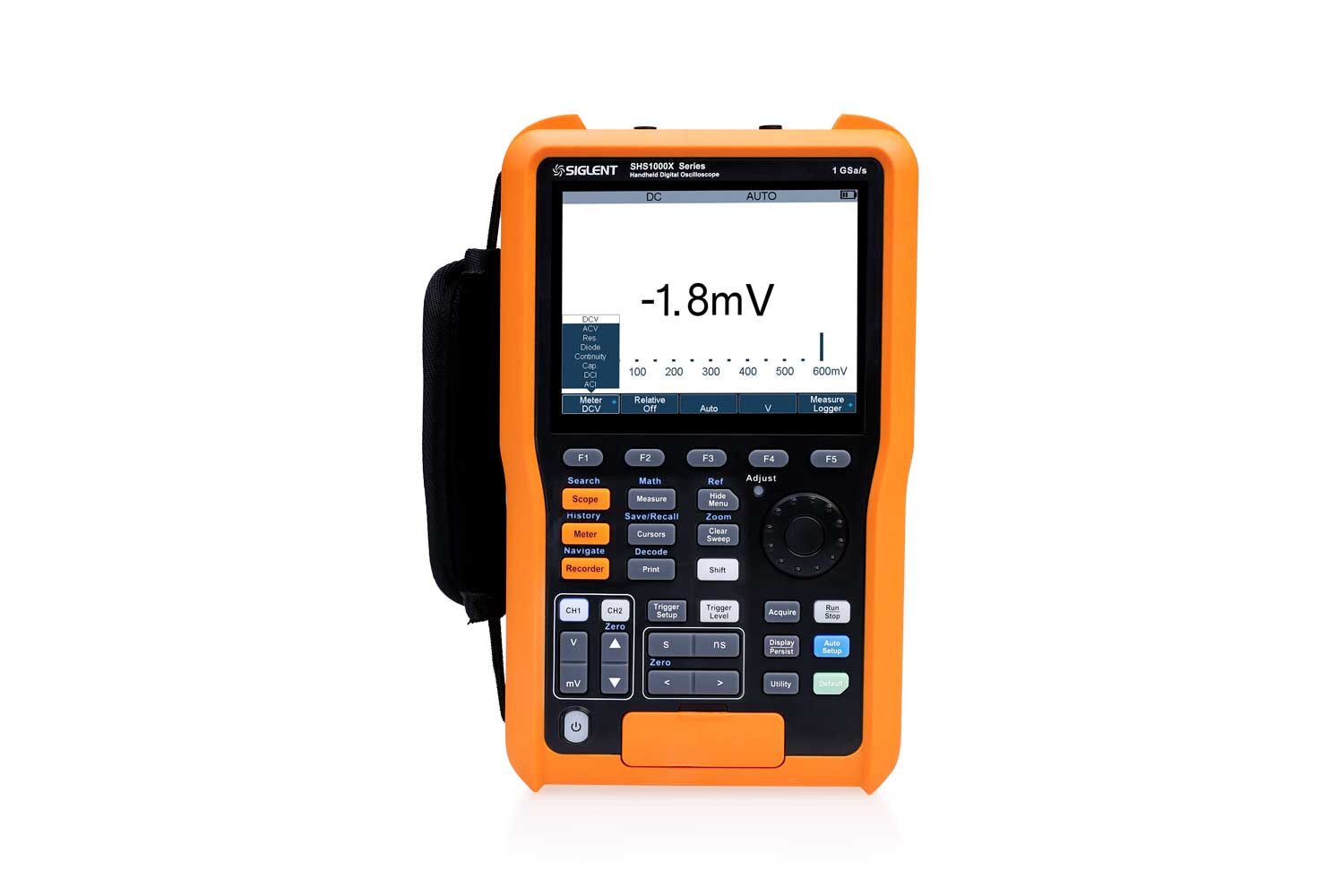

SHS1000X
2100MHz, 200MHz1GSa/s12MptsUSB Device, USB Host—£1249.00

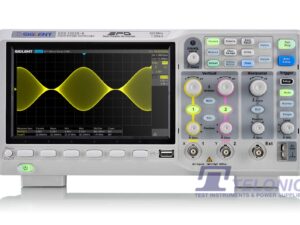

SiglentSDS1000X-E
2 / 4 Analogue,
16 Digital (Opt)		100MHz, 200MHz1GSa/s7 / 14MptsUSB Host, USB Device (USB-TMC), LAN (VXI-11), Pass/Fail, Trigger Out100,000wfm/s (Normal Mode) 400,000wfm/s (Sequence Mode)£300.00

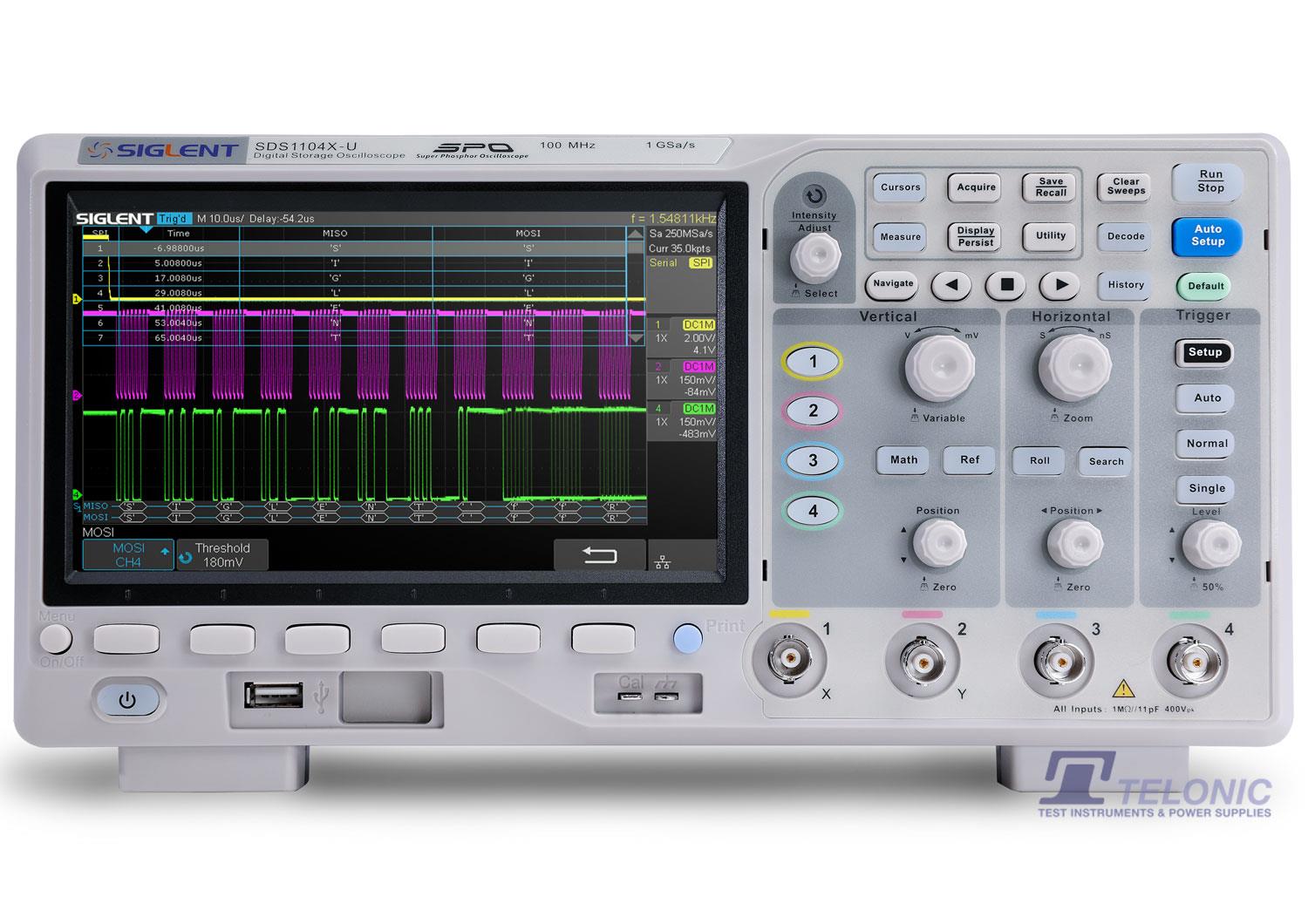

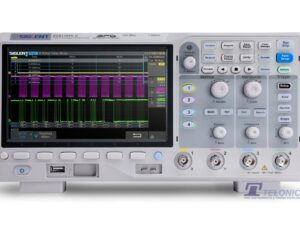

SiglentSDS1000X-U
4100MHz1GSa/s14MptsUSB Host, USB Device, LAN, Pass/Fail, Trigger Out400,000wfm/s (Sequence Mode)
100,000wfm/s (Normal Mode)		£326.00
SiglentHi-Res 12 Bit
SDS800x HDSiglent-SDS800x-HD-Osilloscopes-Telonic-UK		2/4 Analogue,
16 Digital (Opt)		70MHz, 200MHz2GSa/s50MptsUSB Host, USB Device (USB-TMC), LAN, Pass/Fail, Trigger Out120,000wfm/s
(Normal Mode)
500,000wfms/s
(Sequence Mode)		£312.00
SiglentSDS2000X-E
2 Analogue,
16 Digital (Opt)		200MHz, 350MHz2GSa/s14 / 28MptsUSB Host, USB Device (USB-TMC), LAN, Pass/Fail, Trigger Out110,000wfm/s
(Normal Mode)
400,000wfms/s
(Sequence Mode)		£483.00
SiglentOption Bundle Offer!

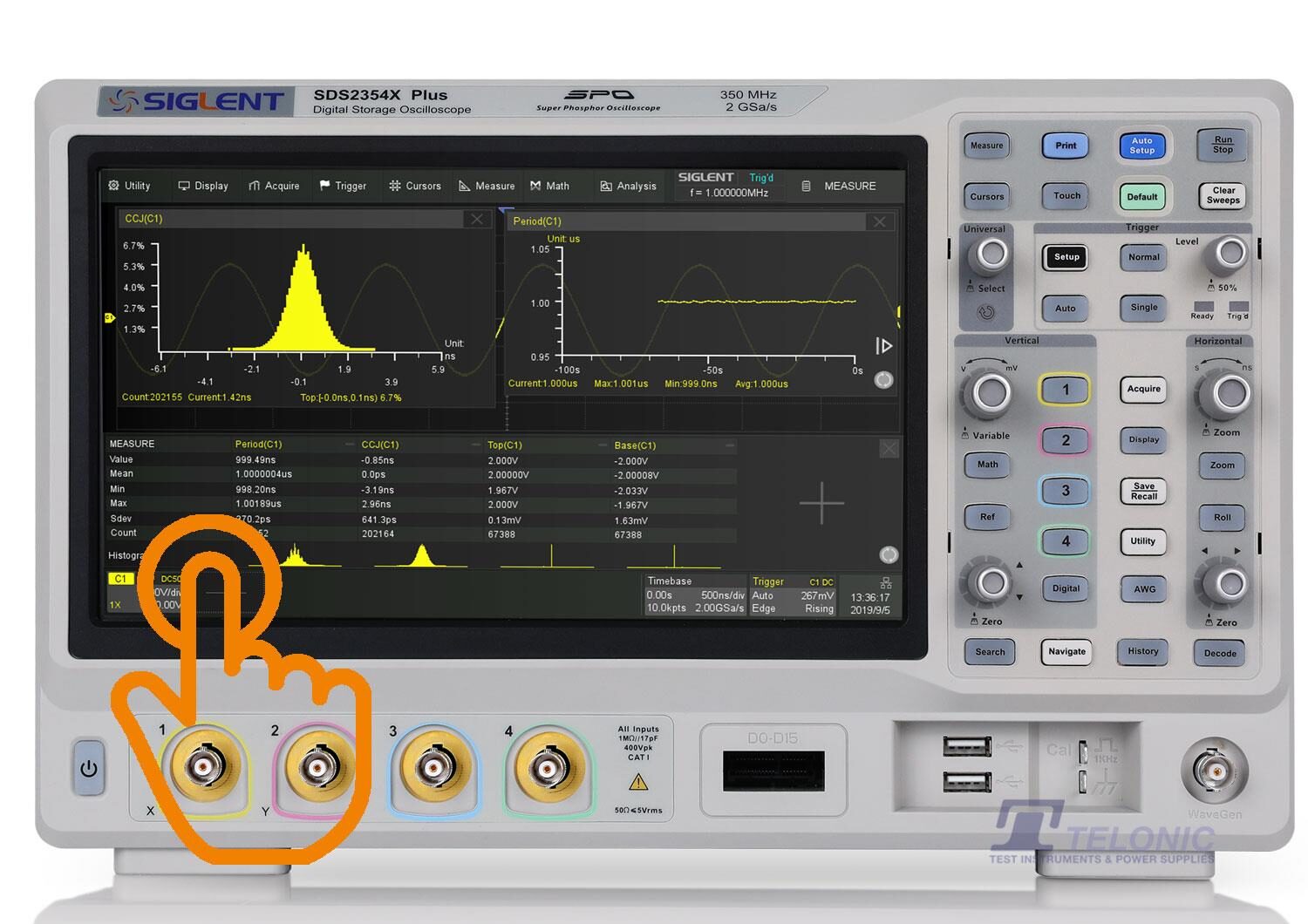

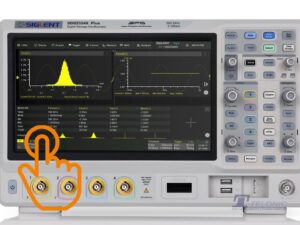

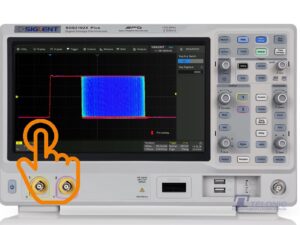

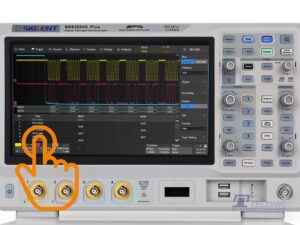

SDS2000X Plus
2 / 4 Analogue,
16 Digital (Opt)		100MHz, 200MHz, 350MHz2GSa/s200Mpts/CH (Interleaving Mode) 100Mpts/CH (Non-Interleaving Mode)USB 2.0 Host x2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL)120,000 wfm/s (Normal Mode)
500,000 wfm/s (Sequence Mode)		£788.00
SiglentSDS2000X HD
High Res 12 Bit		4 Analogue,
16 Digital (Opt)		100MHz, 200MHz, 350MHz2GSa/s200Mpts/CH (Interleaving Mode) 100Mpts/CH (Non-Interleaving Mode)USB 2.0 Host x2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL)100,000 wfm/s (Normal Mode)
500,000 wfm/s (Sequence Mode)		£1932

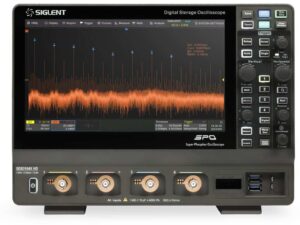

SiglentSDS3000X HD
High Res 12 Bit		4 Analogue,
16 Digital (Opt)		350MHz, 500MHz, 1GHz4GSa/s400Mpts/SCH (Interleaving Mode) 100Mpts/CH (Non-Interleaving Mode)USB 2.0 Host x2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL)200,000 wfm/s (Normal Mode)
890,000 wfm/s (Sequence Mode)		£2864
SiglentSDS5000X
2 / 4 Analogue,
16 Digital (Opt)		350MHz, 500MHz, 1GHz5GSa/s (Single Channel)
2.5GSa/s (Dual-CH)		125 / 250MptsUSB Host, USB Device (USBTMC), LAN (VXI-11, telnet, socket, web), Pass/Fail, Trigger Out, 10MHz In, 10MHz Out, VGA Output110,000wfm/s (Normal Mode)
480,000wfm/s (Sequence Mode)		£2,367.00
Siglent SDS6000A
4 Analogue,
16 Digital (Opt)		500MHz, 1GHz, 2GHz5GSa/s500Mpts (Std)USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB750,000wfm/s£5634.00
SiglentNEW

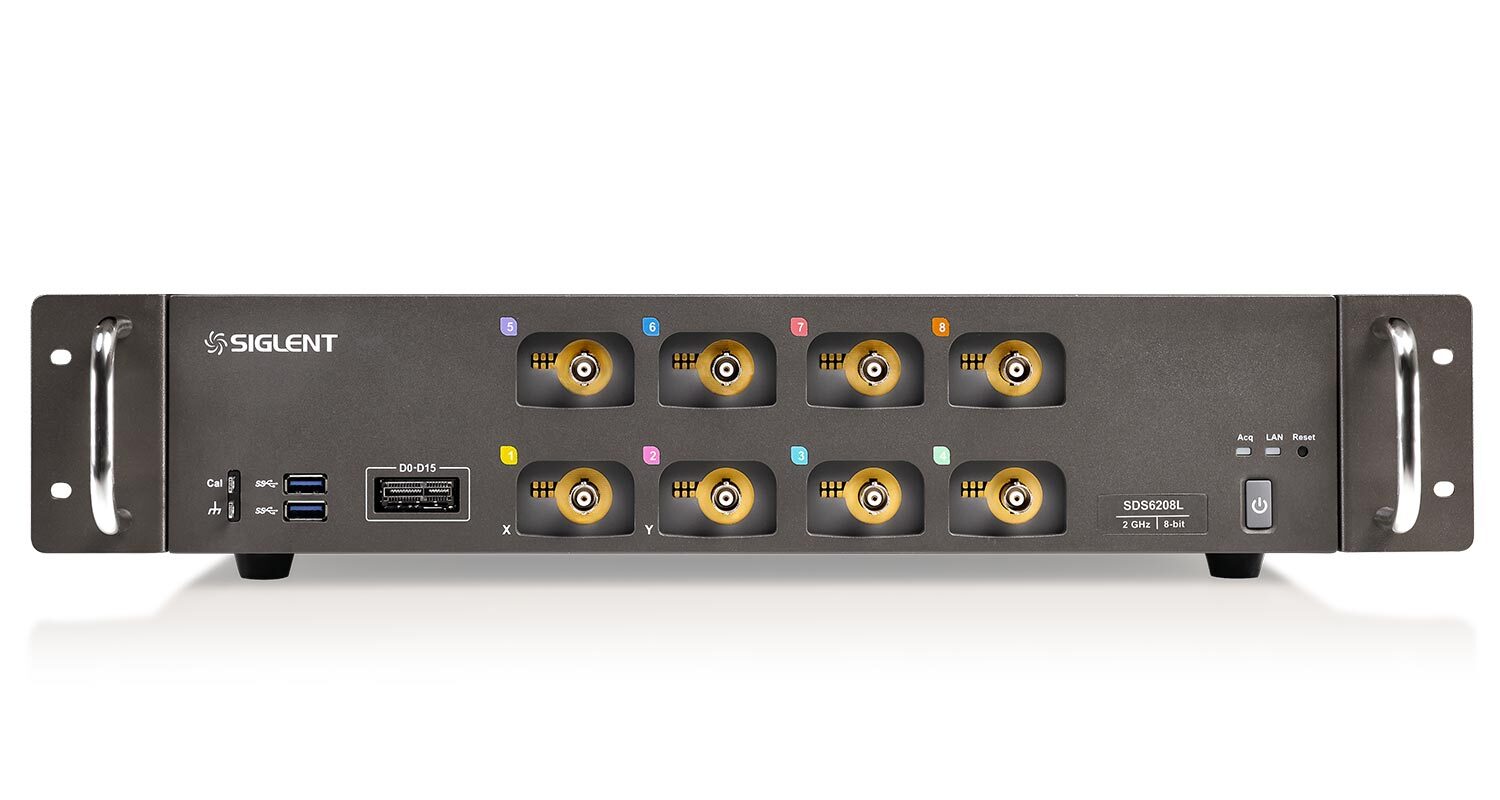

SDS6000l
8 Analogue,
16 Digital (Opt)		500MHz, 1GHz, 2GHz5 GSa/s (10 GSa/s ESR) @ each channel500Mpts (Std)Interfaces include: 4x USB Hosts, USB Device
(USBTMC), 1000M LAN（VXI-11/ Telnet/ Socket）,
micro SD card, Pass/Fail, Trigger Out, HDMI,
10MHz In、10MHz Out		750,000wfm/s£6473.00
SiglentHigh Res 12 Bit
SDS7000A		4 Analogue,
16 Digital (Opt)		3GHz, 4GHz, 6GHz20 GSa/s500Mpts (Std)
1GMpts Option		Interfaces include: 4x USB Hosts, USB Device
(USBTMC), 1000M LAN（VXI-11/ Telnet/ Socket）,
micro SD card, Pass/Fail, Trigger Out, HDMI,
10MHz In、10MHz Out		1000,000wfm/s£16093.00
