SSA3000X Series
• 9 kHz to 2.1GHz/3.2GHz
• Resolution Bandwidth: 1Hz to 1MHz, in 1-3-10 sequence
• Phase Noise: < -98 dBc/Hz @ 1GHz, 10kHz offset
• Display Average Noise Level: -161 dBm/Hz, Normalized to 1 Hz (typ.)
SSA3000X-R Series
• Real-Time Spectrum Analyser
• 9kHz to 5.0GHz/7.5GHz
• Real-Time Bandwidth: 25MHz, 40MHz (Opt.)
• Displayed Average Noise Level: -165dBm/Hz
Spectrum Analysers

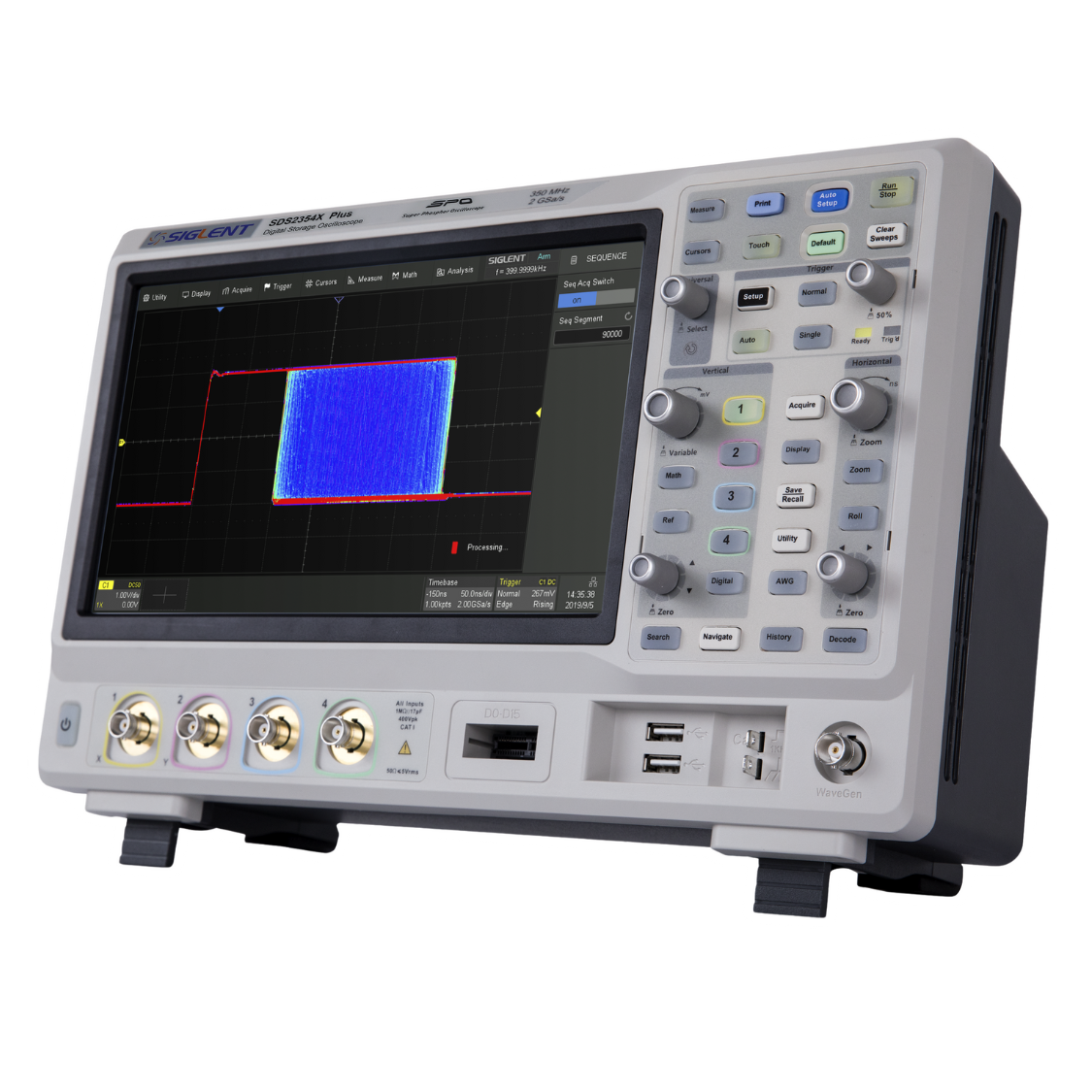

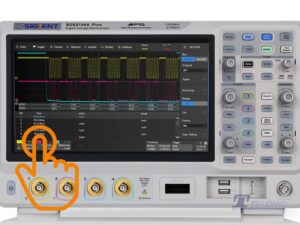

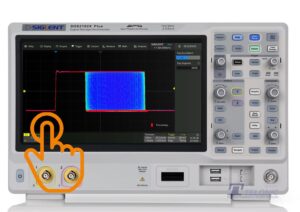

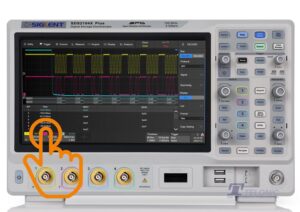

SDS2000X Plus Series Digital Oscilloscopes
• 100, 200 and 350MHz Bandwidth Models
• 2 or 4 Analogue Channels, + EXT
• Real-Time Sampling Rate Up To 2GSa/s
• Memory Depth Up To 200Mpts/Ch
• Capture Rate Up To 500,000wfm/s/Ch
• Free Software Options Bundle (£1,330.00 Value)

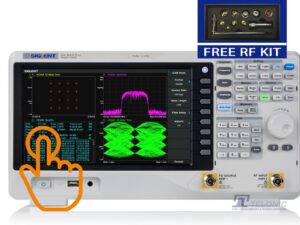

SSA3000X Plus Series Spectrum Analysers
• Frequency Range from 9kHz to 1.5/2.1/3.2/7.5GHz
• -98dBc/Hz @10kHz Offset Phase Noise (1GHz, Typ.)
• -161dBm/Hz Displayed Average Noise Level (Typ.)
• Total Amplitude Accuracy <0.7dB
• 1Hz Minimum Resolution Bandwidth (RBW)
• Tracking Generator (TG) is currently included at no charge

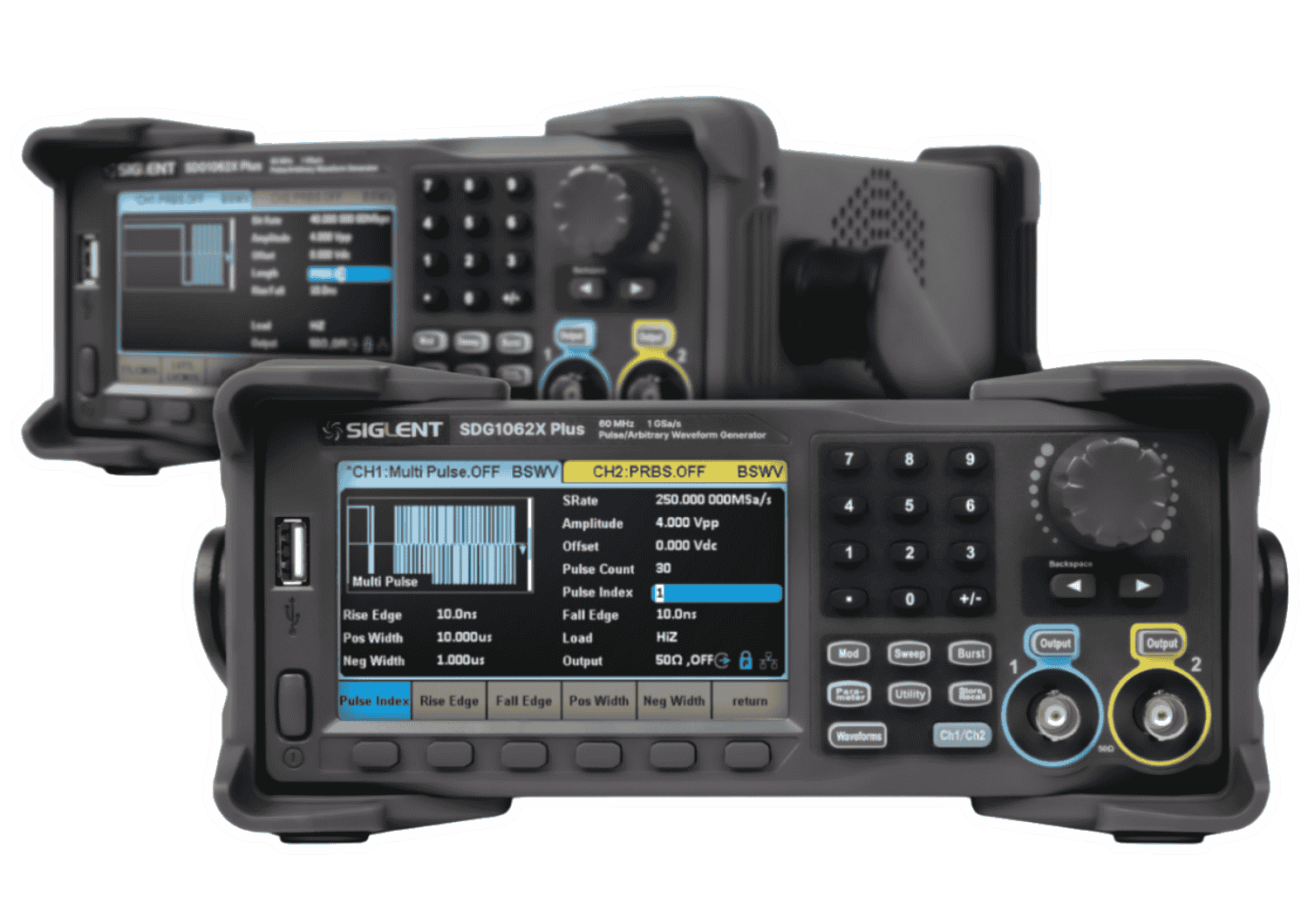

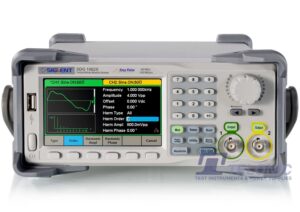

SDG1000X Series Function/Arbitrary Waveform Generators
• Dual-channel, with bandwidth up to 60 MHz, and amplitude up to 20 Vpp
• 150 MSa/s sampling rate, 14-bit vertical resolution, and 16 kpts waveform length
• Innovative EasyPulse technology, capable of generating lower-jitter Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
SDS5000X Series Super Phosphor Oscilloscopes
• 1GHz, 500MHz and 350MHz Models
• Real-Time Sampling Rate Up To 5GSa/s
• Record Length up to 250Mpts
• Serial Bus Triggering and Decoder, supports I2C, SPI, UART, CAN, LIN, CANFD, FlexRay, I2S and MIL-STD-1553B
• Capacitive touch screen supports multi-touch gestures

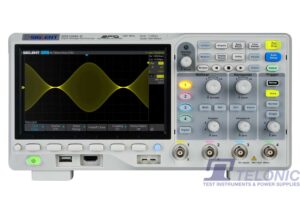

SDS1000X-E Series Super Phosphor Oscilloscope
• 100 and 200MHz Bandwidth Models
• 2 or 4 analogue channels, 16 logic/MSO optional on 4 channel models only
• Real-Time sampling rate up to 1GSa/s
• Math co-processor speeds front panel operation
• Waveform capture rate up to 100,000wfm/s (normal mode), and 400,000wfm/s (sequence mode)
• Record length up to 14Mpts, 1Mpt FFT
• On-screen Bode plot and web-browser control (standard on 4 channel models only)
Siglent Products from Telonic Instruments
This siglent.co.uk website is operated by Telonic Instruments Limited, a UK authorised distributor for Siglent. Telonic Instruments is a family run company that has been operating in the UK since 1966 offering products in the test instrument and power supply market. We are ISO9001:2015 approved by NQA (National Quality Assurance). Telonic carries out quality assessments on all of our suppliers to ensure the highest standards are maintained.
