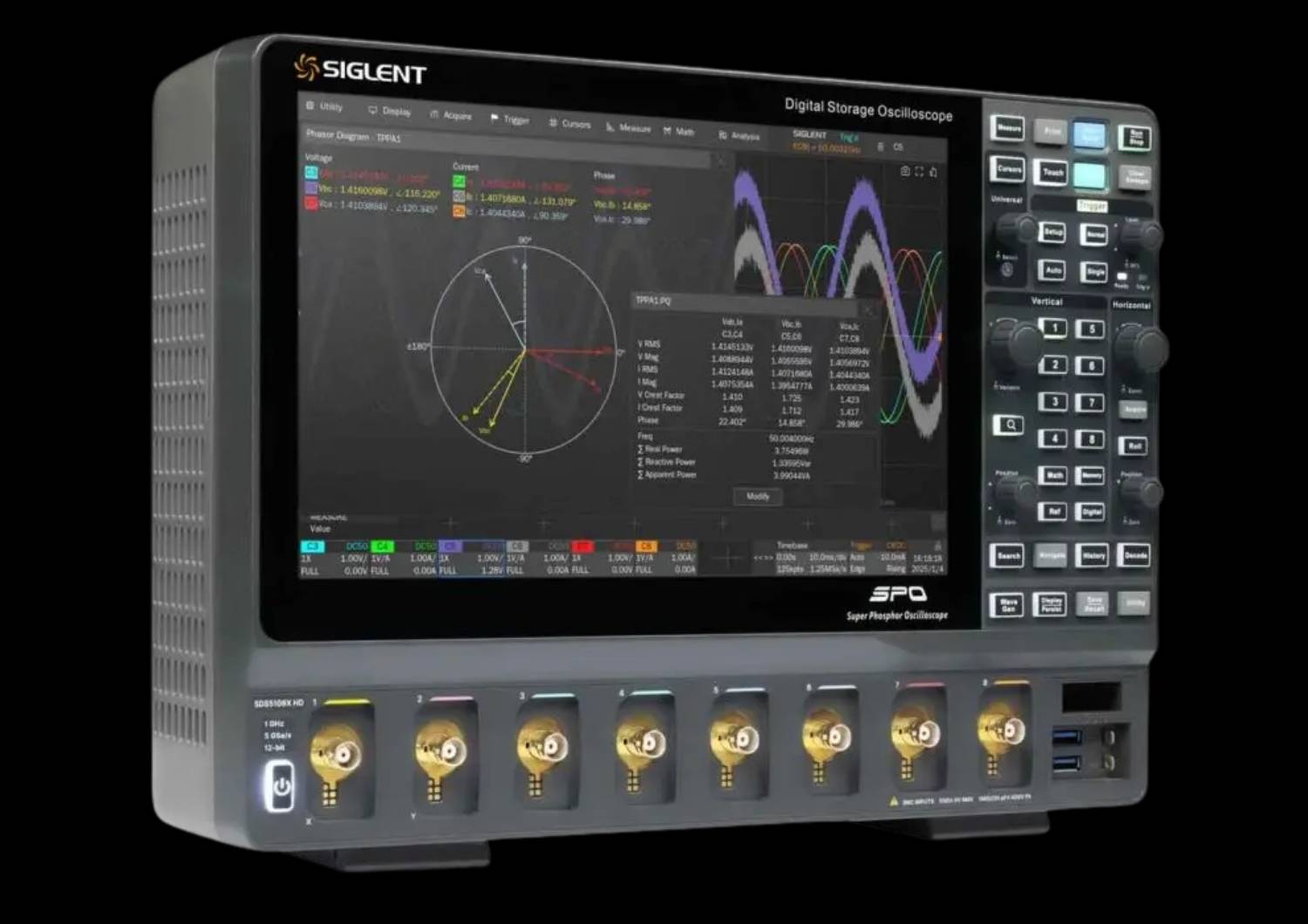

Siglent SDS5000X HD Series Digital Storage Oscilloscope
350 MHz, 500 MHz, 1 GHz models
4/6/8 analog channels + 1 external trigger
16 digital channels
Sampling rate up to 5 GSa/s
Up to 2.5 Gpts waveform length
Waveform capture rate up to 650,000 wfm/s (Sequence mode)
Typical ENOB at 1 GHz of 8.2 bits
Supports 8 channels with 12-bit resolution, ultra-low noise, and precision measurements for multi-channel applications. SDS5000X HD is available in 4, 6, and 8 channels, with bandwidths of 350 MHz, 500 MHz, and 1 GHz, a 5 GSa/s sampling rate, and a maximum record length of 2.5 Gpts/ch. Siglent SPO technology enables a capture rate of 650,000 wfm/s with 256-level intensity grading. Digital trigger features high sensitivity, low jitter, and supports smart triggers, serial decoding. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis allow for extended waveform records to be captured, stored, and analysed. An impressive array of measurement and math capabilities, as well as serial decoding, is also among their features. The SDS5000X HD employs a 12.1″capacitive touchscreen and supports multi-touch gestures, with a user-friendly UI design that can greatly improve operational efficiency.
| SKU | Image | CH | BW | Sample Rate(s) | Memory (Mpts) | Rate of Capture | Stock | Price |
|---|---|---|---|---|---|---|---|---|
| SDS5108X-HD DEMO |  | - | - | - | - | - | 1 | £435.00 |
| SDS5034X-HD |  | 4 + EXT | 350 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £6,540.00 |
| SDS5036X-HD |  | 6 + EXT | 350 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £7,189.00 |
| SDS5038X-HD |  | 8 + EXT | 350 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £8,074.00 |
| SDS5054X-HD | | 4 + EXT | 500 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £7,838.00 |
| SDS5056X-HD |  | 6 + EXT | 500 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £9,127.00 |
| SDS5058X-HD | | 8 + EXT | 500 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £10,501.00 |
| SDS5104X-HD |  | 4 + EXT | 1 GHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £10,265.00 |
| SDS5106X-HD |  | 6 + EXT | 1 GHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £12,119.00 |
| SDS5108X-HD | | 8 + EXT | 1 GHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £13,501.00 |
Showing all 10 results
-
Rental: Siglent SDS5108X HD 8Ch, 1 GHz, 5 GSa/s, 12 Bit, high resolution oscilloscope
£435.00 (£522.00 inc. VAT)1 in stock
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SDS5034X HD 4Ch, 350MHz, 5 GSa/s, 12 Bit, high resolution oscilloscope
£6,540.00 (£7,848.00 inc. VAT)Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SDS5036X HD 6Ch, 350MHz, 5 GSa/s, 12 Bit, high resolution oscilloscope
£7,189.00 (£8,626.80 inc. VAT)Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SDS5038X HD 8Ch, 350MHz, 5 GSa/s, 12 Bit, high resolution oscilloscope
£8,074.00 (£9,688.80 inc. VAT)Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SDS5054X HD 4Ch, 500MHz, 5 GSa/s, 12 Bit, high resolution oscilloscope
£7,838.00 (£9,405.60 inc. VAT)Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SDS5056X HD 6Ch, 500MHz, 5 GSa/s, 12 Bit, high resolution oscilloscope
£9,127.00 (£10,952.40 inc. VAT)Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SDS5058X HD 8Ch, 500MHz, 5 GSa/s, 12 Bit, high resolution oscilloscope
£10,501.00 (£12,601.20 inc. VAT)Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SDS5104X HD 4Ch, 1 GHz, 5 GSa/s, 12 Bit, high resolution oscilloscope
£10,265.00 (£12,318.00 inc. VAT)Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SDS5106X HD 6Ch, 1 GHz, 5 GSa/s, 12 Bit, high resolution oscilloscope
£12,119.00 (£14,542.80 inc. VAT)Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SDS5108X HD 8Ch, 1 GHz, 5 GSa/s, 12 Bit, high resolution oscilloscope
£13,501.00 (£16,201.20 inc. VAT)Available on back-order
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket
