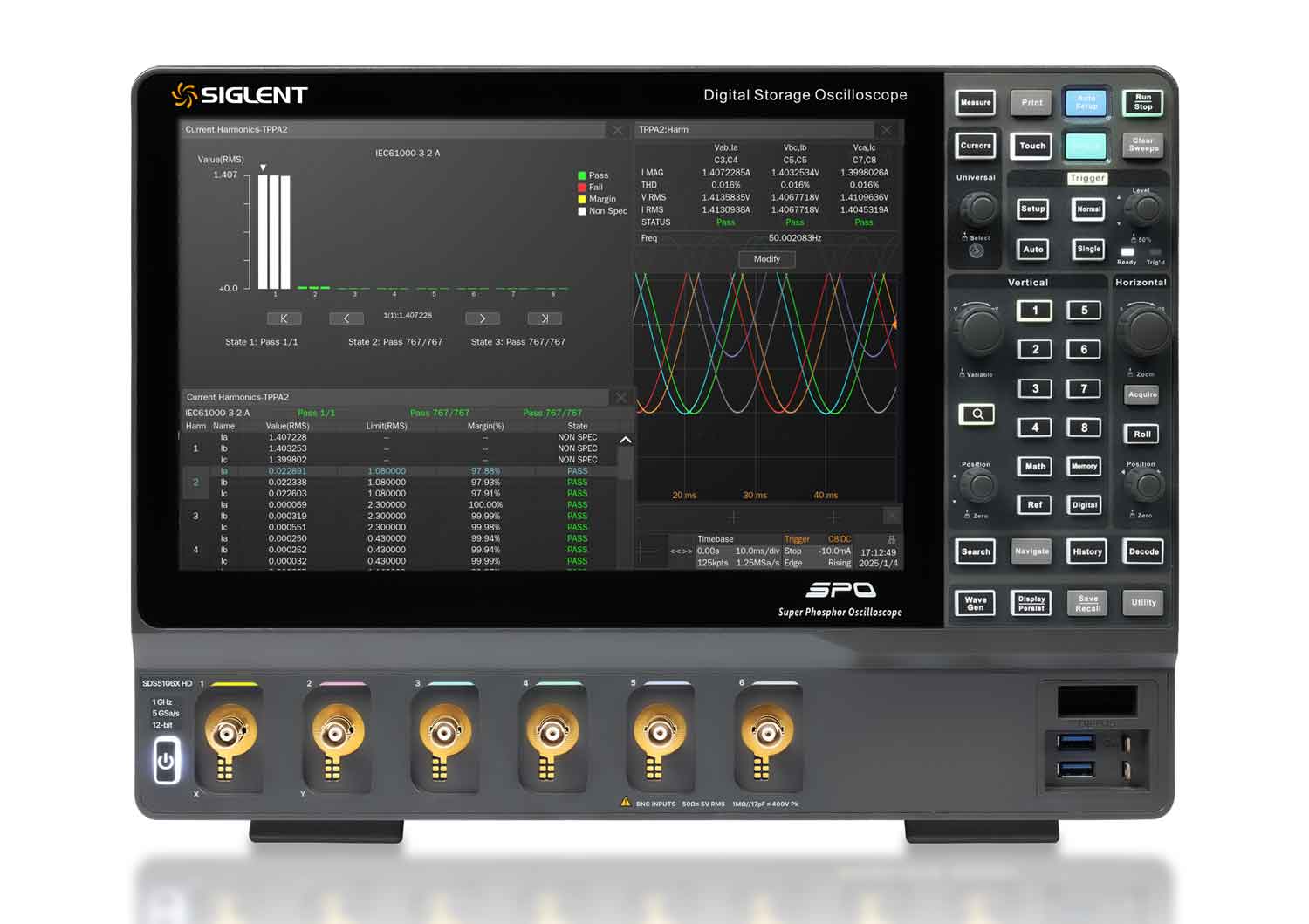

Image of Siglent sds5106x hd telonicuk

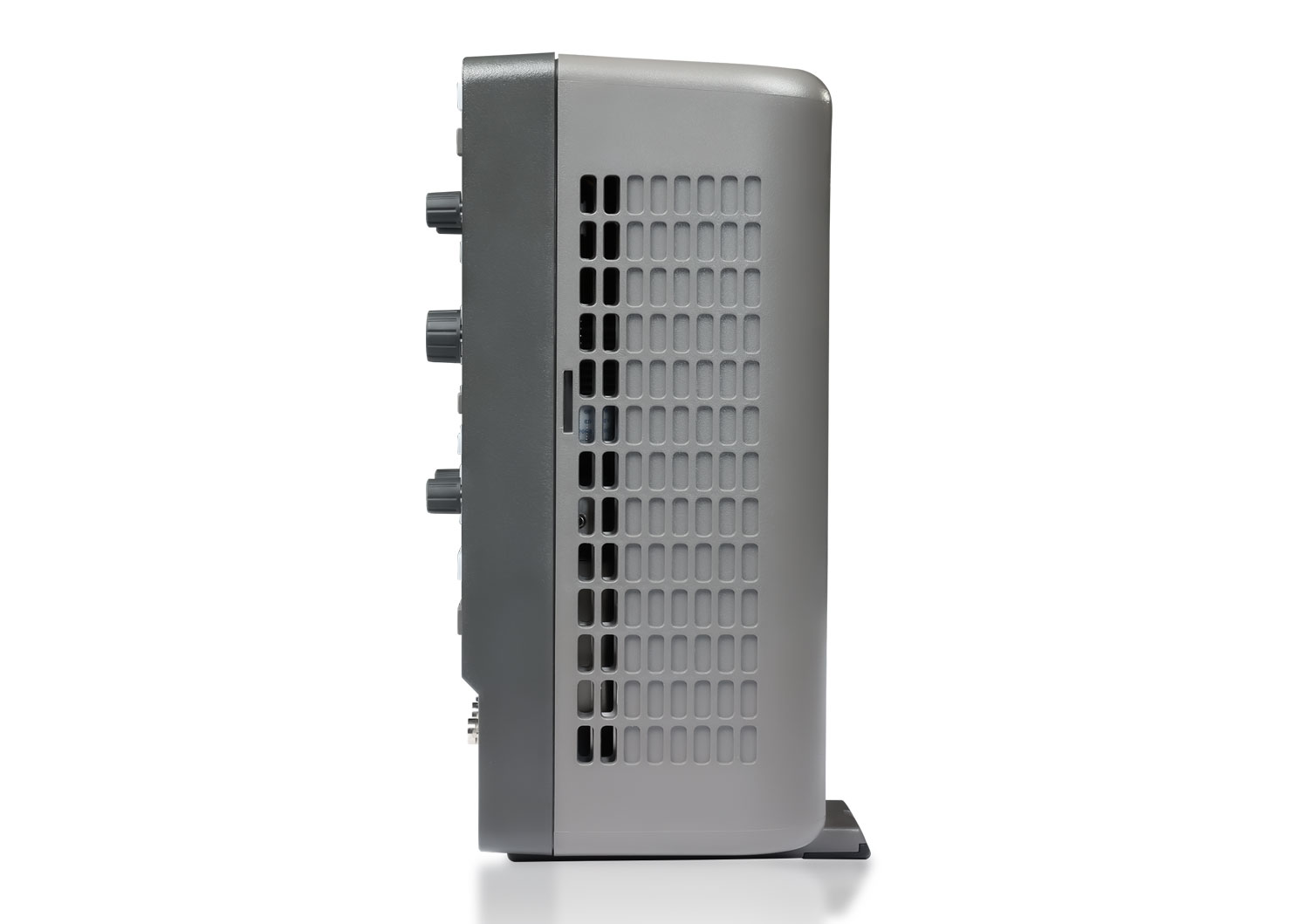

Image of Siglent s0s5000x hd side telonicuk

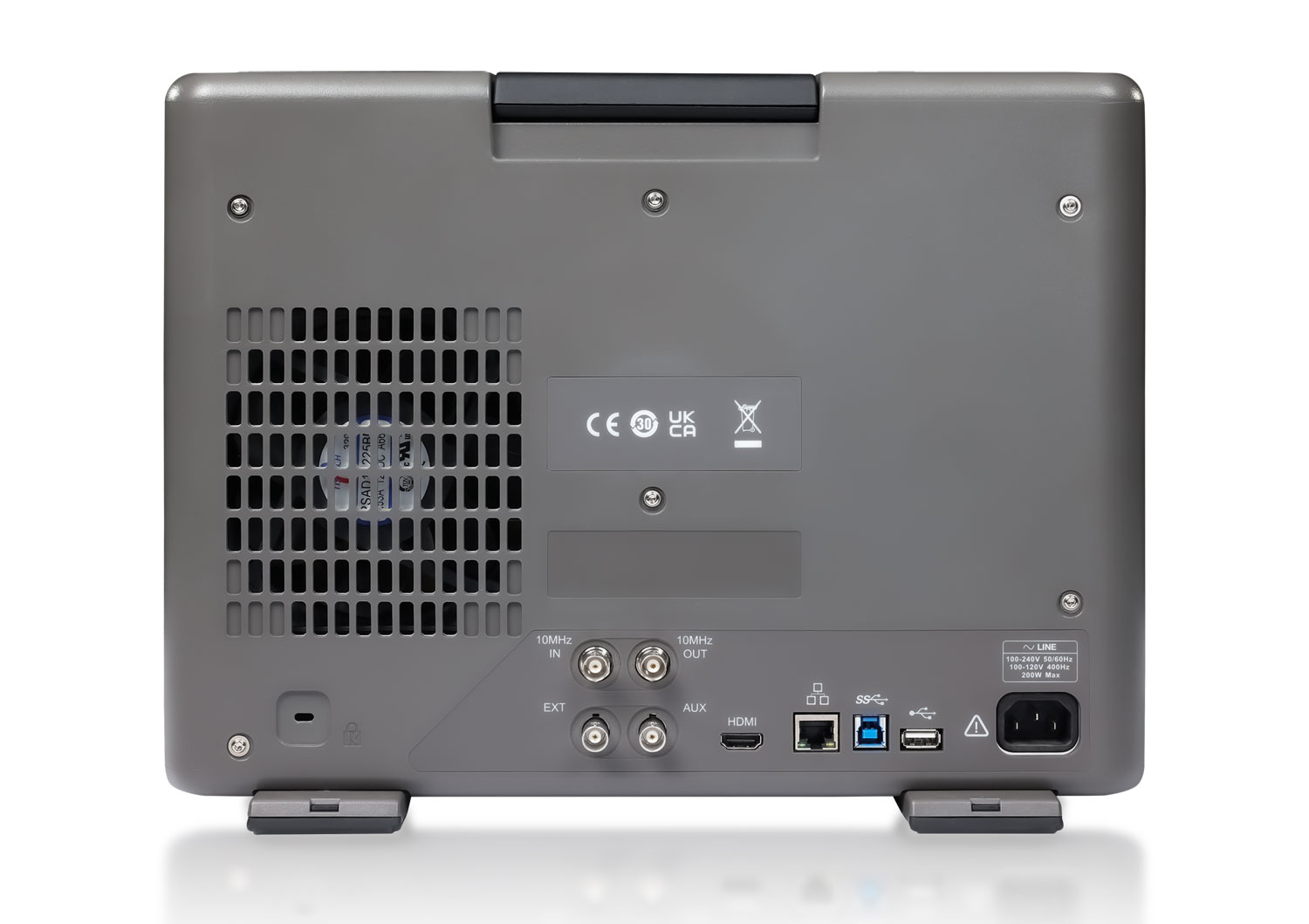

Image of Siglent s0s5000x hd back telonicuk

Siglent SDS5106X HD 6Ch, 1 GHz, 5 GSa/s, 12 Bit, high resolution oscilloscope

£12119.00 (£14542.80 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: SDS5106X-HD Categories: , Tags: , , , Brand:

Description


Siglent SDS5106X HD 6Ch, 1 GHz, 5 GSa/s, 12 Bit, high resolution oscilloscope

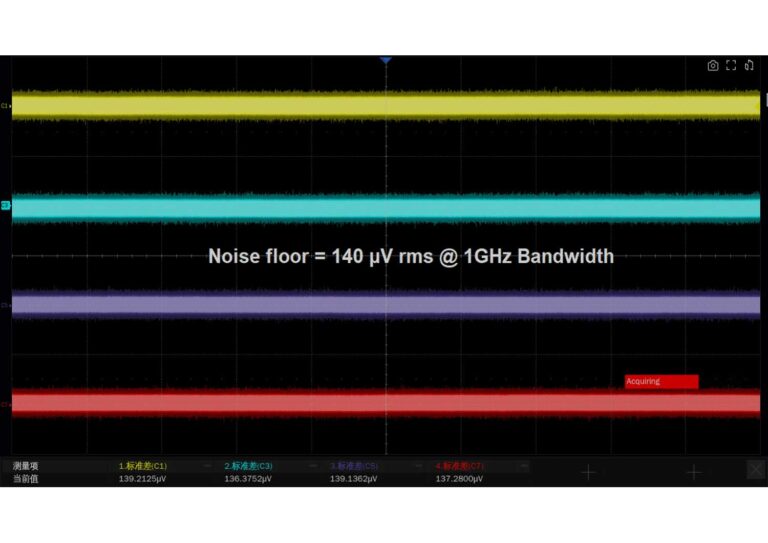

The SDS5106X HD 6Ch high resolution oscilloscope, part of the SDS5000X HD series high resolution Digital Storage Oscilloscopes are available in 4, 6 and 8 channels, bandwidths of 350 MHz, 500 MHz and 1 GHz, have 12-bit ADCs with sample rate up to 5 GSa/s, maximum record length of 2.5 Gpts/ch.

The SDS5000X HD Series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 160,000 wfm/s, 256-level intensity grading display function, plus a colour temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes, including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, and Power Analysis allow for extended waveform records to be captured, stored, and analysed. An impressive array of measurement and math capabilities, as well as serial decoding, are also features of them.
The SDS5000X HD employs a 12.1’’ capacitive touch screen and supports multi-touch gestures, with the addition of a user-friendly UI design, which can greatly improve operational efficiency.
Both the two series support remote web control over LAN. A complete SCPI command set over the standard 1000M LAN connection enables fast data acquisition, speeding automated test applications.

Product Images

Product Videos

YouTube Video

Documentation

SDS5000X-HD_SDS5000L User Manual SDS5000X-HD_SDS5000L Datasheet SDS5000X-HD_SDS5000L Quick Guide

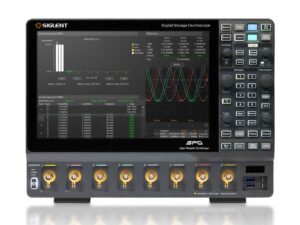

Model SDS5108X HD
SDS5106X HD
SDS5104X HD
SDS5108L		 SDS5058X HD
SDS5056X HD
SDS5054X HD
SDS5058L		 SDS5038X HD
SDS5036X HD
SDS5034X HD
SDS5038L

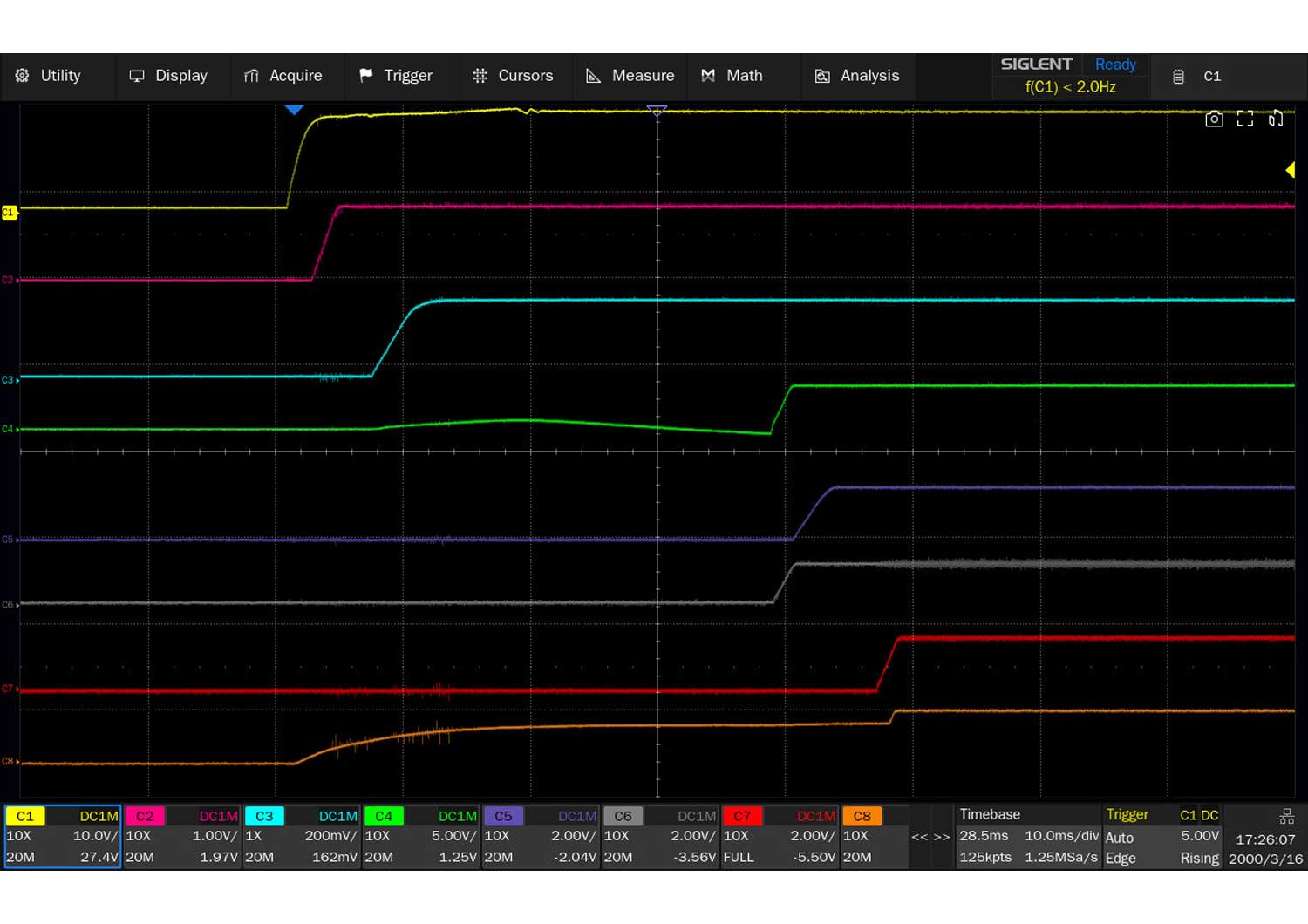

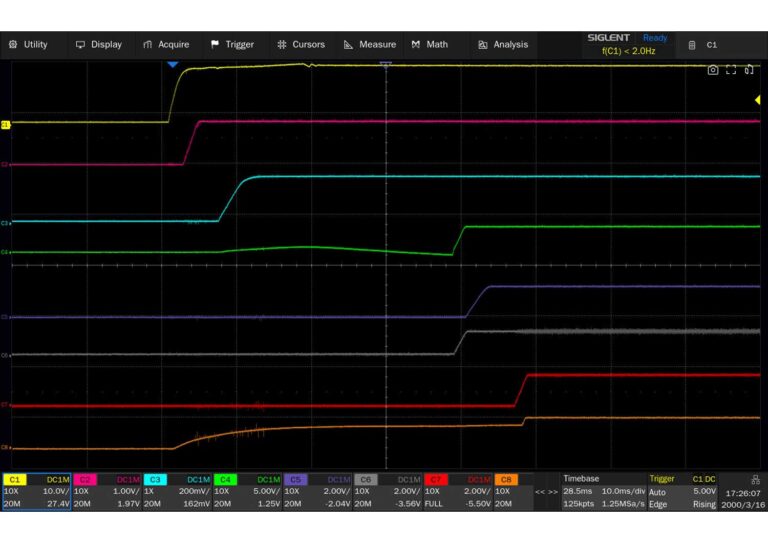

Analogue Channels 8/6/4 + EXT
Bandwidth 1GHz 500MHz 350MHz
Sample rate (Max.) 5 GSa/s(quarter channel/half channel mode)
2.5 GSa/s(full channel mode)
Vertical Resolution 12-bit
Up to 16-bit in HiRes mode
Memory depth (Max.) 2.5 Gpts/ch(quarter channel mode),
1 Gpts/ch (half channel mode)
500 Mpts/ch (full channel mode)
Waveform capture rate (Max.) Normal mode: Up to 160,000 wfm/s
Sequencemode: Up to 650,000 wfm/s
Trigger type Edge, Slope, Pulse width, Window, Runt, Interval,
Dropout, Pattern, Video, Qualified, Nth edge,
Setup/hold, Delay, Serial.
Serial trigger and decode Standard: I2C, SPI, UART, CAN, LIN

Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B,
SENT, Manchester (decode only), ARINC429
Measurement 60+ parameters. Statistics, histograms, trends, and tracks are supported
Math 8traces
8Mpts FFT, +, -, x, ÷, ∫dt, d/dt √, Identity, Negation, Absolute, Sign, ex,
10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average, Filter.
Supports formula editor
Data analysis Search, Navigate, History, Mask Test, Digital Voltmeter, Counter,

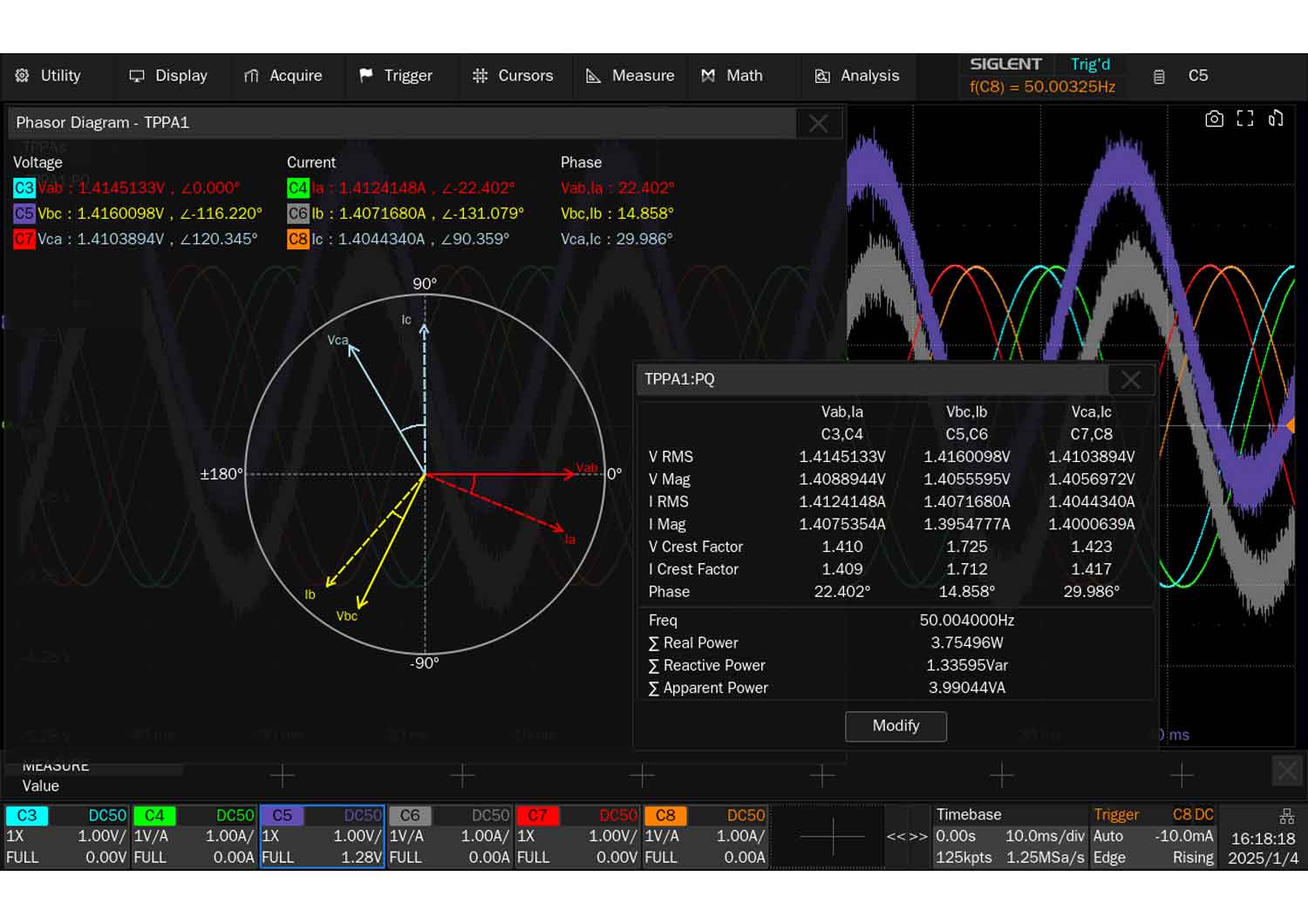

Waveform Histogram, Bode plot, Power Analysis, Double Pulse Test
Waveform generator (optional) SAG1021I USB isolated waveform generator module, frequency up to
50MHz, 125 MSa/s sample rate, 16 kpts waveform memory
Probe (Standard) 500 MHz, 1 probe supplied for each channel
Series SDS5000X HD SDS5000L
Display 12.1” TFT-LCD with capacitive touch screen (1280*800) None
Digital channel 16-channel; maximum sample rate up to 1.25GSa/s; record length up to 250 Mpts None
I/O I/O: 2x USB 3.0 Host, USB 2.0 Host, USB 3.0 Device(USBTMC), 1000M LAN
(VXI-11+SCPI, Telnet(5024)+SCPI, Socket (5025)+SCPI, LXI, WebServer)
Display: HDMIOthers: External Trigger In, Aux Out (TRIG OUT, PASS/FAIL),
10 MHz In, 10 MHz Out
I/O: USB 3.0 Host, USB 2.0 Host, USB 3.0 Device(USBTMC), 1000M LAN
(VXI-11+SCPI, Telnet(5024)+SCPI, Socket (5025)+SCPI, LXI, WebServer)
Display: HDMIOthers: External Trigger In, Aux Out (TRIG OUT, PASS/FAIL),
10 MHz In, 10 MHz Out
