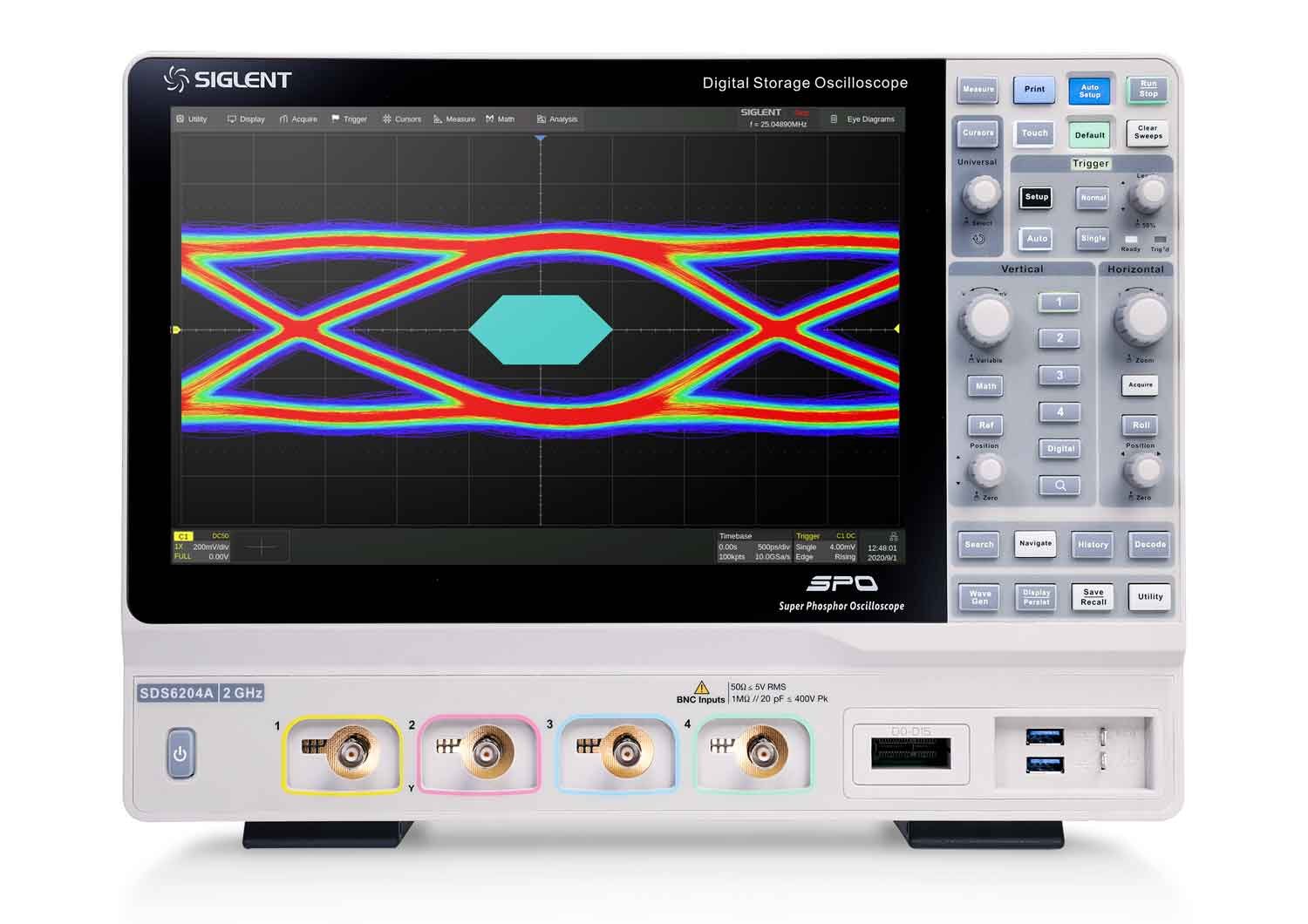

Image of Siglent sds6000a front telonic

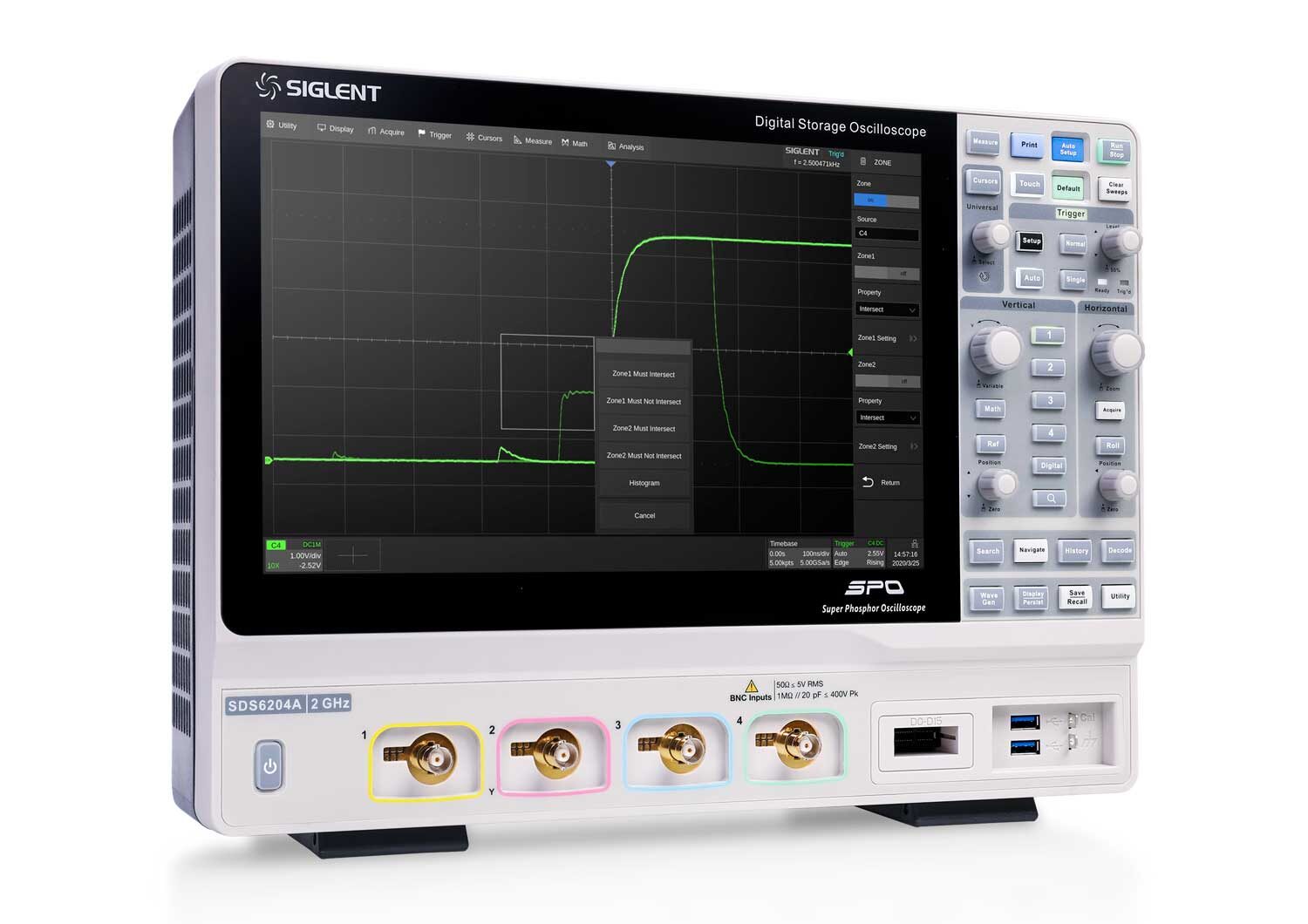

Image of Siglent sds6000a langle telonic

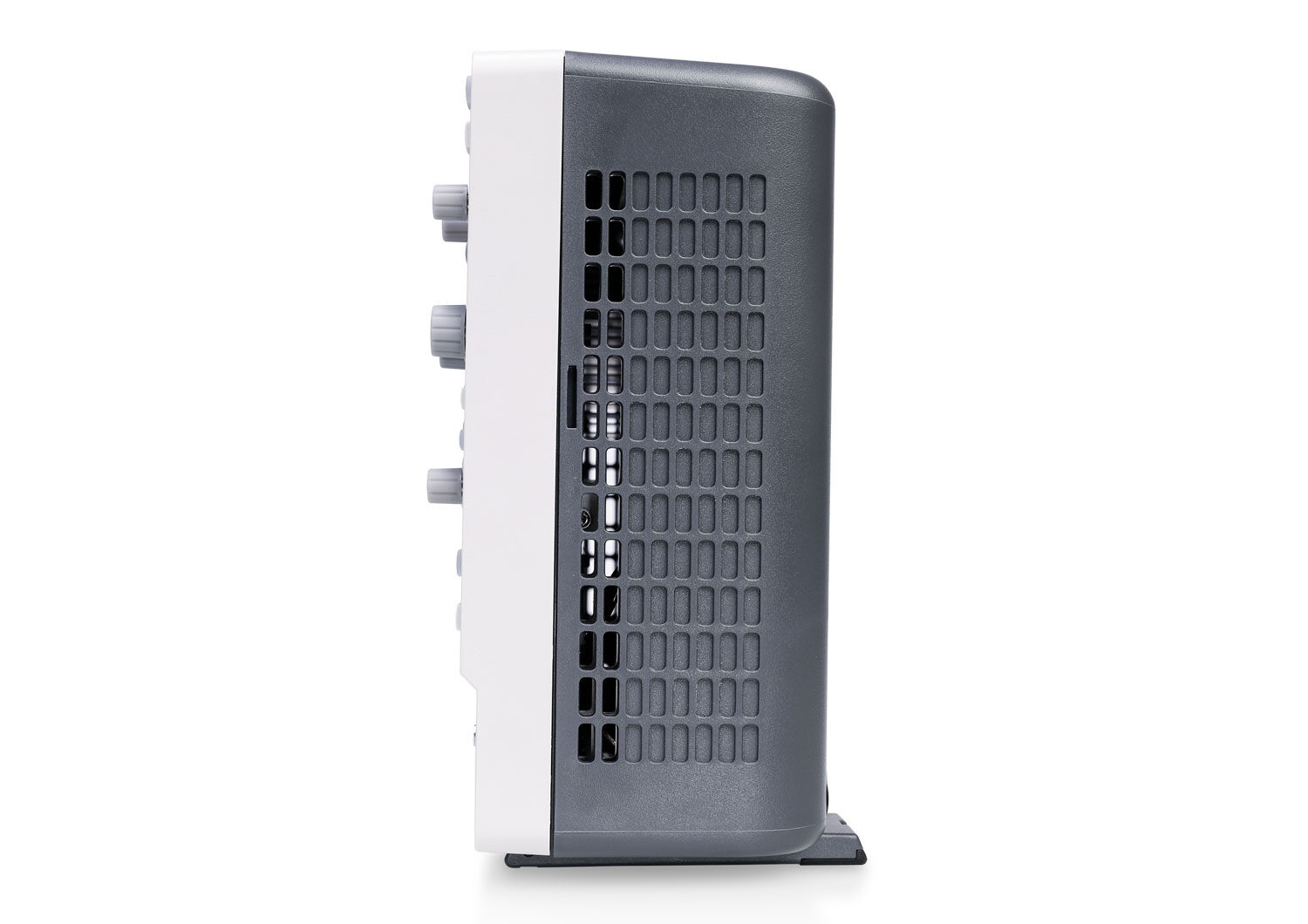

Image of Siglent sds6000a side telonic

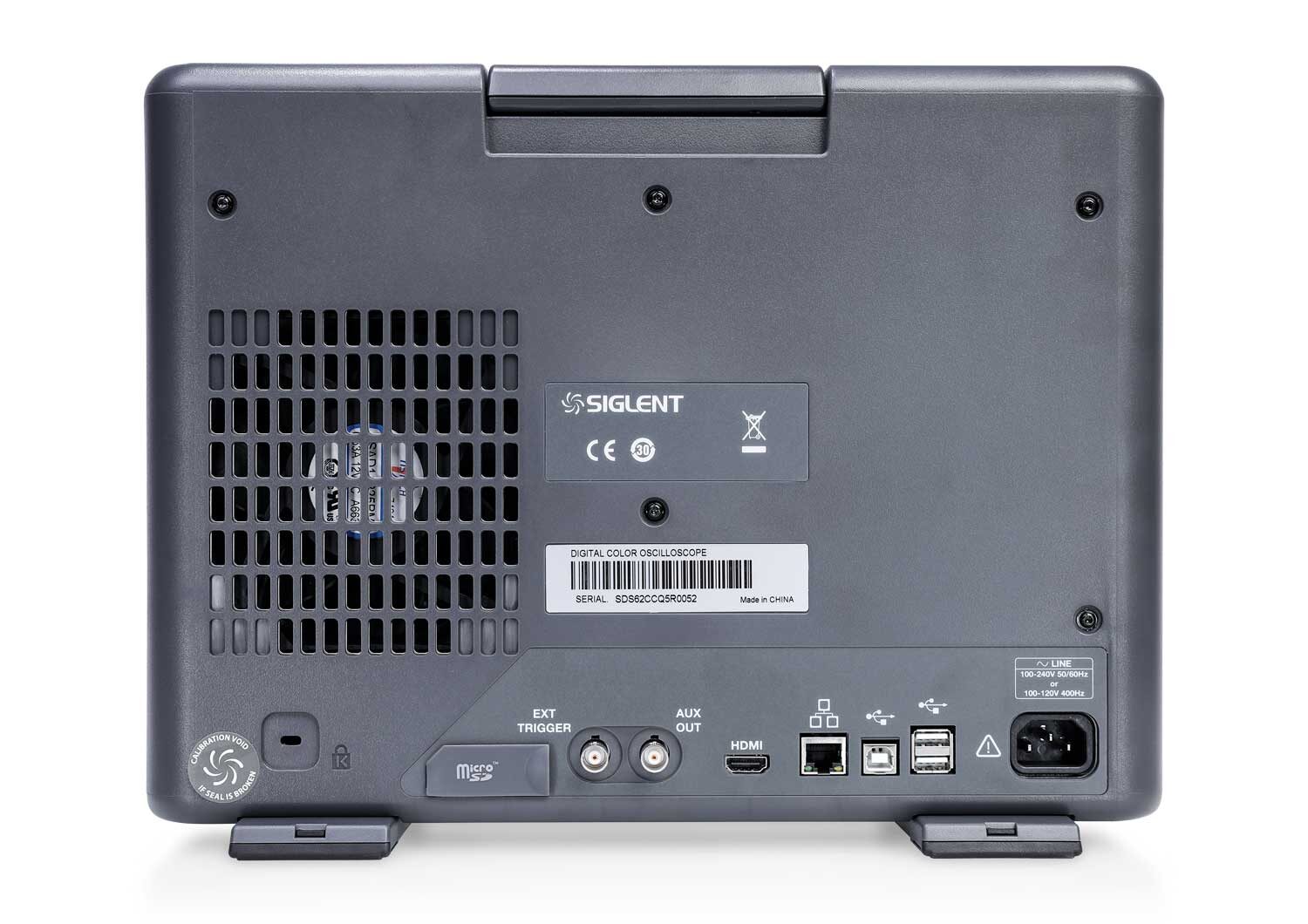

Image of Siglent sds6000a back telonic

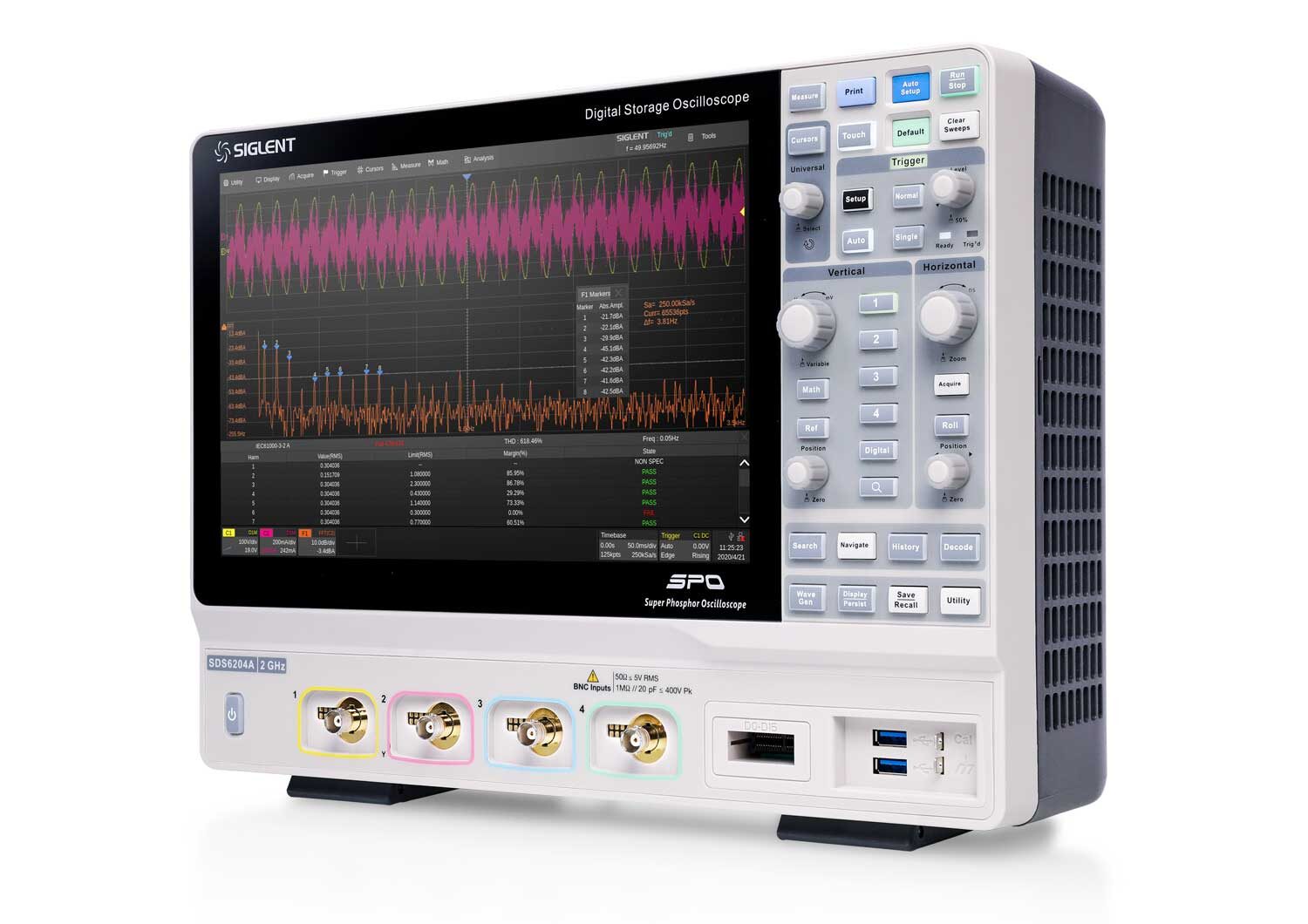

Image of Siglent sds6000a rangle telonic

Siglent SDS6204A 4Ch, 2GHz, 5/10GSa/s ESR Per Channel, Super Phosphor Oscilloscope

£8411.00 (£10093.20 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: SDS6204A Categories: , Tags: , , Brand:

Description


Siglent SDS6204A Super Phosphor Oscilloscope

Siglent SDS6204A 4Ch, 2GHz, 5/10GSa/s ESR Per Channel, Super Phosphor Oscilloscope. The SDS6000A series Digital Storage Oscilloscopes are available in bandwidths of 2 GHz, 1 GHz and 500 MHz, have sample rate of 5 GSa/s (10 GSa/s ESR) at each channel, maximum record length of 500 Mpts/ch, and display up to 4 analogue channels + 16 digital channels mixed signal analysis ability.

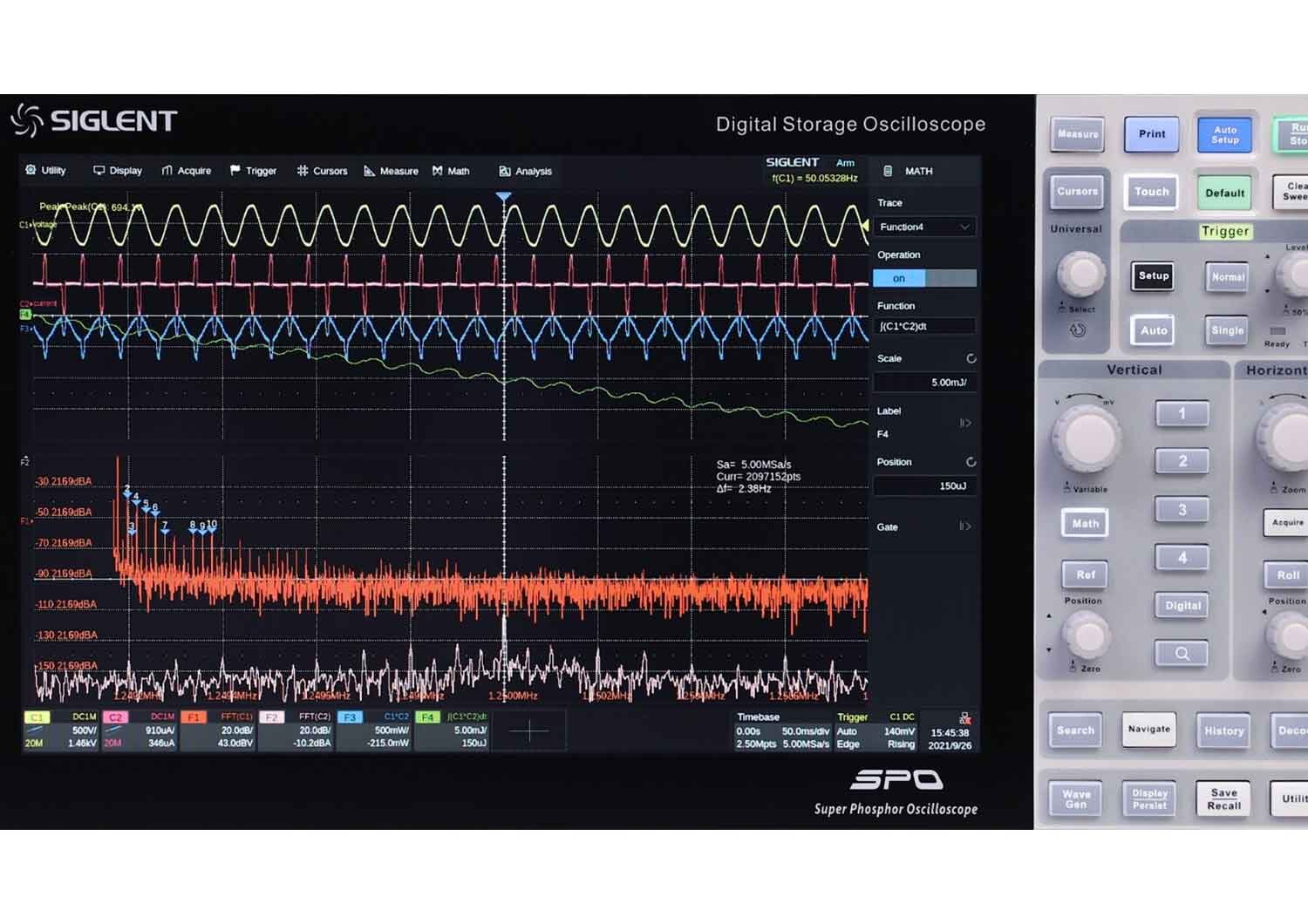

The SDS6000A series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 170,000 wfm/ s (normal mode, up to 750,000 wfm/s in Sequence mode), 256- level intensity grading display function plus a colour temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering.

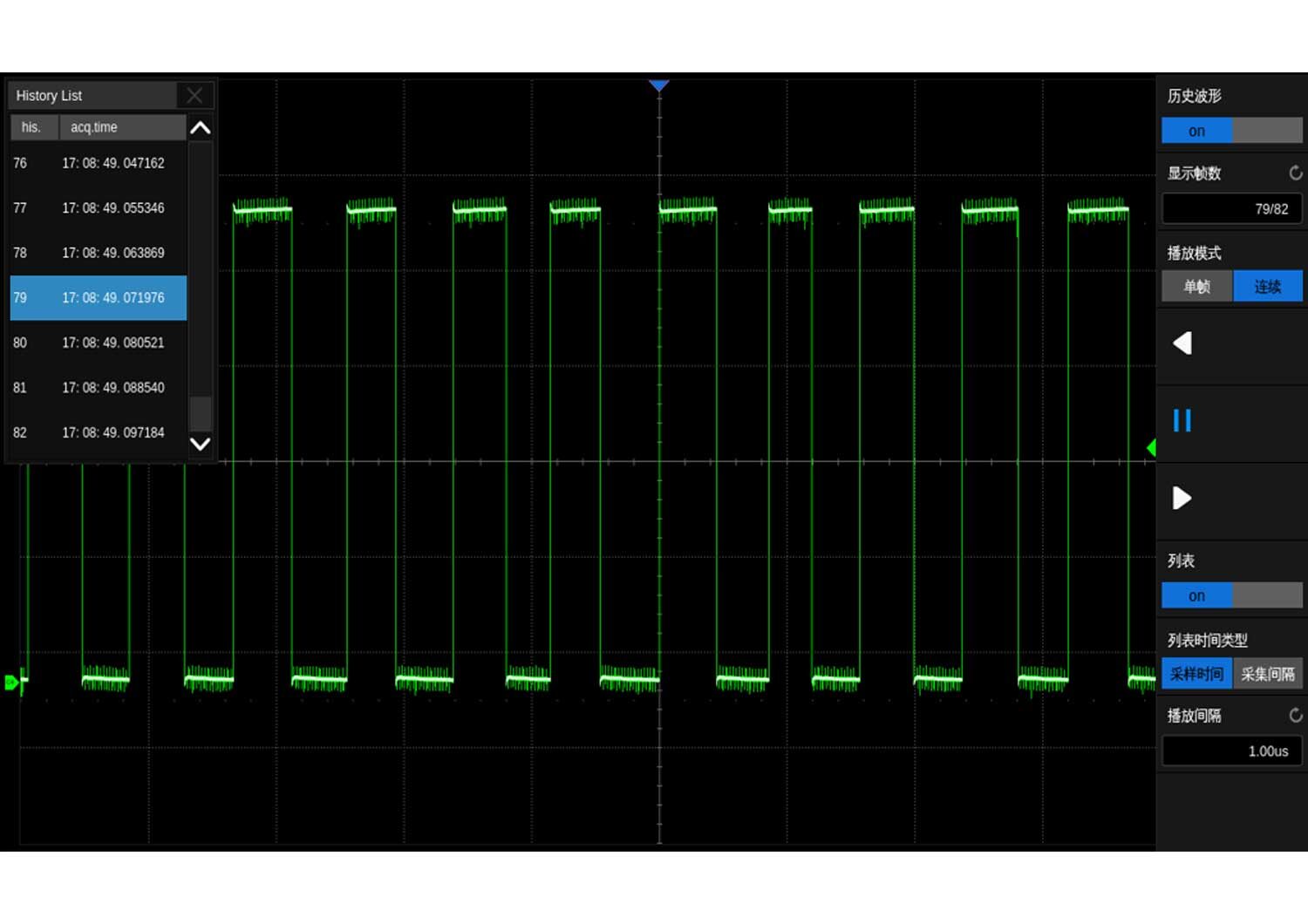

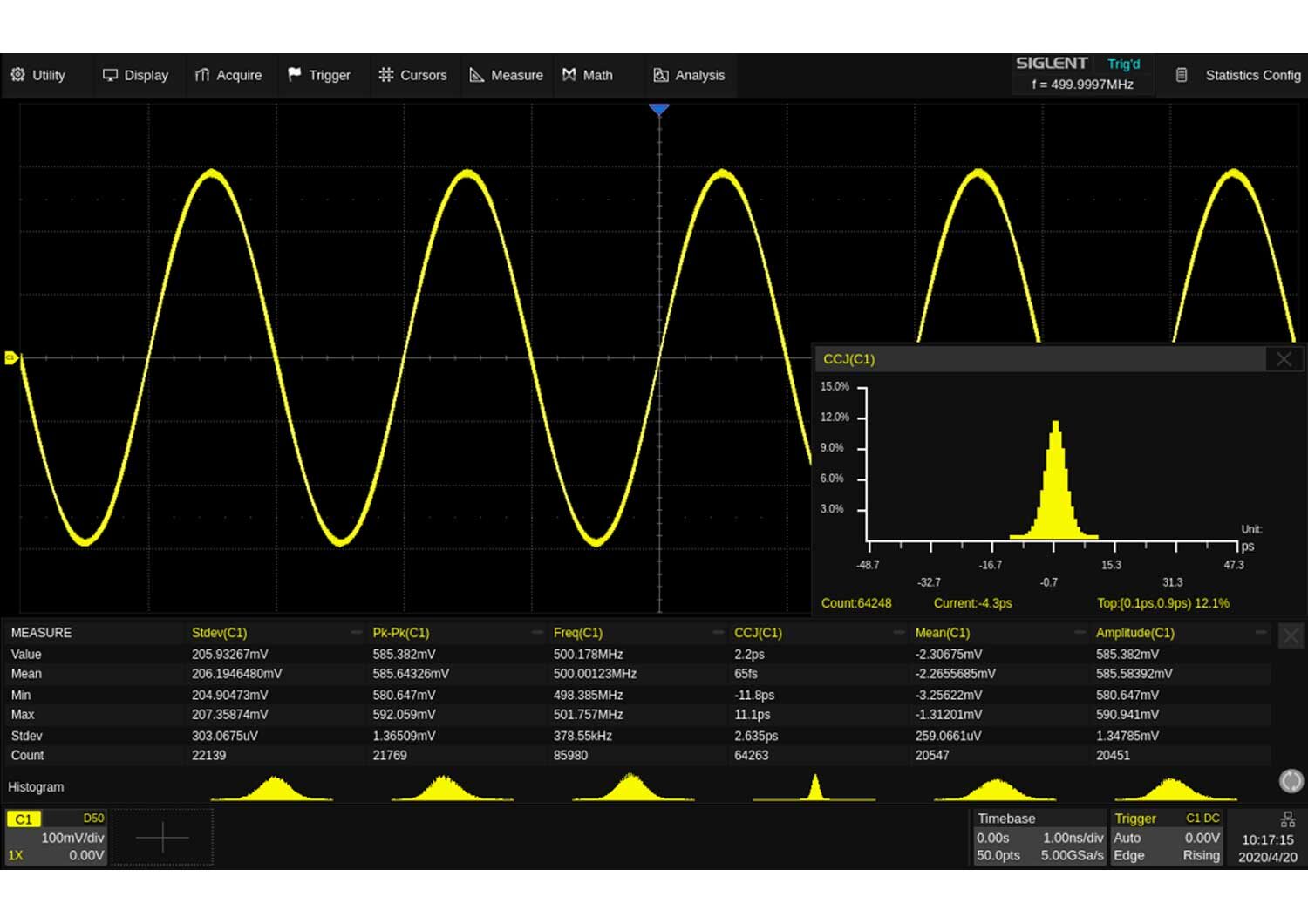

Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and Eye/Jitter Analysis allow for extended waveform records to be captured, stored, and analysed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS6000A.

The large 12.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.

Product Images

Product Videos

YouTube Video

Documentation

SDS6000A User Manual SDS6000A Datasheet SDS6000A Quick Guide
Acquire System (Analogue Channel)
Sample Rate 5 GSa/s (10 GSa/s (ESR*1) @ each channel
Memory Depth 500 Mpts/ch（single-channel）
250 Mpts/ch (dual-channel)
125 Mpts/ch (3 or 4 channels)
Waveform update
rate		 Normal mode：up to 170,000 wfm/s
Sequence mode：up to 750,000 wfm/s
Intensity grading 256-level
Peak Detect 200 ps
Average 4, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096, 8192
Hi-res Enhanced bit: 1, 2, 3, 4, 5, 6, 7, 8 bit

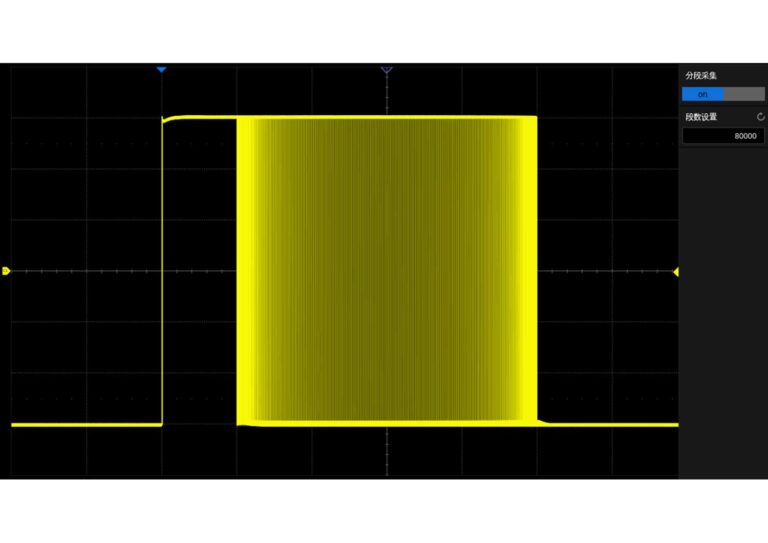

Sequence Up to 80,000 segments, interval between triggers = 1.3 μs min.

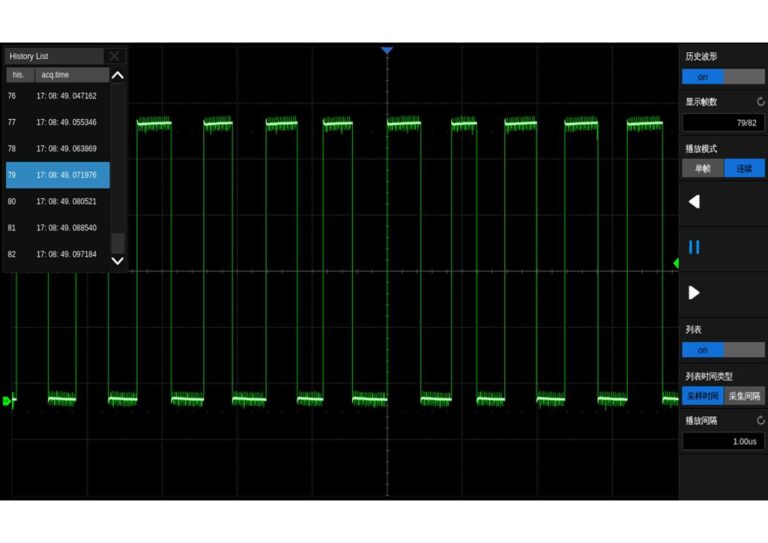

History Up to 80,000 frames
Interpolation sinx/x, x
Vertical System (Analogue Channel)
Bandwidth (-3dB) @50 Ω 2GHz/1GHz/500MHz
Rise time (typical) @50 Ω 230ps/350ps/550ps
Resolution 8-bit, up to 16-bit in Hi-Res mode
Bandwidth in HiRes mode 9-bit: 0.25*Sample rate, up to the analog bandwidth
10-bit: 0.115*Sample rate, up to 1.15 GHz, limited by the analog bandwidth
11-bit: 0.055*Sample rate, up to 550 MHz, limited by the analog bandwidth
12-bit: 0.028*Sample rate, up to 280 MHz
13-bit: 0.014*Sample rate, up to 140 MHz
14-bit: 0.007*Sample rate, up to 70 MHz
15-bit: 0.0035*Sample rate, up to 35 MHz
16-bit: 0.0017*Sample rate, up to 17 MHz
Range 8 divisions
Vertical scale
(probe 1X)		 1 MΩ: 0.5 mV/div – 10 V/div
50 Ω: 0.5 mV/div – 1 V/div
DC gain accuracy ±1.5%
Offset accuracy ± (1% of the offset setting + 0.5 full scale + 0.02% of max offset + 1mV)
Offset range
(probe 1X)		 1 MΩ: 0.5 mV/div ~ 5 mV/div: ±1.6 V; 5.1 mV/div ~ 10 mV/div: ±4 V; 10.2 mV/div ~ 20 mV/div : ±8 V; 20.5
mV/div ~ 100 mV/div: ±16 V；102 mV/div ~ 200 mV/div: ±80V; 205 mV/div ~ 1 V/div: ±160 V;1.02 V/div ~
10 V/div: ±400 V
50 Ω: 0.5 mV/div ~ 5 mV/div: ±1.6 V; 5.1 mV/div ~ 10 mV/div: ±4 V; 10.2 mV/div ~ 20 mV/div: ±8 V; 20.5
mV/div ~ 100 mV/div: ±10 V
Bandwidth limit Hardware Bandwidth limit: 20MHz, 200MHz
Coupling DC, AC, GND
Impedance (1 MΩ ±2%) || (20 pF ±3 pF)
50 Ω: 50 Ω ±2%
Low frequency
response (AC
coupling -3 dB)		 6 Hz (typical)
Overshoot (100
mV/div, 150 ps
edge @50 Ω,
typical)		 15%/10%/5%
Max. Input
voltage		 1 MΩ ≤ 400 Vpk(DC + AC), DC ~ 10 kHz
50 Ω ≤ 5 Vrms, ±10V Peak
SFDR ≥ 45dBc
CH to CH
Isolation (@50Ω)		 70 dB up to 200 MHz
60 dB up to 500 MHz
50 dB up to 1 GHz
40 dB up to 2 GHz
Probe Attenuation 1X, 10X, 100X, custom
Horizontal System
Time Scale SDS6204A: 0.1 ns/div – 1000 s/div SDS6104A: 0.2 ns/div – 1000 s/div SDS6104A: 0.5 ns/div – 1000 s/div
Range 10 divisions
Display Mode Y-T, X-Y, Roll
Roll Mode ≥ 50 ms/div
Skew (CH1~CH4) < 100 ps
Time Base Accuracy ±2 ppm initial (0~50℃);±0.5 ppm 1st year aging; ±3 ppm 20-year aging
Trigger System
Mode Auto, Normal, Single
Level Internal: ±4.5 div from the center of the screen
EXT: ±0.61 V
EXT/5: ±3.05 V
Hold Off Range By time: 8 ns ~ 30 s (8 ns step)
By event: 1 ~ 108
Coupling CH1~CH4
DC: Passes all components of the signal
AC: Blocks DC components and attenuates signals below 15 Hz
LFRJ: Attenuates the frequency components below 2.4 MHz
HFRJ: Attenuates the frequency components above 1.3 MHz
Noise RJ: Increases the trigger hysteresis
EXT
DC: Passes all components of the signal
AC: Blocks DC components and attenuates signals below 15 Hz
LFRJ: Attenuates the frequency components below 2.5 MHz
HFRJ: Attenuates the frequency components above 1.3 MHz
Accuracy (typical) CH1～CH4: ±0.2 div
EXT: ±0.3 div
Jitter CH1～CH4:
< 9 ps RMS (typical) for ≥ 300 MHz sine and ≥ 6 divisions peak to peak amplitude for vertical gain settings
from 2.5 mV/div to 10 V/div
< 5 ps RMS (typical) for ≥ 500 MHz sine and ≥ 6 divisions peak to peak amplitude for vertical gain settings
from 2.5 mV/div to 10 V/div
EXT: < 200 ps rms
Displacement Pre-Trigger: 0 ~ 100% memory

Delay-Trigger: 0 ~ 5,000 div
Zone Up to 2 zones
Source: CH1~CH4
Property: Intersect, Not Intersect
Edge Trigger
Source CH1~CH4/EXT/(EXT/5)/AC Line/D0~D15
Slope Rising, Falling, Rising & Falling
Slope Trigger
Source CH1~CH4
Slope Rising, Falling
Limit range <, >, in range, out of range
Time range 2ns ～ 20s，Resolution = 1 ns
Pulse Width Trigger
Source CH1~CH4/D0~D15
Polarity +wid, -wid
Limit range <, >, in range, out of range
Time range 2ns ～ 20s，Resolution = 1 ns
Video Trigger
Source CH1~CH4
Standard NTSC, PAL, 720p/50, 720p/60, 1080p/50, 1080p/60, 1080i/50, 1080i/60, Custom
Synchronization Any, Select
Trigger Condition Line, Field
Window Trigger
Source CH1~CH4
Window type Absolute, Relative
Interval Trigger
Source CH1~CH4/D0~D15
Slope Rising, Falling
Limit range <, >, in range, out of range
Time range 2ns ～ 20s，Resolution = 1 ns
Dropout Trigger
Source CH1~CH4/D0~D15
Timeout type Edge, State
Slope Rising, Falling
Time range 2ns ～ 20s，Resolution = 1 ns
Runt Trigger
Source CH1~CH4
Polarity Positive, Negative
Limit range <, >, in range, out of range
Time range 2ns ～ 20s，Resolution = 1 ns
Pattern Trigger
Source CH1~CH4/D0~D15
Pattern Setting Don’t Care, Low, High
Logic AND, OR, NAND, NOR
Limit range <, >, in range, out of range
Time range 2ns ～ 20s，Resolution = 1 ns
Qualified Trigger
Type State, State with Delay, Edge, Edge with Delay
Qualified Source CH1~CH4/D0~D15
Edge Trigger Source CH1~CH4/D0~D15
Nth Edge Trigger
Source CH1~CH4/D0~D15
Slope Rising, Falling
Idle time 8ns ～ 20s，Resolution = 1 ns
Edge Number 1 ～ 65535
Delay Trigger
Source A CH1~CH4/D0~D15
Source B CH1~CH4/D0~D15
Slope Rising, Falling
Limit range <, >, in range, out of range
Time range 2ns ～ 20s，Resolution = 1 ns
Serial Trigger
Source CH1~CH4/D0~D15
Protocol Standard: I2C, SPI, UART, CAN, LIN
Optional: CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT
I2C Type: Start, Stop, Restart, No Ack, EEPROM, Address & Data, Data Length
SPI Type: Data
UART Type: Start, Stop, Data, Parity Error
CAN Type: All, Remote, ID, ID+Data, Error
LIN Type: Break, Frame ID, ID+Data, Error
CAN FD（Optional） Type: Start, Remote, ID, ID+Data, Error
FlexRay（Optional） Type: TSS, Frame, Symbol, Errors
I2S（Optional） Type: Data, Mute, Clip, Glitch, Rising Edge, Falling Edge
MIL-STD-1553B (Optional） Type：Transfer, Word, Error, Timing
SENT（Optional） Type：Start, Slow channel, Fast channel, Error

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
