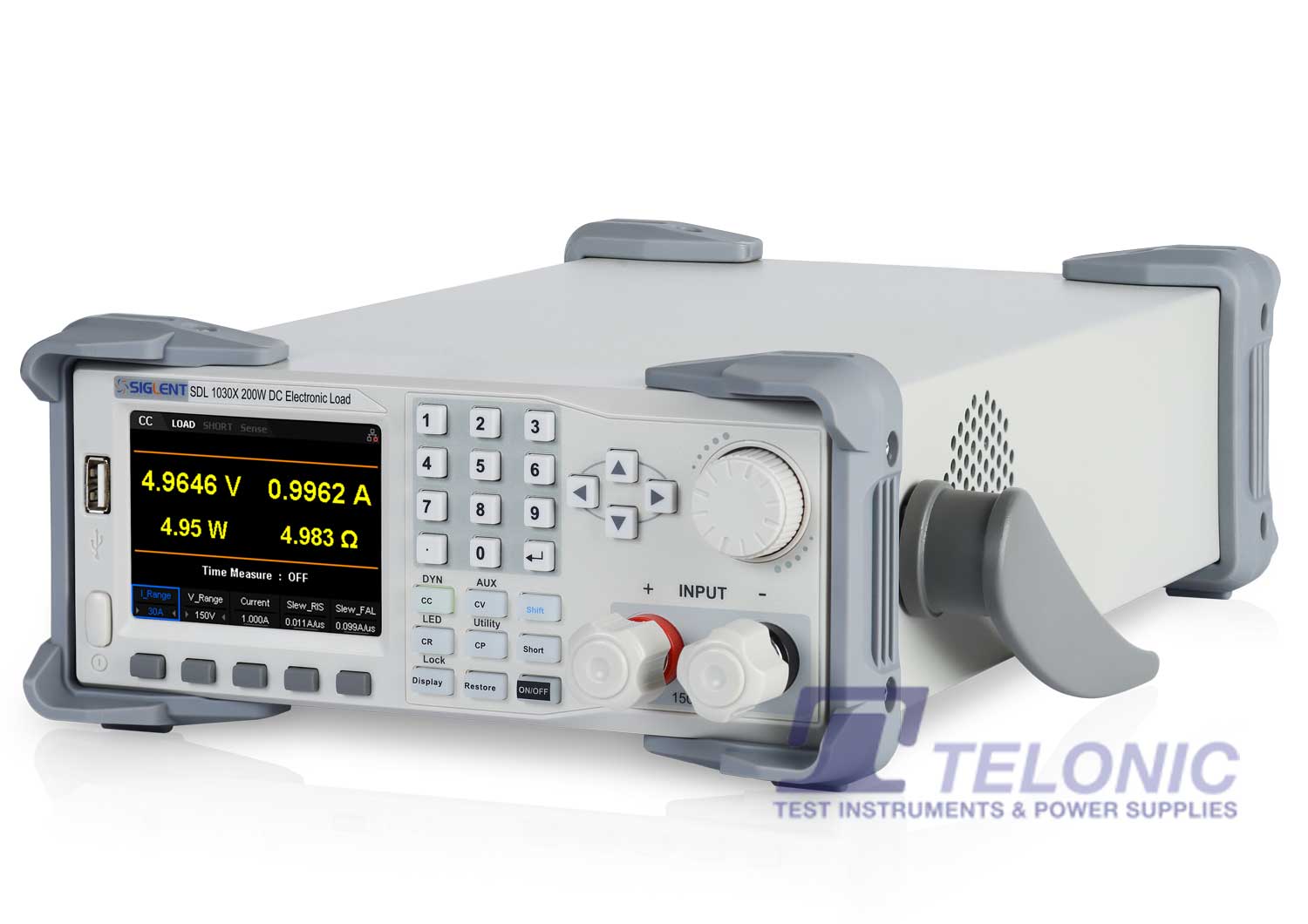

Siglent SDL1030X E ElectronicLoad Left

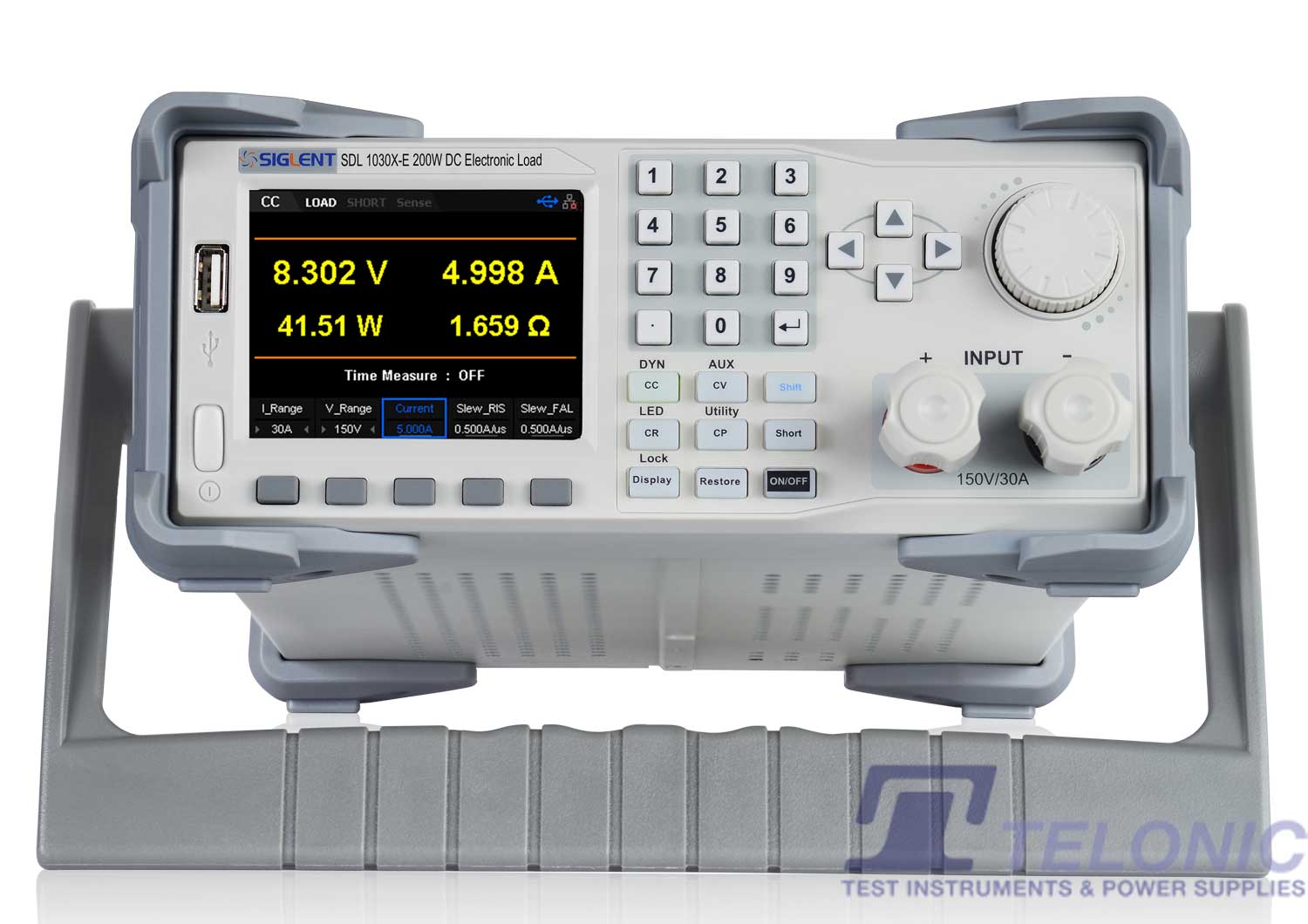

Siglent SDL1030X E ElectronicLoad Stand
Siglent SDL1000X E Electronic Load Rear

Siglent SDL1030X-E Programmable DC Electronic Load 150V, 30A, 300W

(1 customer review)

£639.00 (£766.80 inc. VAT)

4 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: SDL1030X-E Categories: , Tags: , Brand:

Description


Siglent SDL1030X-E DC Electronic Load

The SDL1030X-E is a 150V, 30A, 300W DC Electronic Load. The SDL1000X/SDL1000X-E series Programmable DC Electronic Load has a 3.5 inch TFT-LCD display, a user friendly interface, and superb performance specifications. The SDL1020X/SDL1020X-E models feature an input range of 150V/30A/200W while the SDL1030X/SDL1030X-E have an input range of 150V/30A/300W. The SDL1000X series leads with a measurement resolution of 0.1mV/0.1mA and the base SDL1000X-E series resolution is 1mV/1mA and adjustable current rise times from 0.001 A/ฮผs~2.5 A/ฮผs. For remote communication and control, the SDL series includes RS232/USB/LAN interface types. The SDL1000X series delivers stability over a wide range of applications and can meet all kinds of testing requirements. Including Power, battery/handheld device design, industry, LED lighting, automotive electronics, and aerospace.

Product Images

Product Videos

YouTube Video

Documentation


SDL1020X Specifications
Model SDL1020X SDL1020X-E
Input Rating (0~40 โ„ƒ )
Input voltage 0~150 V 0~150 V
Input current 0~5 A, 0~30 A 0~5 A, 0~30 A
Input power 200W 200W
Minimum Operating Voltage (DC) 0.15 V at 5 A, 0.9 V at 30 A 0.15 V at 5 A, 0.9 V at 30 A
CV Mode
Range 0~36 V, 0~150 V 0~36 V, 0~150 V
Resolution 1mV 1mV
Accuracy ยฑ (0.05%+0.025%FS) 50 ppm/โ„ƒ ยฑ (0.05%+0.025%FS) 50 ppm/โ„ƒ
CC Mode
Range 0~5 A, 0~30 A 0~5 A, 0~30 A
Resolution 1 mA 1 mA
Accuracy ยฑ (0.05%+0.05%FS) 100 ppm/โ„ƒ ยฑ (0.1%+0.1%FS) 100 ppm/โ„ƒ
CR Mode
Range 0.03 ฮฉ~10 kฮฉ 0.03 ฮฉ~10 kฮฉ
Resolution 1mA/Vsense 1mA/Vsense
Accuracy 0.01%+0.0008 s 0.01%+0.0008 s
CP Mode
Range 200W 200W
Resolution 10mW 10mW
Accuracy 0.1%+0.1% FS 0.1%+0.1% FS
SDL1030X Specifications
Model SDL1030X SDL1030X-E
Input Rating (0~40 โ„ƒ )
Input voltage 0~150 V 0~150 V
Input current 0~5 A, 0~30 A 0~5 A, 0~30 A
Input power 300W 300W
Minimum Operating Voltage (DC) 0.15 V at 5 A, 0.9 V at 30 A 0.15 V at 5 A, 0.9 V at 30 A
CV Mode
Range 0~36 V, 0~150 V 0~36 V, 0~150 V
Resolution 1mV 1mV
Accuracy ยฑ (0.05%+0.025%FS) 50 ppm/โ„ƒ ยฑ (0.05%+0.025%FS) 50 ppm/โ„ƒ
CC Mode
Range 0~5 A, 0~30 A 0~5 A, 0~30 A
Resolution 1 mA 1 mA
Accuracy ยฑ (0.05%+0.05%FS) 100 ppm/โ„ƒ ยฑ (0.1%+0.1%FS) 100 ppm/โ„ƒ
CR Mode
Range 0.03 ฮฉ~10 kฮฉ 0.03 ฮฉ~10 kฮฉ
Resolution 1mA/Vsense 1mA/Vsense
Accuracy 0.01%+0.0008 s 0.01%+0.0008 s
CP Mode
Range 300W 300W
Resolution 10mW 10mW
Accuracy 0.1%+0.1% FS 0.1%+0.1% FS

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the โ€˜Documentationโ€™ tab.
