Siglent SDL1020X Programmable DC Electronic Load 150V, 30A, 200W

£537.00 (£644.40 inc VAT)

4 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee

Description


Siglent SDL1020X DC Electronic Load

The SDL1020X is a 150V, 30A, 200W DC Electronic Load. The SDL1000X/SDL1000X-E series Programmable DC Electronic Load has a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications. The SDL1020X/SDL1020X-E models feature an input range of 150 V/30 A 200 W. The SDL1000X series leads with measurement resolution of 0.1 mV/0.1 mA and adjustable current rise times from 0.001 A/μs~2.5 A/μs. For remote communication and control, the SDL series includes RS232/USB/LAN interface types. The SDL1000X series delivers stability over a wide range of applications and can meet all kinds of testing requirements. including: Power, battery/handheld device design, industry, LED lighting, automotive electronics, and aerospace.

  • SDL1020X (Single Channel): DC 150V/30A, total power up to 200W

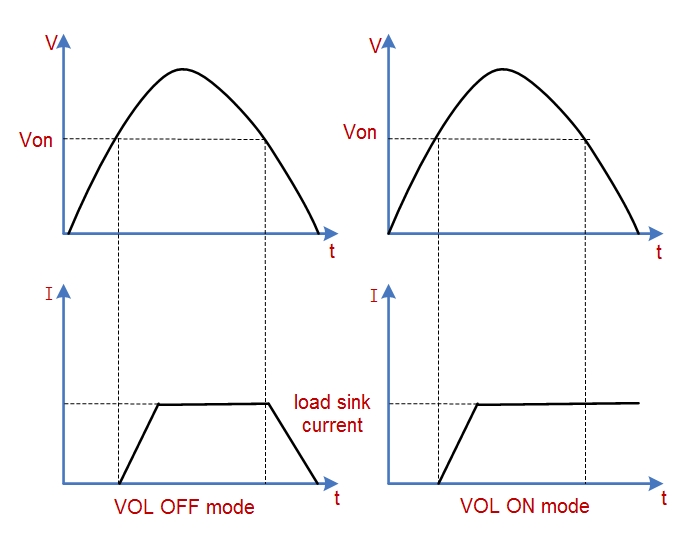

  • 4 Static modes / Dynamic mode: CC/CV/CR/CP
  • CC Dynamic mode: Continuous, pulsed, toggled
  • CC Dynamic mode: 25kHz, CP Dynamic mode: 12.5kHz, CV Dynamic mode: 0.5Hz
  • Measuring speed of voltage and current: up to 500kHz

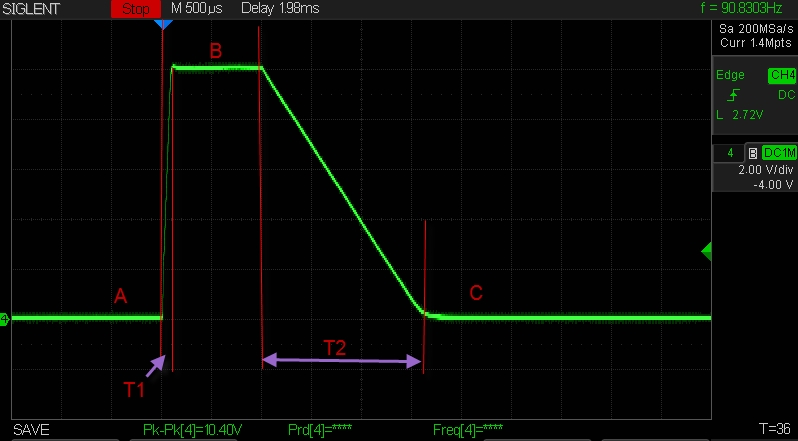

  • Adjustable current rise time range:  0.001 A/us~2.5 A/us
  • Min. readback resolution: 0.1mV, 0.1mA

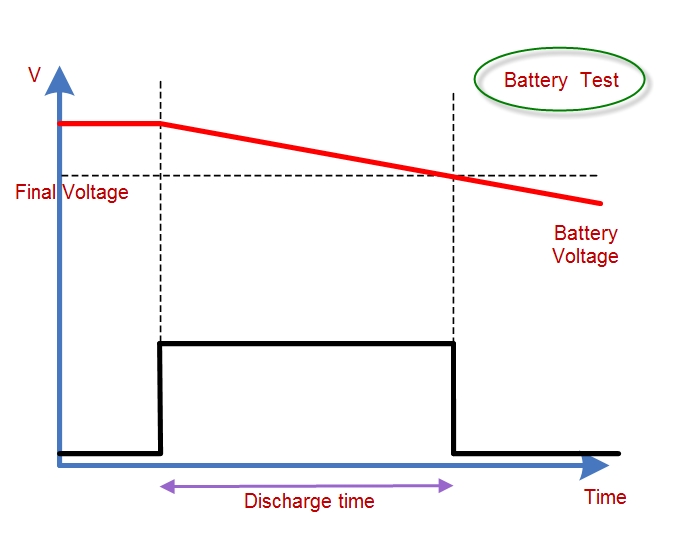

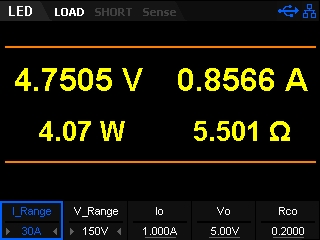

  • Short-circuit, Battery test, CR-LED mode, and factory test functions

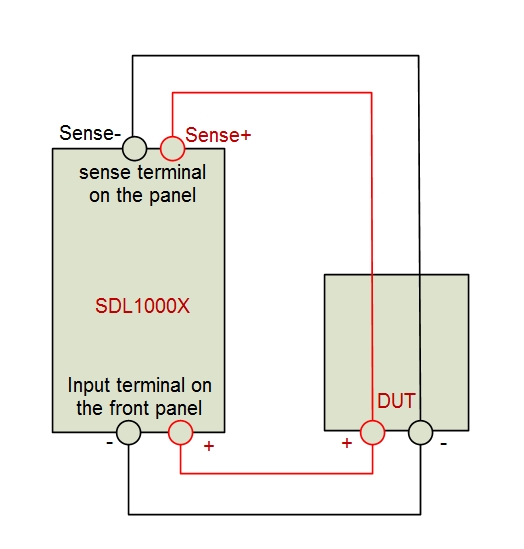

  • 4-wire SENSE compensations mode function

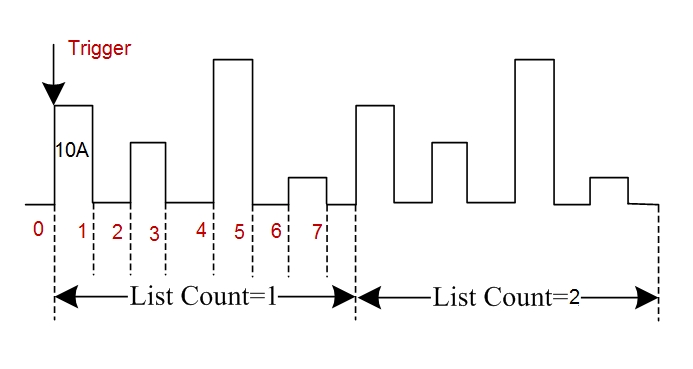

  • List function supports editing as many as 100 steps

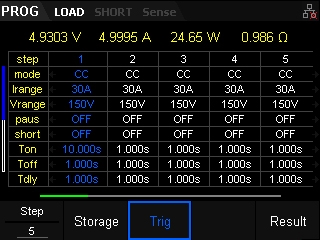

  • Program function supports 50 groups of steps

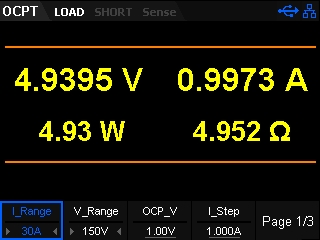

  • OCP,OVP,OPP,OTP and LRV protection
  • External analogue control
  • Voltage, Current monitoring via 0-10V
  • 3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously
  • Built-in RS232/USB/LAN communication interface, USB-GPIB module (Optional)

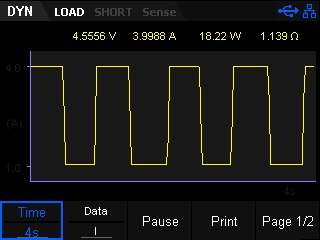

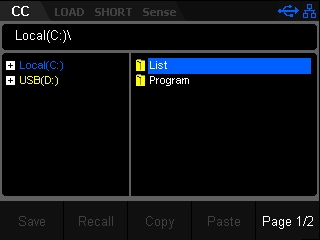

  • Waveform trend chart and easy-to-use file storage and call functions
  • Includes PC software: Supports SCPI, LabView driver

Siglent SDL1000X DC Electronic Load Comparison Table

ModelInput Voltage/Current/PowerModeCC Dynamic Mode FrequencyMeasuring SpeedCurrent Slew RateMin. Readback Resolution
SDL1020X-E150V / 30A / 200WCC/CV/CR/CP25kHzUp to 500kHz0.001 A/us~2.5 A/us1 mV, 1 mA
SDL1020X150V / 30A / 200WCC/CV/CR/CP25kHzUp to 500kHz0.001 A/us~2.5 A/us1 mV, 1 mA
SDL1030X-E150V / 30A / 300WCC/CV/CR/CP25kHzUp to 500kHz0.001 A/us~2.5 A/us1 mV, 1 mA
SDL1030X150V / 30A / 300WCC/CV/CR/CP25kHzUp to 500kHz0.001 A/us~2.5 A/us1 mV, 1 mA

Product Videos

Documentation

SDL1020X Specifications
ModelSDL1020XSDL1020X-E
Input Rating (0~40 ℃ )
Input voltage0~150 V0~150 V
Input current0~5 A, 0~30 A0~5 A, 0~30 A
Input power200W200W
Minimum Operating Voltage (DC)0.15 V at 5 A, 0.9 V at 30 A0.15 V at 5 A, 0.9 V at 30 A
CV Mode
Range0~36 V, 0~150 V0~36 V, 0~150 V
Resolution1mV1mV
Accuracy± (0.05%+0.025%FS) 50 ppm/℃± (0.05%+0.025%FS) 50 ppm/℃
CC Mode
Range0~5 A, 0~30 A0~5 A, 0~30 A
Resolution1 mA1 mA
Accuracy± (0.05%+0.05%FS) 100 ppm/℃± (0.1%+0.1%FS) 100 ppm/℃
CR Mode
Range0.03 Ω~10 kΩ0.03 Ω~10 kΩ
Resolution1mA/Vsense1mA/Vsense
Accuracy0.01%+0.0008 s0.01%+0.0008 s
CP Mode
Range200W200W
Resolution10mW10mW
Accuracy0.1%+0.1% FS0.1%+0.1% FS
SDL1030X Specifications
ModelSDL1030XSDL1030X-E
Input Rating (0~40 ℃ )
Input voltage0~150 V0~150 V
Input current0~5 A, 0~30 A0~5 A, 0~30 A
Input power300W300W
Minimum Operating Voltage (DC)0.15 V at 5 A, 0.9 V at 30 A0.15 V at 5 A, 0.9 V at 30 A
CV Mode
Range0~36 V, 0~150 V0~36 V, 0~150 V
Resolution1mV1mV
Accuracy± (0.05%+0.025%FS) 50 ppm/℃± (0.05%+0.025%FS) 50 ppm/℃
CC Mode
Range0~5 A, 0~30 A0~5 A, 0~30 A
Resolution1 mA1 mA
Accuracy± (0.05%+0.05%FS) 100 ppm/℃± (0.1%+0.1%FS) 100 ppm/℃
CR Mode
Range0.03 Ω~10 kΩ0.03 Ω~10 kΩ
Resolution1mA/Vsense1mA/Vsense
Accuracy0.01%+0.0008 s0.01%+0.0008 s
CP Mode
Range300W300W
Resolution10mW10mW
Accuracy0.1%+0.1% FS0.1%+0.1% FS

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
