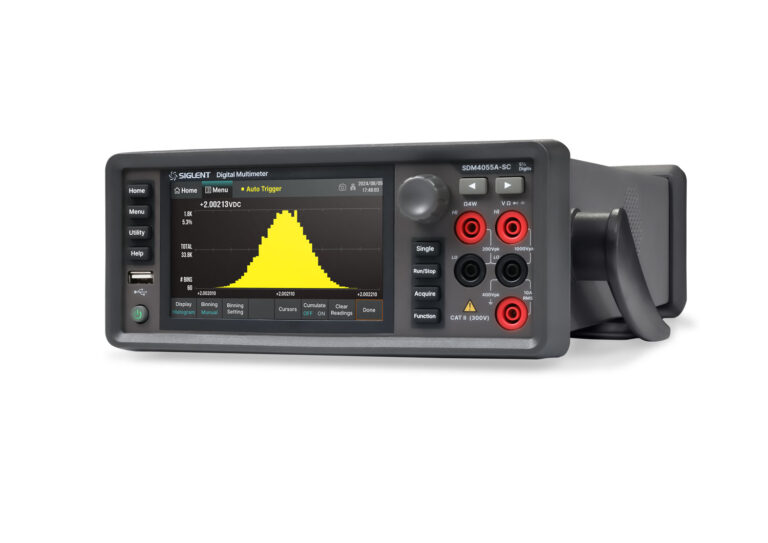

Siglent SDM4000A 1 Telonic UK
Siglent SDM4000A side Telonic UK
Siglent SDM4000A back WITH Telonic UK

Siglent SDM4065A-SC 6.5 Digit Digital Multimeter, DCV 200 mV -1000 V, ACV 200 mV – 750 V with Scanner Card.

£941.00 (£1,129.20 inc. VAT)

Available on back-order

SKU: SDM4065A-SC Category: Brand:

Description


Siglent SDM4065A-SC Digital Multimeter

The SDM4065A series is a flagship digital multimeter, providing 6½-digit high accuracy and a maximum reading rate of up to 50,000 times/second, ensuring fast and accurate measurements. Built-in thermocouple cold-end compensation supports a variety of data visualisation functions such as histograms and trend charts, allowing users to analyse data intuitively. USB Device, USB Host and LAN interfaces are standard, supporting remote control and data transmission. Its 2Gb large-capacity storage can save a large amount of measurement data and setting files, making it an ideal choice for professional engineers and researchers.

Key Features
  • 6½ digit reading resolution (2,200,000 counts)
  • Maximum reading rate 50k rdgs/s, minimum sampling interval 20μs
  • True RMS AC voltage and AC current measurements
  • Recorder function and digitizer function
  • 5-inch touch screen, resolution 800*480

Product Images

Trigger and Sample

Data Logging Function

Digitiser Function

Math Function

Dual Display

Probe Hold

Storage/Recall

Digital Display

Histogram

Trend Chart

Bar Meter

Scan Card

×

Documentation

SDM4055A UserManual SDM4065A UserManual SDM4055A Datasheet SDM4065A Datasheet SDM4055A QuickStart SDM4065A QuickStart
Power Supply
AC 100 V – 120 V 45 Hz ~ 66 Hz
AC 200 V – 240 V 45 Hz ~ 66 Hz
Consumption 30 VA max
Mechanism
Dimension
(length*width *height)		 379*260*103mm
Weight 3.8kg
Other Characteristics
Display Screen 5-inch TFT display screen with resolution 800*480. Touchable screen
Operation Equipment Full accuracy for 0°C to 50°C; Full accuracy to 40°C, 80% RH, non-condensing
Storage temperature: -20°C~70°C
Altitude: up to 2000 meters
Remote Interface LAN, USB Device, USB Host, GPIB (optional)
Programmer Language SCPI-compliant with the latest widely used multimeter command sets
Warm-up Time 90 minutes
Standard
Electromagnetic
Compatibility		 Compliant with EMC directive (2014/30/EU), compliant with or superior to IEC 61326-1:2020/EN61326-1:2021 (basic requirements)
Conducted Emission CISPR 11/EN 55011 CLASS A group 1,
150kHz~ 30MHz
Radiated Emission CISPR 11/EN 55011 CLASS A group 1,
30MHz~ 1GHz
Electro-Static
Discharge(ESD)		 IEC 61000-4-2/EN 61000-4-2 4.0 kV(touch), 8.0 kV(air)
RF Electromagnetic
Field Immunity		 IEC 61000-4-3/EN 61000-4-3 10 V/m(80 MHz to 1 GHz)
3 V/m(1.4 GHz to 2 GHz)
1 V/m(2.0 GHz to 2.7GHz)
Electrical Fast Transient
(EFT)		 IEC 61000-4-4/EN 61000-4-4 2kV (AC input port)
Surge IEC 61000-4-5/EN 61000-4-5 1kV (Line to Line)
2kV (Line to Earth)
RF Continuous
Conduction Immunity		 IEC 61000-4-6/EN 61000-4-6 3 V,0.15~ 80MHz
Voltage Dips and Short
Interruptions		 IEC 61000-4-11/EN 61000-4-11 Voltage Dips:
0% UT during 1 cycle
40% UT during 10/12 cycles
70% UT during 25/30 cyclesShort Interruptions:
0% UT during 250/300 cycles
Safety
Compliant with the Low Voltage Directive (2006/95/EC) and standard EN61010-1:2010

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
