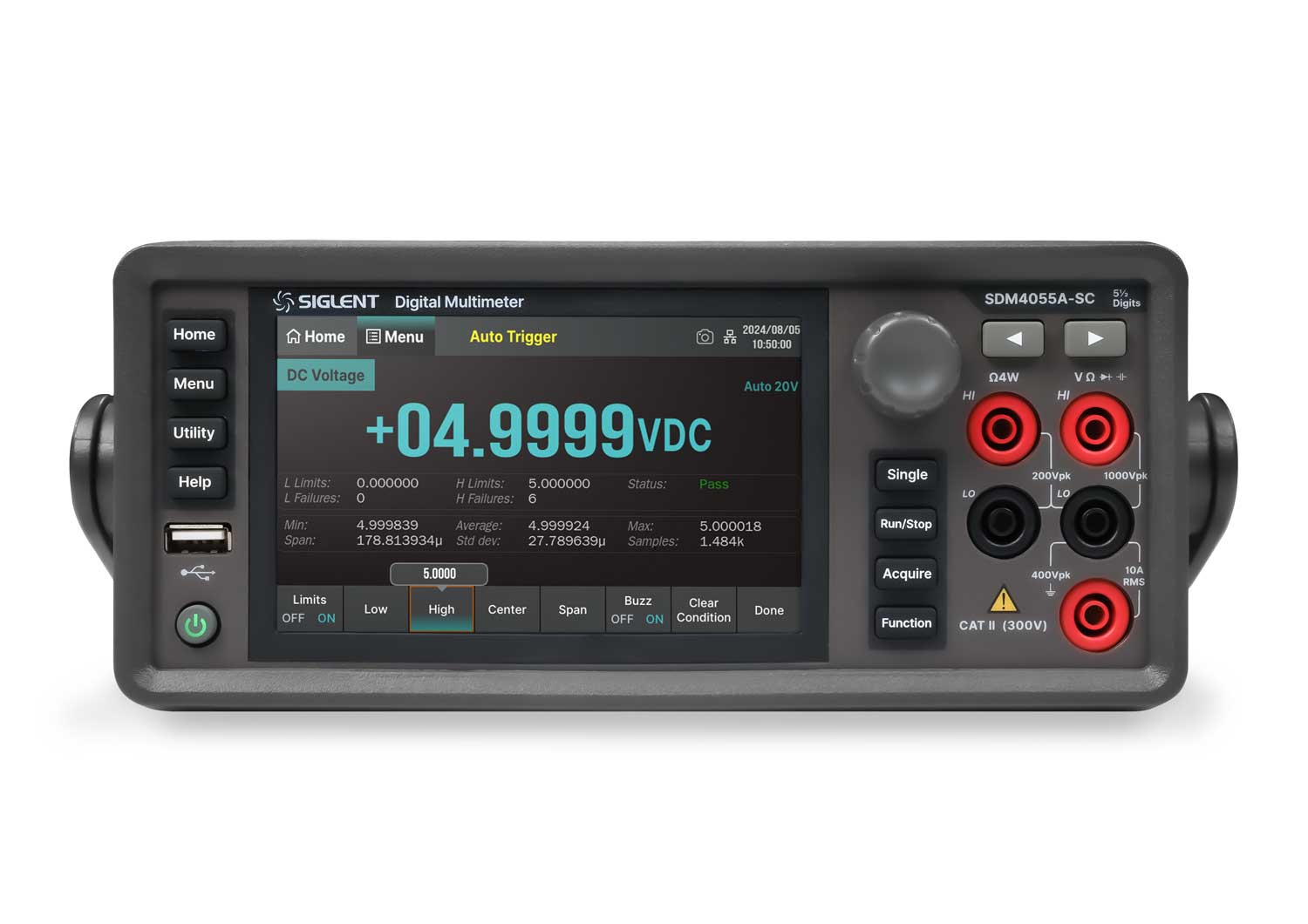

Siglent SDM4000A 3 Telonic UK
Siglent SDM4000A 1 Telonic UK

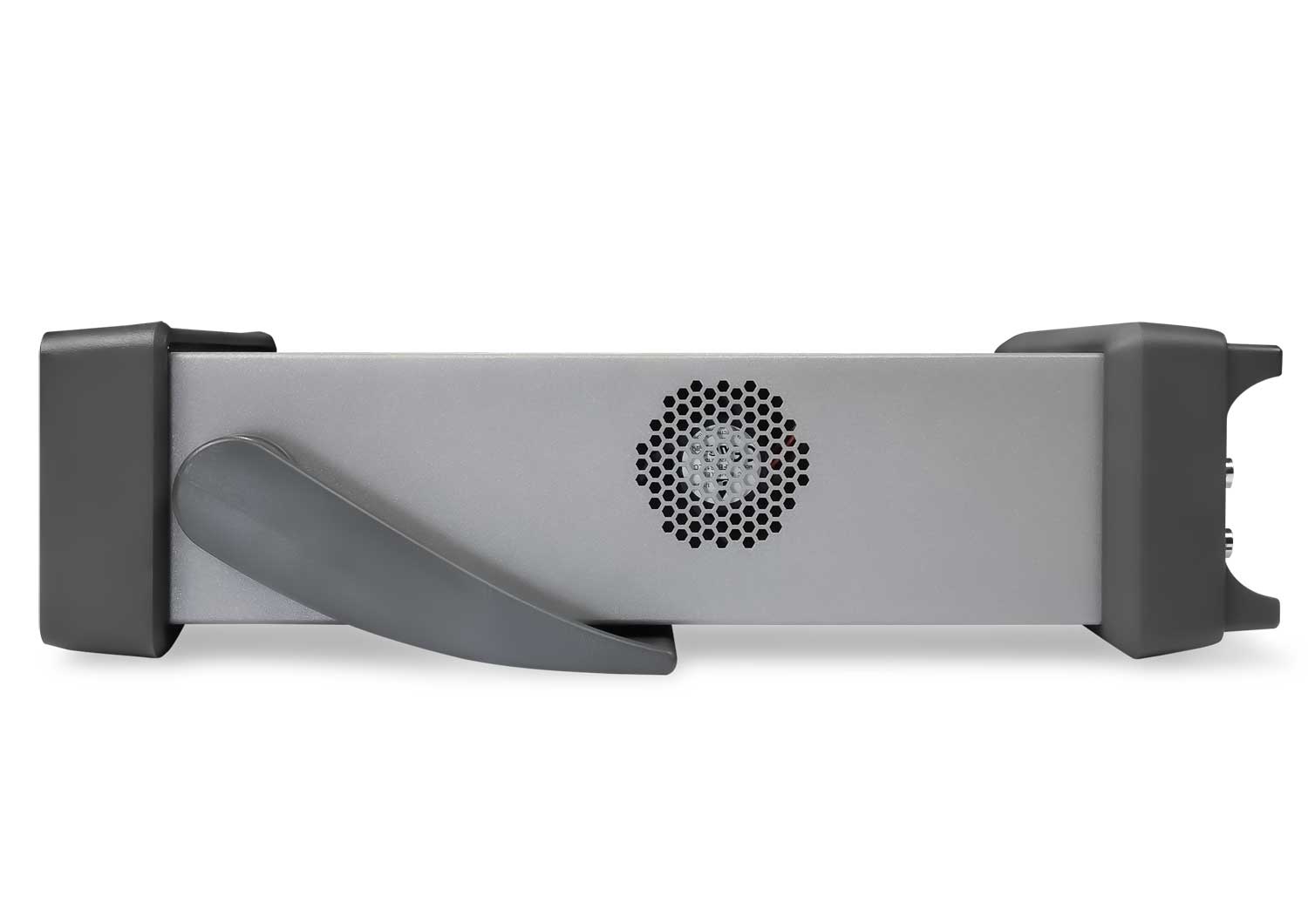

Siglent SDM4000A side Telonic UK

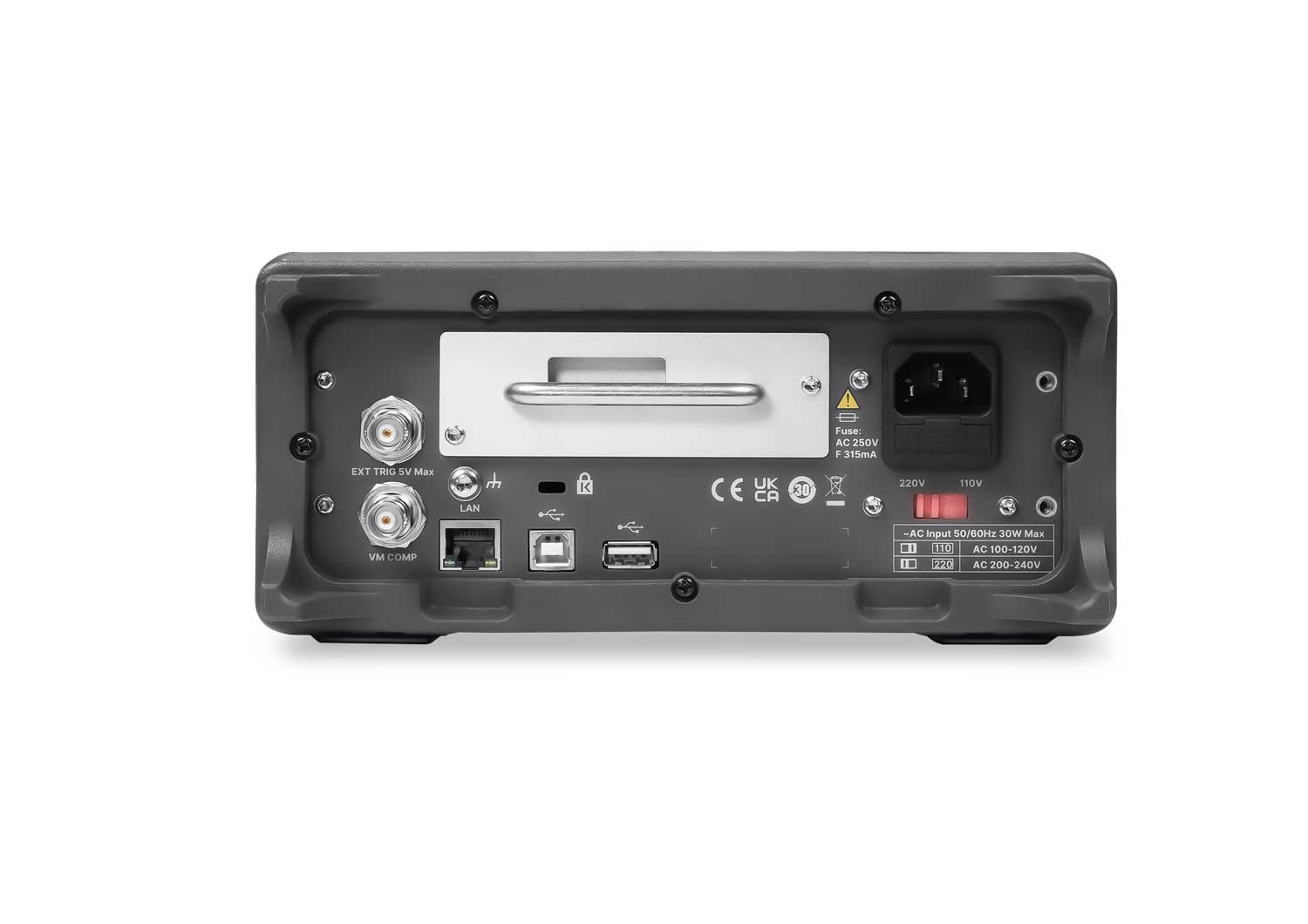

Siglent SDM4000A back WITH Telonic UK

Siglent SDM4055A-SC 5.5 Digit Digital Multimeter, DCV 200 mV -1000 V, ACV 200 mV – 750 V with Scanner Card

£740.00 (£888.00 inc. VAT)

Available on back-order

SKU: SDM4055A-SC Category: Brand:

Description


Siglent SDM4055A-SC Digital Multimeter

The SDM4055A series 5½ dual display digital multimeter has a maximum reading rate of 4,800 rdgs/s, covers 11 measurement items, 6 math functions, and is equipped with a 5-inch touch screen and a new UI design. It is a product designed for users with high-precision, multi-function, and automatic measurement needs.

Key Features
  • 5½ digit reading resolution (220,000 counts)
  • Maximum reading rate 4.8k rdgs/s, minimum 5 rdgs/s
  • True RMS AC voltage and AC current measurements
  • Recorder function, up to 100 hours of recording
  • 5-inch touch screen, resolution 800*480

Product Images

Trigger and Sample

Data Logging Function

Digitiser Function

Math Function

Dual Display

Probe Hold

Storage/Recall

Digital Display

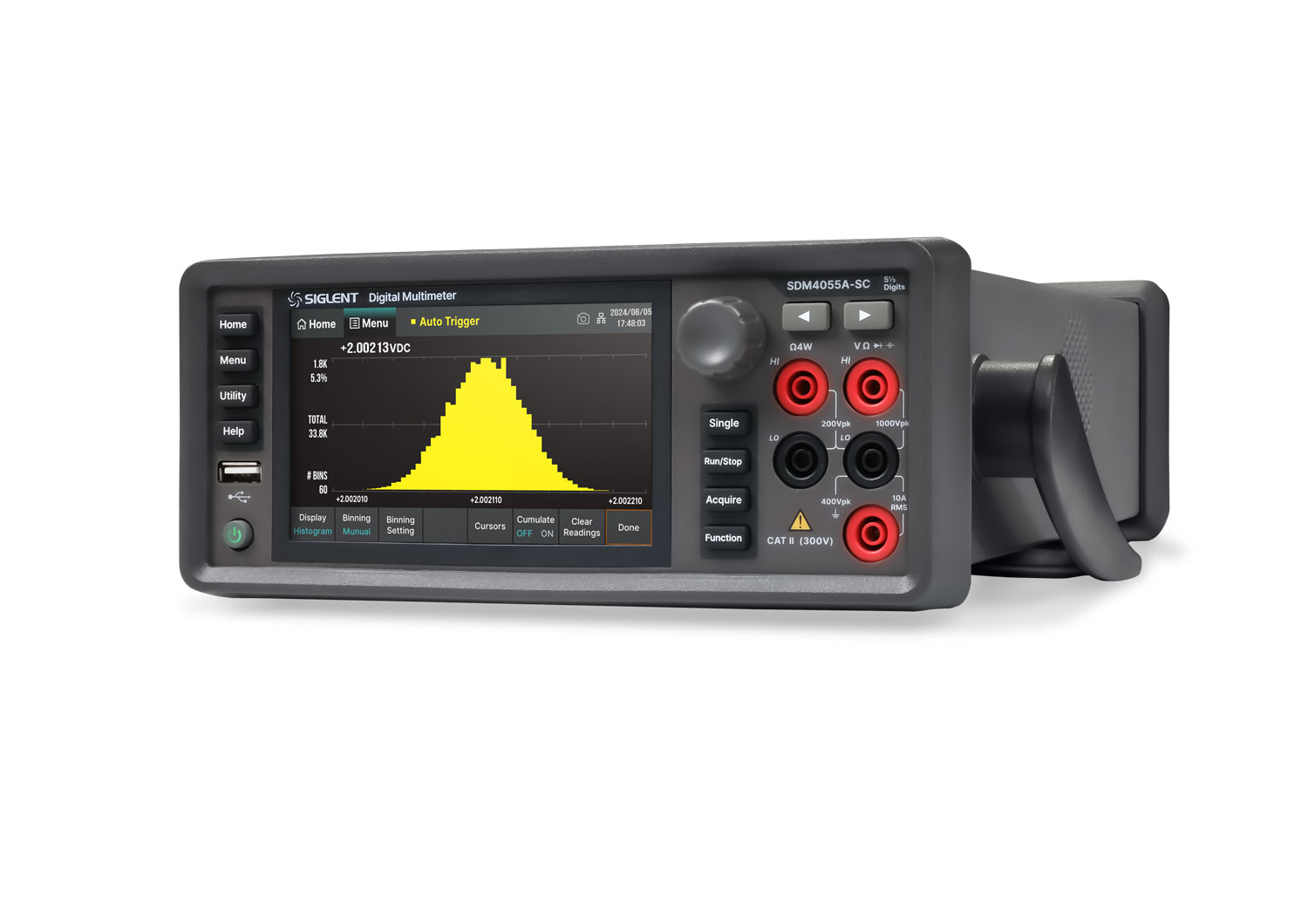

Histogram

Trend Chart

Bar Meter

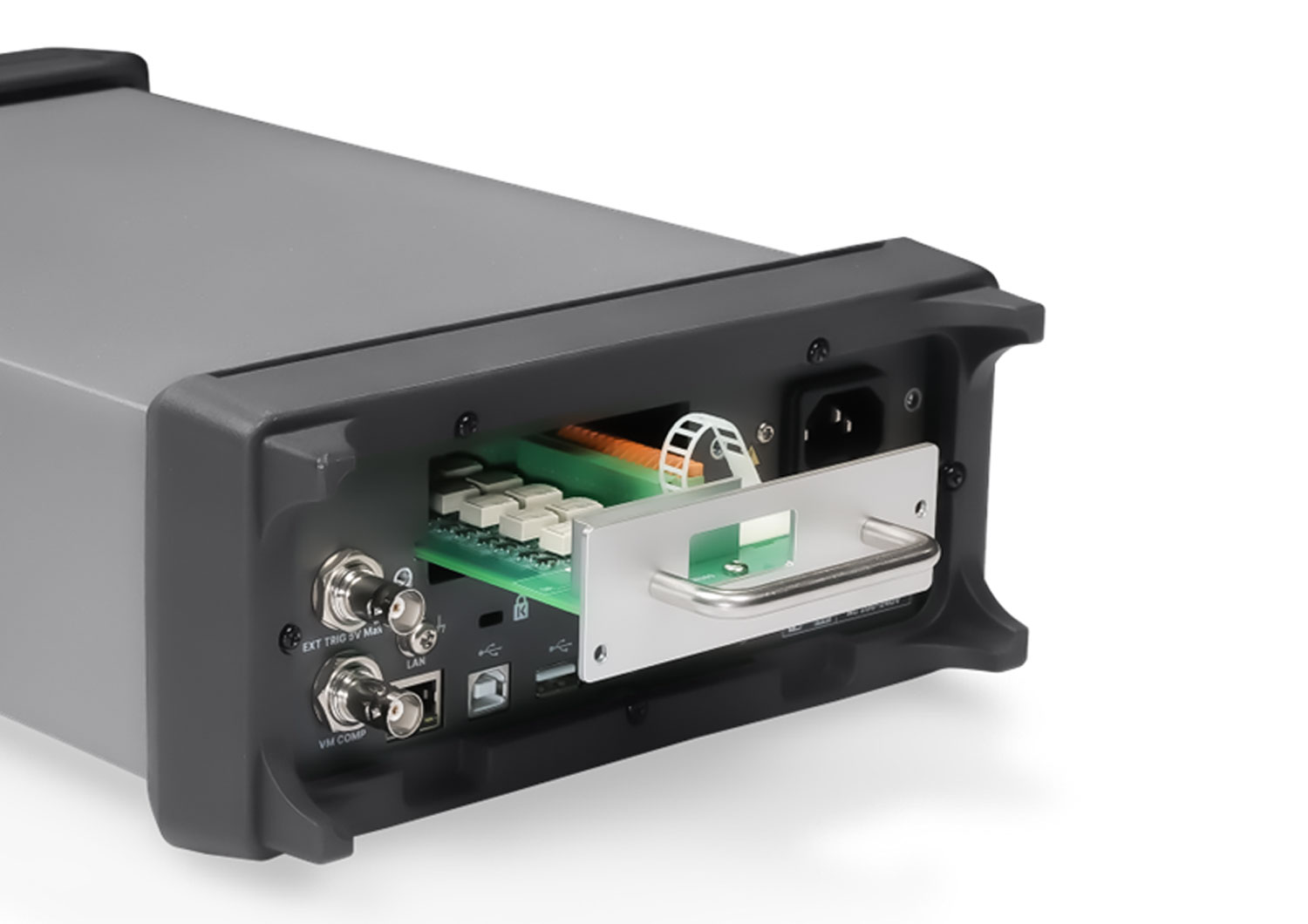

Scan Card

×

Documentation

SDM4055A UserManual SDM4065A UserManual SDM4055A Datasheet SDM4065A Datasheet SDM4055A QuickStart SDM4065A QuickStart
Power Supply
AC 100 V – 120 V 50/60 Hz
AC 200 V – 240 V 50/60 Hz
Consumption 30 VA max
Mechanism
Dimension
(length*width *height)		 379*260*103mm
Weight 3.8kg
Other Characteristics
Display Screen 5-inch TFT display screen with resolution 800*480
Operation Equipment Full accuracy for 0°C to 50°C; Full accuracy to 40°C, 80% RH, non-condensing
Storage temperature: -20°C~70°C
Altitude: up to 2000 meters
Remote Interface LAN, USB Device, USB Host, GPIB (optional)
Programmer Language SCPI-compliant with the latest widely used multimeter command sets
Warm-up Time 30 minutes
Standard
Electromagnetic
Compatibility		 Compliant with EMC directive (2014/30/EU), compliant with or superior to IEC 61326-1:2020/EN61326-1:2021 (basic requirements)
Conducted Emission CISPR 11/EN 55011 CLASS A group 1,
150kHz~ 30MHz
Radiated Emission CISPR 11/EN 55011 CLASS A group 1,
30MHz~ 1GHz
Electro-Static
Discharge(ESD)		 IEC 61000-4-2/EN 61000-4-2 4.0 kV(touch), 8.0 kV(air)
RF Electromagnetic
Field Immunity		 IEC 61000-4-3/EN 61000-4-3 10 V/m(80 MHz to 1 GHz)
3 V/m(1.4 GHz to 2 GHz)
1 V/m(2.0 GHz to 2.7GHz)
Electrical Fast Transient
(EFT)		 IEC 61000-4-4/EN 61000-4-4 2kV (AC input port)
Surge IEC 61000-4-5/EN 61000-4-5 1kV (Line to Line)
2kV (Line to Earth)
RF Continuous
Conduction Immunity		 IEC 61000-4-6/EN 61000-4-6 3 V,0.15~ 80MHz
Voltage Dips and Short
Interruptions		 IEC 61000-4-11/EN 61000-4-11 Voltage Dips:
0% UT during 1 cycle
40% UT during 10/12 cycles
70% UT during 25/30 cyclesShort Interruptions:
0% UT during 250/300 cycles
Safety
Compliant with:
UL 61010-1:2012 Ed.3+R:06Jun2023 CSA C22.2#61010-1:2012 Ed.3+U1;
UL 61010-2-030:2018 Ed.2 CSA C22.2#61010-2-030:2018 Ed.2;A1;U2;
CE-LVD VOC/EN 61010-1:2010/A1:2019, EN IEC 61010-2-030:2021/A11:2021

Note* Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
