Siglent SSG5000A Series RF Signal Generators

Frequency Range: 13.6 GHz & 20 GHz Models | Frequency Resolution: 0.001Hz | Phase Noise: Phase Noise: -120 dBc / Hz @ 1 GHz,20 kHz offset (typ.)

  • Frequency up to 13.6 GHz / 20 GHz
  • 0.001 Hz frequency setting resolution
  • Level setting range: -130 dBm ~ 25 dBm
  • Phase Noise: -120 dBc / Hz @ 1 GHz,20 kHz offset (typ.)
  • Level error ≤ 0.7 dB (typ.)
  • Provides AM, FM, PM analog modulation with internal, external or Int+Ext source
  • Single pulse, double pulse and pulse train generator (option)

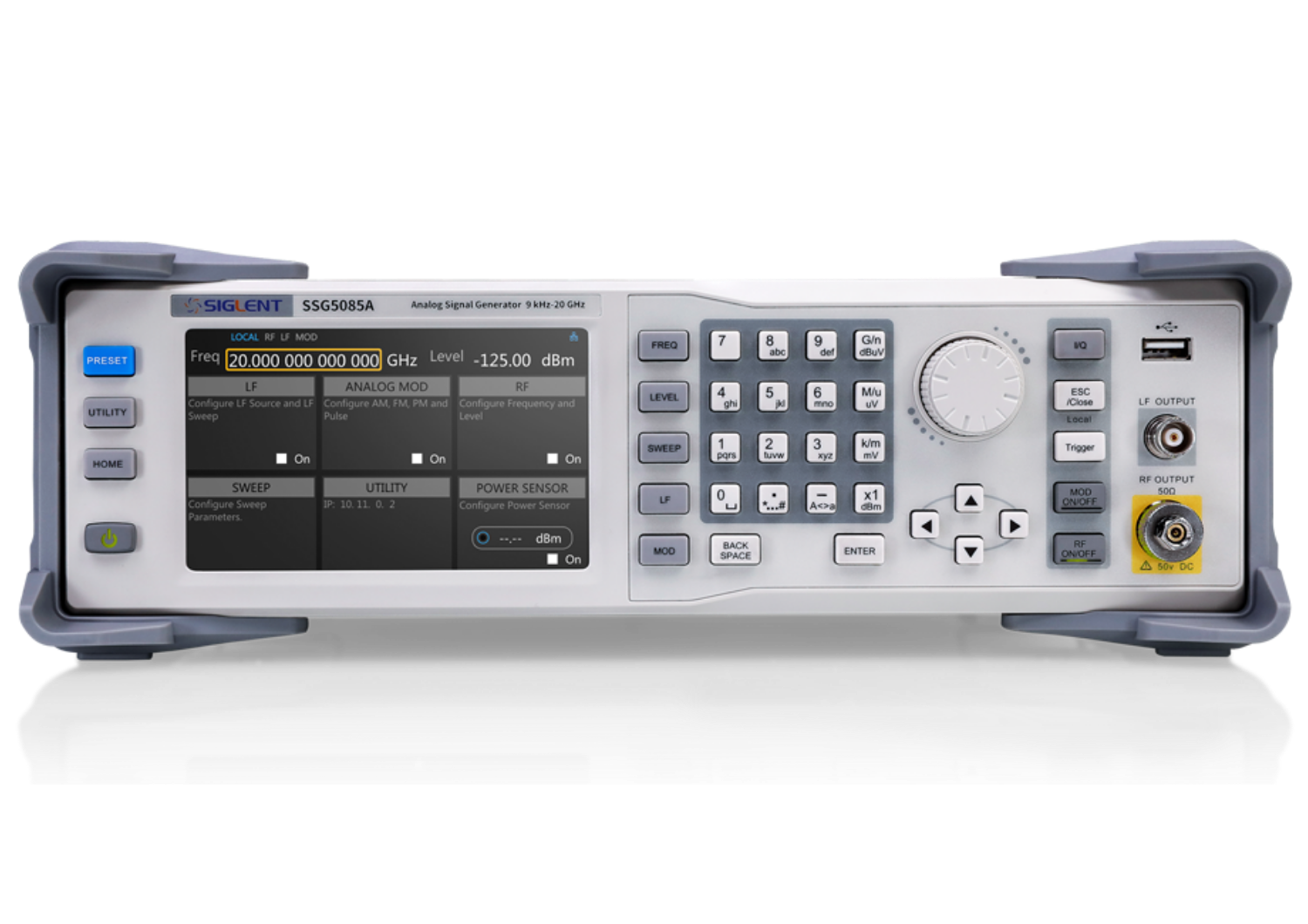

Siglent’s SSG5083A/SSG5085A microwave signal generator’s output frequency range from 9 kHz to 13.6/20 GHz, supports AM & FM & PM modulation, pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is designed for communication, aerospace, national defense and other fields. And it is suitable for various application scenarios such as R&D and production.

MODELFrequency RangeFREQUENCY RESOLUTIONAMPLITUDE RESOLUTIONPHASE NOISEEXTERNAL I/Q MODULATIONDISPLAYMANUFACTURER
SSG5083ACW MODE 9 kHz-13.6 GHz0.001 Hz0.01dB-120 dBc/Hz @1 GHz, offset 20 kHz (typ.)No5 inch TFT capacitive touch screen
SSG5085ACW MODE 9 kHz-20 GHz0.001 Hz0.01dB120 dBc/Hz @1 GHz, offset 20 kHz (typ.)No5 inch TFT capacitive touch screen

    Showing all 2 results
