The SSG3000X Plus series of RF signal generators operates from 9 kHz to 3.2 GHz, providing a maximum output power of +20 dBm. This series offers an optional high-stability OCXO reference that improves phase noise performance and significantly enhances pulse-signal fidelity, resulting in cleaner output and greater stability. Standard features of the SSG3000X Plus include AM, FM, and PM analogue modulation; pulse modulation; and USB power-meter control, plus support for custom pulse sequences and external IQ modulation. With a user-friendly 5-inch capacitive touchscreen, the SSG3000X Plus is well-suited for a variety of applications, including research and development, manufacturing, education, and maintenance. It delivers high-quality, stable, and professional RF signal solutions.

Create Custom Pulse Sequences

The optional pulse train generator supports individually configurable on/off times and repetition counts across sequences of up to 2,047 pulses.

Optional High-Stability OCXO

Add the 10M_OCXO_L precision reference for improved frequency accuracy and stability, including ±1 ppb temperature stability.

Fast, Precise Pulse Modulation

Improved pulse performance with fast rise and fall times provides precise RF pulse generation for demanding test applications.

Straightforward Signal Setup

A 5-inch capacitive touchscreen provides quick access to RF, modulation, sweep and I/Q functions, with USB, LAN and Web remote control for bench or automated use.

External I/Q Modulation

IQE models can work with an external baseband source such as the Siglent SDG6000X to generate vector and multi-tone signals for communications and active-device testing.

USB Power Meter Control

Connect a compatible USB power meter for direct measurement and closed-loop level control, helping compensate for cable loss, gain and frequency response.

Product Specifications Table

SKU	Image	Frequency	Amplitude Res.	Phase Noise @1GHz	I/Q Mod	Stock	Price
SSG3021X Plus		2.1 GHz	0.01 dB	-117 dBc/Hz	No	On Backorder	£1,739.00

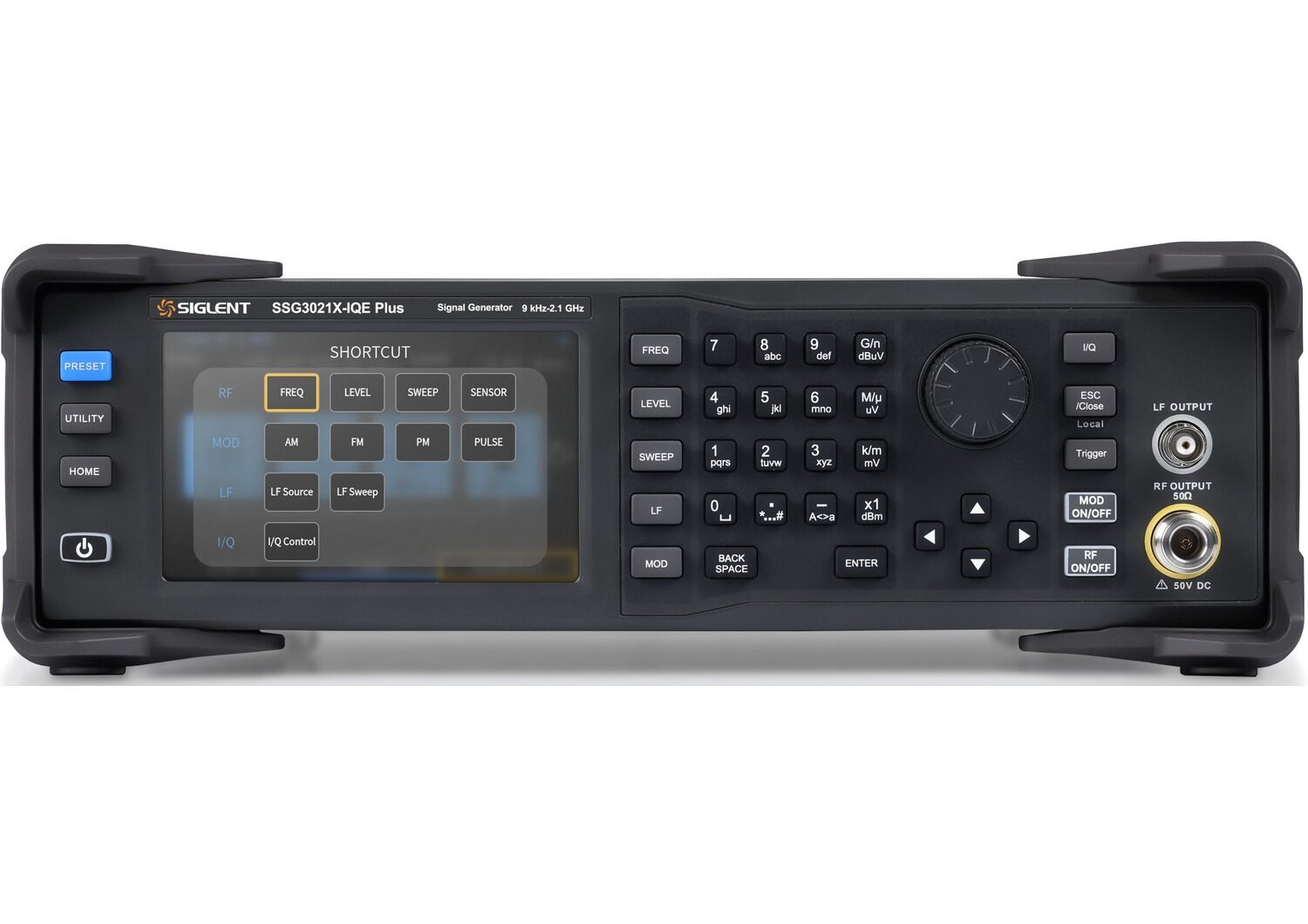

SSG3021X-IQE Plus		2.1 GHz	0.01 dB	-117 dBc/Hz	Yes	On Backorder	£3,739.00
SSG3032X Plus		3.2 GHz	0.01 dB	-117 dBc/Hz	No	On Backorder	£3,045.00

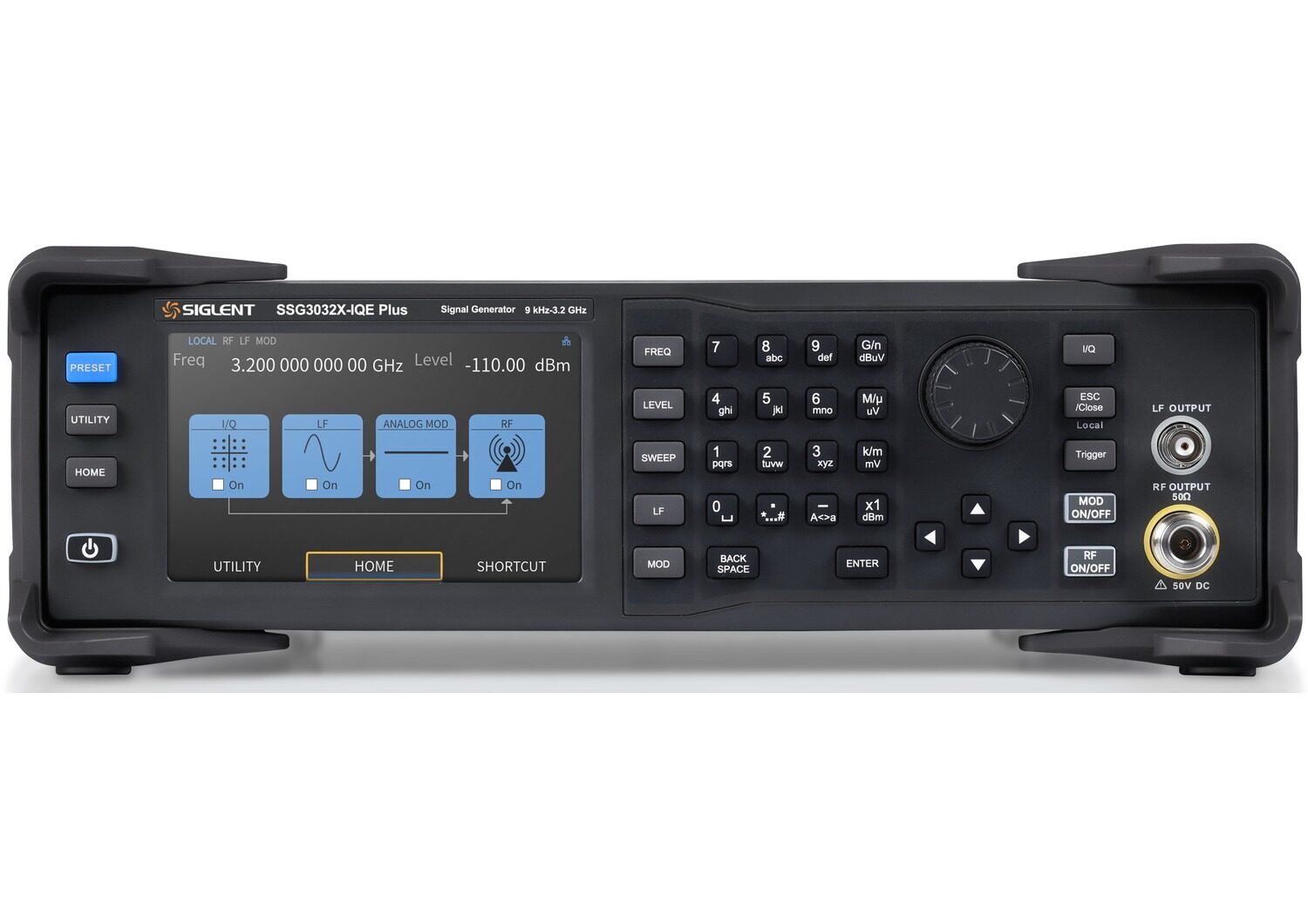

SSG3032X-IQE Plus		3.2 GHz	0.01 dB	-117 dBc/Hz	Yes	On Backorder	£5,189.00
