Siglent SSG5085A 9 kHz-20 GHz RF Signal Generator

(Β£0.00 inc VAT)

Description

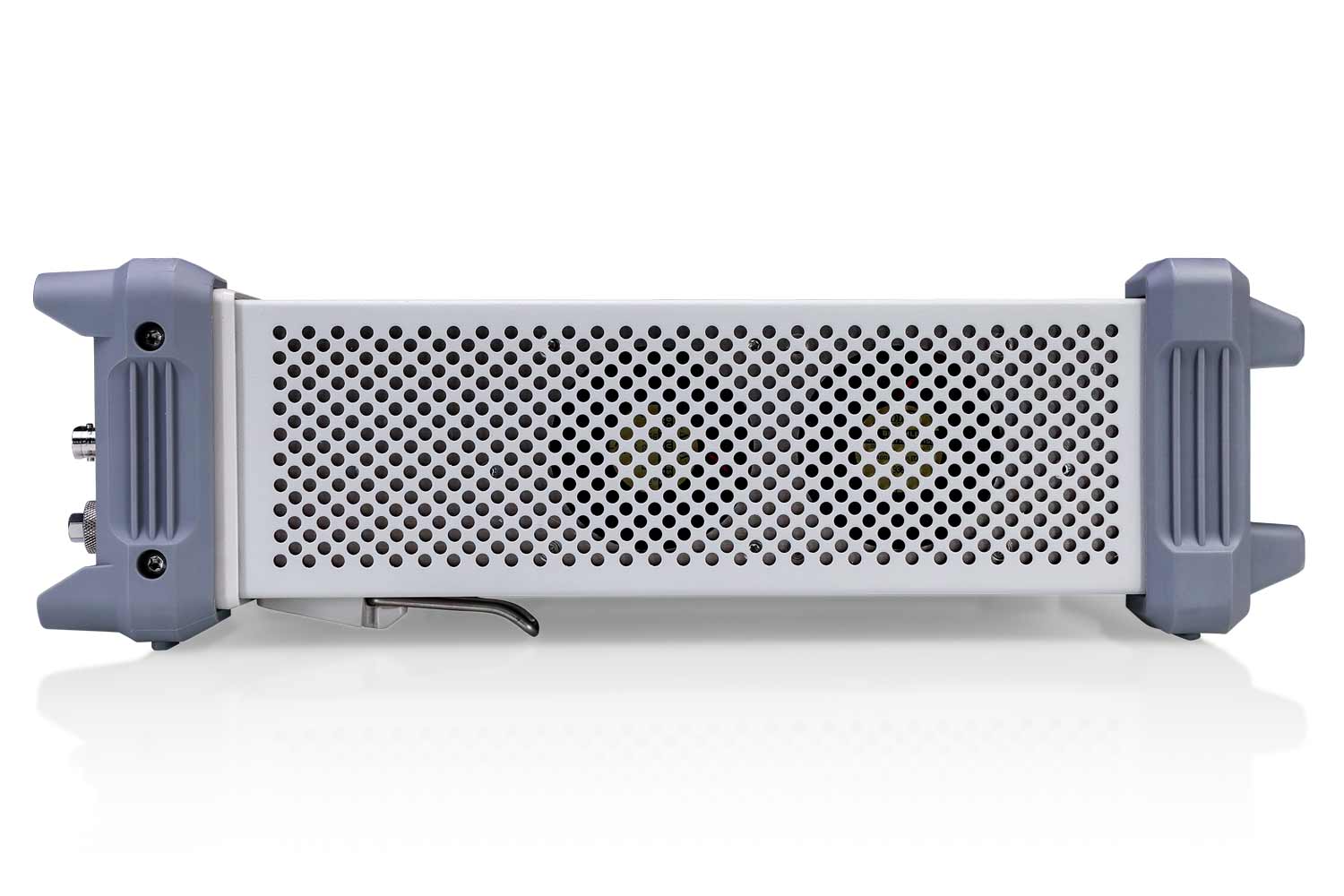

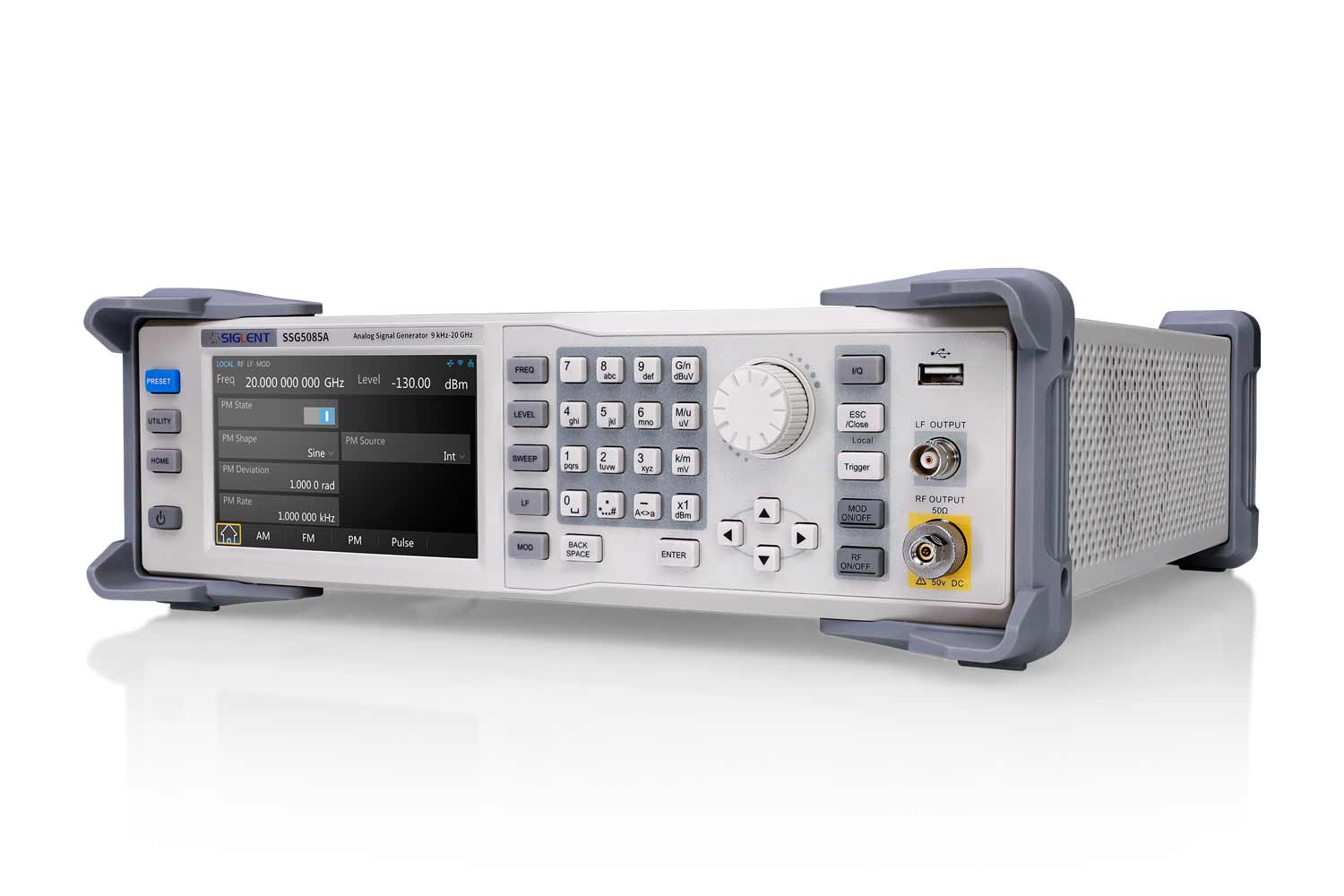

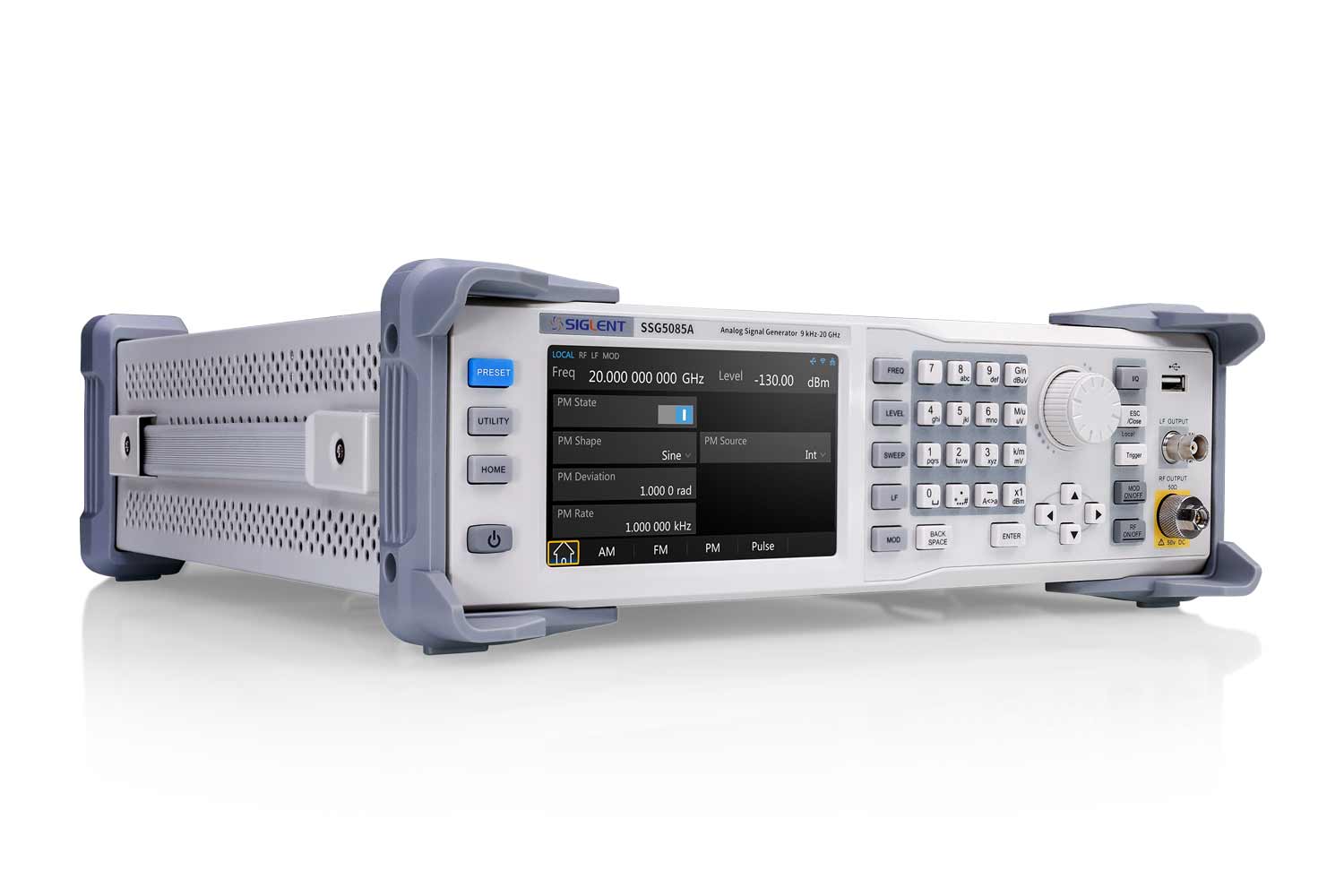

Siglent SSG5085A RF Signal Generator

SSG5083A/SSG5085A microwave signal generator’s output frequency range from 9 kHz to 13.6/20 GHz, supports AM & FM & PM modulation, pulse modulation, pulse sequence generator, power meter control and other functions. With standard OCXO reference hardware module inside ensures high-precision and high stability signal output. It is designed for communication, aerospace, national defense and other fields. And it is suitable for various application scenarios such as R&D and production.

Key Features:

  • Frequency up to 13.6 GHz / 20 GHz
  • 0.001 Hz frequency setting resolution
  • Level setting range: -130 dBm ~ 25 dBm
  • Phase Noise: -120 dBc / Hz @ 1 GHz,20 kHz offset (typ.)
  • Level error ≀ 0.7 dB (typ.)
  • Provides AM, FM, PM analog modulation with internal, external or Int+Ext source

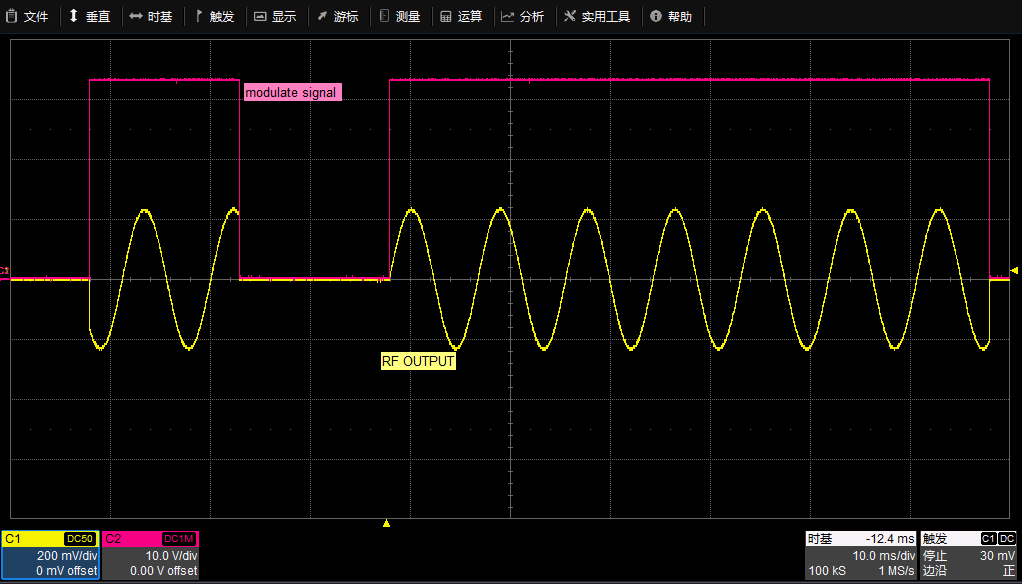

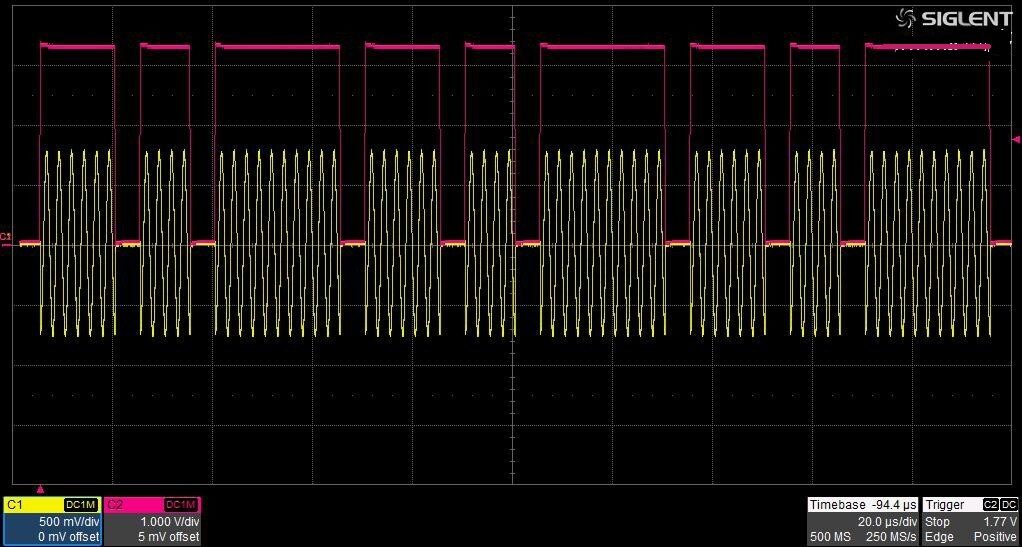

  • Single pulse, double pulse and pulse train generator (option)

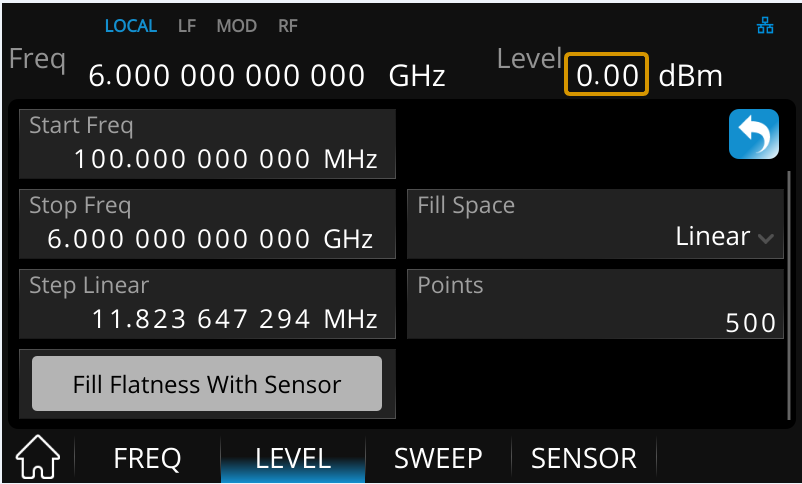

  • The power meter control kit can easily use the power meter to measure power, control power output and correct line loss

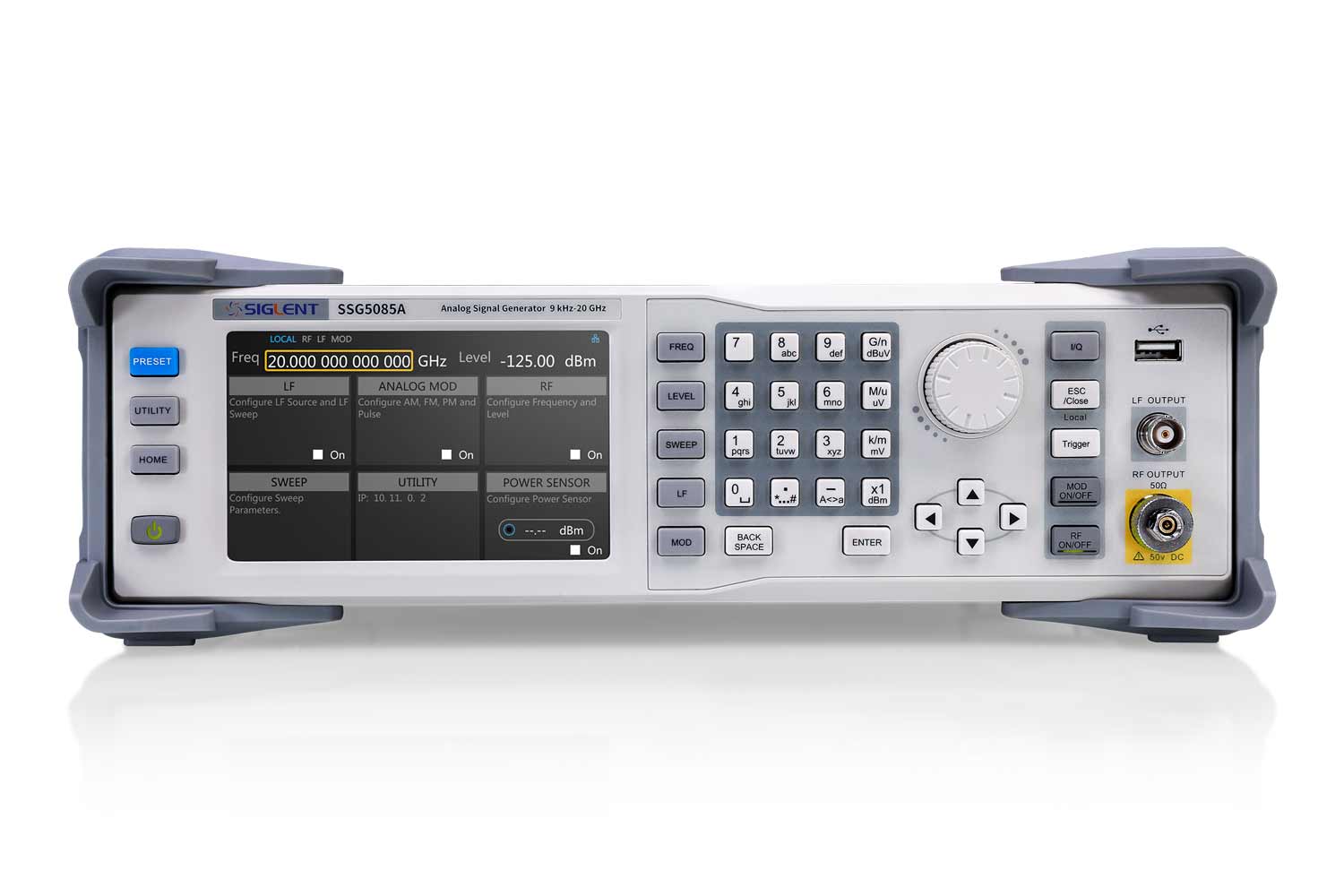

  • 5 inch TFT capacitive touch screen, mouse and keyboard supported
  • Web browser remote control on PC and mobile terminals

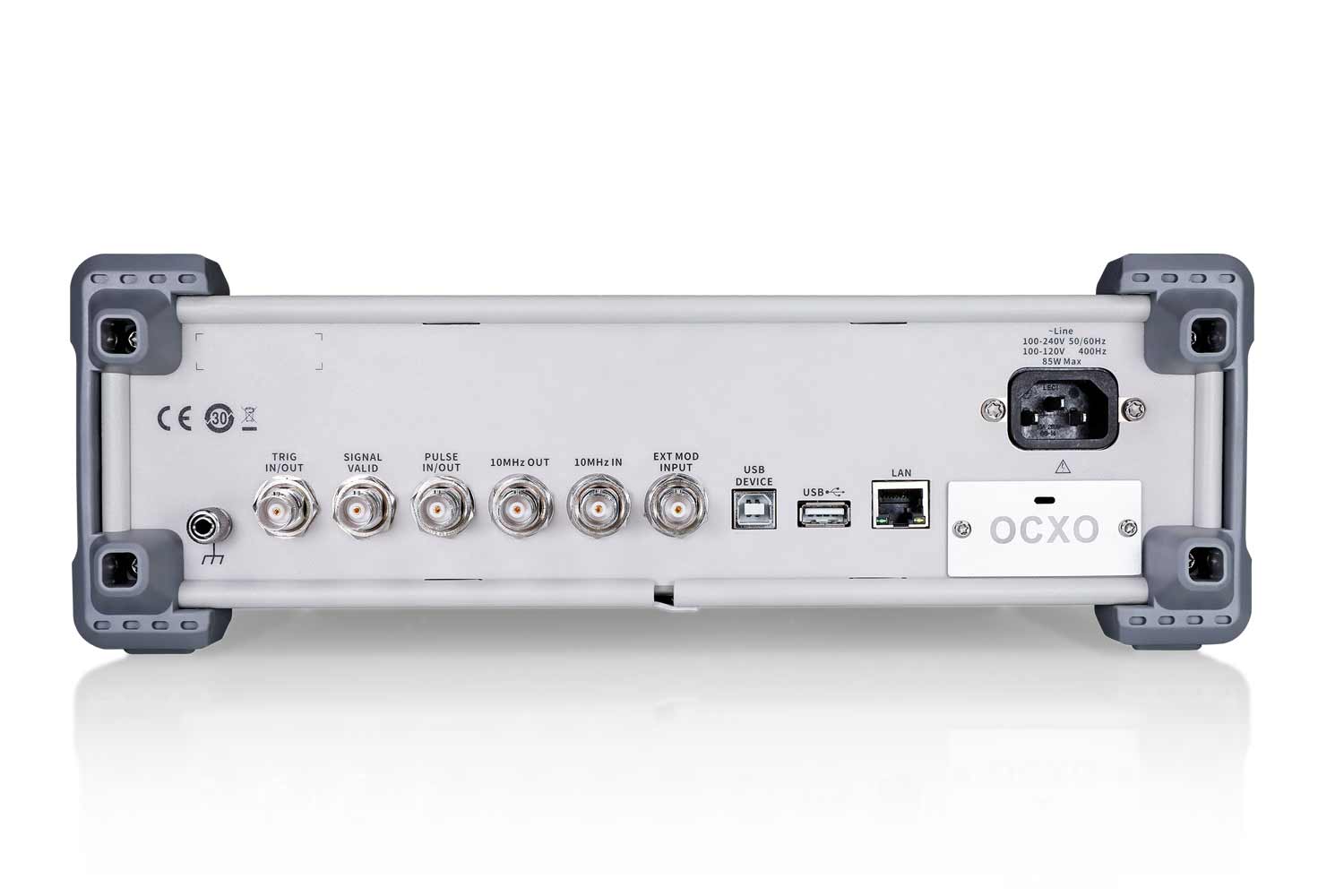

  • Standard interface includes USB Host, USB Device (USB TMC), LAN (VXI-11, Socket, Telnet). Optional interface: GPIB

Siglent SSG5000A RF Signal Generator Comparison Table

MODEL Frequency Range FREQUENCY RESOLUTION AMPLITUDE RESOLUTION PHASE NOISE External I/Q Modulation
SSG5083A CW MODE 9 kHz-13.6 GHz 0.001Hz 0.01 dB -120 dBc/Hz @1 GHz, offset 20 kHz (typ.) No
SSG5085A CW MODE 9 kHz-20 GHz 0.001Hz 0.01 dB 120 dBc/Hz @1 GHz, offset 20 kHz (typ.) No
