Image of Sma sma 18l sma sma 26l high res

Siglent SMA-SMA-18L Cable

£189.00 (£226.80 inc. VAT)

Available on back-order

SKU: SMA-SMA-18L Categories: , , Brand:

Description

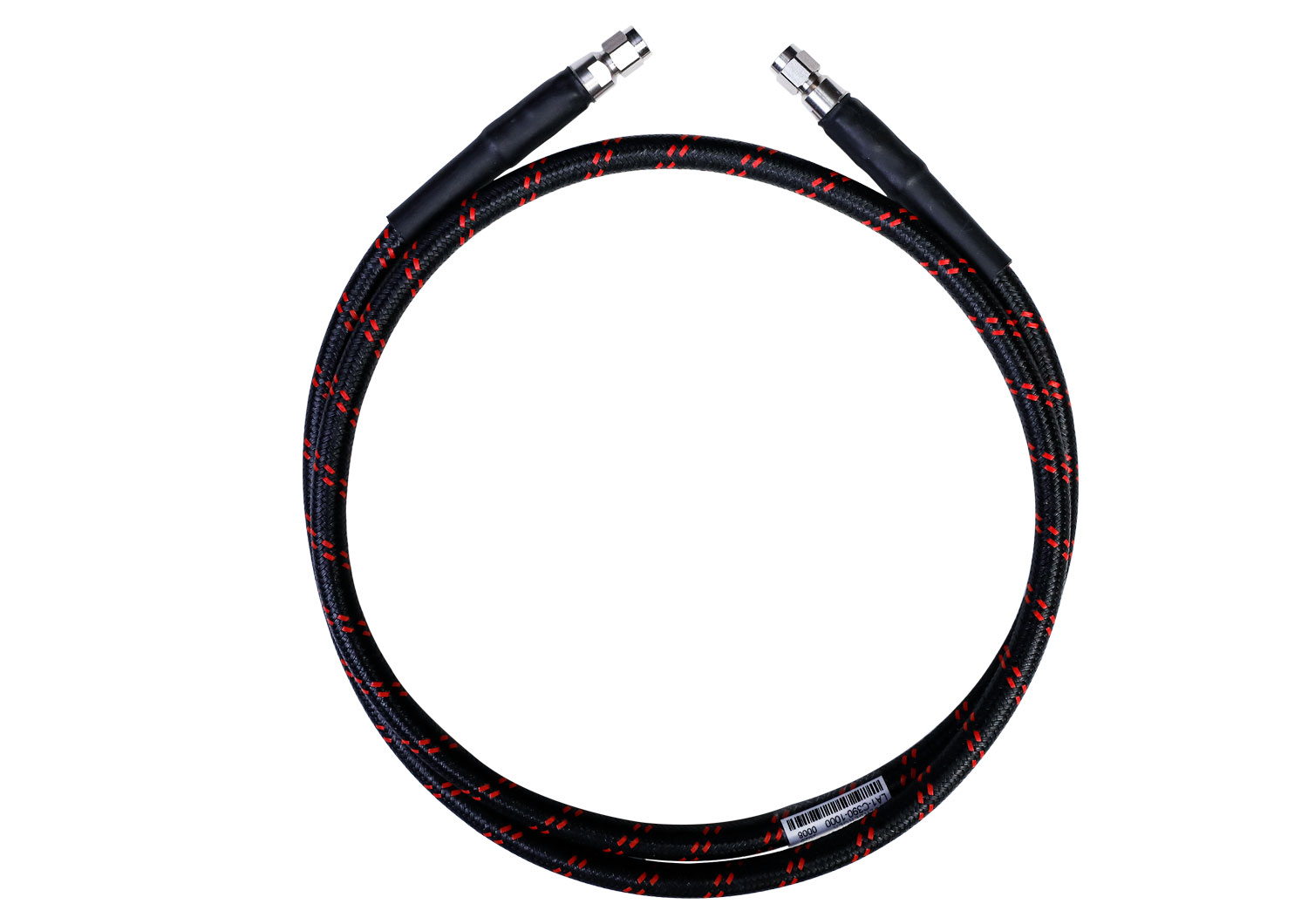

Siglent SMA-SMA-18L RF Cable, SMA-Male, SMA-Male 18 GHz

The Siglent SMA-SMA-18L is a 100 cm, 50 Ω RF cable assembly connecting SMA male to SMA male. Supporting frequencies from DC to 18 GHz, it is suited to RF test and measurement connections in development, verification and manufacturing environments.

Key Features
  • SMA male to SMA male connections
  • 100 cm cable length
  • 50 Ω impedance
  • DC–18 GHz frequency range
  • RTK Flex 402-YB low-insertion-loss cable, or equivalent; armoured
  • VSWR ≤1.25 to 18 GHz
  • Ins. loss ≤2.3 dB over DC–18 GHz
Applications
  • RF test and measurement
  • Development and verification setups
  • Laboratory and manufacturing test connections
Brand Siglent
Model SMA-SMA-18L
Connections SMA male to SMA male
Length 100 cm
Impedance 50 Ω
Frequency range DC–18 GHz
Cable / construction RTK Flex 402-YB low-insertion-loss cable, or equivalent; armoured
VSWR ≤1.25 to 18 GHz
Insertion loss ≤2.3 dB over DC–18 GHz
