Tekbox TBESDT1 2 Ohm ESD-Target

Description

Tekbox TBESDT1 2 Ohm ESD-Target

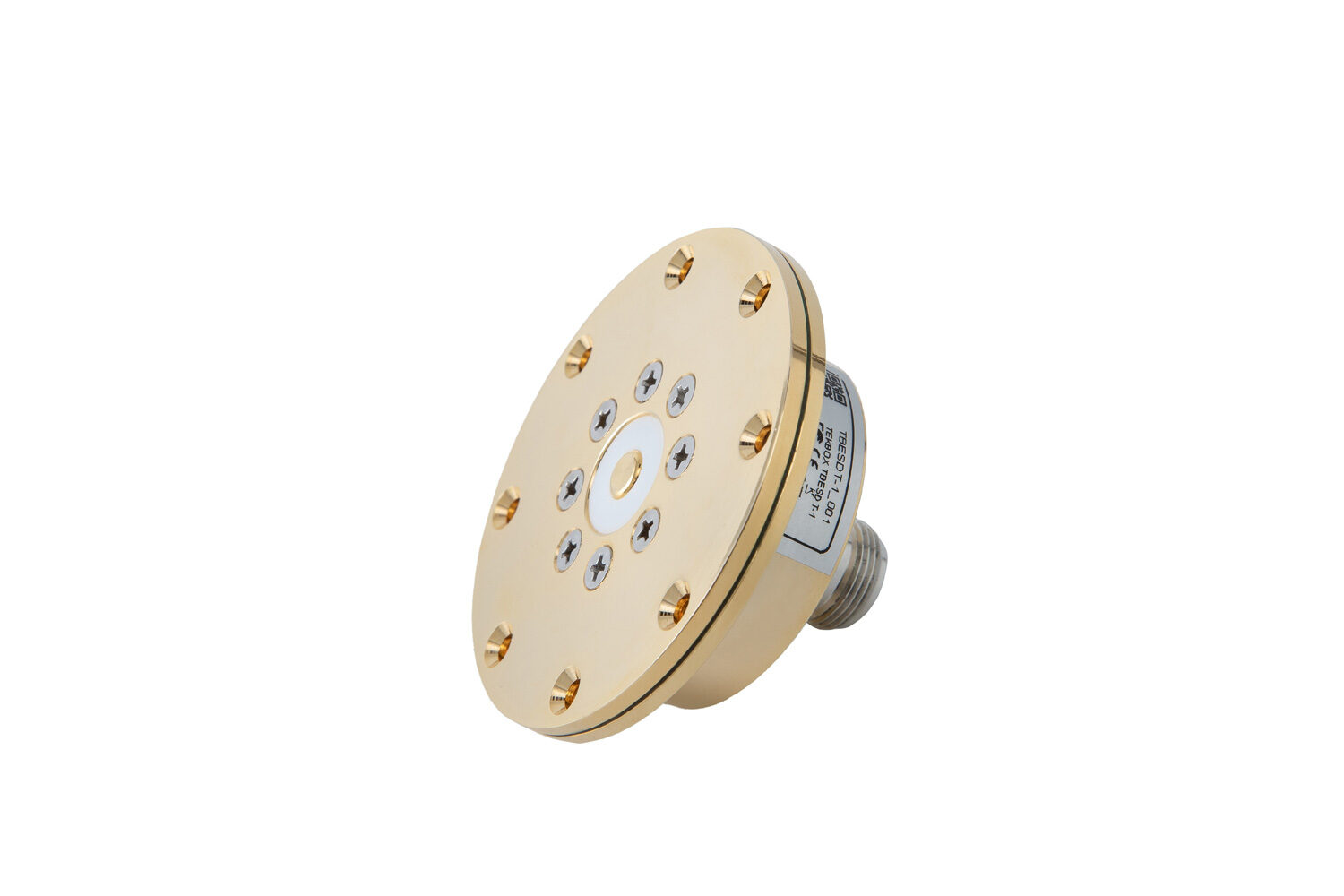

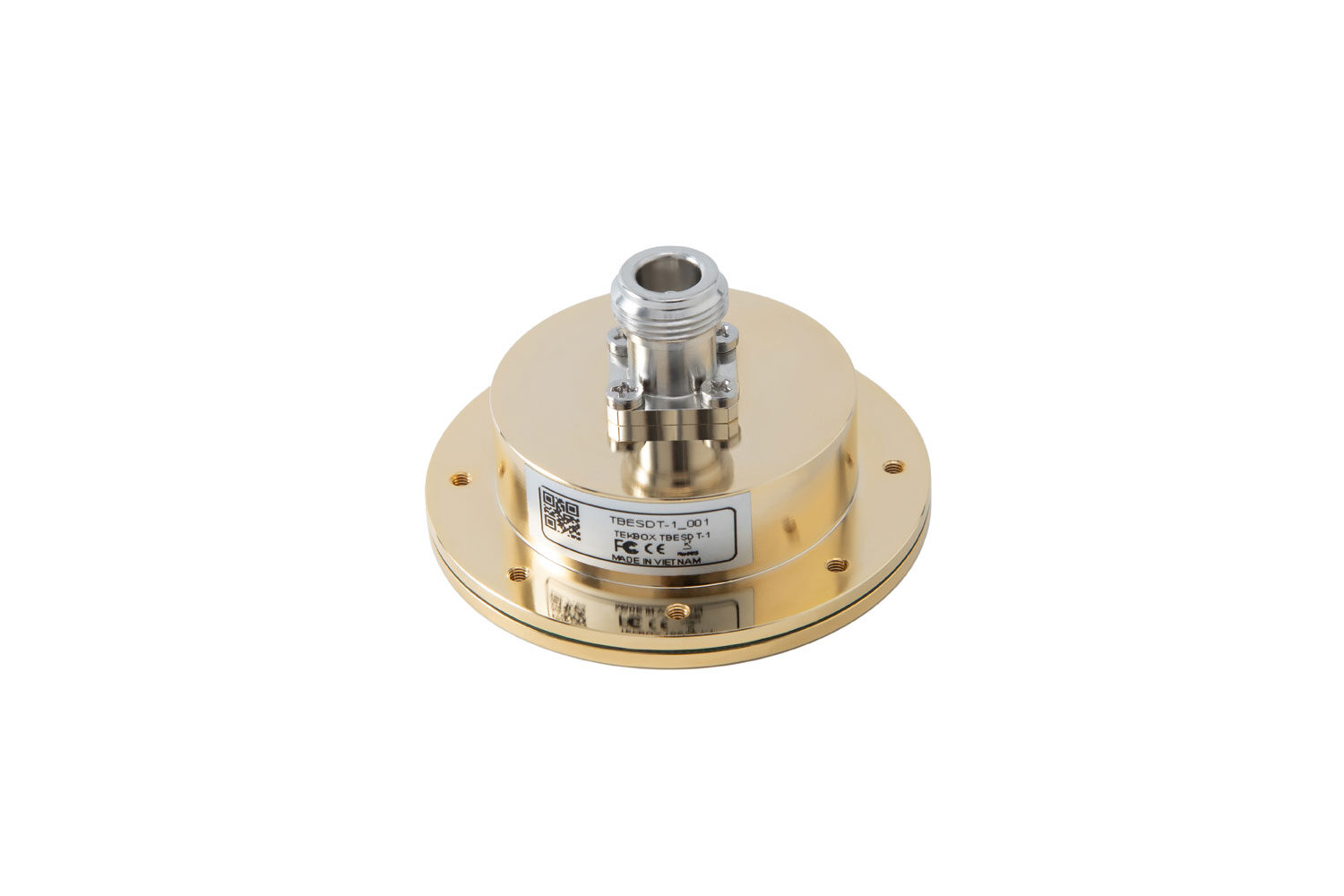

TBESDT1 ESD-Target – High-Precision Current Sensing Transducer for ESD-Simulator Verification

The TBESDT1 ESD-Target is a current sensing transducer specifically designed to verify ESD simulators, ensuring compliance with IEC 61000-4-2 standards up to 4 GHz. This reliable tool is essential for accurate ESD measurements in high-frequency environments.

Key Features:

• Compliance: Meets IEC 61000-4-2 requirements, ensuring reliable and consistent ESD testing
• High Accuracy Resistance: 2.08 Ω ± 1% for precise measurements
• Transfer Impedance:
  • 2 V/A (standard)
  • 0.2 V/A with included 20 dB attenuator
• Wide Frequency Range: DC to 4 GHz, offering:
  • < ± 0.5 dB up to 1 GHz
  • < ± 1.2 dB up to 4 GHz
• Max Pulse Amplitude: ± 30 kV, making it ideal for a variety of ESD applications

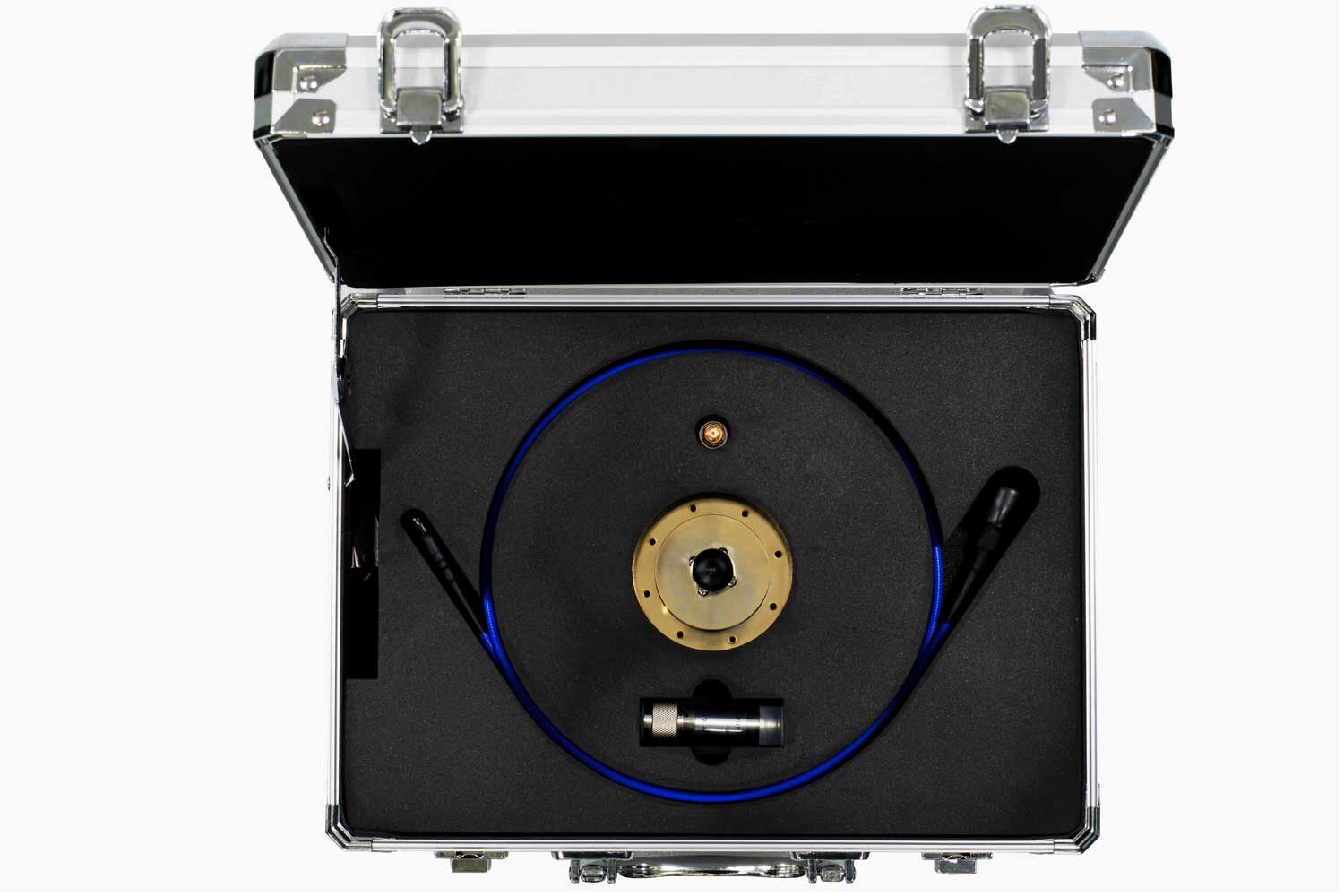

Package Includes:

• TBESDT1 ESD-Target
• 20 dB attenuator for enhanced flexibility
• N-Male to SMA-Male coaxial cable (100 cm, RM141)
• SMA-Female to BNC-Male coaxial adapter
• Aluminium carrying case for protection and portability
• Factory calibration certificate (NIST traceable) for guaranteed accuracy

Specifications:

• ESD-Target Dimensions: 70 mm (D) x 40 mm (H)
• ESD-Target Weight: 0.5 kg
• Case Dimensions: 340 mm (L) x 260 mm (W) x 110 mm (H)
• Case Weight: 2.1 kg

Ideal for ESD Verification Applications:

The TBESDT1 ESD-Target is the perfect solution for verifying ESD simulators in compliance with IEC 61000-4-2, providing accurate and consistent results across a wide frequency range up to 4 GHz. Designed for high precision and reliability, this transducer ensures your ESD testing meets international standards.
