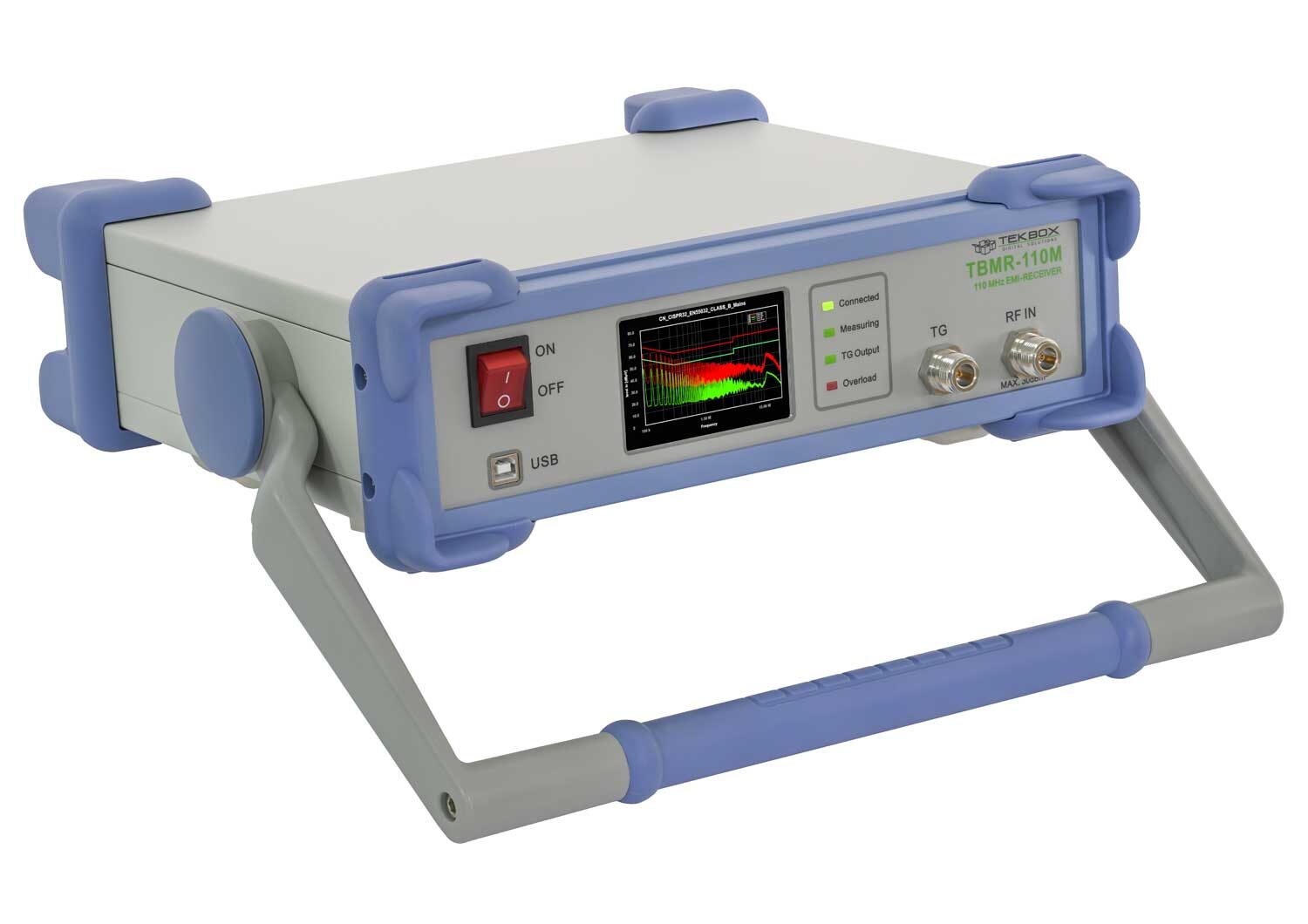

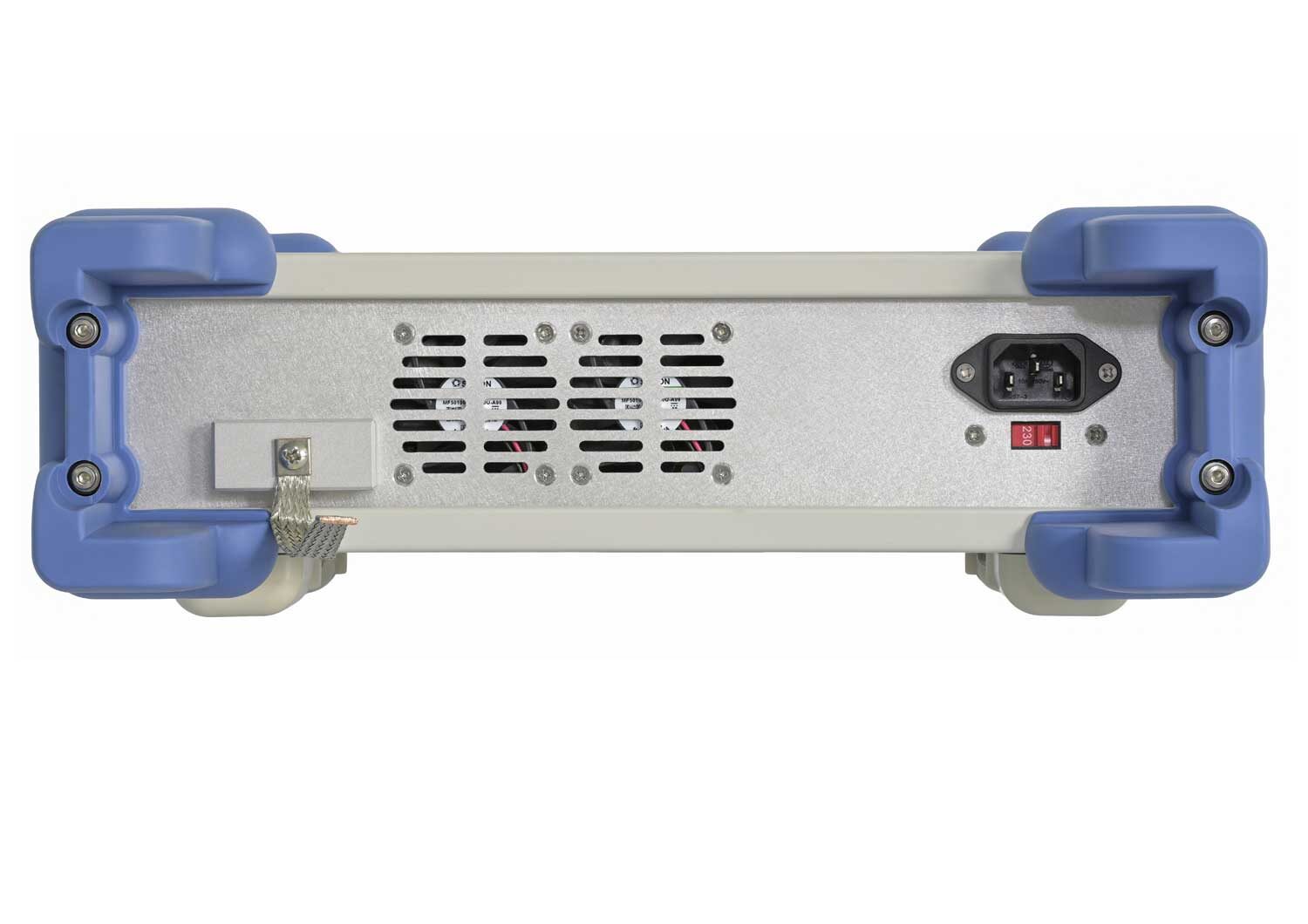

Tekbox TBMR-110M EMI Test Receiver / Analyser DC-110 MHZ

£6011.00 (£7213.20 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBMR-110M Categories: , Tags: , , Brand:

Description


Tekbox TBMR-110M EMI Test Receiver / Analyser DC-110 MHZ

To comply with international EMC standards, manufacturers must use specific measurement methods and equipment to ensure that a product’s electromagnetic emissions remain within legal limits. The TBMR-110M EMI Analyser is specifically engineered to handle these conducted emission measurements, offering a high-performance solution for modern engineering needs.

Because the device is both affordable and highly versatile, it serves as an ideal tool for engineers conducting pre-compliance testing during the product development stage. Identifying potential issues early on saves significant time and prevents costly redesigns later in the process.

Beyond the design phase, the analyser’s user-friendly interface makes it a practical choice for importers of electronic goods. It allows them to perform regular quality checks on their stock to ensure suppliers are maintaining consistent EMC standards. By bringing this capability in-house, businesses can verify compliance and quality control without the recurring expense of outsourcing to external test laboratories.

With its blend of high accuracy, versatility, and rapid measurement speeds, the TBMR-110M provides a professional-grade testing environment that is accessible to both developers and distributors alike.

Accessories

The Tekbox TBMR-110M comes with:

  • 1x type-A to type-B USD cable
  • 1x country-specific IEC power cord
  • 1x TBFL1 combined attenuator
  • EMCview software

Product Videos

YouTube Video
YouTube Video

Documentation

TBMR-110M Datasheet TBMR-110M Manual
Parameter Description Value/Range Remark
Operating voltage Mains voltage range 100–120 VAC / 200–240 VAC, 50–60 Hz Mains voltage selection switch
Operating temperature 0 °C – 40 °C
Storage temperature −20 °C – 60 °C
Frequency range Oscilloscope DC – 110 MHz True DC coupled
Spectrum analyser 1 Hz – 110 MHz Max. 0 V DC
EMI analyser 1 Hz – 110 MHz Max. 0 V DC
Reference frequency accuracy Initial accuracy after 30 minutes of warm-up ±10 ppm
RF input connector 50 Ohm, Type-N
RF input VSWR < 1 : 1.15 10 … 30 dB att.
Maximum RF input level Attenuation/gain dependent +30 dBm / 137 dBµV 20 dB / 30 dB att.
Negative att. + gain +15 dBm / 122 dBµV / 1.25 V 0 … −30 dB att.
Input RF attenuator 0 – 30 dB in 10 dB steps
Input LNA 0 – 30 dB in 0 dB steps
Amplitude accuracy DC – 110 MHz Better ±0.8 dB at 18 °C – 28 °C
Noise (DANL) f = 10 Hz −132 dBm typ. RBW = 1 Hz
f = 100 Hz −144 dBm typ. RBW = 1 Hz
f = 1 kHz −149 dBm typ. RBW = 1 Hz
f = 10 kHz −156 dBm typ. RBW = 1 Hz
f = 100 kHz −160 dBm typ. RBW = 1 Hz
Intercept points Intercept point 2 (f = 10 MHz) +50 dBm typ. ATT = 0 dB
Intercept point 3 (f₁ = 32 MHz, f₂ = 33 MHz) +43 dBm typ. ATT = 30 dB
−6 dBm typ. ATT = −30 dB
Resolution bandwidth 0.1 Hz – 3.5 MHz Arbitrary
Video bandwidth 0.1 Hz – 3.5 MHz Arbitrary
Pre-selector filter bank 7 bands + bypass 6th-order band-pass
Sampling rate 250 MSPS, 14-bit
Detector RMS, pos./neg. peak, average, quasi peak, CISPR average, CISPR RMS According to CISPR 16-1-1 and MIL Std. 461
Processing Sweep, STFFT, parallel sweep
Tracking generator frequency stability ±25 ppm
Tracking generator amplitude stability DC – 100 MHz Better ±0.5 dB
Tracking generator amplitude range Level −30 dBm −50 dBm to 0 dBm
100 MHz – 110 MHz −50 dBm to −10 dBm
Dimensions/weight 33 × 38 × 12 cm; 5.2 kg
