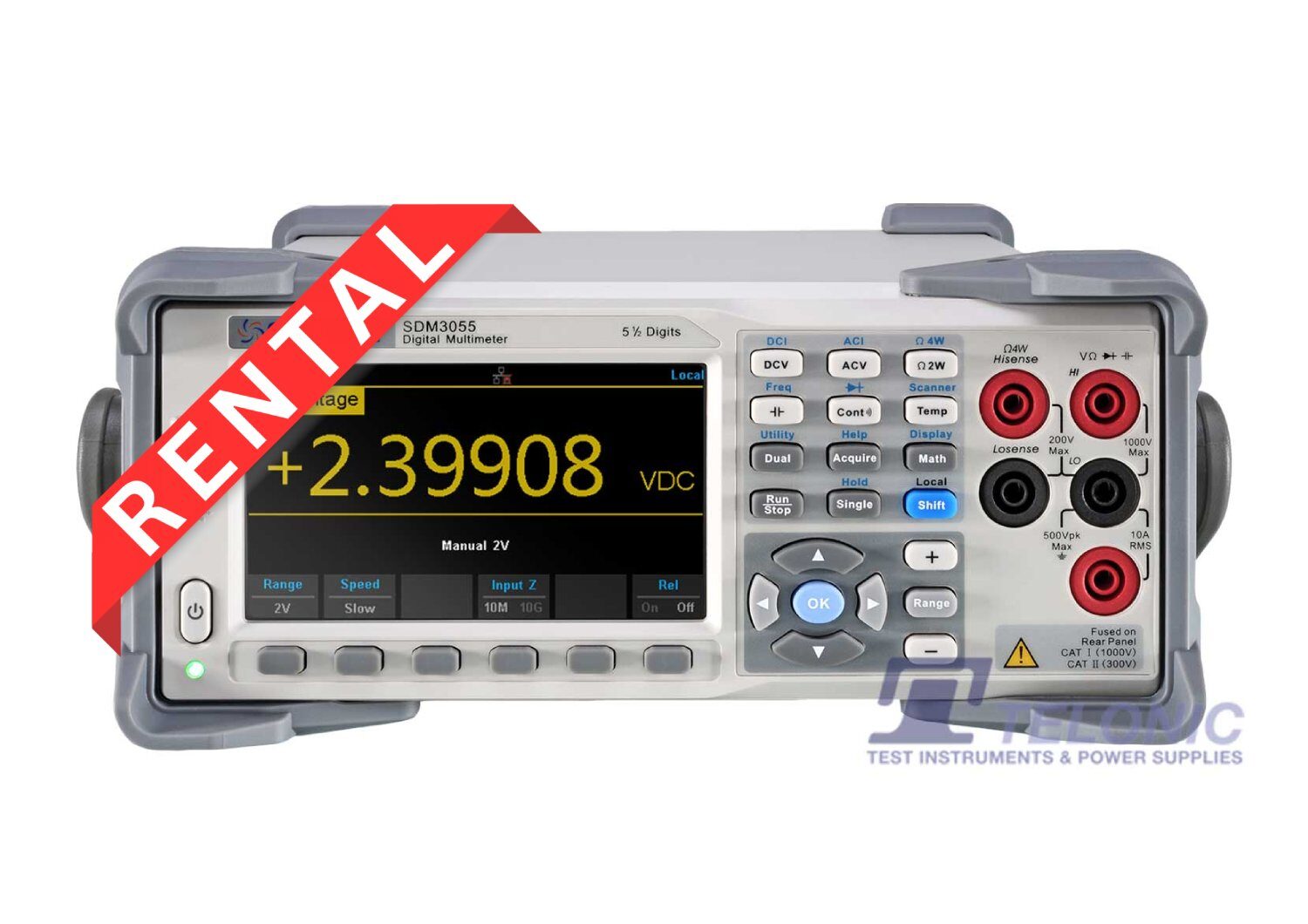

Image of Siglent sdm3055 multimeter front
Siglent SDM3055X Digital Multimeter Right
Siglent SDM3055 Multimeter rear

Rental Siglent SDM3055 DC: 200mV – 1000V, AC: 200mV – 750V, DC: 200µA – 10A, Dual-Display Digital Multimeter

£82.00 (£98.40 inc. VAT)

Prices shown are weekly rental rates.

You will be charged weekly until the items are returned

1 in stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: SDM3055-Demo Categories: , Brand:

Description


Rental Siglent SDM3055 Digital Multimeter

SDM3055 / SDM3055-SC is a digital multimeter designed with 5.5 digits readings resolution and dual-display, especially fitting to the needs of high-precision, multifunction and automatic measurement.

Product Images

Product Videos

YouTube Video
YouTube Video

Documentation

SDM3045x UserManual SDM3055 UserManual SDM3065X Usermanual SDM3045X DataSheet SDM3055 Datasheet SDM3065X Datasheet SDM3045x QuickStart SDM3055 QuickStart SDM3065X QuickStart

DC Characteristics

Function Range Test Current or Load Voltage 1 Year
23 °C± 5 °C		 Temperature
coefficient
0 °C~ 18 °C
28 °C~ 50 °C
DC Voltage 200mV 0.015 + 0.004 0.0015 + 0.0005
2V 0.015 + 0.003 0.0015 + 0.0005
20V 0.015 + 0.004 0.0015 + 0.0005
200V 0.015 + 0.003 0.0015 + 0.0005
1000V 0.015 + 0.003 0.0015 + 0.0005
DC Current 200 μA < 8 mV 0.055 + 0.005 0.003 + 0.001
2mA < 80 mV 0.055 + 0.005 0.002 + 0.001
20mA < 0.05 V 0.095 + 0.020 0.001
200mA < 0.5 V 0.070 + 0.008 0.005 + 0.001
2A < 0.1 V 0.170 + 0.020 0.013 + 0.001
10A < 0.3 V 0.250 + 0.010 0.008 + 0.001
Resistance 200 Ω 1mA 0.030 + 0.005 0.0030 + 0.0006
2KΩ 1mA 0.020 + 0.003 0.0030 + 0.0005
20KΩ 100 μA 0.020 + 0.003 0.0030 + 0.0005
200KΩ 10 μA 0.020 + 0.010 0.0030 + 0.0005
2MΩ 1 μA 0.040 + 0.004 0.0040 + 0.0005
10MΩ 200nA 0.250 + 0.003 0.0100 + 0.0005
100MΩ 200 nA || 10 MΩ 1.75 + 0.004 0.2000 + 0.0005
Diode Test 2.0V 1 mA 0.05 + 0.01 0.0050 + 0.0005
4V 100 μA 0.05 + 0.01 0.0050 + 0.0005
Continuity Test 2000Ω 1mA 0.05 + 0.01 0.0050 + 0.0005

AC Characteristics

Function Range Frequency Range 1 Year
23 °C±5 °C		 Temperature
coefficient
0 °C~ 18 °C
28 °C~ 50 °C
True RMS AC Voltage 200mV 20Hz – 45Hz
45Hz – 20kHz
20kHz – 50KHz
50kHz – 100kHz		 1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		 0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
2V 20Hz – 45Hz
45Hz – 20kHz
20kHz – 50KHz
50kHz – 100kHz		 1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		 0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
20V 20Hz – 45Hz
45Hz – 20kHz
20kHz – 50KHz
50kHz – 100kHz		 1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		 0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
200V 20Hz – 45Hz
45Hz – 20kHz
20kHz – 50KHz
50kHz – 100kHz		 1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		 0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
750V 20Hz – 45Hz
45Hz – 20kHz
20kHz – 50KHz
50kHz – 100kHz		 1.5 + 0.10
0.2 + 0.05
1.0 + 0.05
3.0 + 0.05		 0.01 + 0.005
0.01 + 0.005
0.01 + 0.005
0.05 + 0.010
True RMS AC Current 20mA 20 Hz – 45 Hz
45 Hz – 2 KHz
2 KHz – 10 KHz		 1.5 + 0.10
0.50 + 0.10
2.50 + 0.20		 0.015 + 0.015
0.015 + 0.006
0.015 + 0.006
200mA 20 Hz – 45 Hz
45 Hz – 2 KHz
2 KHz – 10 KHz		 1.5 + 0.10
0.50 + 0.10
2.50 + 0.20		 0.015 + 0.005
0.015 + 0.005
0.015 + 0.005
2A 20 Hz – 45 Hz
45 Hz – 2 KHz
2 KHz – 10 KHz		 1.5 + 0.10
0.50 + 0.10
2.50 + 0.20		 0.015 + 0.005
0.015 + 0.005
0.015 + 0.005
10A 20 Hz – 45 Hz
45 Hz – 2 KHz
2 KHz – 10 KHz		 1.5 + 0.10
0.50 + 0.10
2.50 + 0.20		 0.015 + 0.005
0.015 + 0.005
0.015 + 0.005

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
