DC Lisn Combo

Rental TekBox DC-LISN-Combo1

£123.00 (£147.60 inc. VAT)

Prices shown are weekly rental rates.

You will be charged weekly until the items are returned

Prices shown are weekly rental rates.
You will be charged weekly until the items are returned

1 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: DC-LISN-Combo-Demo Categories: , , , , , , Tag: Brand:

Description

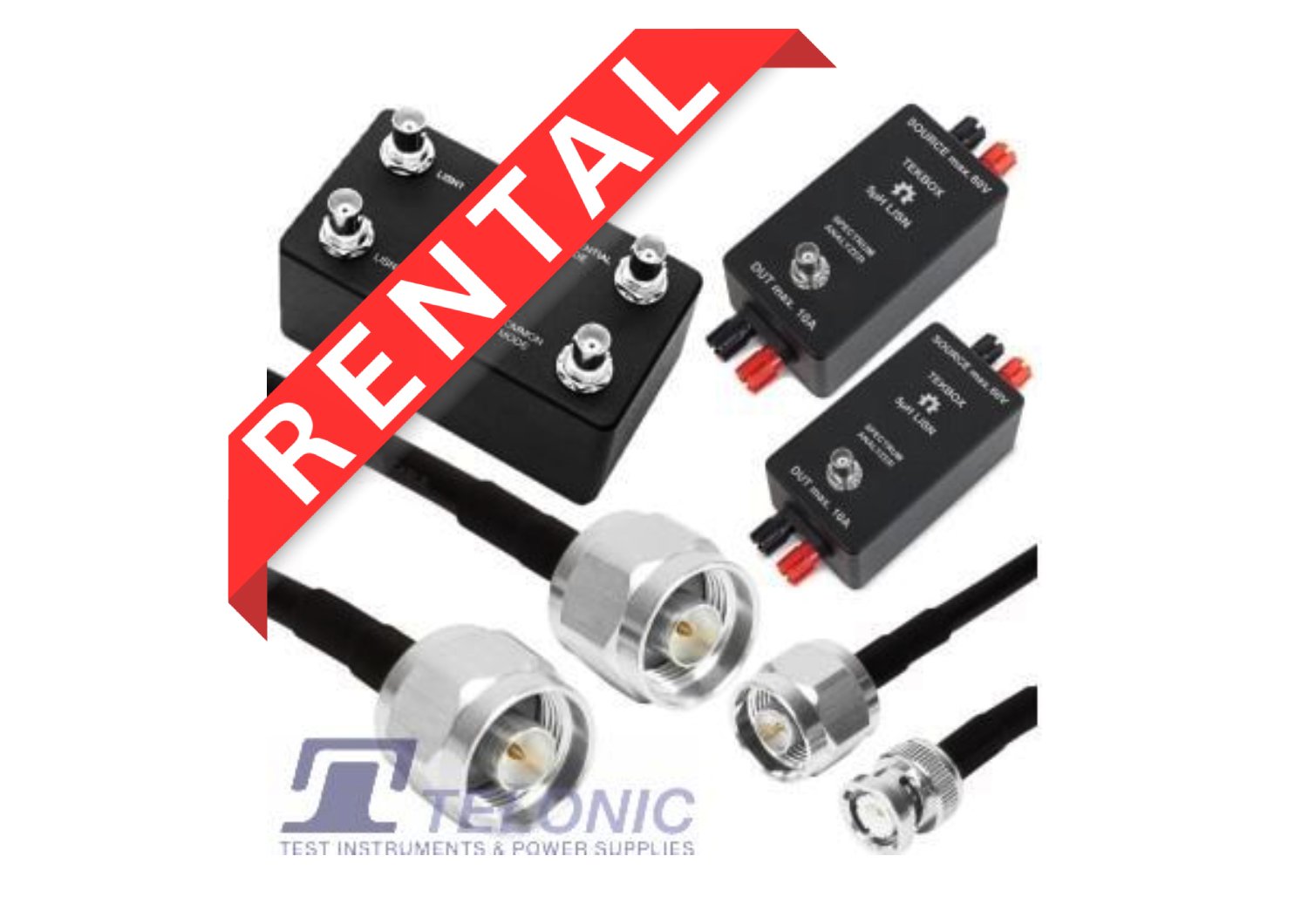

Rental TekBox DC-LISN-Combo1

The DC-LISN-Combo1 set is perfect for testing conducted noise emissions from DC powered devices, such as DC power supplies.

The included LISN-Mate is for splitting the conducted interface signal into its common mode and differential components. If you choose not to use the LISN-Mate, the RF output of the respectively unused LISN must be terminated with 50Ω.

Features:

  • This combo consists of:
    • 2 x 5 μH DC-LISN up to 10A (TBOH01)
    • 1 x LISN-Mate (TBLM1)
    • 2 x Coaxial Cable (RG-223), BNC Male to BNC Male, 35cm
    • 1 x Coaxial Cable (RG-58), BNC Male to N Male, 75cm
    • 1 x 50Ω BNC terminating resistor, 2W

Product Videos

YouTube Video
YouTube Video
YouTube Video
YouTube Video

Documentation

LISN Basics And Overview TBISN-T4 Manual TBL0110 2 LISN Manual TBL0225 2 LISN Manual TBL0510-1, 5ΜH LISN, Conducted Emissions, EMC TBL05100-1C 5uH LISN TBL0550-1B 5ΜH LISN TBL5008 2B LISN Manual TBL5008 2C LISN Manual TBL50100-1B 50ΜH LISN TBL501000-1 50ΜH LISN TBL5016-2C Manual TBL5016-3 50ΜH LISN TBL5016 2B LISN Manual TBL5032-1 50ΜH LISN TBL5032-3 50ΜH LISN TBL5063-3 50ΜH LISN TBLDC32-2 150 Ohm DC LISN TBLM2 LISN MATE TBVHF B Balanced VHF LISN
