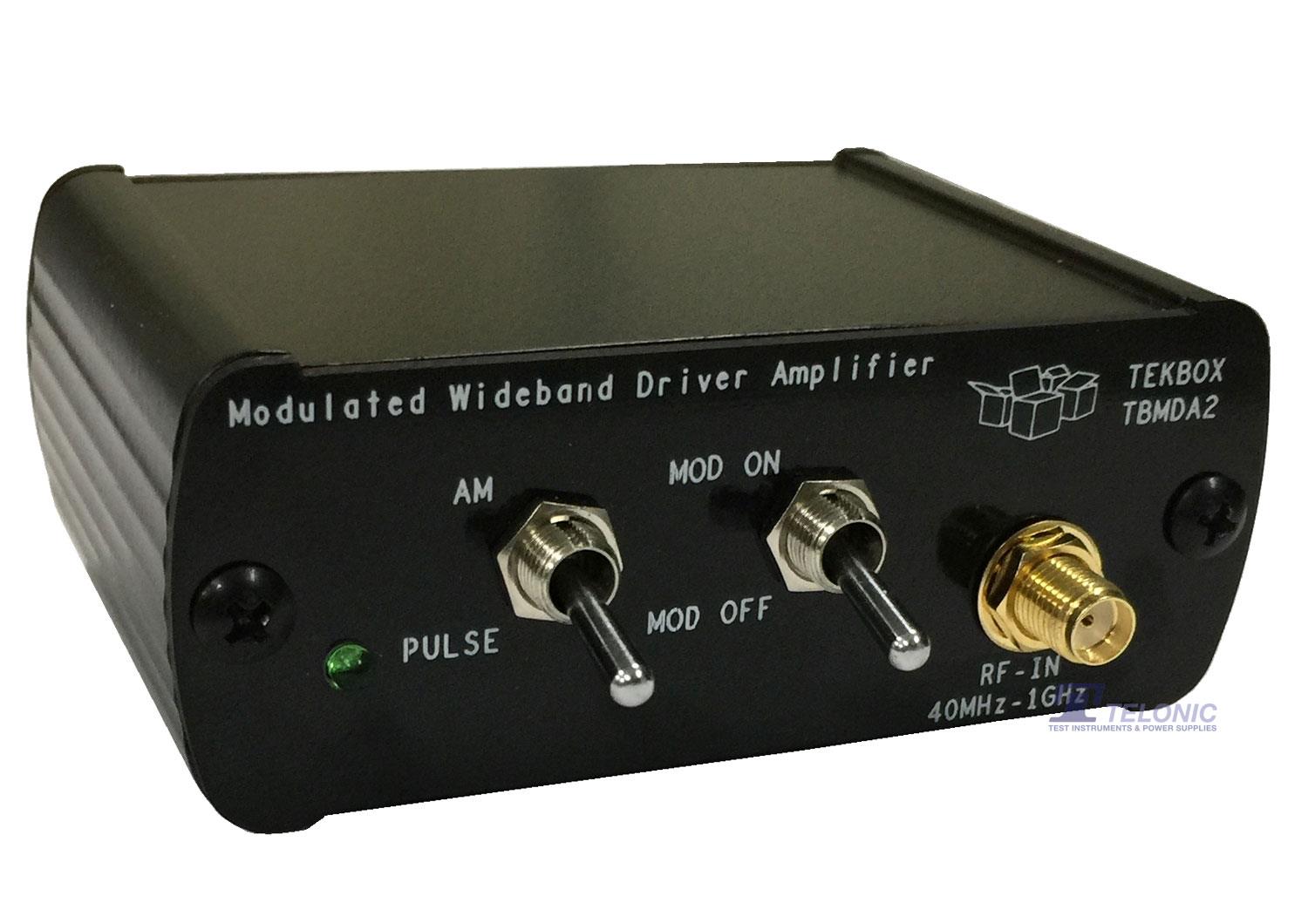

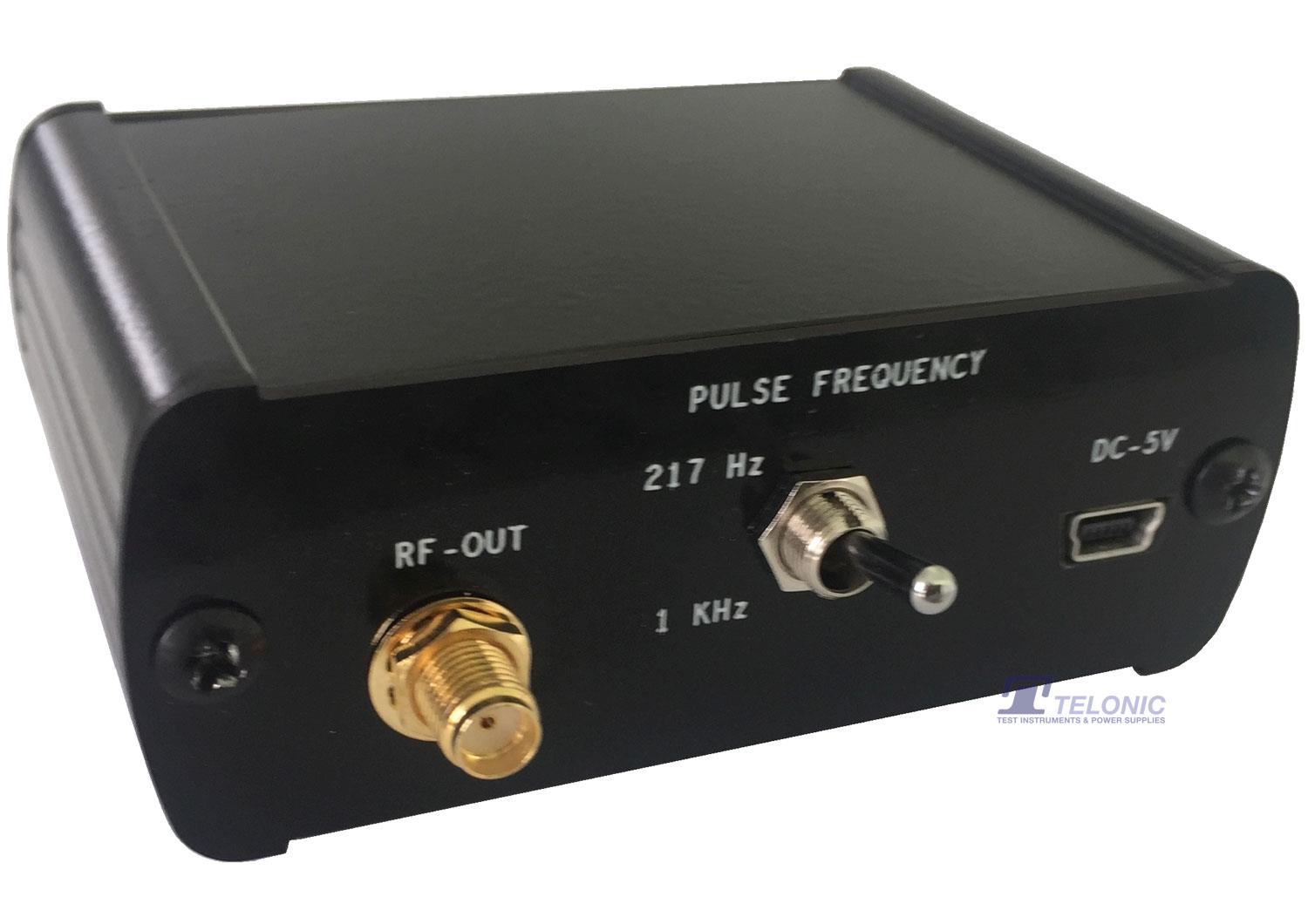

TEKBOX TBMDA2 Modulated Wideband Driver Amplifier

£468.24 (£561.89 inc VAT)

1 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Description


The TEKBOX TBMDA2 modulated wideband driver amplifier is designed in order to create an inexpensive signal source for immunity testing of electronic building blocks and products. It is designed to be driven by the tracking generator output of spectrum analysers. With its 1dB compression point of +27dBm, it can boost the output power of a tracking generator up to 500mW. The TBMDA2 is ideal to drive Tekbox near field probes in order to find the sensitive spot of an electronic circuit or to create electric fields up to 170V/m when driving the Tekbox TEM Cell TBTC0, 100V/m when driving the TBTC1, 50V/m when driving the TBTC2 or 30V/m when driving the TBTC3. Test signals for immunity testing can be CW, AM or PM. Consequently, the TBMDA2 provides built in modulation capability to generate 1kHz AM or PM signals. In PM mode, the TBMDA2 can also generate a 217Hz Signal with 12.5% duty cycle in order to simulate mobile phone TDMA noise.

Features:

  • CW amplifier (modulation off)
  • 1kHz, 80% AM modulation
  • 1kHz, 50% duty cycle pulse modulation
  • 217 Hz, 12.5% duty cycle pulse modulation

Specification:

  • Input: 50Ω, SMA female
  • Output: 50Ω, SMA female
  • Nominal Supply Voltage: 5V (@ 700mA typ., mini-USB-B connector)
  • Maximum Supply Voltage: 5.5V
  • Maximum Input Power: -8dBm continuous, 0dBm @ 25°C for 5 minutes, maximum
  • Operating Temperature Range: -20°C to 50°C
  • Frequency Range: 10MHz to 1.5GHz
  • 1dB Output Compression Point @ 10MHz: +24dBm
  • 1dB Output Compression Point @ 100MHz: +27dBm
  • 1dB Output Compression Point @ 1GHz: +27dBm
  • 1dB Output Compression Point @ 1.5GHz: +26.5dBm
  • Harmonics: <-30dBc typ.
  • Internal Modulation Frequency AM: 1kHz ±10%
  • Internal Modulation Frequencies PM: 1kHz ±10%, 217Hz ±20%
  • Duty cycle, PM: 50% ±10% @ 1 kHz; 12.5% ±20% @ 217 Hz
  • Gain: 21.6dB @ 25MHz, 44.2dB @ 10MHz, 46.3dB @ 25MHz, 46.7dB @ 100MHz, 46.6dB @ 200MHz, 45.3dB @ 300MHz, 44.2dB @ 400MHz, 43.8dB @ 500MHz, 42.9dB @ 600MHz, 41.7dB @ 700MHz, 39.6dB @ 800MHz, 40.1dB @ 900MHz, 39.3dB @ 1GHz, 38.5dB @ 1.1GHz, 37.3dB @ 1.2GHz, 36.8dB @ 1.3GHz, 35.9dB @ 1.4GHz, 34.8dB @ 1.5GHz
Specifications
Input50 Ohm, SMA female
Output50 Ohm, SMA female
Nominal Supply Voltage5V, typ. 700mA, Mini-USB-B connector
Maximum Supply Voltage5.5V
Maximum Input Power-8dBm continuous, 0 dBm @ 25°C for 5 Minutes Max
Operating temperature range-20°C to 50°C
Frequency range 10MHz – 1.5 GHz
1dB output compression point @ 10MHz+24 dBm typ.
1dB output compression point @ 100 MHz+27 dBm typ.
1dB output compression point @ 1 GHz+27 dBm typ.
1dB output compression point @ 1.5 GHz+26.5 dBm typ.
Harmonics< – 30 dBc typ.
Internal modulation frequency AM1 kHz ±10%
Internal modulation frequencies PM1 kHz ±10%, 217 Hz ±20%
Duty cycle, PM50% ±10% @ 1 kHz; 12.5% ±20% @ 217 Hz
Gain
10MHz25MHz100MHz200MHz300MHz400MHz500MHz600MHz700MHz
44.2dB46.3dB46.7dB46.6dB45.3dB44.2dB43.8dB42.9dB41.7dB
800MHz900MHz1GHz1.1GHz1.2GHz1.3GHz1.4GHz1.5GHz
39.6dB40.1dB39.3dB38.5dB37.3dB36.8dB35.9dB34.8dB
