TEKBOX TBWA2/20dB 20dB Wideband Amplifier

£190.00 (£228 inc VAT)

FREE UK delivery: on all orders above £100+vat

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

10+ In UK Stock

SKU: TBWA2-20DB Category:

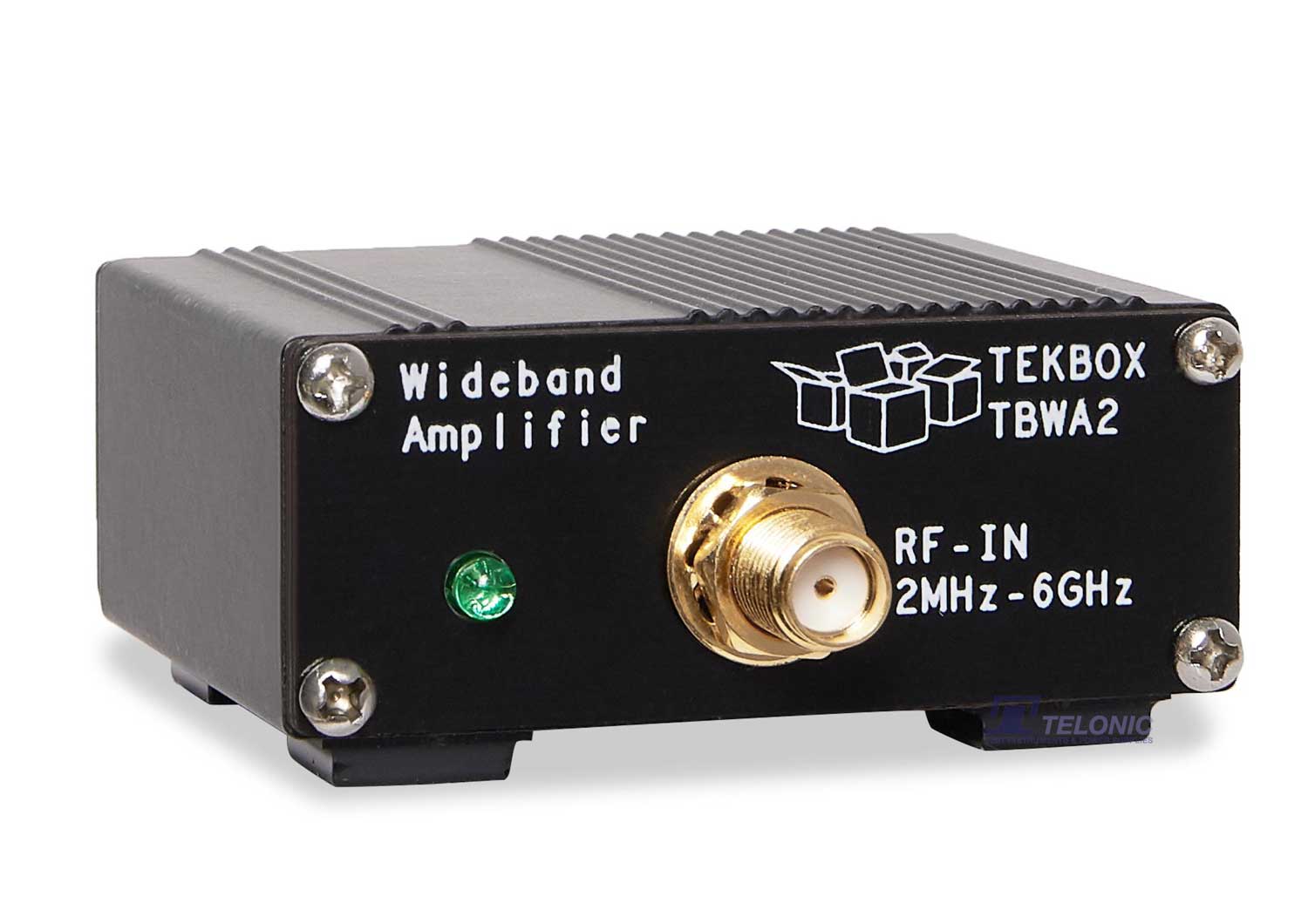

TEKBOX TBWA2 wideband RF amplifiers are versatile building blocks that can easily be integrated into laboratory setups. With a bandwidth of 2MHz to 6GHz they are ideal to boost the signals picked up by EMC near-field probes. The TBWA2 wideband amplifiers are available with 20dB or 40dB gain.


  • Input: 50Ω, SMA

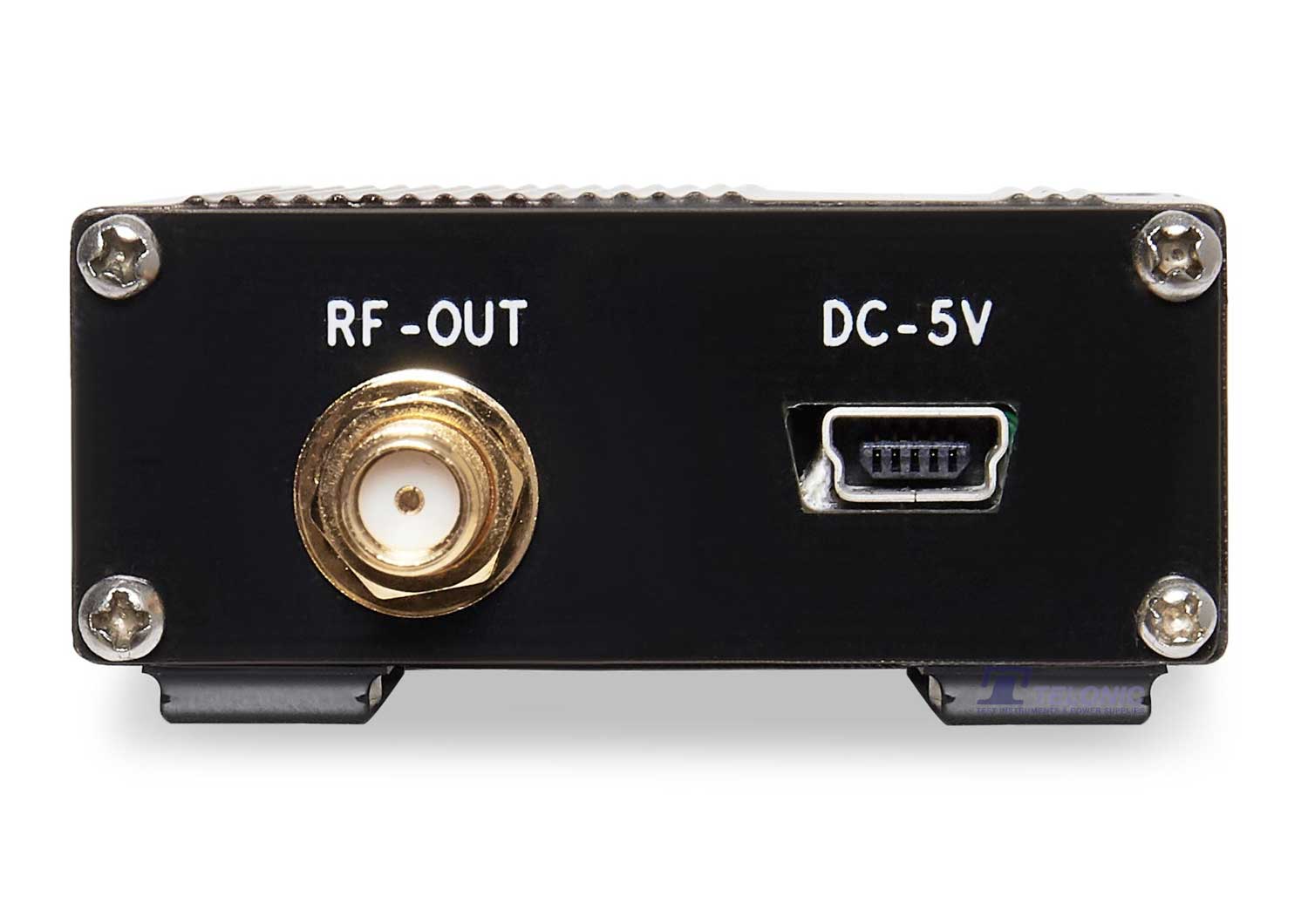

  • Output: 50Ω, SMA
  • Nominal Supply Voltage: 5V (@ 110mA typ., mini-USB-B connector)
  • Maximum Supply Voltage: 5.5V
  • Maximum Input Power: 10dBm
  • 1dB Output Compression Point: 20dBm @ 2GHz
  • Third-Order Output Intercept Point: 35dBm @ 2GHz
  • Reverse Isolation, S12: 23dB, 100MHz < f < 6GHz
  • Noise Figure: <5dB @ 2GHz

The following items are included:

  • 1-off RF amplifier module
  • 1-off RF cable – N(m) to SMA(m)
  • 1-off RF cable – SMA(m) to SMA(m)
  • 1-off RF adapter – N(m) to SMA(f)
  • 1-off USB lead – type-A to mini-B
  • 1-off measurement plot
