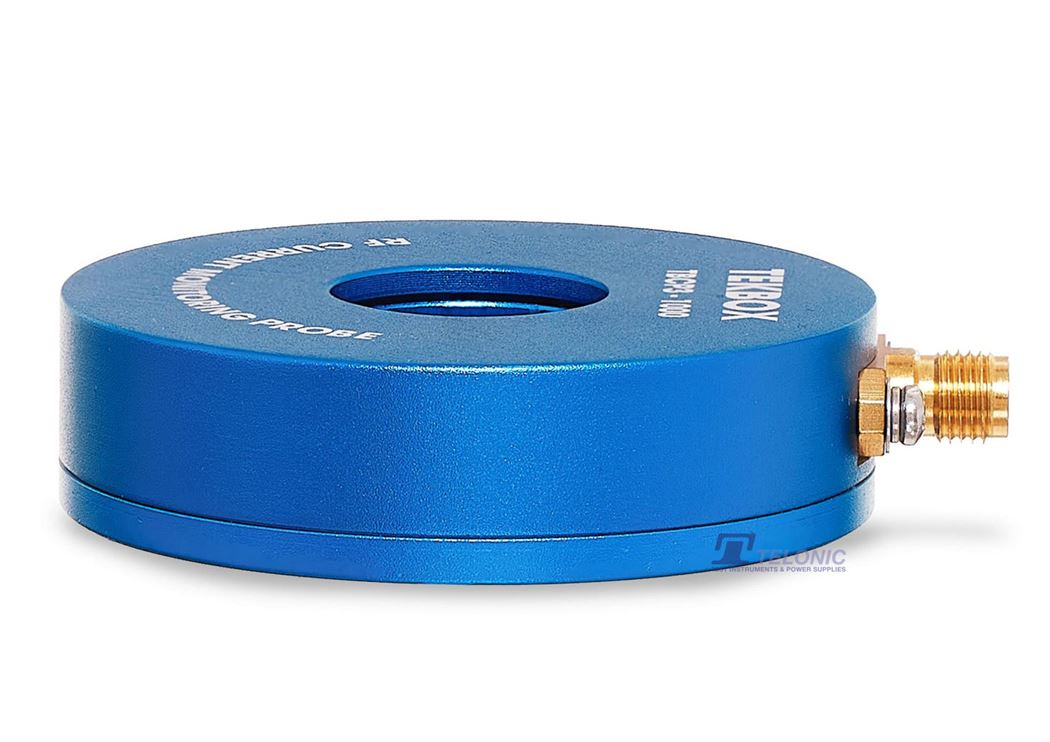

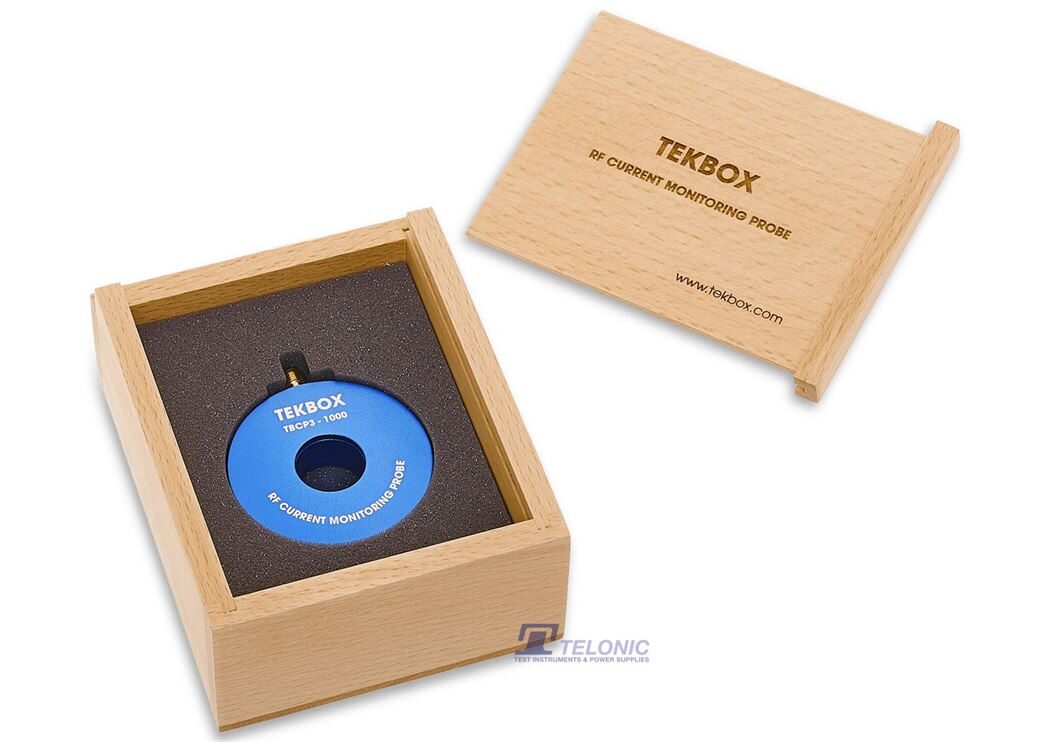

Tekbox TBCP3-1000 RF Current Monitoring Probe

The TBCP3-1000 is a 30 kHz to 1 GHz fixed aperture RF current monitoring probe. It has a very flat response with a 3dB bandwidth of 1 GHz and is characterized and usable over the frequency range from 30kHz to 1 GHz.

The aperture of the RF current monitoring probe is 17 mm. Its transfer impedance is close to 20 dB Ohm in the range from 3 MHz to 1 GHz.

Features:

  • Characterized frequency range: 30 kHz to 1 GHz
  • Aperture diameter: 17 mm
  • Outside diameter: 52 mm
  • Height: 14 mm
  • Weight: 55 g
  • Connector type: SMA female
  • Transfer impedance: 20 dBΩ
  • Max. primary current (DC – 400 Hz): 30 A
  • Max. primary current (RF): 4 A
  • Max. core temperature: 125 °C

Documentation

Specifications
Characterised frequency range 30 kHz to 1 GHz
Aperture diameter 17 mm
Outside diameter 52 mm
Height 14mm
Weight 55g
Connector type SMA female
Transfer impedance 20 dBΩ
Max. primary current (DC – 400 Hz) 30 A
Max. primary current (RF) 4A
Max. core temperature 125 °C



Frequency (MHz) Transfer Impedance (dBΩ) Frequency (MHz) Transfer Impedance (dBΩ)
0.03 -20.67 150 21.07
0.04 -18.23 160 21.01
0.05 -16.34 170 20.93
0.06 -14.74 180 20.87
0.07 -13.36 190 20.87
0.08 -12.23 200 20.87
0.09 -11.15 225 20.92
0.1 -10.27 250 21.06
0.2 -4.16 275 21.11
0.3 -0.61 300 21.13
0.4 1.89 325 21.02
0.5 3.84 350 20.91
0.6 5.44 375 20.80
0.7 6.77 400 20.67
0.8 7.93 425 20.67
0.9 9.00 450 20.72
1 9.93 475 20.86
2 15.77 500 20.77
3 17.56 525 20.61
4 18.23 550 20.44
5 18.59 575 20.34
6 18.87 600 20.42
7 19.08 625 20.40
8 19.27 650 20.41
9 19.42 675 20.31
10 19.55 700 20.16
20 20.29 725 20.00
30 20.61 750 19.85
40 20.78 775 19.69
50 20.87 800 19.47
60 20.95 825 19.37
70 21.02 850 19.34
80 21.05 875 19.29
90 21.09 900 19.23
100 21.11 925 19.03
110 21.12 950 18.69
120 21.11 975 18.24
130 21.11 1000 17.90
140 21.09
