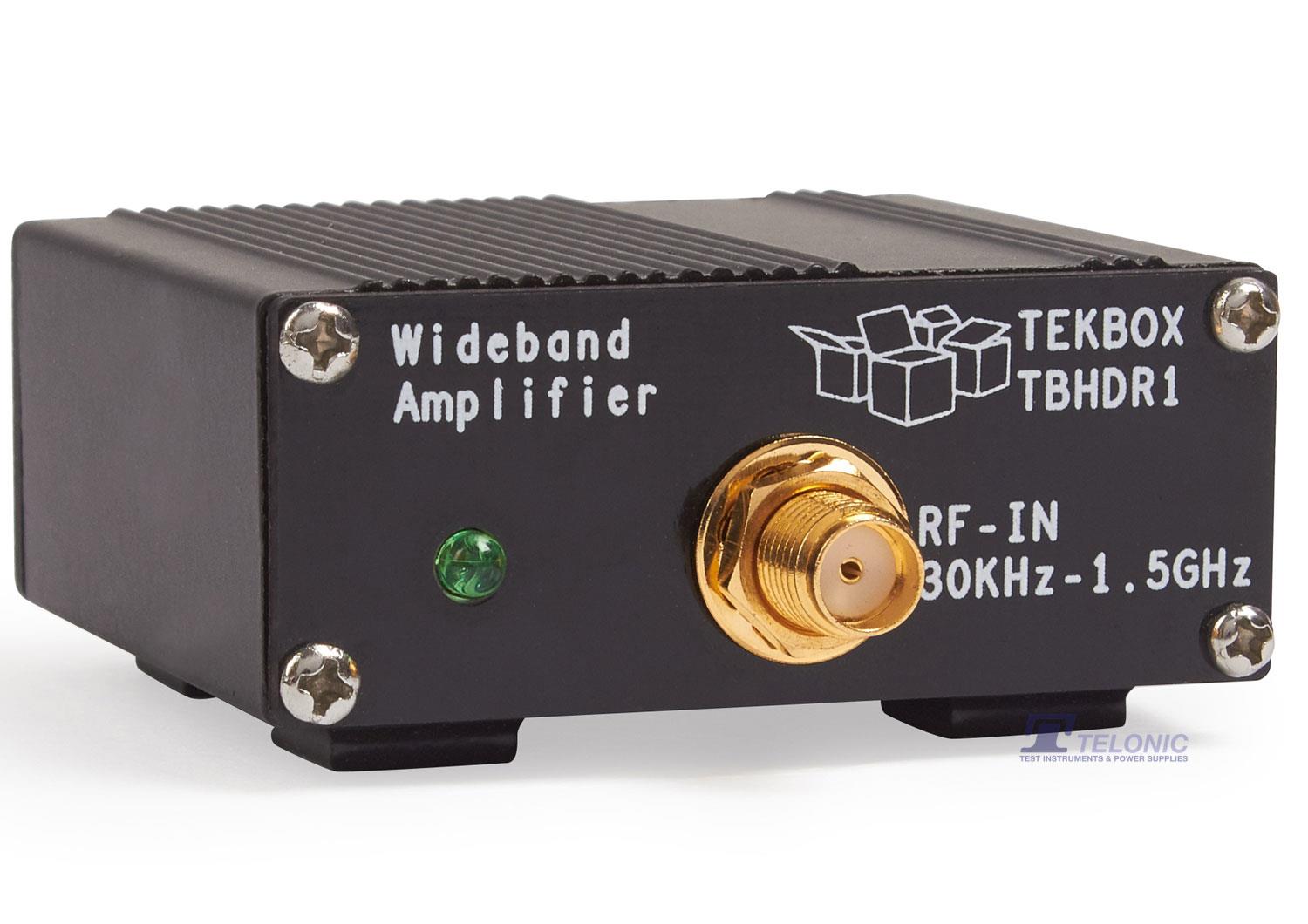

Image of Tbhdr1

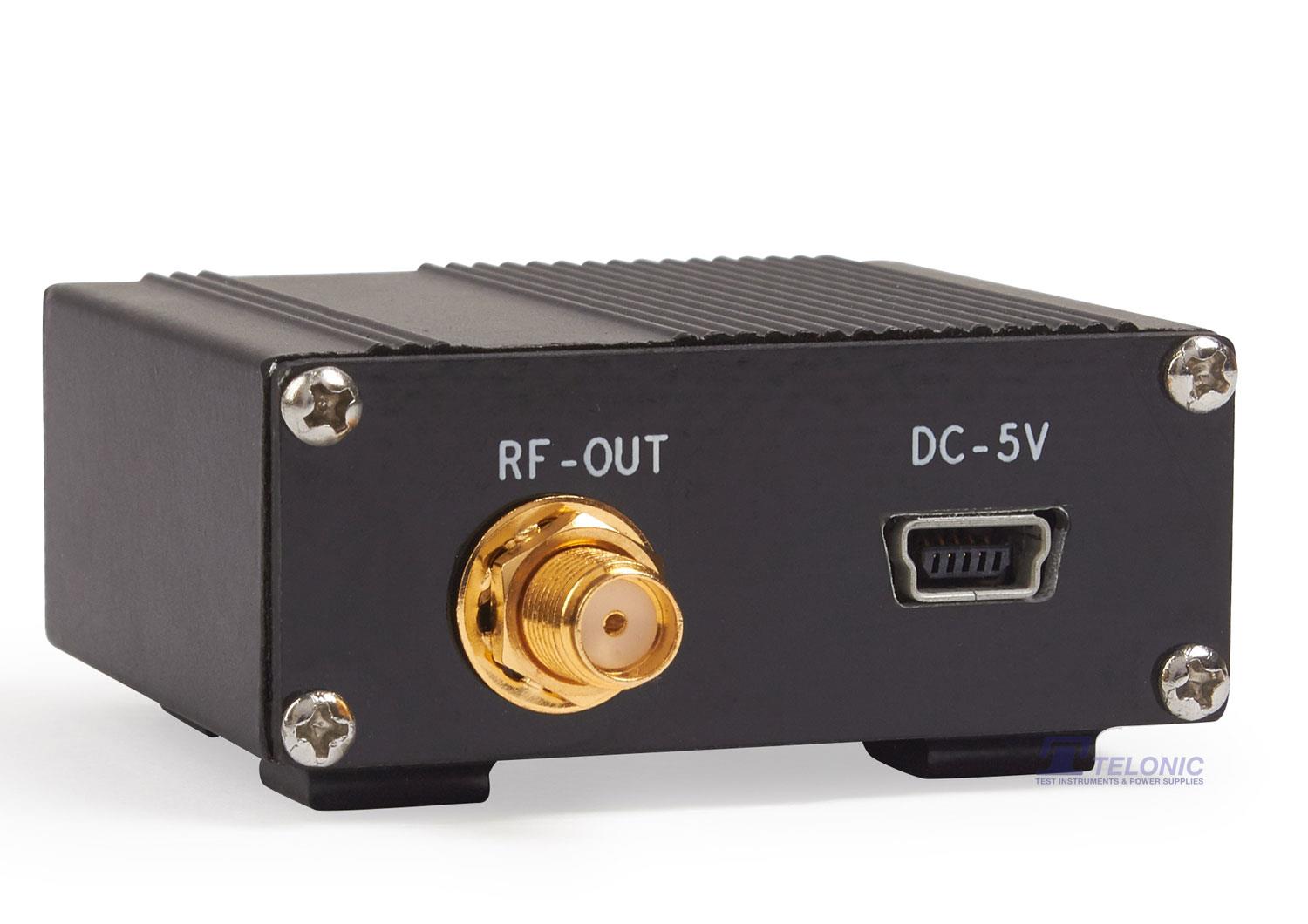

Image of Tbhdr

TEKBOX TBHDR1 High Dynamic Range Amplifier

£181.00 (£217.20 inc. VAT)

5+ In UK Stock

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: TBHDR1 Categories: , , , Brand:

Description


The TBHDR1 is a high dynamic range amplifier with a frequency range from 30kHz to 1.5GHz. Its gain is characterised up to 6GHz.

The TBHDR1 has a high IP3 and a low noise figure which makes it an ideal alternative pre-amplifier for spectrum analysers and receivers in EMC test applications. Due to its low noise figure, high IP3 and gain down to the kHz range it also performs very well as amplifier for active loop antennas.

Documentation

Documents: DC Coupled Amplifiers TBCS101 DA Manual TBCS101 TGA Manual TBLNA-110 HZ Manual TBLNA-110M-50 Manual Documents: Modulated RF Power Amplifiers TBLPA1 Linear Wideband RF Power Amplifier V1.4 TBMDA-BCI25 Modulated Amplifier, Immunity Testing TBMDA1 Manual TBMDA2 User Manual TBMDA3B Modulated Power Amplifier TBMDA4 Modulated Amplifier, Immunity Testing TBMDA5 Modulated Amplifier, Immunity Testing TBMDA7 Manual Documents: RF driver amplifiers TBDA1 Manual Documents: RF wideband pre-amplifiers TBHDR1 Manual TBWA2 Manual Documents: Trans-conductance Amplifier & Current Injector TBRFCI1 Manual
Specifications
Input, Output 50 Ohm, SMA female
Maximum supply voltage 5.5V
Maximum input power +10 dBm
Nominal supply Voltage 5V, typ. 100mA, Mini-USB-B connector
1dB output compression point @ 100 MHz +19.2 dBm typical
1dB output compression point @ 500 MHz +19 dBm typical
1dB output compression point @ 1000 MHz +18.3 dBm typical
3rd order output intercept point @ 100 MHz +38dBm
3rd order output intercept point @ 500 MHz +37dBm
3rd order output intercept point @ 1000 MHz +33dBm
Reverse isolation S12 -28dB
Input matching 30kHz-1.5GHz < – 16 dB
Output matching 30kHz-1.5GHz < – 10 dB
Noise Figure 2.7 dB
Gain
30kHz 150kHz 1MHz 100MHz 500MHz 1GHz 1.5GHz 3GHz 6GHz
22.5 dB 23.6 dB 24.2 dB 24 dB 22.9 dB 21.1 dB 19.5 dB 14.1 dB 5.3dB
