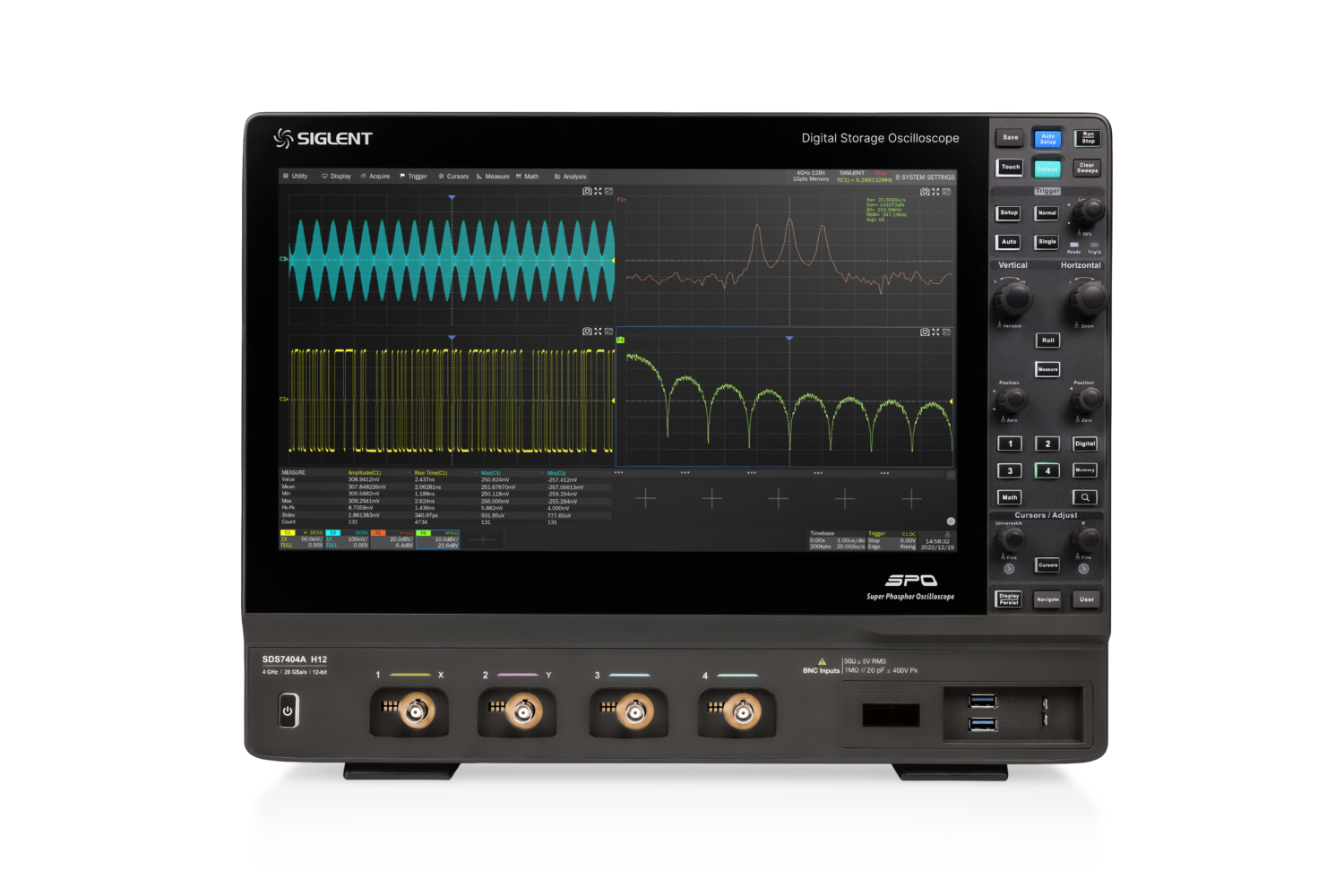

Siglent SDS7000A High Resolution Oscilloscope

SIGLENT SDS7000A Series High-Definition Oscilloscopes: 3GHz & 4GHz Bandwidth Models with 12-Bit Resolution

The SIGLENT SDS7000A series represents the pinnacle of digital storage oscilloscopes, offering unparalleled performance and precision for advanced signal analysis. Available in both 3 GHz and 4 GHz bandwidth models, these oscilloscopes are designed to meet the demands of high-end research, development, and testing applications.

Key Features:

• Bandwidth Options: 3 GHz and 4 GHz models
• Sampling Rate: 20 GSa/s real-time sampling
• Memory Depth: Up to 1 Gpts per channel, ensuring long-duration signal capture without compromise
• High-Definition ADC: 12-bit analog-to-digital converter, providing exceptional signal clarity and detail with up to 16-bit resolution in Enhanced Resolution (ERES) mode
• Waveform Capture Rate: Achieve up to 1,000,000 waveforms per second with SIGLENT’s advanced SPO technology
• Advanced Signal Analysis: Includes Eye Diagram, Jitter Analysis, Power Analysis, Compliance Testing, Bode Plot, and Serial Decode capabilities
• Mixed Signal Capability: Display up to 4 analogue channels + 16 digital channels for comprehensive mixed signal analysis
• Innovative Trigger System: Features a digital trigger system with high sensitivity and low jitter, supporting a wide range of triggering options including Edge, Slope, Pulse, Window, and more
• 256-Level Intensity Grading: Enhanced display modes with color temperature grading for improved waveform visibility
• Segmented Acquisition Mode: Capture and analyze multiple events with minimal dead time using up to 124,000 segments
• History Waveform Recording: Record and analyze up to 124,000 frames of waveform history
• Math and Measurement Tools: Extensive tools including FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, and a formula editor for custom calculations
• Optional Built-in AWG: 50 MHz arbitrary waveform generator for signal simulation
• Large, High-Resolution Display: 15.6” capacitive touch screen with 1920 x 1080 HD resolution, supporting multi-touch gestures for intuitive operation
• Remote Control and Connectivity: Built-in web server for remote control via LAN, supporting SCPI commands, with multiple connectivity options including USB 3.1, USB 2.0, LAN, DVI-D, DP 1.2, HDMI 1.4, and more

Applications:

The SDS7000A series is ideal for applications requiring detailed signal analysis, such as:

• High-Speed Digital Design
• Telecommunications
• Embedded Systems Debugging
• Power Electronics
• Automotive Testing
• Compliance Testing

SIGLENT’s SDS7000A series oscilloscopes are engineered to provide the accuracy, depth, and versatility needed for today’s most demanding signal analysis tasks. Whether you’re conducting high-speed digital design or complex mixed signal analysis, the SDS7000A offers the tools and performance to get the job done with precision and efficiency.
