Siglent SDS7804A 4Ch, 8GHz, 20GSa/s, 12-Bit High Resolution Oscilloscope

Description

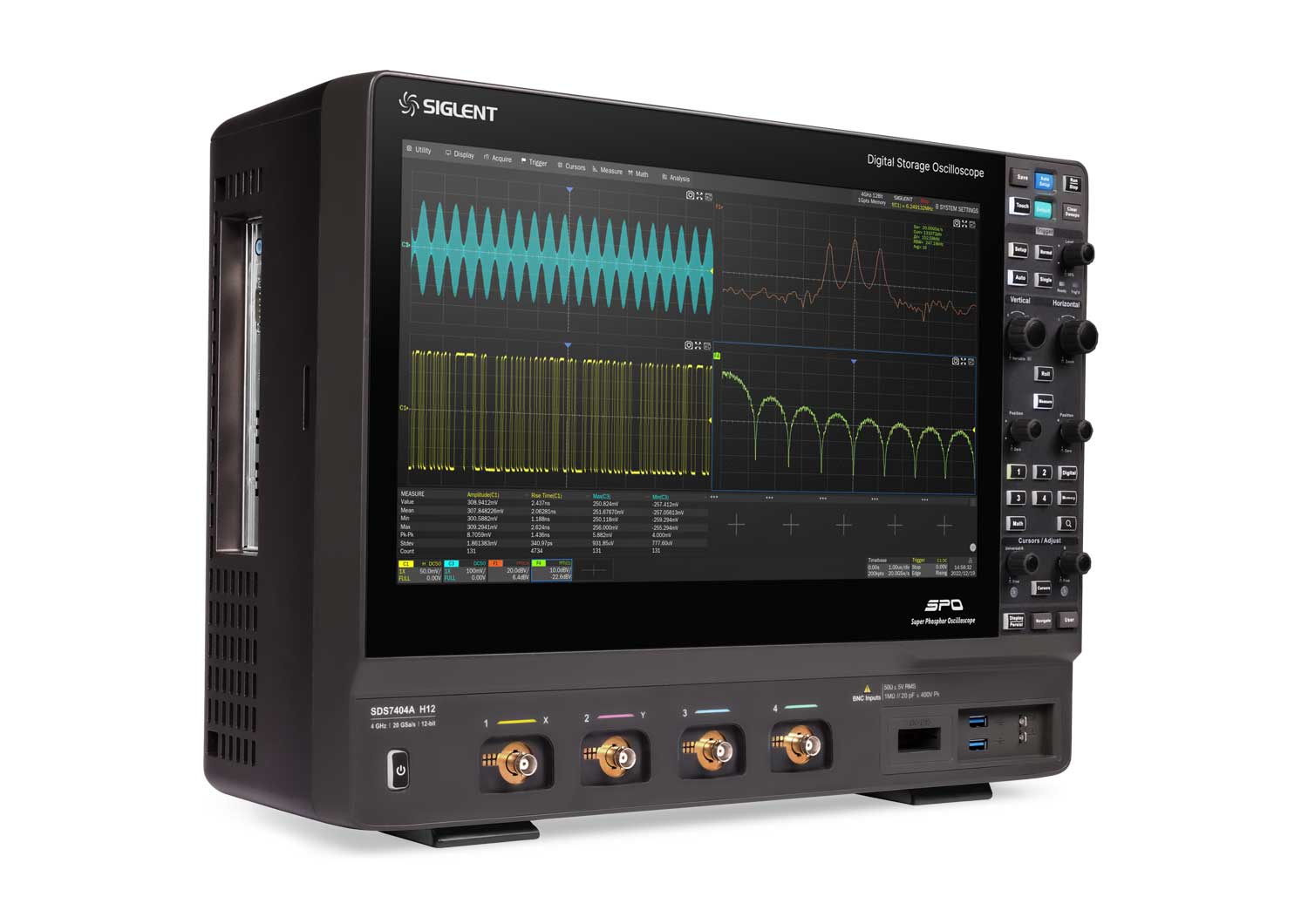

Siglent SDS7804AP 12-Bit High Resolution Oscilloscope

SIGLENT’s SDS7000A series Digital Storage Oscilloscopes are available in bandwidths of 8 GHz、6 GHz、4 GHz, and 3 GHz, have 12-bit ADCs with sample rate up to 20 GSa/s, maximum record length of 2 Gpts/ch, and display up to 4 analogue channels + 16 digital channels for high-performance mixed signal analysis.

The SDS7000A series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 1,000,000 wfm/ s, 256-level intensity grading display function, plus a colour temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes, including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Signal Scan, Mask Test, Bode Plot, Power Analysis, Eye/Jitter Analysis, RTSA, SigVSA, and Compliance Test enable the capture, storage, and analysis of extended waveform records. The SDS7000A features an impressive array of measurement and math capabilities, including options for a 50 MHz arbitrary waveform generator, as well as serial decoding.

The large 15.6’’ HD display capacitive touch screen supports multi-touch gestures, and with the addition of a user-friendly UI design, can greatly improve operational efficiency. It also supports mouse control and remote web control over LAN.

Note: 8 GHz / 6GHz models limited to 4 GHz in 3 or 4 channels modes

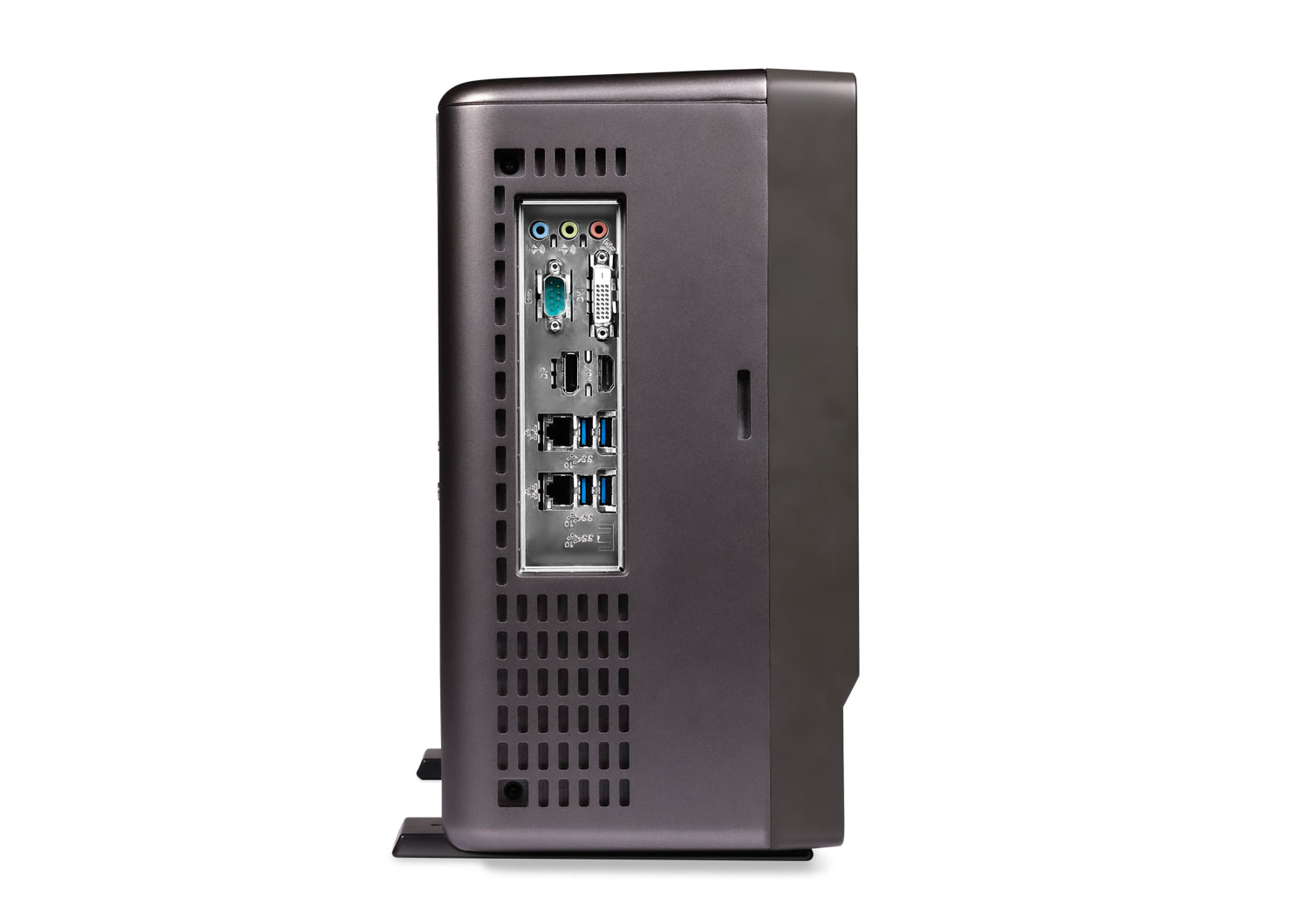

Product Images

Built-in 50 MHz Function/Arbitrary Waveform Generator

High Waveform Update Rate

Multiple Trigger Functions

Hardware-based High Speed Mask Test Function

12-bit high resolution

5 GHz Active Differential Probe（SAP5000D）

Bode Plot

Compliance Test
