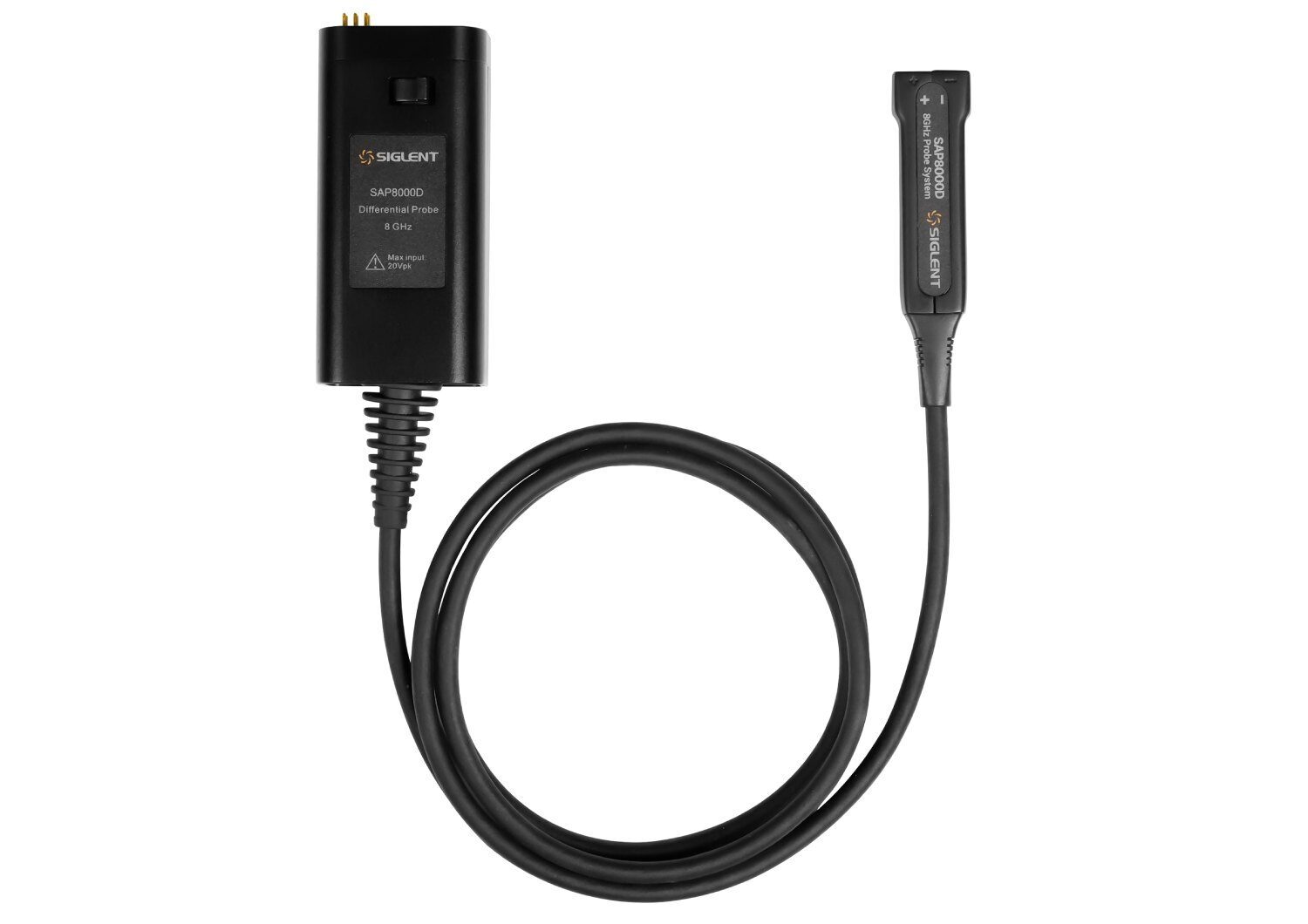

Image of Sap8000d telonicuk

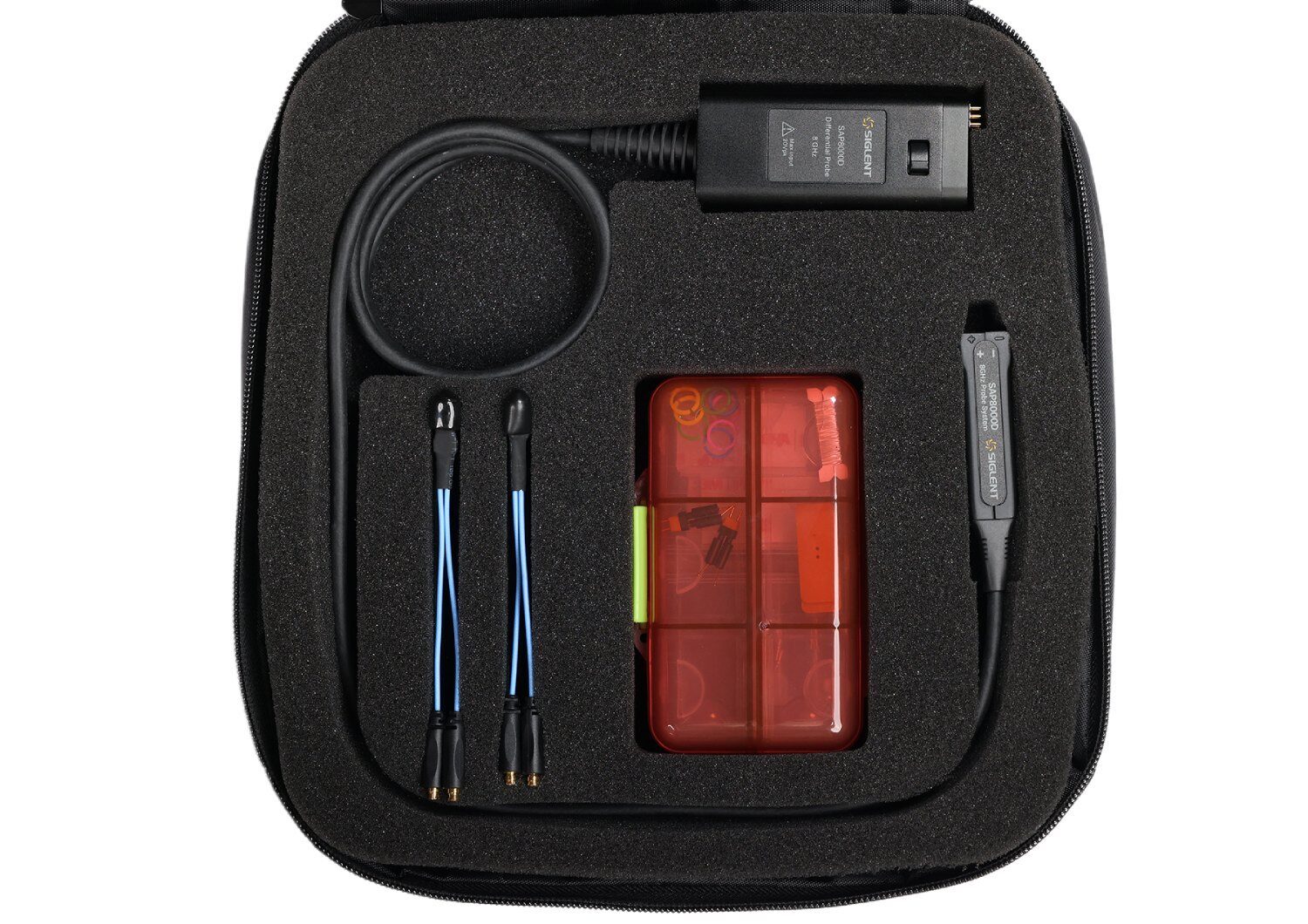

Image of Sap8000d bag telonicuk

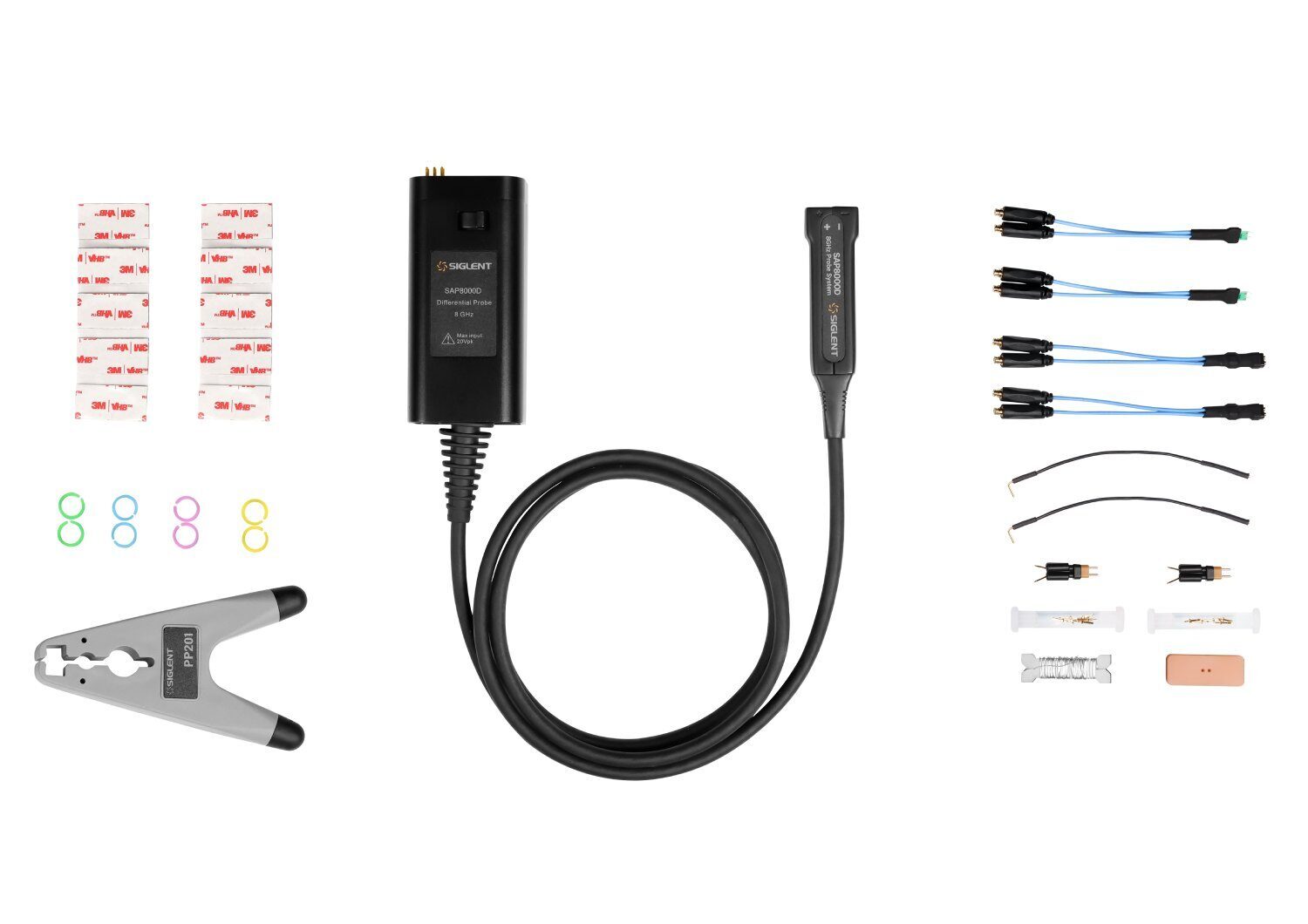

Image of Sap8000d order contents telonicuk

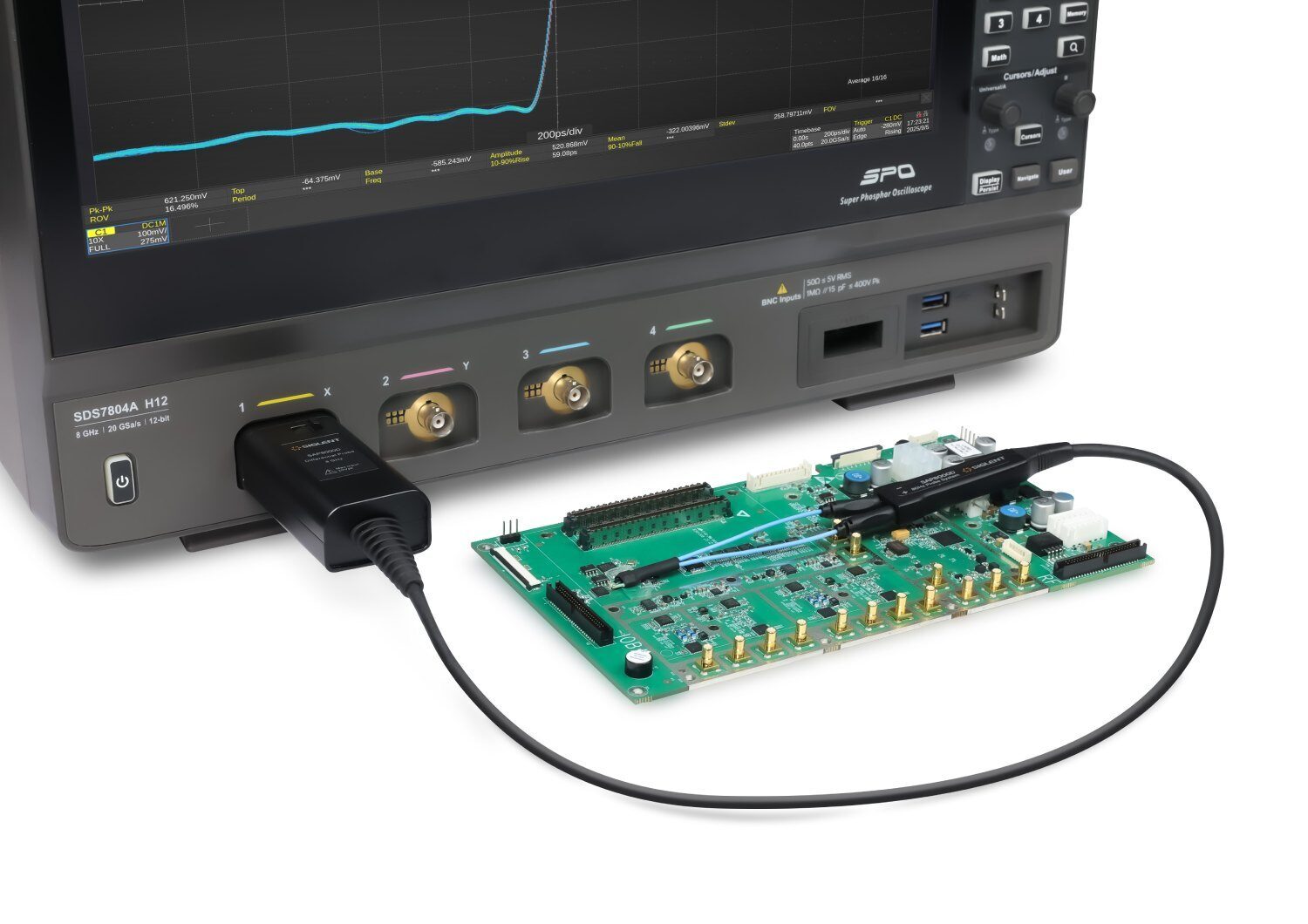

Image of Sap8000d plug telonicuk

Siglent SAP8000D 8GHz, 10:1, ±2.5V Active Differential Probe

£6939.00 (£8326.80 inc. VAT)

Available on back-order

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: SAP8000D Categories: , Brand:

Description


Siglent SAP8000D 8GHz, 10:1, ±2.5V Active Differential Probe

The Siglent SAP8000D is a high-bandwidth differential active probe known for its features such as high bandwidth and low noise, making it suitable for measuring high-speed signals. Its low input capacitance characteristics ensure minimal load is introduced to the measurement system. The SAP8000D active probe utilises the SAPBus interface and is compatible with oscilloscopes that support the SAPBus interface, such as the SDS7000A series oscilloscopes. The SAP series active probes do not require external power sources, as the oscilloscope provides power and a communication interface to the active probe through the SAPBus interface. When connected to the oscilloscope, the SAP series active probes allow you to read probe information from the oscilloscope’s interface.

Documentation

SAP8000D Manual
Parameters SAP8000D
Bandwidth (Probe only) 8 GHz
Bandwidth (with Oscilloscope) 8 GHz (SDS7804A H12)
Differential input capacitance 300fF
Differential input resistance 20 kΩ
Single-ended input resistance 10 kΩ
Offset range ± 12 V
Attenuation ratio (DC) ÷ 10
Offset accuracy < 3%
DC gain accuracy < 3%
Input dynamic range ± 2.5 V
common-mode voltage range DC: 6.25 V
AC: 1.25 V
Probe noise (typical) 3.5 mV RMS
Damage voltage 20 V
Cable length 130 cm
