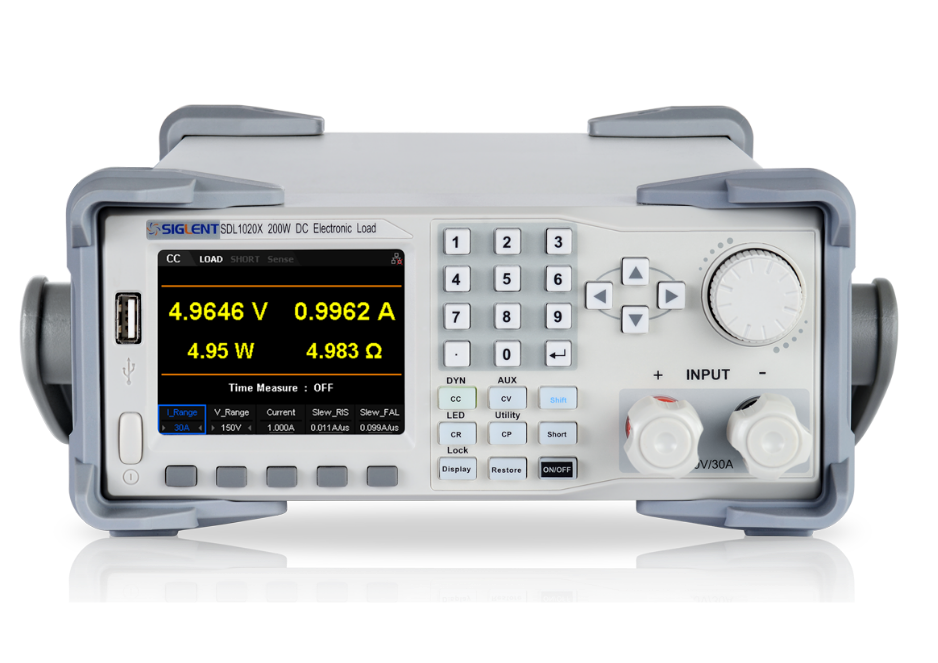

Siglent SDL1000X Series DC Electronic Loads

Input Voltage: 150V| Input Current: 30A | Power: 200W / 300W

  • SDL1020X (Single channel ): DC 150 V/30 A, total power up to 200 W
  • SDL1030X (Single channel ): DC 150 V/30 A, total power up to 300 W
  • 4 static modes / Dynamic mode: CC/CV/CR/CP
  • Min. readback resolution: 0.1 mV, 0.1 mA
    • Adjustable current rise time range: 0.001 A/us~2.5 A/us

The SDL1000X/SDL1000X-E series Programmable DC Electronic Load has a 3.5 inch TFT-LCD display, a user-friendly interface and superb performance specifications. The SDL1020X/SDL1020X-E models feature an input range of 150V/30A 200W while the SDL1030X/SDL1030X-E have an input range of 150V/30A 300W. The SDL1000X series leads with measurement resolution of 0.1mV/0.1mA and the base SDL1000X-E series resolution is 1mV/1mA and adjustable current rise times from 0.001A/μs~2.5 A/μs. For remote communication and control, the SDL series includes RS232/USB/LAN interface types.

ModelInput Voltage/Current/PowerModeCC Dynamic Mode FrequencyMeasuring SpeedCurrent Slew RateMin. Readback ResolutionPrice
SDL1020X-E150V / 30A / 200WCC/CV/CR/CP25kHzUp to 500kHz0.001 A/us~2.5 A/us1 mV, 1 mA£393.00
SDL1020X150V / 30A / 200WCC/CV/CR/CP25kHzUp to 500kHz0.001 A/us~2.5 A/us0.1/1 mV, 0.1 mA£537.00

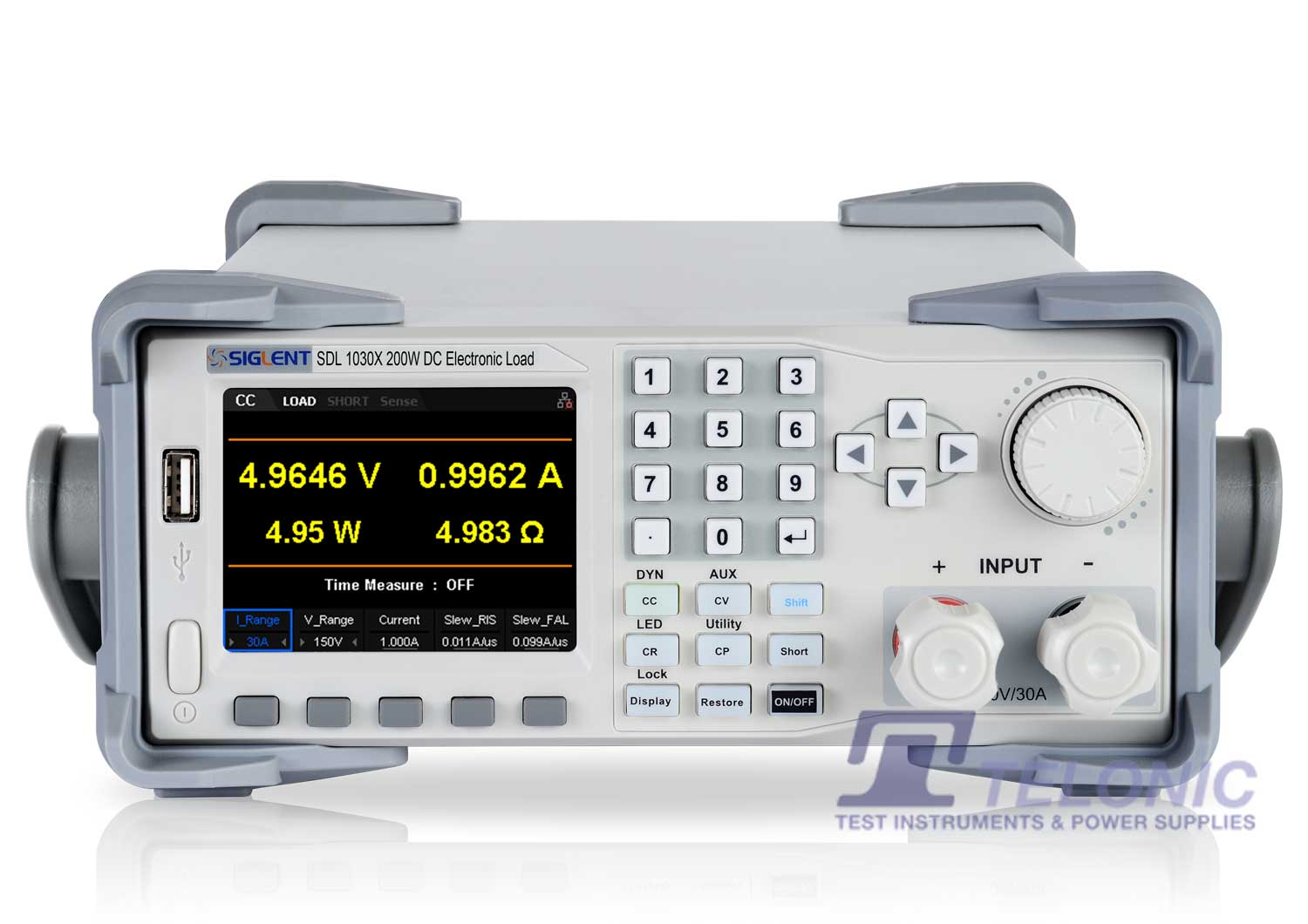

SDL1030X-E150V / 30A / 300WCC/CV/CR/CP25kHzUp to 500kHz0.001 A/us~2.5 A/us1 mV, 1 mA£680.00
SDL1030X150V / 30A / 300WCC/CV/CR/CP25kHzUp to 500kHz0.001 A/us~2.5 A/us0.1/1 mV, 0.1 mA£886.00

    Showing all 4 results
