Siglent SDG800 Series Waveform Generators
Advanced DDS technology, 125 MSa/s sampling rate, 14-bit vertical resolution
Single channel output, 5 standard waveforms, 46 built-in arbitrary waveforms (including DC)
Complete modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep, and burst
The SDG800 series function/arbitrary waveform generator family outputs waveform functions up to 5 MHz (pulse), 10 MHz (square), 30 MHz (sine) and has a sampling rate of 125 MSa/s. They are powered with SIGLENT’s EasyPulse technology which produces low jitter, fast rising/falling edges without being affected by frequency, even at low duty cycle settings, allowing the user a wide range of pulse widths and transition times. This results in a much more versatile generator than other similar DDS designs.
| SKU | Image | Frequency | Sample Rate(s) | Resolution (Bit) | Arb Waveform | CH | Stock | Price |
|---|---|---|---|---|---|---|---|---|
| SDG1022X Plus |  | 25 MHz | 1 GSa/s | 16-bit | 8 Mpts | 2 | On Backorder | £275.00 |
| SDG1032X Plus |  | 30 MHz | 1 GSa/s | 16-bit | 8 Mpts | 2 | On Backorder | £311.00 |
| SDG1062X Plus | | 60 MHz | 1 GSa/s | 16-bit | 8 Mpts | 2 | 1 | £386.00 |
| SDG2042X |  | 40 MHz | 1.2 GSa/s | 16-bit | 8 pts to 8 Mpts | 2 | On Backorder | £400.00 |
| SDG2082X | | 80 MHzv | 1.2 GSa/s | 16-bit | 8 pts to 8 Mpts | 2 | 3 | £496.00 |
| SDG2122X | | 120 MHz | 1.2 GSa/s | 16-bit | 8 pts to 8 Mpts | 2 | On Backorder | £720.00 |

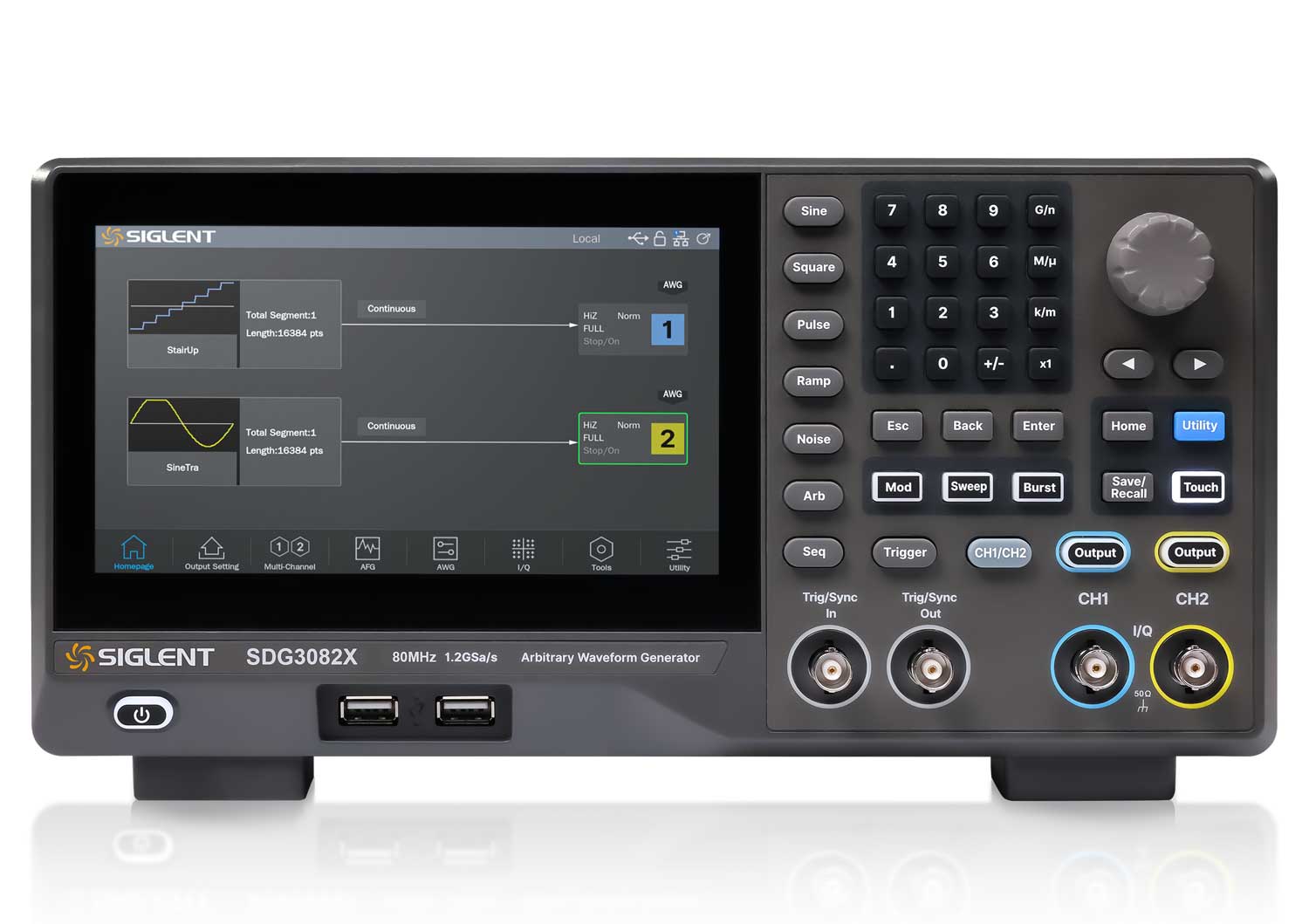

| SDG3082X |  | 80 MHz | 1.2 GSa/s | 16-bit | 20 Mpts (std) / 40 Mpts (opt) | 2 CH | 2 | £590.00 |

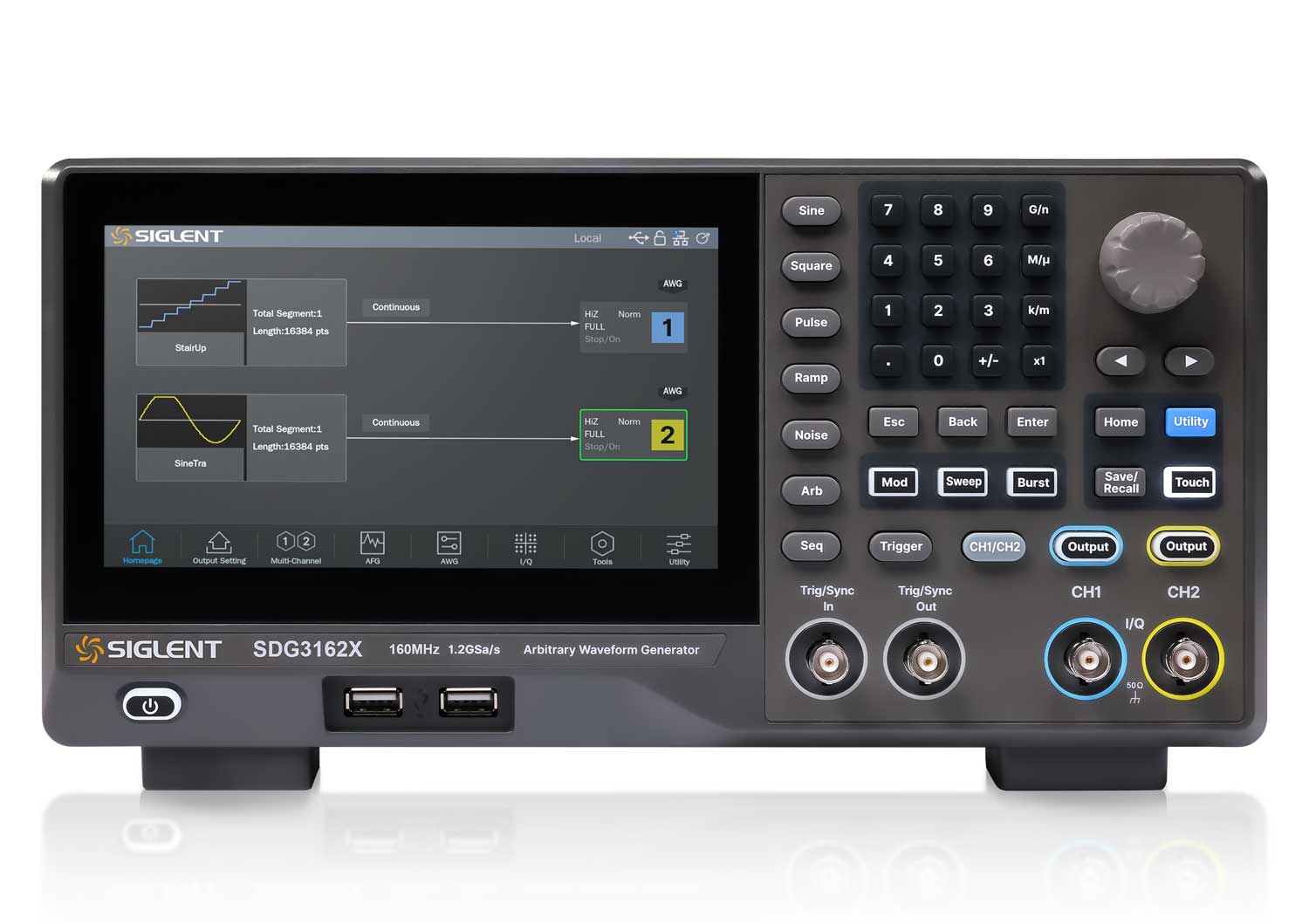

| SDG3162X |  | 160 MHz | 1.2 GSa/s | 16-bit | 20 Mpts (std) / 40 Mpts (opt) | 2 CH | 3 | £853.00 |

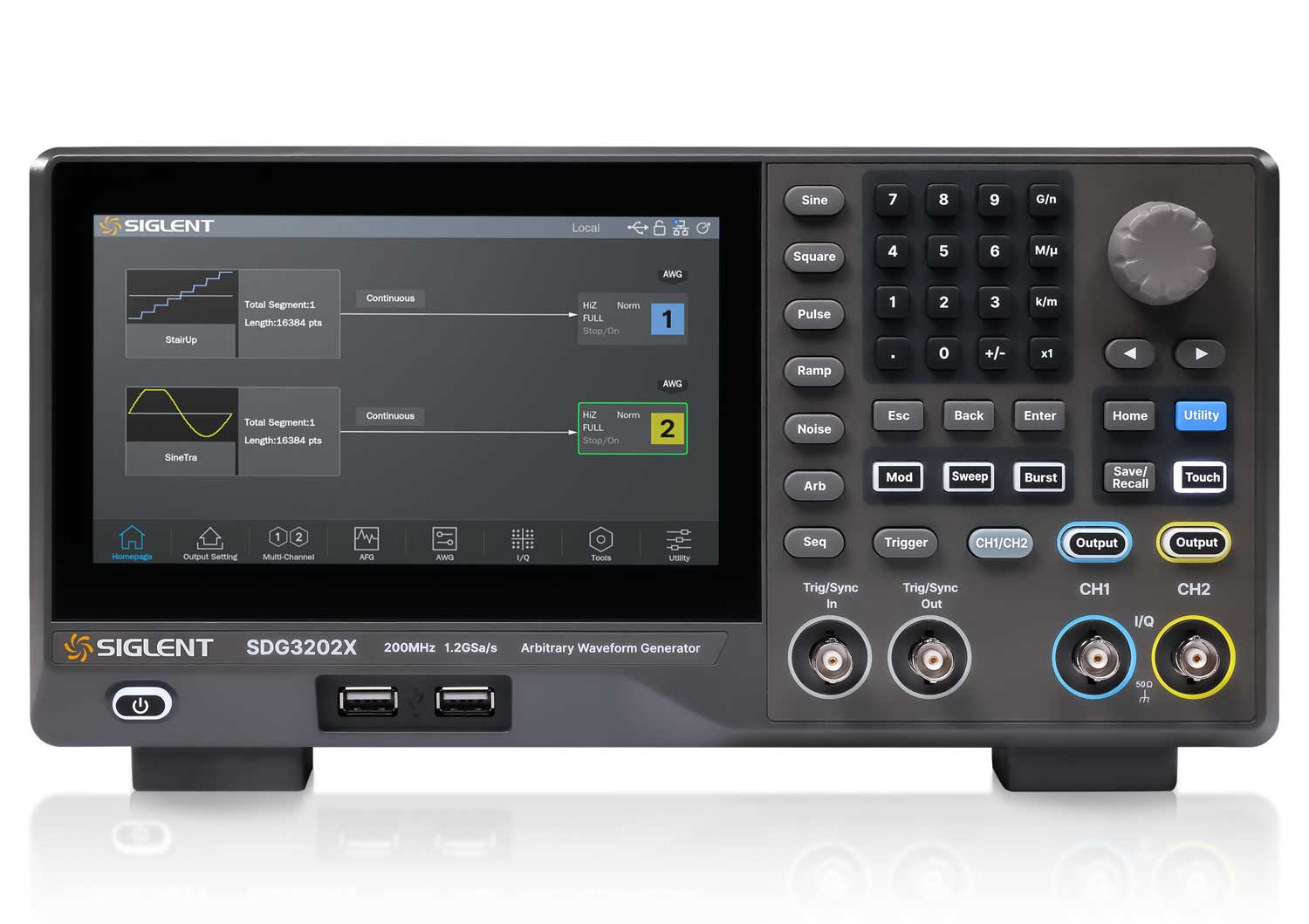

| SDG3202X |  | 200 MHz | 1.2 GSa/s | 16-bit | 20 Mpts (std) / 40 Mpts (opt) | 2 CH | 2 | £1,053.00 |
| SDG6022X |  | 200 MHz | 2.4 GSa/s | 16-bit | 20 Mpts | 2 | 1 | £1,103.00 |
| SDG6032X |  | 350 MHz | 2.4 GSa/s | 16-bit | 20 Mpts | 2 | On Backorder | £2,494.00 |
| SDG6052X | | 500 MHz | 2.4 GSa/s | 16-bit | 20 Mpts | 2 | On Backorder | £3,893.00 |
| SDG7032A |  | 350 MHz | 5 GSa/s | 14-bit | 512Mpts | 2 Differential/Single-ended | On Backorder | £6,674.00 |
| SDG7052A | | 500 MHz | 5 GSa/s | 14-bit | 512Mpts | 2 Differential/Single-ended | On Backorder | £8,199.00 |
| SDG7102A | | 1 GHz | 5 GSa/s | 14-bit | 512Mpts | 2 Differential/Single-ended | On Backorder | £10,787.00 |
| SDG810 |  | 10 MHz | 125 MSa/s | 14-bit | 16 kpts | 1 | On Backorder | £146.00 |
| SDG830 |  | 30 MHz | 125 MSa/s | 14-bit | 16 kpts | 1 | 1 | £172.00 |
Showing all 2 results
-
Siglent SDG810 1Ch, 10MHz, 125MSa/s, Function Generator
£146.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SDG830 1Ch, 30MHz, 125MSa/s, Function Generator
£172.00Only 1 left in stock!
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket
