Siglent SDS2000X-Plus Series Digital Oscilloscopes

Siglent SDS2102X-Plus
SDS2102X-Plus
100MHz, 2Ch, 2GSa/s, Price: £788.00
Siglent SDS2104X-Plus
SDS2104X-Plus
100MHz, 4Ch, 2GSa/s, Price: £1,050.00
Siglent SDS2204X-Plus
SDS2204X-Plus
200MHz, 4Ch, 2GSa/s, Price: £1,665.00
Siglent SDS2354X-Plus
SDS2354X-Plus
350MHz, 4Ch, 2GSa/s, Price: £2,280.00

Bandwidth: 100MHz, 200MHz, 350MHz Models | Channels: 2/4 | Memory Depth: 100/200Mpts

  • 100 MHz, 200 MHz, 350 MHz ( upgradable to 500 MHz ) models
  • Record length up to 200 Mpts
  • Real-time sampling rate up to 2 GSa/s
  • Serial bus triggering and decoder, supports I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD-1553B
  • Provide 10 bit mode, Vertical and Horizontal Zoom

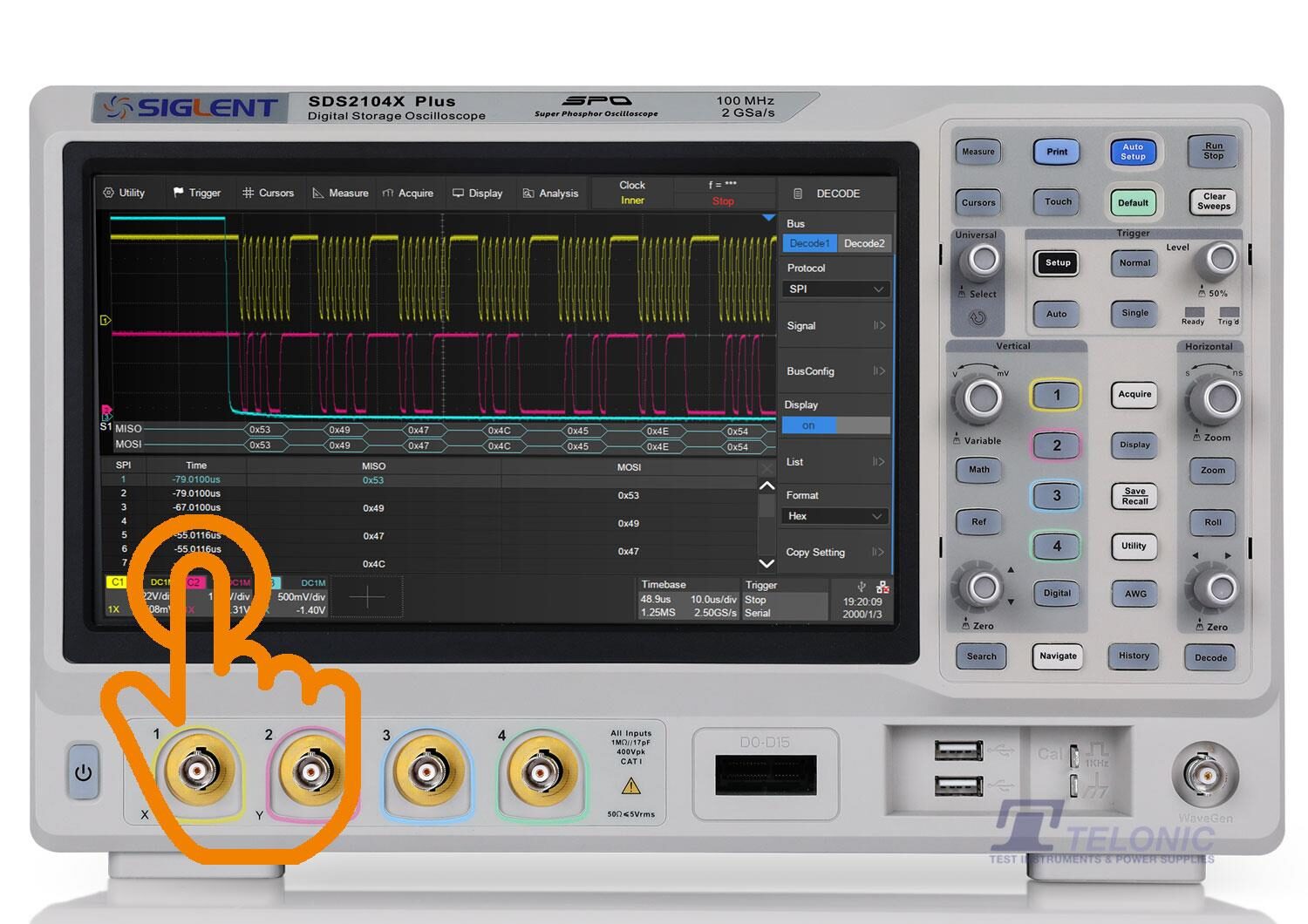

  • Capacitive touch screen supports multi-touch gestures

    The Siglent SDS2000X Plus series Digital Storage Oscilloscopes are available in bandwidths of 350 MHz, 200 MHz, and 100 MHz, have a maximum sample rate of 2 GSa/s, a maximum record length of 200 Mpts/ch, and up to 4 analogue channels + 16 digital channels mixed-signal analysis ability. The SDS2000X Plus series employs SIGLENT’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a colour temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. History waveform recording, Sequence acquisition, Search and Navigate functions allow for extended waveform records to be captured, stored, and analysed. An impressive array of measurement and math capabilities, options for a 50 MHz waveform generator, as well as serial decoding, mask test, bode plot, and power analysis are also features of the SDS2000X Plus. A 10-bit acquisition mode helps to satisfy applications that require more than 8-bit resolution.

    ModelChannelsBandwidthReal Time Sampling RateCapture RateMemory DepthPrice
    SDS2102X Plus2 + EXT100MHz2GSa/s (Interleaving Mode)
    1GSa/s (Non-Interleaving Mode)    		120,000 wfm/s (Normal Mode)
    500,000 wfm/s (Sequence Mode)    		200Mpts/Ch (Interleaving Mode)
    100Mpts/Ch (Non-Interleaving Mode)    		£788.00
    SDS2104X Plus4 + EXT100MHz2GSa/s (Interleaving Mode)
    1GSa/s (Non-Interleaving Mode)    		120,000 wfm/s (Normal Mode)
    500,000 wfm/s (Sequence Mode)    		200Mpts/Ch (Interleaving Mode)
    100Mpts/ch (Non-Interleaving Mode)    		£1,050.00
    SDS2204X Plus4 + EXT200MHz2GSa/s (Interleaving Mode)
    1GSa/s (Non-Interleaving Mode)    		120,000 wfm/s (Normal Mode)
    500,000 wfm/s (Sequence Mode)    		200Mpts/Ch (Interleaving Mode)
    100Mpts/Ch (Non-Interleaving Mode)    		£1,665.00
    SDS2354X Plus4 + EXT350MHz2GSa/s (Interleaving Mode)
    1GSa/s (Non-Interleaving Mode)    		120,000 wfm/s (Normal Mode)
    500,000 wfm/s (Sequence Mode)    		200Mpts/Ch (Interleaving Mode)
    100Mpts/Ch (Non-Interleaving Mode)    		£2,280.00

    Showing all 4 results
