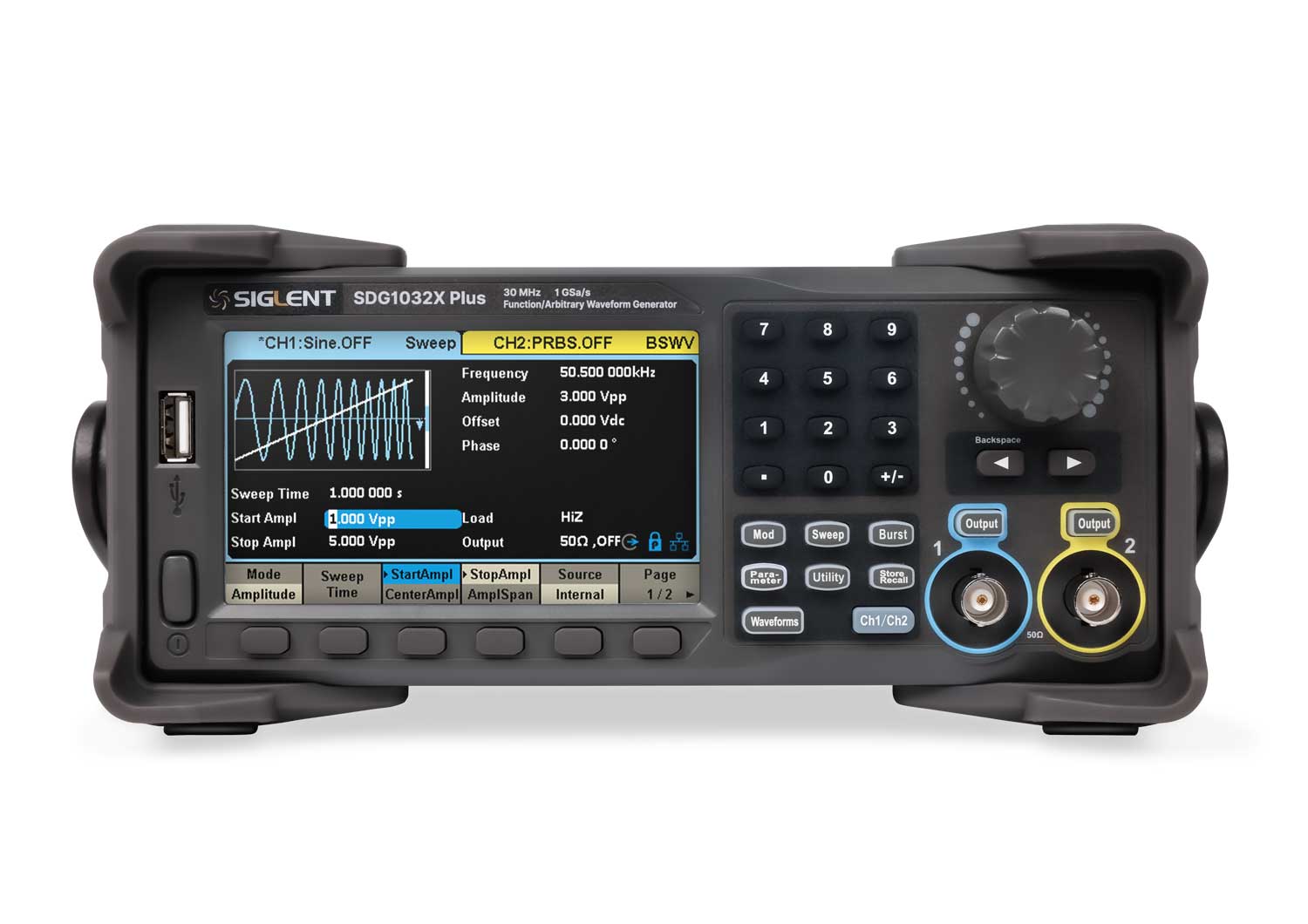

Siglent SDG1000X Plus Series
Function/Arbitrary Waveform Generators

Dual channel, maximum output amplitude 20 Vpp
1 GSa/s Sampling rate, 16-bit vertical resolution
Arbitrary wave length 8 Mpts/CH
Multi-pulse output function
Supports PRBS up to 40 Mbps

SSMU300X Banner Img

SIGLENT’s SDG1000X Plus series dual-channel function/arbitrary waveform generator, with a maximum bandwidth of 60MHz, has excellent sampling system indicators of 1GSa/s sampling rate and 16-bit vertical resolution. Based on the traditional DDS technology, the innovative TrueArb and EasyPulse technologies are used to overcome the inherent defects of DDS technology in outputting arbitrary waves and square waves/pulses. It can provide users with high-fidelity, low-jitter signals. In addition, SDG1000X Plus also provides PRBS pattern generation, sequence wave output, and dual pulse output functions to meet a wider range of application needs.

SKUImageFrequencySample Rate(s)Resolution (Bit)Arb WaveformCHStockPrice
SDG1022X PlusSiglent SDG1022X PLUS 2Ch, 25 MHz, 1GSa/s, Function Generator25 MHz1 GSa/s16-bit8 Mpts2On Backorder£275.00
SDG1032X PlusSiglent SDG1032X PLUS 2Ch, 30MHz, 1GSa/s, Function Generator30 MHz1 GSa/s16-bit8 Mpts2On Backorder£311.00
SDG1062X PlusSiglent SDG1062X PLUS 2Ch, 60MHz, 1GSa/s, Function Generator60 MHz1 GSa/s16-bit8 Mpts21£386.00
SDG2042XSiglent SDG2042X 2Ch, 40MHz, 1.2GSa/s, Function Generator40 MHz1.2 GSa/s16-bit8 pts to 8 Mpts2On Backorder£400.00
SDG2082XSiglent SDG2082X 2Ch, 80MHz, 1.2GSa/s, Function Generator80 MHzv1.2 GSa/s16-bit8 pts to 8 Mpts23£496.00
SDG2122XSiglent SDG2122X 2Ch, 120MHz, 1.2GSa/s, Function Generator120 MHz1.2 GSa/s16-bit8 pts to 8 Mpts2On Backorder£720.00
SDG3082XSDG3082X TelonicUK80 MHz1.2 GSa/s16-bit20 Mpts (std) / 40 Mpts (opt)2 CH2£590.00
SDG3162XSDG3162X TelonicUK160 MHz1.2 GSa/s16-bit20 Mpts (std) / 40 Mpts (opt)2 CH3£853.00
SDG3202XSDG3202X TelonicUK200 MHz1.2 GSa/s16-bit20 Mpts (std) / 40 Mpts (opt)2 CH2£1,053.00
SDG6022XSiglent SDG6000X Function Generator Front200 MHz2.4 GSa/s16-bit20 Mpts21£1,103.00
SDG6032XSiglent SDG6032X 2Ch, 350MHz, 2.4GSa/s, Function Generator350 MHz2.4 GSa/s16-bit20 Mpts2On Backorder£2,494.00
SDG6052XSiglent SDG6052X 2Ch, 500MHz, 2.4GSa/s, Function Generator500 MHz2.4 GSa/s16-bit20 Mpts2On Backorder£3,893.00
SDG7032ASiglent-SDG7000A-Function Generator-CH settings350 MHz5 GSa/s14-bit512Mpts2 Differential/Single-endedOn Backorder£6,674.00
SDG7052ASiglent-SDG7000A-Function Generator-CH settings500 MHz5 GSa/s14-bit512Mpts2 Differential/Single-endedOn Backorder£8,199.00
SDG7102ASiglent-SDG7000A-Function Generator-CH settings1 GHz5 GSa/s14-bit512Mpts2 Differential/Single-endedOn Backorder£10,787.00
SDG810Siglent SDG810 1Ch, 10MHz, 125MSa/s, Function Generator10 MHz125 MSa/s14-bit16 kpts1On Backorder£146.00
SDG830Siglent SDG800 Function Generator Front30 MHz125 MSa/s14-bit16 kpts11£172.00
