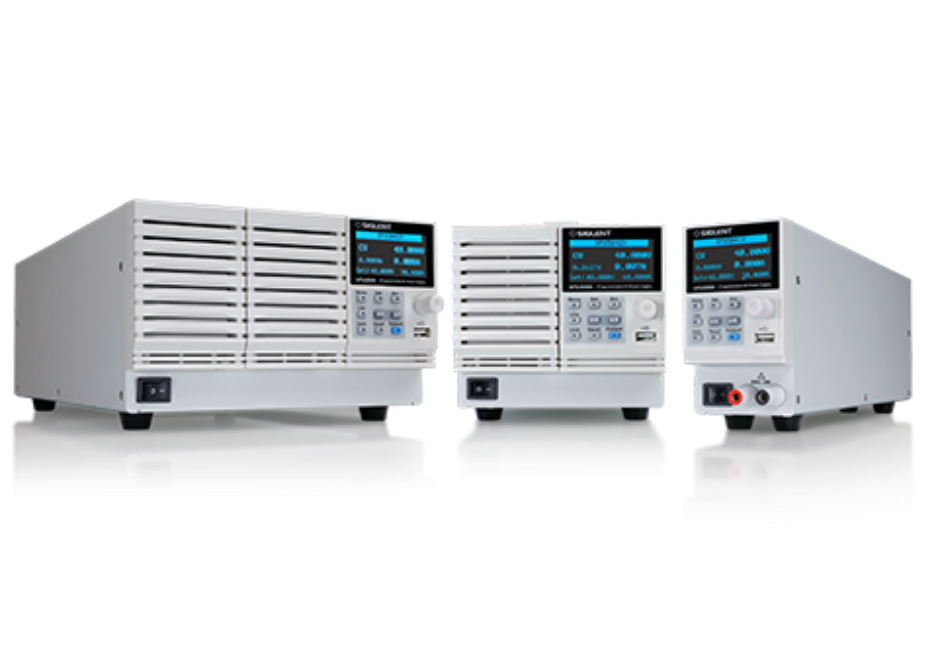

Siglent SPS5000X Series DC Power Supplies
Voltage: 40/50/80/160V | Current: Up to 90A | Power: Up to 1080W
- Wide range. Deliver high voltage/current from one unit
- Specialised protection features ensure DUT integrity
- ON/OFF delay for power sequence control
- Up to 50 step list function for easy automated testing
- Adjustable output resistance to simulate different battery states
- LAN, USB, Analogue (Standard) + GPIB (Option)
| Model | Output Channels | Rated Output Voltage | Rated Output Current | Total Rated Output Power | Price |
|---|---|---|---|---|---|
| SPS5041X | 1 | 40V | 30A | 360W | £668.00 |
| SPS5042X | 1 | 40V | 60A | 720W | £819.00 |
| SPS5043X | 1 | 40V | 90A | 1080W | £1,066.00 |
| SPS5044X | 2 | 40V | 30A | 360W *2 | £1,257.00 |
| SPS5045X | 3 | 40V | 30A | 360W *3 | £1,496.00 |
| SPS5081X | 1 | 80V | 15A | 360W | £795.00 |
| SPS5082X | 1 | 80V | 30A | 720W | £986.00 |
| SPS5083X | 1 | 80V | 45A | 1080W | £1,289.00 |
| SPS5084X | 2 | 80V | 15A | 360W *2 | £1,384.00 |
| SPS5085X | 3 | 80V | 15A | 360W *3 | £1,663.00 |
| SPS5161X | 1 | 160V | 7.5A | 360W | £795.00 |
| SPS5162X | 1 | 160V | 15A | 720W | £986.00 |
| SPS5163X | 1 | 160V | 22.5A | 1080W | £1,289.00 |
| SPS5164X | 2 | 160V | 7.5A | 360W *2 | £1,384.00 |
| SPS5165X | 3 | 160V | 7.5A | 360W *3 | £1,663.00 |
| SKU | Image | Channel Outputs | Displays | Resolutions | Setting Accuracy | Stock | Price |
|---|---|---|---|---|---|---|---|
| SPS5041X |  | One Channel,40V/30A/360W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±30mA | 1 | £707.00 |
| SPS5042X |  | One Channel,40V/60A/720W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±60mA | On Backorder | £867.00 |
| SPS5043X |  | One Channel,40V/90A/1080W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±100mA | On Backorder | £1,128.00 |
| SPS5044X | | Two Channels,40V/30A/720W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±30mA | On Backorder | £1,330.00 |
| SPS5045X | | Three Channels,40V/30A/1080W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±30mA | On Backorder | £1,583.00 |
| SPS5051X |  | One Channel,50V/10A/180W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±10mA | On Backorder | £663.00 |
| SPS5081X |  | One Channel,80V/15A/360W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±10mA | On Backorder | £841.00 |
| SPS5082X | | One Channel,80V/30A/720W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±30mA | On Backorder | £1,044.00 |
| SPS5083X | | One Channel,80V/45A/1080W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±40mA | On Backorder | £1,365.00 |
| SPS5084X |  | Two Channels,80V/15A/720W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±10mA | On Backorder | £1,465.00 |
| SPS5085X | | Three Channels,80V/15A/1080W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±10mA | On Backorder | £1,760.00 |
| SPS5161X | | One Channel,160V/7.5A/360W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±100mV current:0.1%±5mA | On Backorder | £841.00 |
| SPS5162X | | One Channel,160V/15A/720W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±100mV current:0.1%±15mA | On Backorder | £1,044.00 |
| SPS5163X |  | One Channel,160V/22.5A/1080W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±100mV current:0.1%±20mA | On Backorder | £1,365.00 |
| SPS5164X | | Two Channels,160V/7.5A/720W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±100mV current:0.1%±5mA | On Backorder | £1,465.00 |
| SPS5165X | | Three Channels,160V/7.5A/1080W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±100mV current:0.1%±5mA | On Backorder | £1,760.00 |
Showing all 16 results
-
Siglent SPS5041X DC Power Supply
£707.00Only 1 left in stock!
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5042X DC Power Supply
£867.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5043X DC Power Supply
£1,128.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5044X DC Power Supply
£1,330.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5045X DC Power Supply
£1,583.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5051X 50V, 10A, 180W DC Power Supply
£663.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5081X DC Power Supply
£841.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5082X DC Power Supply
£1,044.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5083X DC Power Supply
£1,365.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5084X DC Power Supply
£1,465.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5085X DC Power Supply
£1,760.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5161X DC Power Supply
£841.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5162X DC Power Supply
£1,044.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5163X 160V, 22.5A, 1080W DC Power Supply
£1,365.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5164X DC Power Supply
£1,465.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPS5165X DC Power Supply
£1,760.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket
