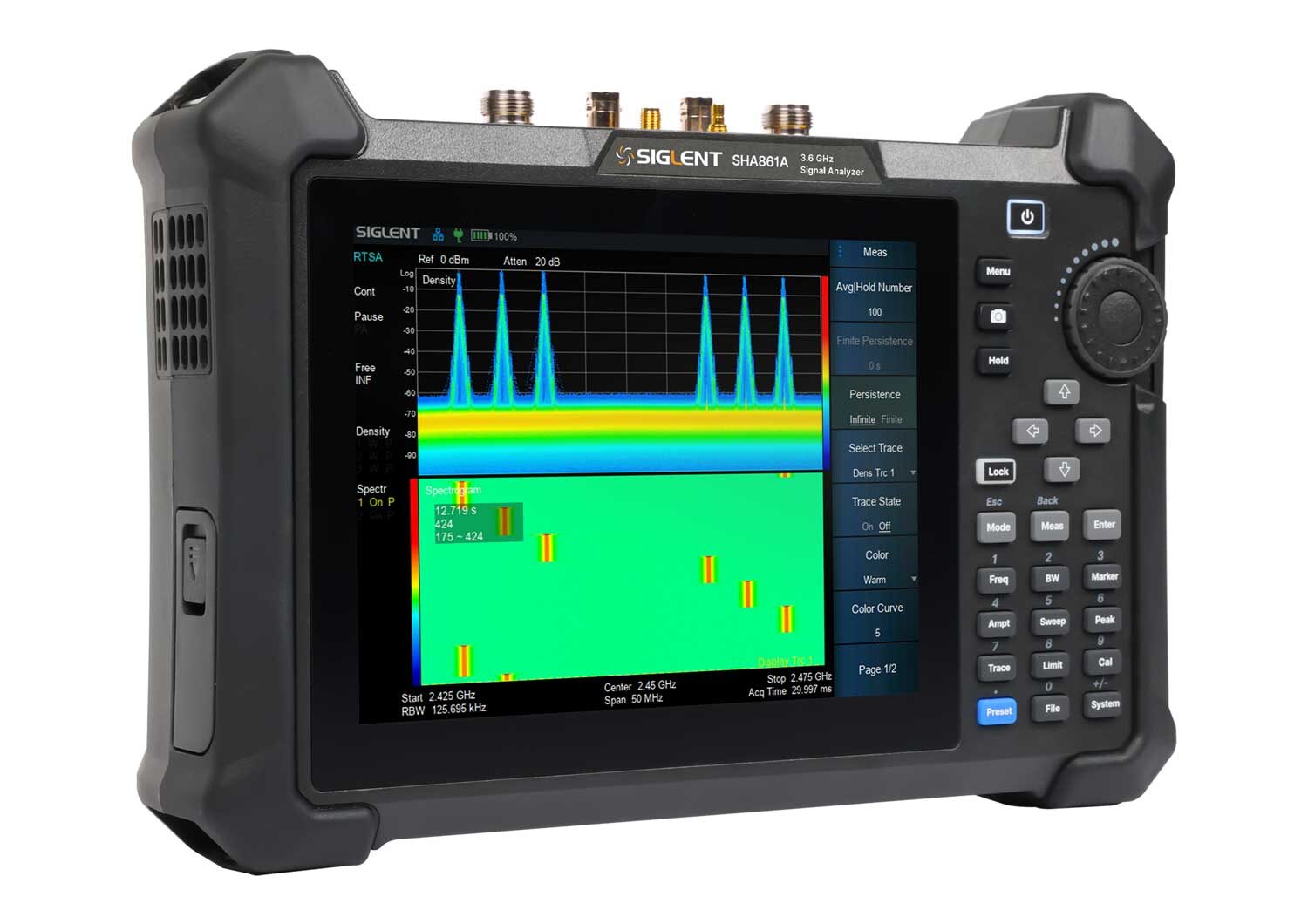

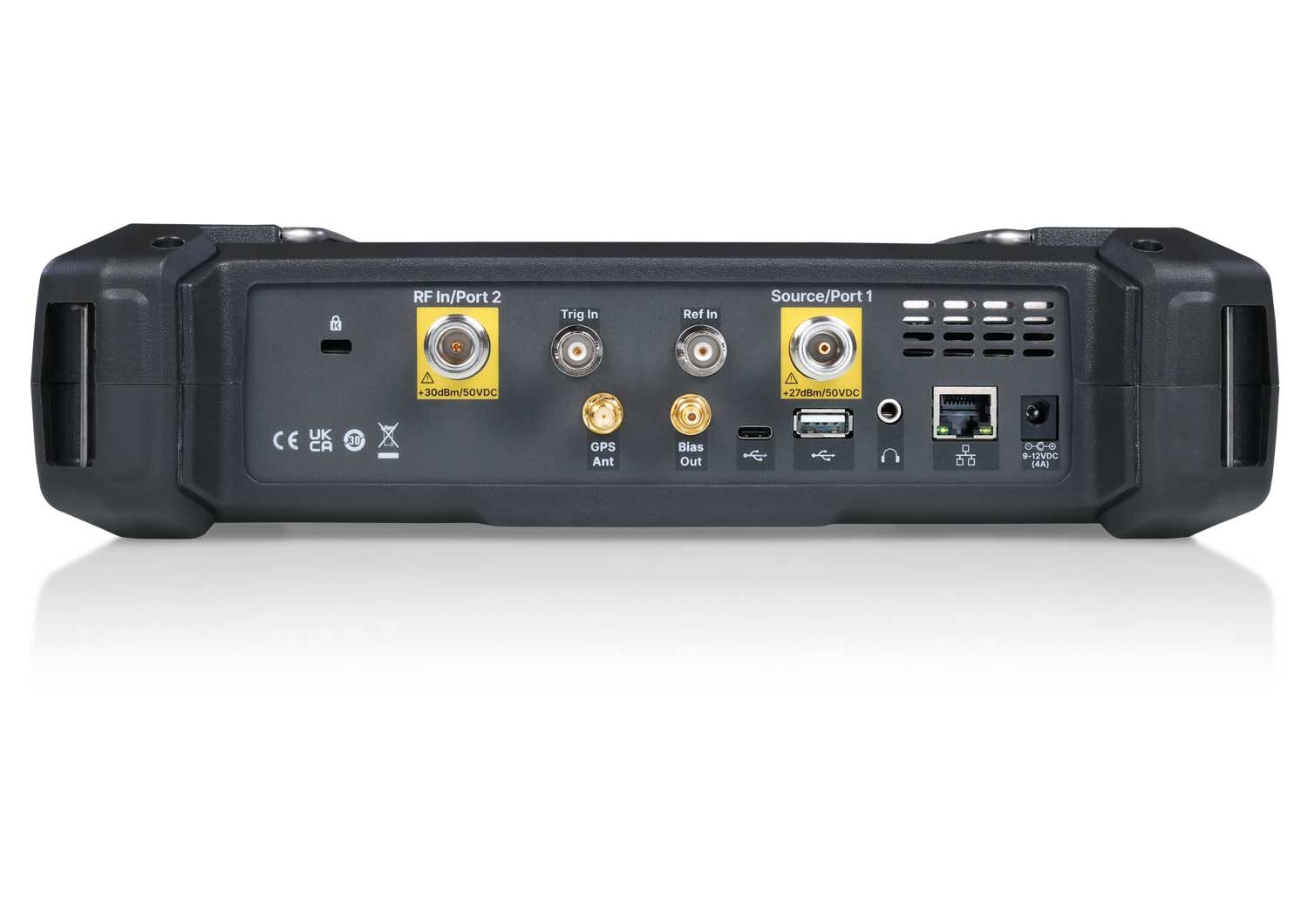

Siglent SHA861A Handheld Spectrum / Vector Network Analyser
Siglent SHA860A series, a next-generation handheld signal analyser, integrates spectrum analysis, vector network analysis, and cable/antenna testing into a single portable platform, offering a comprehensive solution for 5G/LTE base station deployment and maintenance. Supporting a 9 kHz to 7.5 GHz (3.6GHz for the SHA861A Model) frequency range and 110 MHz real-time bandwidth, it features advanced capabilities like 5G NR/LTE OTA testing, real-time spectrum analysis, pulse profile analysis, and GPS-synchronized indoor/outdoor mapping. This empowers technicians to optimize beam performance, troubleshoot interference, and accelerate network deployment with precision, while its integrated design enhances on-site testing efficiency and portability.
Please note: Many advanced features are paid options. Please see the “optional accessories” page if you wish to include these features in your order.
Features:
- Frequency Range 9 kHz~3.6/7.5 GHz
- Displayed Average Noise Level -165 dBm/Hz
- Phase Noise -104 dBc/Hz at 1 GHz, 10 kHz offset
- Real-Time Analysis Bandwidth 40/110 MHz
- 5G NR and LTE FDD/TDD OTA Measurement
- Trace Recording/Playback with GNSS Location
- Standard Preamplifier, 8.4” Touch Screen, 2.5 hours Working Time
Comparison Table:
| SHA861A | SHA862A | |
|---|---|---|
| SA Frequency Range | 9 kHz~3.6 GHz, 5 kHz usable | 9 kHz~7.5 GHz, 5 kHz usable |
| VNA Frequency Range | 100 kHz~3.6 GHz, 30 kHz usable | 100 kHz~7.5 GHz, 30 kHz usable |
| CAT Frequency Range | 100 kHz~3.6 GHz, 30 kHz usable | 100 kHz~7.5 GHz, 30 kHz usable |
| DANL | -165 dBm/Hz | |
| Phase Noise (1 GHz, Typ.) | -104 dBc/Hz.@ 10 kHz offset | |
| Analysis Bandwidth | 40 MHz / 110 MHz (opt.) | |
| Preamplifier | Standard | |
| Dynamic Range | 114 dB | |
| Other Functions | Advanced Measurement Kit, Analog Modulation Analysis, Digital Modulation Analysis, GPS Location, Outdoor/Indoor Map. Independent Source, DC Bias Out, 5G NR OTA Measurement, LTE TDD/FDD OTA Measurement, Real-Time Spectrum Analysis, IQ Data Acquisition, Pulse Profile Analysis, etc. | |
| Display | TFT LCD, 800 x 600, 8.4 inch multi-touch screen | |
| Battery | 2.5 hours | |
View Older Model Comparison (SHA850A)
| SHA860A | SHA850A | |
|---|---|---|
| Frequency Range | 9 kHz to 3.6/7.5 GHz | 9 kHz to 3.6/7.5 GHz |
| RBW (-3 dB) | 1 Hz to 10 MHz, in 1-3-10 sequence | 1 Hz to 3 MHz, in 1-3-10 sequence |
| Measurement Range | DANL to +23 dBm, 1 MHz to 7.5 GHz, Preamp off | DANL to +20 dBm, 1 MHz to 7.5 GHz, Preamp off |
| Input Attenuation | 0 to 50 dB, in 1 dB steps | 0 to 50 dB, in 2 dB steps |
| Preamplifier | 25 dB, nominal | 25 dB, nominal |
| Number of Traces | 6 | 6 |
| Analysis Bandwidth | 40 MHz / 110 MHz (Option SHA860-B1A) | – |
| Frequency Upgrade | SHA860-F2: SHA861A to SHA862A | SHA850-F2: SHA851A to SHA852A |
| Battery | 10.8 V, 74 Wh, Lithium ion, 2.5 hours | 10.8 V, 74 Wh, Lithium ion, 4 hours |
| Analysis Function | Spectrum Analysis Vector Network Analysis Cable and Antenna Test IQ Data Acquisition Advanced Measurement Kit Analog Modulation Digital Modulation Source Bias Out GPS Receiver Outdoor/Indoor Map EMI Measurement 5G NR OTA LTE TDD/FDD OTA Pulse Profile Analysis Real-Time Spectrum Analysis |
Spectrum Analysis Vector Network Analysis Cable and Antenna Test IQ Data Acquisition Advanced Measurement Kit Analog Modulation Digital Modulation Source Bias Out GPS Receiver Outdoor/Indoor Map EMI Measurement |
