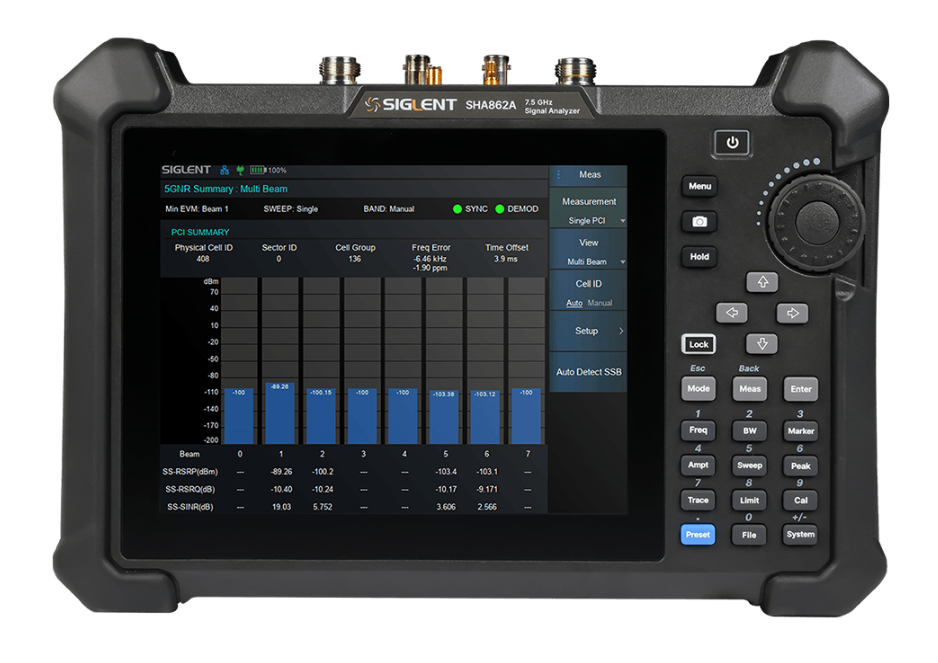

Siglent SHA860A Handheld Spectrum/Cable and Antenna Analysers
Frequency Range 9 kHz~3.6/7.5 GHz
Displayed Average Noise Level -165 dBm/Hz
Phase Noise -104 dBc/Hz at 1 GHz, 10 kHz offset
Real-Time Analysis Bandwidth 40/110 MHz
5G NR and LTE FDD/TDD OTA Measurement
Trace Recording/Playback with GNSS Location
Standard Preamplifier, 8.4” Touch Screen, 2.5 hours Working Time
Siglent SHA860A series, a next-generation handheld signal analyser, integrates spectrum analysis, vector network analysis, and cable/antenna testing into a single portable platform, offering a comprehensive solution for 5G/LTE base station deployment and maintenance. Supporting a 9 kHz to 7.5 GHz frequency range and 110 MHz real-time bandwidth, it features advanced capabilities like 5G NR/LTE OTA testing, real-time spectrum analysis, pulse profile analysis, and GPS-synchronised indoor/outdoor mapping. This empowers technicians to optimise beam performance, troubleshoot interference, and accelerate network deployment with precision, while its integrated design enhances on-site testing efficiency and portability.
| SKU | Image | Frequency | RBW | Phase Noise @1GHz | Amp Accuracy | DANL | Stock | Price |
|---|---|---|---|---|---|---|---|---|
| SHA851A |  | 9 kHz~3.6 GHz | 1 Hz ~ 10 MHz In 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | On Backorder | £3,295.00 |
| SHA852A | | 9 kHz~7.5 GHz | 1 Hz ~ 10 MHz In 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | On Backorder | £5,460.00 |
| SHA861A |  | 9 kHz~3.6 GHz | 1 Hz ~ 10 MHz In 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | On Backorder | £7,180.00 |
| SHA862A |  | 9 kHz~7.5 GHz | 1 Hz ~ 10 MHz In 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | On Backorder | £10,501.00 |
| SSA3015X-Plus |  | 9 kHz ~ 1.5 GHz | 1 Hz~1 MHz | < -98 dBc/Hz | < 0.7 dB | -161 dBm/Hz | On Backorder | £976.00 |
| SSA3021X |  | 9 kHz to 2.1 GHz | 1 Hz to 1 MHz | < -98 dBc/Hz | ± 0.7 dB | -161 dBm/Hz | 2 | £1,093.00 |
| SSA3021X-PLUS |  | 9 kHz ~ 2.1 GHz | 1 Hz~1 MHz | < -98 dBc/Hz | < 0.7 dB | -161 dBm/Hz | On Backorder | £1,237.00 |
| SSA3032X |  | 9 kHz to 3.2 GHz | 1 Hz to 1 MHz | < -98 dBc/Hz | ± 0.7 dB | -161 dBm/Hz | On Backorder | £1,904.00 |
| SSA3032X-PLUS |  | 9 kHz ~ 3.2 GHz | 1 Hz~1 MHz | < -98 dBc/Hz | < 0.7 dB | -161 dBm/Hz | 2 | £2,055.00 |
| ssa3032xr |  | 9 kHz~3.2 GHz | 1 Hz~3 MHz | <-98 dBc/Hz | < 0.7 dB | -165 dBm/Hz | On Backorder | £3,366.00 |
| SSA3050X-R | | 9 kHz~5.0 GHz | 1 Hz~3 MHz | <-98 dBc/Hz | < 0.7 dB | -165 dBm/Hz | On Backorder | £6,317.00 |
| SSA3075X-Plus |  | 9 kHz ~ 7.5 GHz | 1 Hz~3 MHz | < -98 dBc/Hz | < 0.7 dB | -165 dBm/Hz | On Backorder | £5,486.00 |
| SSA3075X-R | | 9 kHz~7.5 GHz | 1 Hz~3 MHz | <-98 dBc/Hz | < 0.7 dB | -165 dBm/Hz | On Backorder | £7,682.00 |
| SSA5083A |  | 9 kHz~26.5 GHz | 1 Hz ~ 10 MHz | - | - | -165 dBm/Hz | On Backorder | £13,467.00 |
| SSA5085A | | 9 kHz~13.6 GHz | 1 Hz ~ 10 MHz | <-105 dBc/Hz | <0.5 dB | -165 dBm/Hz | On Backorder | £15,777.00 |
| SVA1015X |  | 9 kHz to 1.5 GHz | 1 Hz to 1 MHz | < -98 dBc/Hz | <0.7 dB | -161 dBm/H | 4 | £1,145.00 |
| SVA1032X |  | 9 kHz to 3.2 GHz | 1 Hz to 1 MHz | < -98 dBc/Hz | <0.7 dB | -161 dBm/H | 1 | £2,502.00 |
| SVA1075X |  | 9 kHz to 7.5 GHz | 1 Hz to 3 MHz | < -98 dBc/Hz | <0.7 dB | -165 dBm/Hz | On Backorder | £6,412.00 |
Showing all 2 results
-

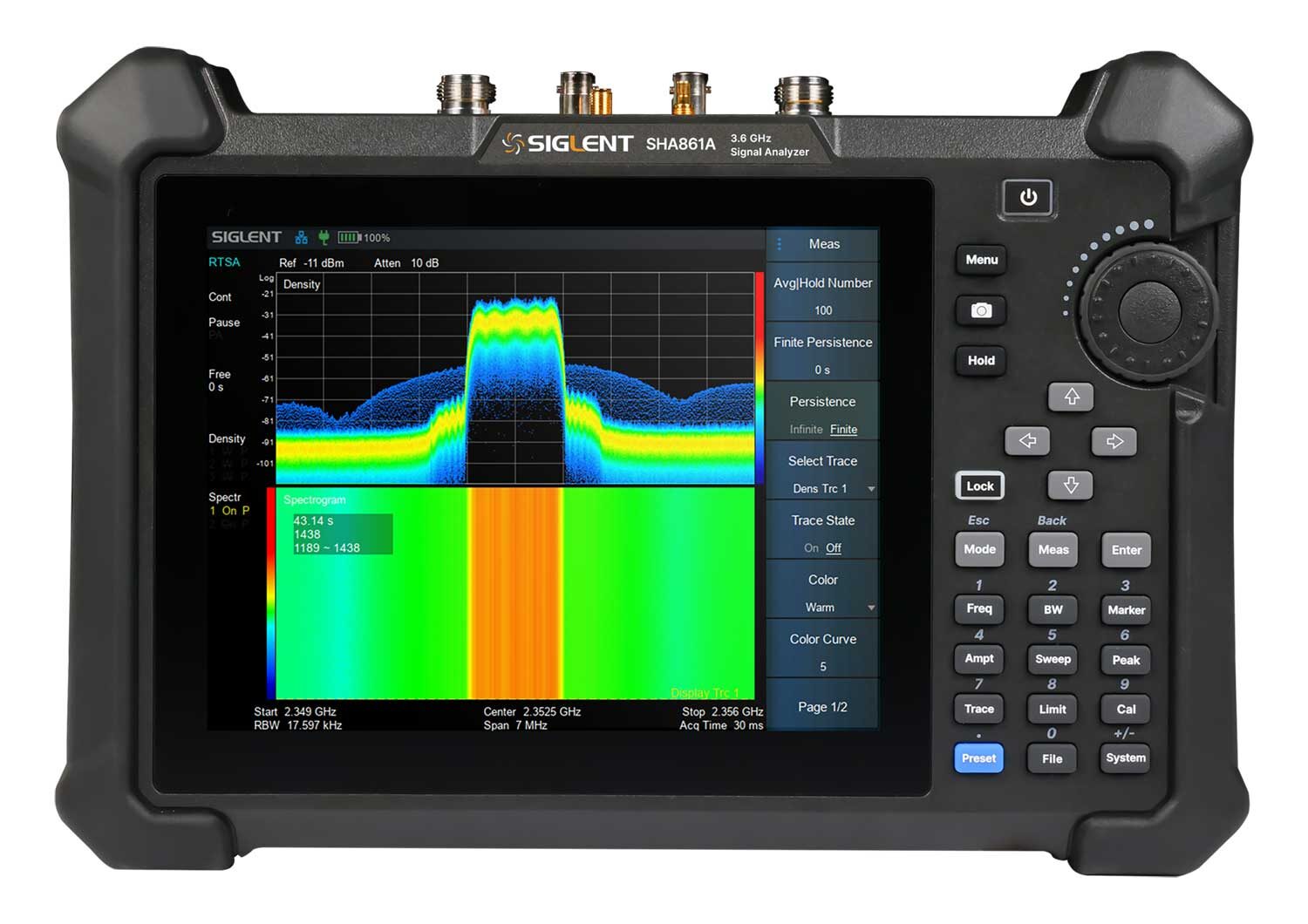

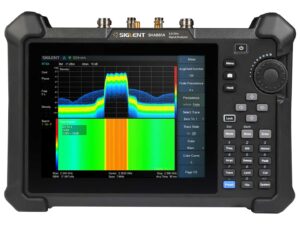

Siglent SHA861A Handheld Spectrum/Cable and Antenna Analyser, 9 kHz – 3.6 GHz
£7,180.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -

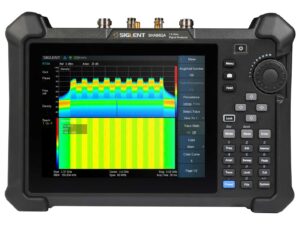

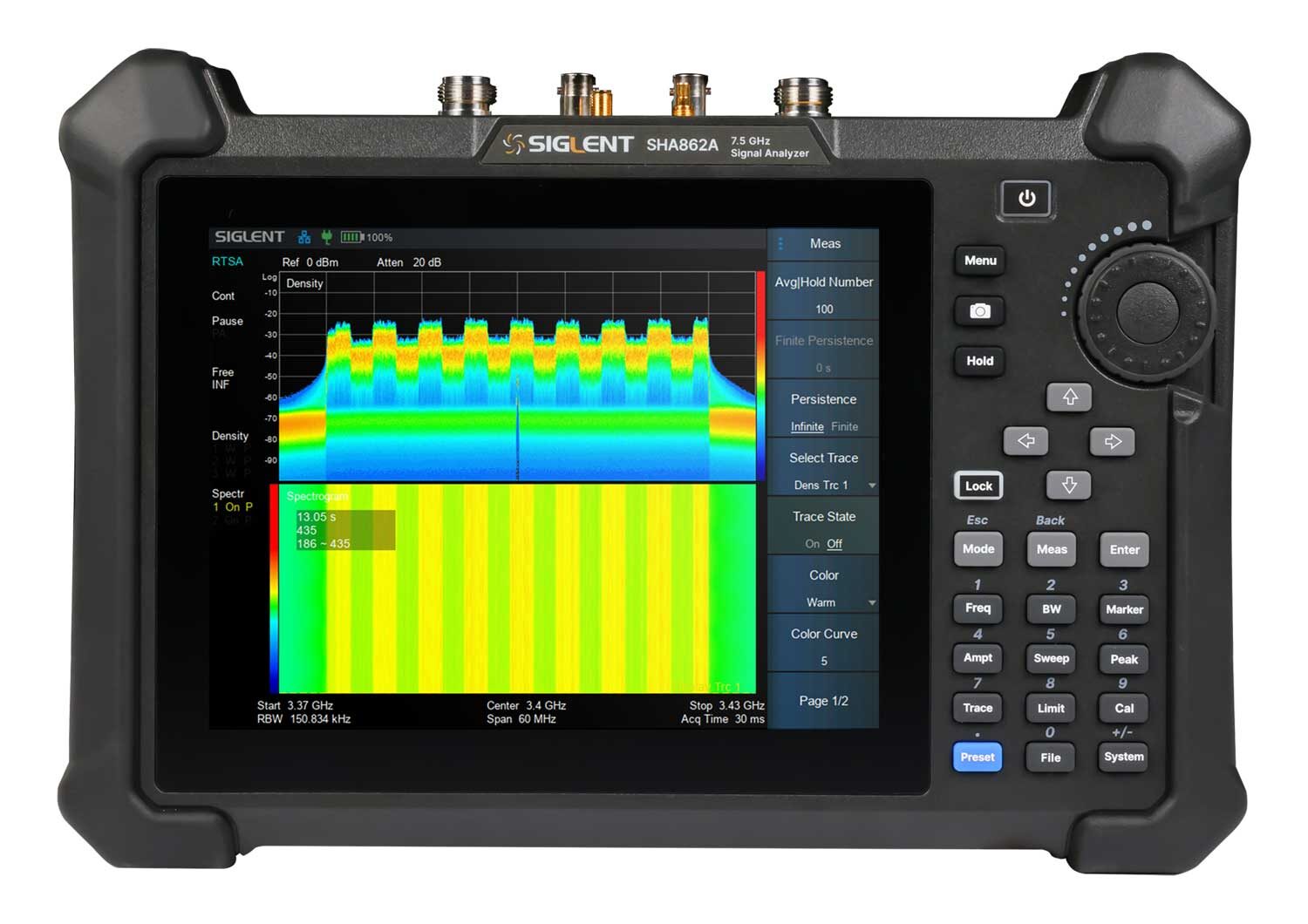

Siglent SHA862A Handheld Spectrum/Cable and Antenna Analyser, 9 kHz – 7.5 GHz
£10,501.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket
