Siglent SSA3075X-R 9kHz to 7.5GHz Real-Time Spectrum Analyser

£8286.00 (Β£9943.20 inc VAT)

Description

FREE SOFTWARE OPTIONS BUNDLE

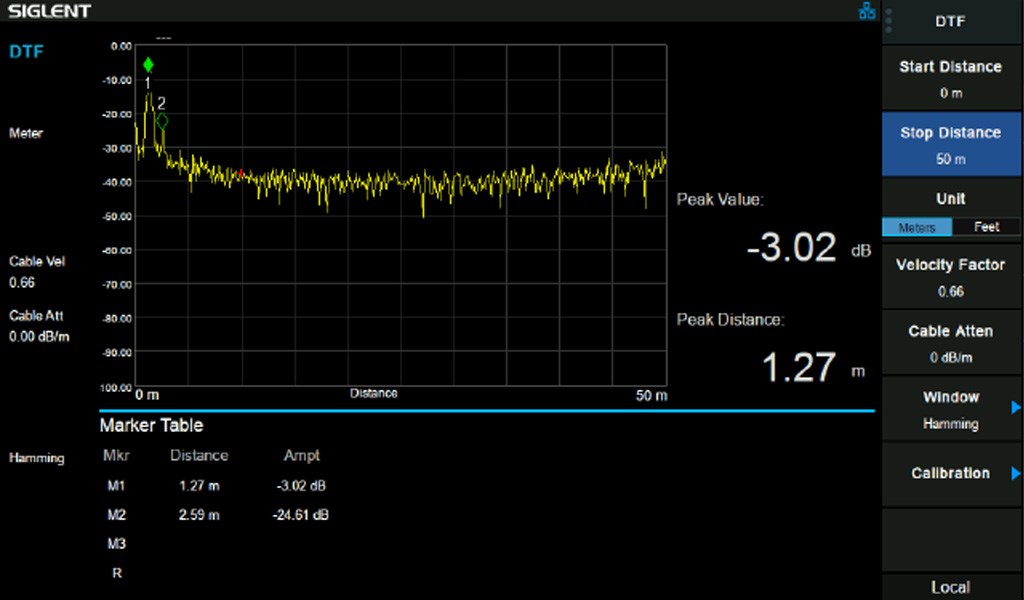

Purchase any SSA3000X-R Series Real-Time Spectrum Analyser and you will receive the DTF (Distance To Fault) and VNA (Vector Network Analysis) options as standard!

EMI Option Bundle
Purchase any Siglent Spectrum Analyser and add this bundle to receive the SRF5030T & EMI Software Option for only Β£363.00!
Click HERE to view the bundle page – Offer Running until 31 March 2022!

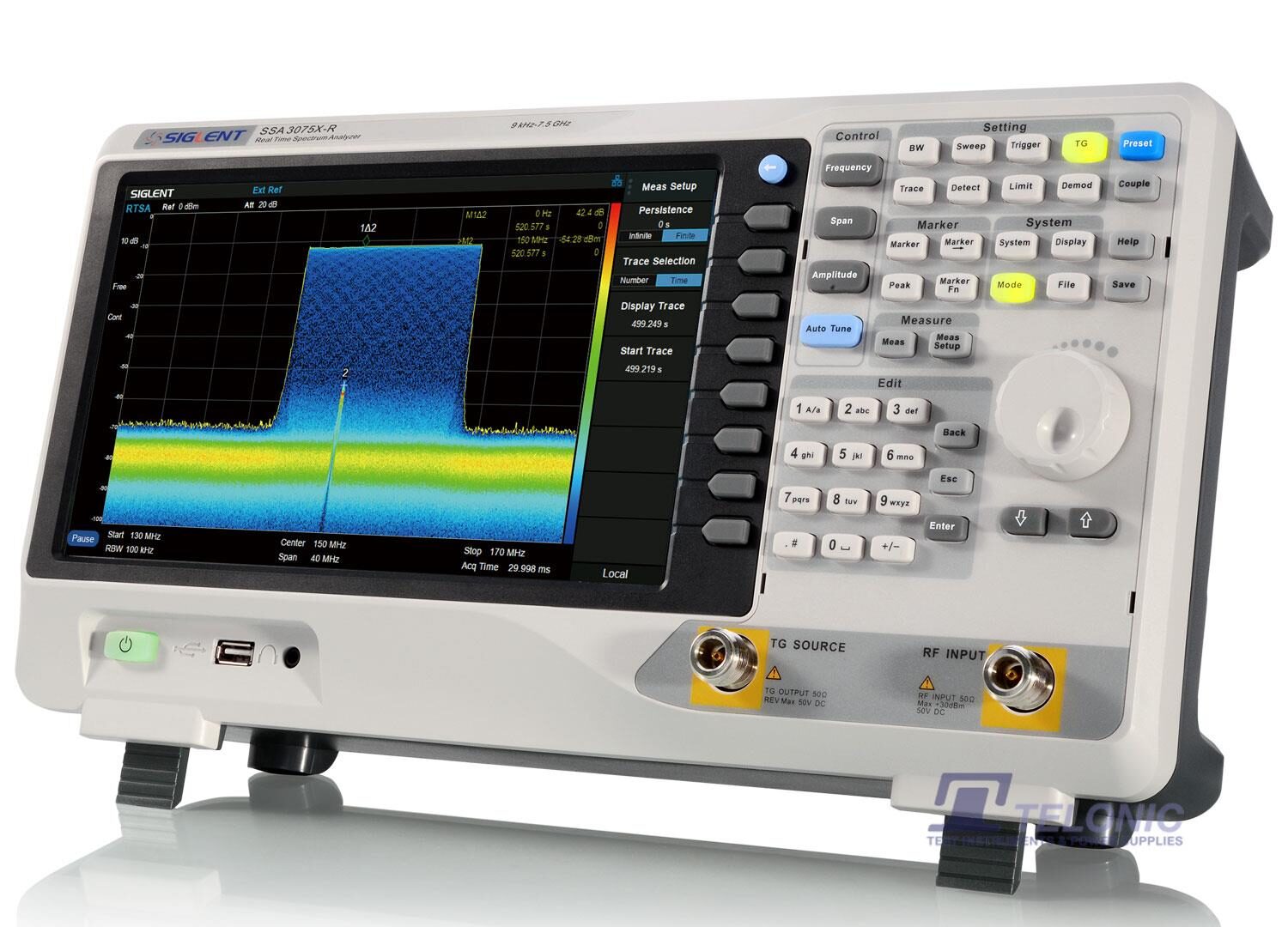

Siglent SSA3075X-R Real-Time Spectrum Analyser

The SSA3075X-R is a 9kHz – 7.5GHz Real-Time Spectrum Analyser. The Siglent SSA3000X-R Real-Time Spectrum Analysers are powerful and flexible tools for complex RF Spectrum and Signal analysis. With a capability of 40MHz analysis bandwidth and 7.2ΞΌs 100% POI, the analyser can provide multi-dimensions data displays, advanced triggering and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. They also provide standard tracking generator for network analysis, optional wide band digital modulation analysis and EMI measurement.

Applications include; Broadcast monitoring/evaluation, Cellular site, IoT, WiFi, Bluetooth surveying, Research and development, education, production and maintenance.



  • Frequency Range: 9kHz – 7.5GHz

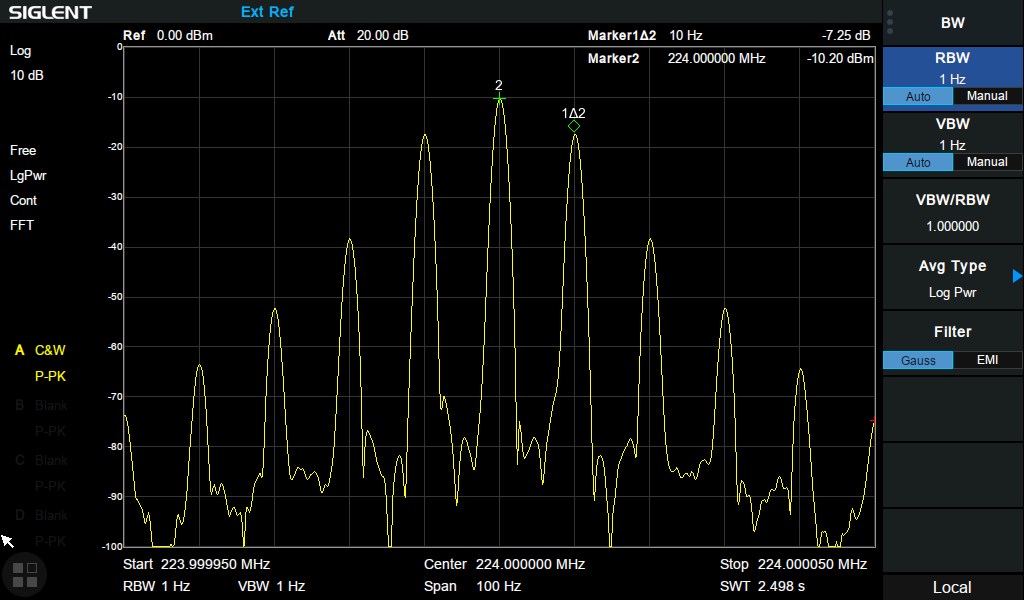

  • Resolution Bandwidth: 1Hz – 3MHz

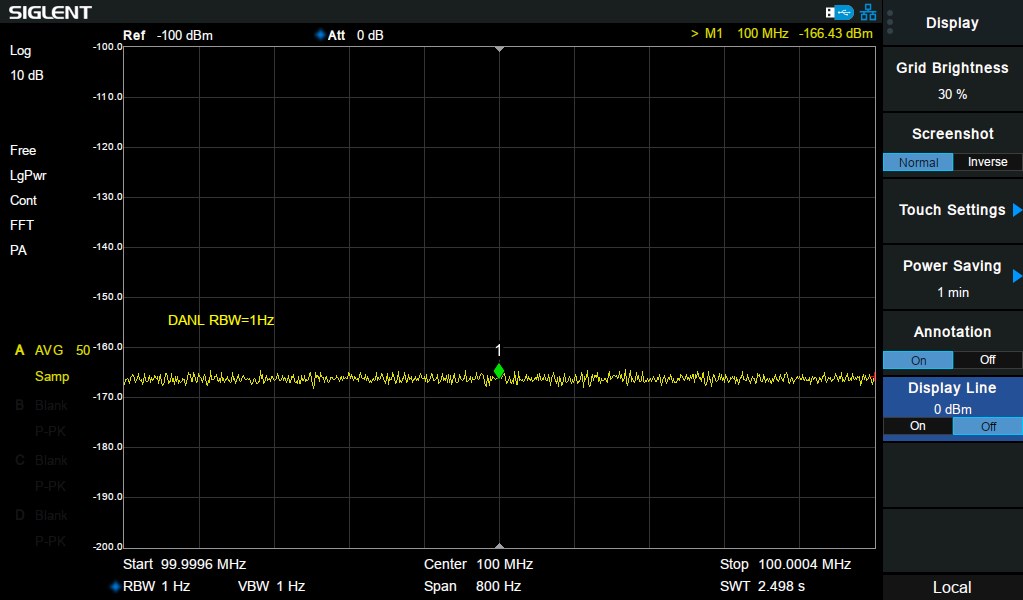

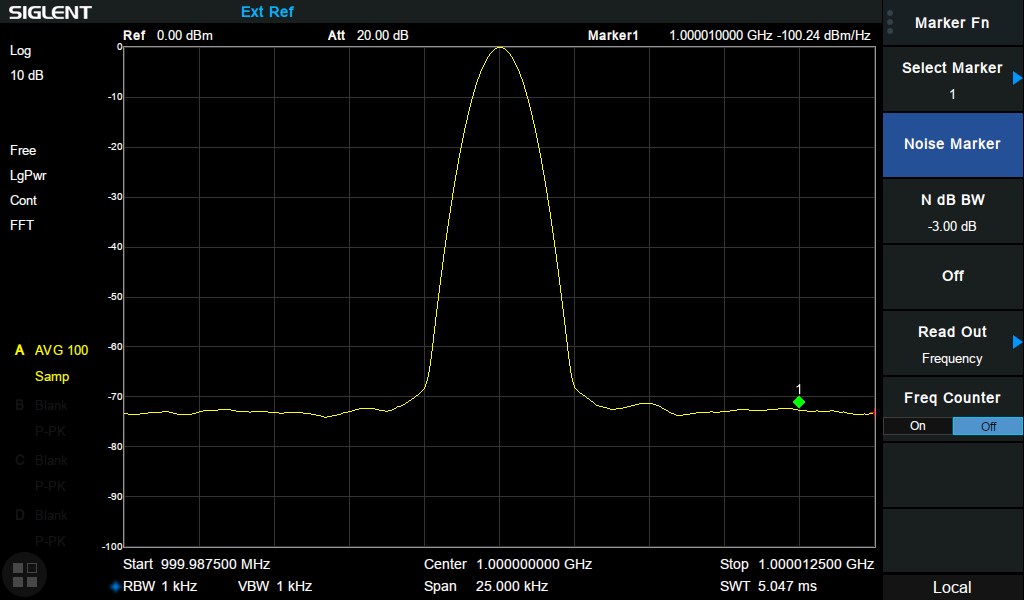

  • Displayed Average Noise Level: -165 dBm/Hz
  • SSB Phase Noise: <-98 dBc/Hz
  • Tracking Generator: 100kHz – 7.5GHz

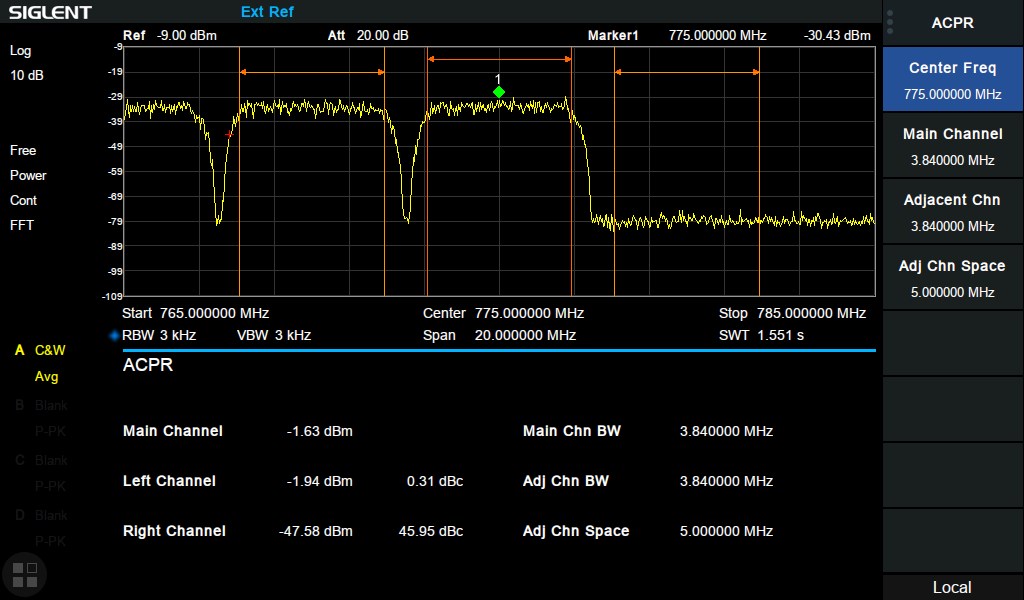

  • Β Advanced Measurement: CHP, ACPR, OBW, CNR, Harmonic, TOI, Monitor
  • Modulation Analysis: AM, FM, ASK, FSK, MSK, PSK, QAM

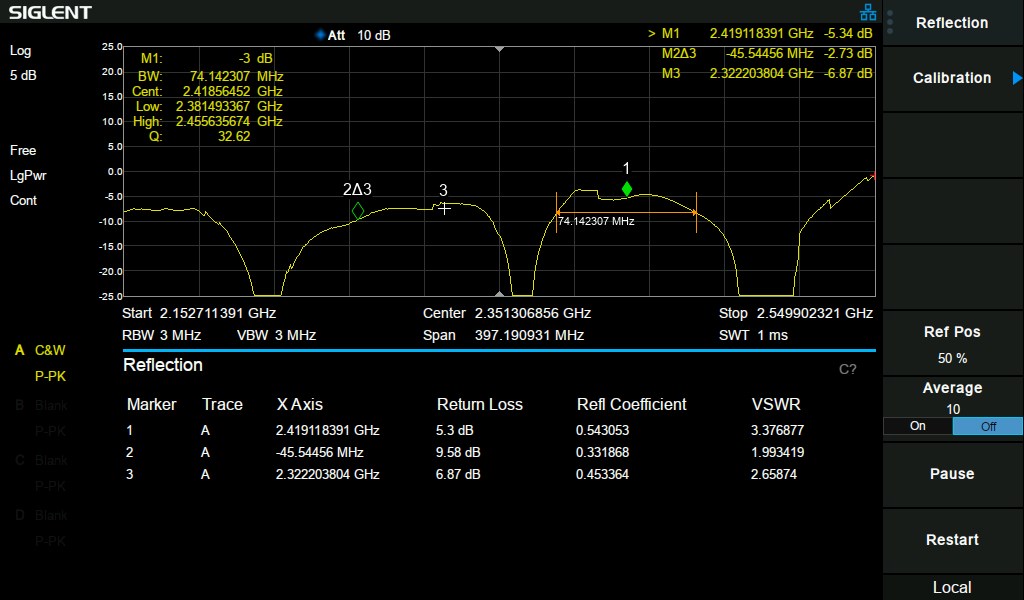

  • Reflection Measurement

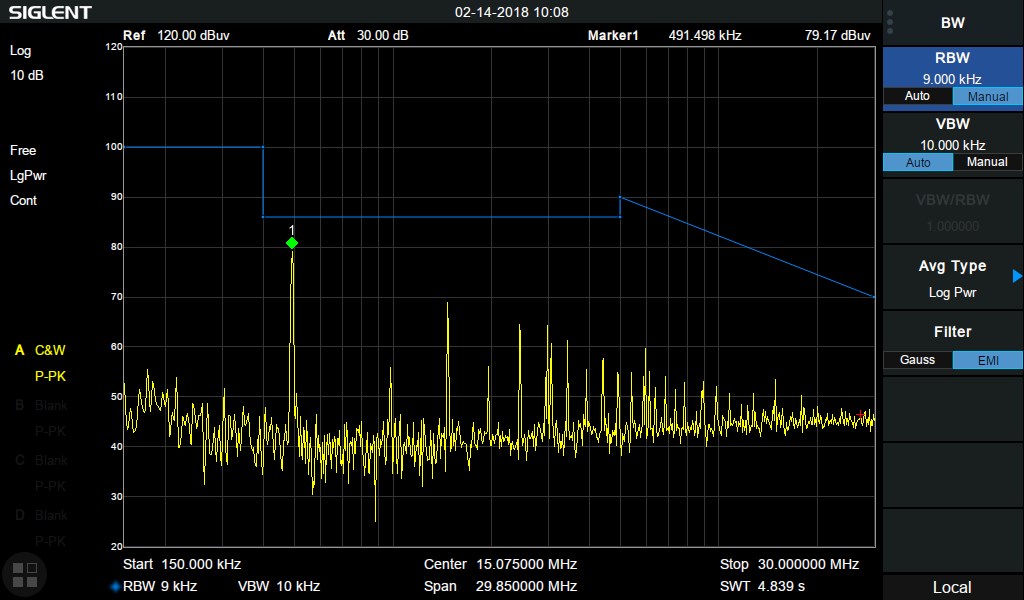

  • EMI Test: EMI Filter and Quasi-Peak Detector, Log Scale and Limit Line
  • Real Time Bandwidth: 25MHz, 40MHz (Option)
  • 100% POI: 7.20ΞΌs

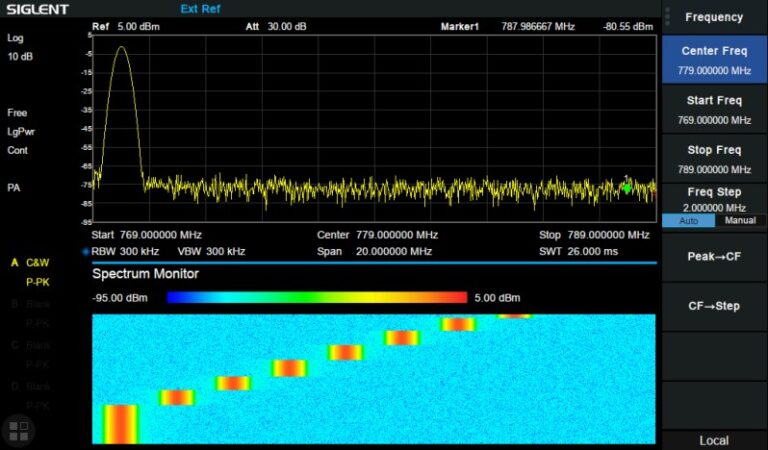

  • RTSA Measurement: Density, Spectogram, 3D, PvT
  • Communication Interface: LAN, USB Device, USB Host (USB-GPIB)
  • Remote Control Capability: SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet
  • Remote Controller: NI-MAX, Web Browser, Easy Spectrum Software, File Explorer

Documentation

Frequency
Frequency rangeSSA3032X-R: 9kHz~3.2GHz
SSA3050X-R: 9kHz~5.0GHz
SSA3075X-R: 9kHz~7.5GHz
Frequency resolution1 Hz
Frequency Span
Range0 Hz, 100 Hz to Max Frequency
AccuracyΒ± Span / (number of display points – 1)
Internal Reference Source
Reference frequency10.000000 MHz
Reference frequency accuracy /
uncertainty
Β± [(time since last adjustment Γ— frequency aging rate) + temperature
stability + initial calibration accuracy]
Initial calibration accuracy<1 ppm
Temperature stability<1 ppm, 0 Β°C ~50 Β°C
Frequency aging rate<0.5 ppm/first year, 3.0 ppm/20 years
Marker
Marker resolutionSpan / (number of display points – 1)
Marker uncertaintyΒ± [frequency indication Γ— reference frequency uncertainty + 10% Γ—
resolution bandwidth + Β½ * marker resolution + 1 Hz]
Frequency Counter resolution0.1 Hz
Bandwidths
Resolution bandwidth (-3dB)1 Hz ~ 3 MHz, in 1-3-10 sequence
Resolution filter shape factor< 4.8 : 1 (60 dB:3 dB), Gaussian-like
RBW uncertainty< 5%
Video bandwidth (-3dB)1 Hz ~ 10 MHz, in 1-3-10 sequence
VBW uncertainty< 5%
Sweep and Trigger
Sweep time1 ms to 7500 s
Sweep modeRBW = 3k Hz ~ 3 MHz, Sweep
RBW = 1 Hz ~ 10 kHz, FFT
Sweep ruleSingle, Continuous
Trigger sourceFree, Video, External
External trigger5V TTL level, Rising edge/Falling edge
Amplitude and Level
Measurement rangeDANL to +10 dBm, 100 kHz ~ 1 MHz, Preamp off
DANL to +20 dBm, 1 MHz ~ 7.5 GHz, Preamp off
Reference level-200 dBm to +30 dBm, 1 dB steps
Preamplifier20 dB (nom.)
Input attenuation0 ~ 50 dB, 1 dB steps
Maximum input DC voltage+/- 50 VDC
Maximum average power30 dBm, 3 minutes, fc β‰₯10 MHz, att > 20 dBm, preamp off
Maximum damage level33 dBm, fcβ‰₯10 MHz, att>20 dBm, preamp off
Level Display
Logarithmic level axis1 dB to 200 dB
Linear level axis0 to reference level, 0% to 100%
Units of level axisdBm, dBmV, dBΞΌV, dBΞΌA, Volt, Watt
Number of display points751
Number of traces4
Trace detectorsPositive-peak, Negative-peak, Sample, Normal,
Average(Voltage/RMS/Video)
Trace functionsClear write, Max Hold, Min Hold, View, Blank, Average, Math
SSB Phase Noise
Offset20 Β°C to 30 Β°C, fc = 1 GHz, Normalized to 1 Hz
10 kHz-96 dBc/Hz,
-98 dBc/Hz (typ.)
100 kHz-95 dBc/Hz,
-97 dBc/Hz (typ.)
1 MHz-112 dBc/Hz,
-114 dBc/Hz (typ.)
General Specifications
SourceAC voltage range: 100-240 V, 50/60 Hz or 100-120 V 400 Hz;
Power consumption: 70 W (MAX)
TemperatureWorking temperature: 0 Β°C to 40 Β°C,
Storage temperature: -20 Β°C to 70 Β°C
Humidity0 Β°C to 30 Β°C, ≀ 95% Relative humidity
30 Β°C to 50 Β°C, ≀ 75% Relative humidity
AltitudeOperating: less than 3 km

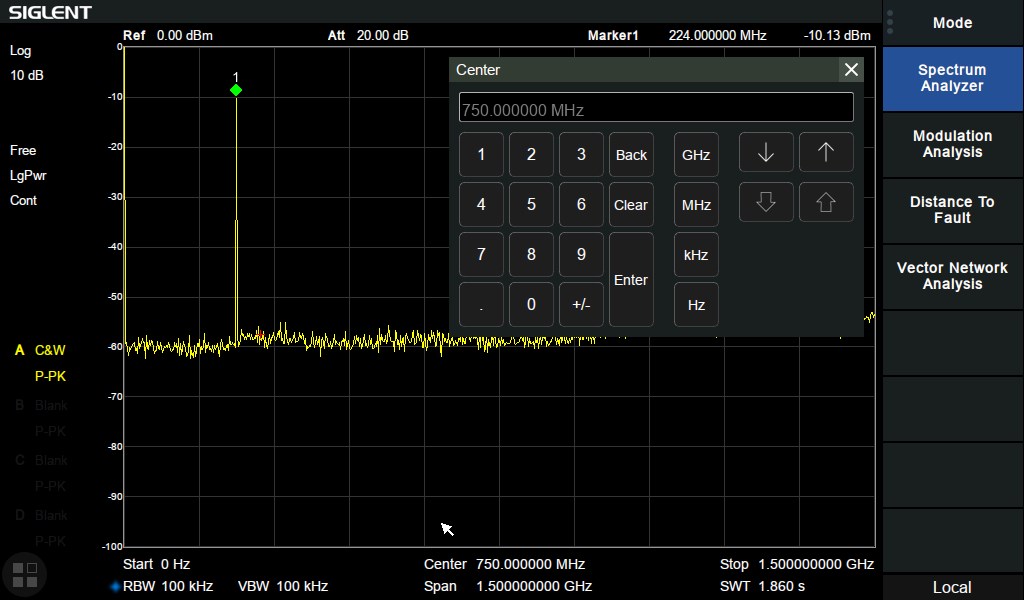

DisplayTFT LCD, 1024 Γ— 600, 10.1 inch capacitive multi-touch screen
StorageInternal (Flash) 256 MB, external (USB storage device) 32 GB
Dimensions393 mm Γ— 207 mm Γ— 116.5 mm (WΓ— HΓ— D)
WeightNet: 4.70 kg (10 lb); Shipping: 5.50 kg

Note*

Specifications are liable to change. For the full list of Specifications, please see the products datasheet located under the ‘Documentation’ tab.
