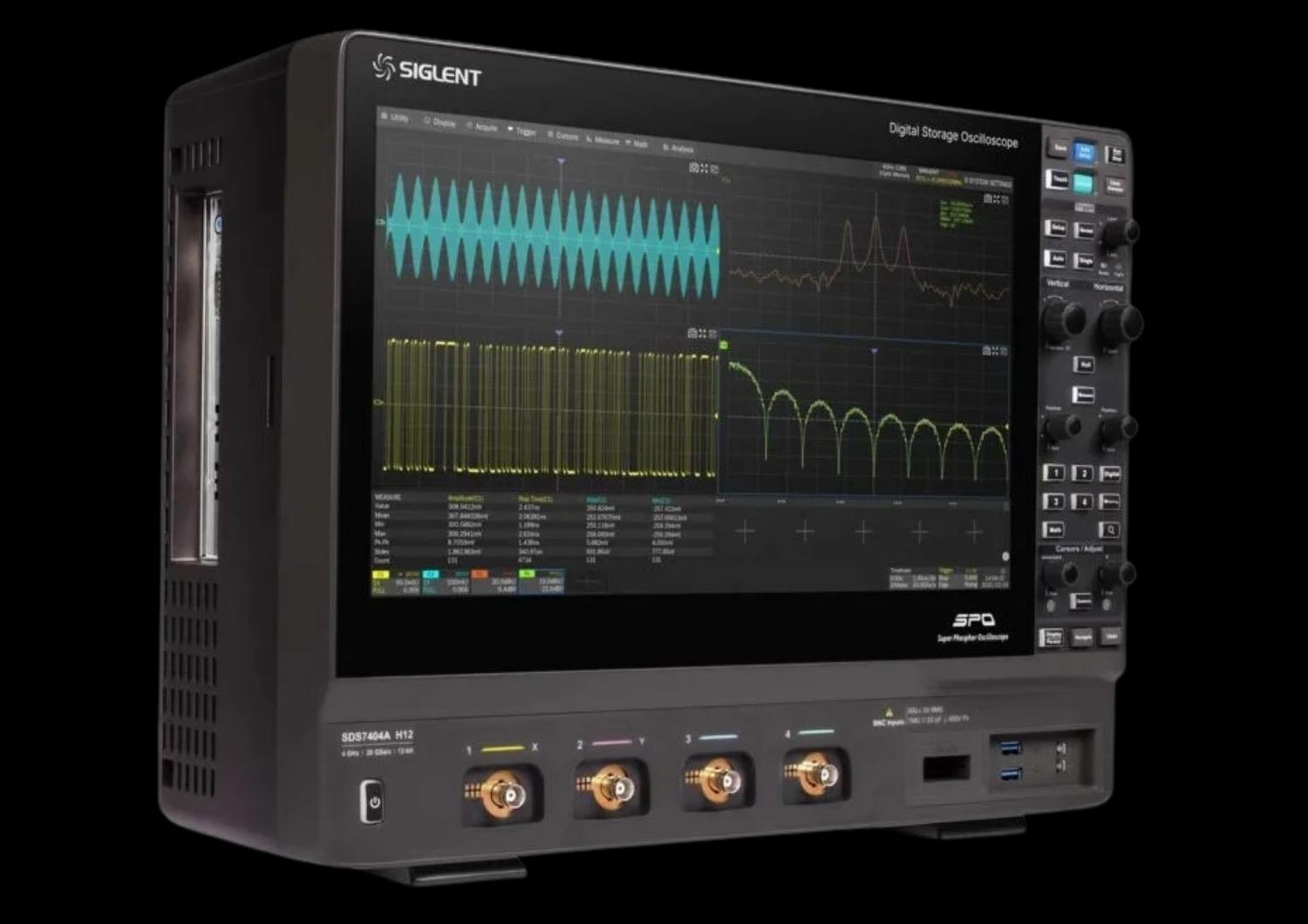

Siglent SDS7000A High Resolution Oscilloscope

SIGLENT’s SDS7000A series Digital Storage Oscilloscopes are available in bandwidths of 8 GHz, 6 GHz, 4 GHz, and 3 GHz, have 12-bit ADCs with a sample rate up to 20 GSa/s, a maximum record length of 2 Gpts/ch, and display up to 4 analogue channels + 16 digital channels for high performance mixed signal analysis.

The SDS7000A series employs Siglent’s SPO technology, with a maximum waveform capture rate of 1,000,000 wfm/s, a 256-level intensity grading display function, and a colour temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes, including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Signal Scan, Mask Test, Bode Plot, Power Analysis, Eye/Jitter Analysis, RTSA, SigVSA and Compliance Test allow for extended waveform records to be captured, stored, and analysed. An impressive array of measurement and math capabilities, options for a 50 MHz arbitrary waveform generator, and serial decoding are also features of the SDS7000A.

The large 15.6’’ HD display capacitive touch screen supports multi-touch gestures, with the addition of a user-friendly UI design, can greatly improve operational efficiency. It also supports mouse control and remote web control over LAN.
