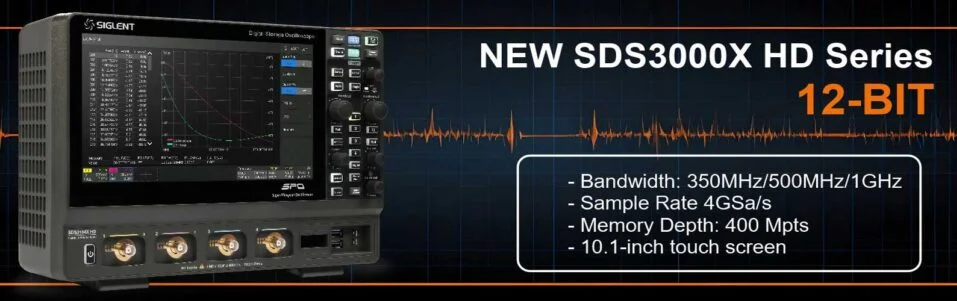

Siglent SDS3000X-HD 12 Bit High Resolution Oscilloscope

The SDS3000X HD series features a 12-bit high-resolution ADC, offering up to 4096 quantisation levels for detailed waveform analysis. In high-resolution mode (ERES), the resolution can be further enhanced to 16-bit, making even the most subtle signal variations visible. This advanced resolution capability is particularly beneficial when analysing complex circuits, such as the LLC half-bridge conversion circuit, where observing the dead time between driving signals is crucial. The superior clarity provided by a 12-bit oscilloscope ensures that waveform details are significantly clearer compared to an 8-bit oscilloscope

Key Specifications:

• Bandwidth: Available in 1 GHz, 500 MHz, and 350 MHz models, catering to a wide range of high-frequency applications.
• Storage Depth: Up to 400 Mpts per channel, allowing for extensive data recording and in-depth analysis.
• Vertical Resolution: 12-bit ADC with 4096 quantisation levels, providing 16 times the resolution of traditional 8-bit oscilloscopes.
• Real-Time Sampling Rate: Up to 4 GSa/s, ensuring accurate capture of high-speed waveforms.
• Waveform Capture Rate: Capable of up to 890,000 waveforms per second, allowing for fast and detailed signal analysis.
• Low Noise Floor: As low as 125 μVrms across the full bandwidth, ensuring precise measurements without interference.
• 12-Bit ADC and Enhanced Resolution
