SPD3000C/X/X-E Programmable Bench DC Power Supply

Voltage: 0-32V / 2.5V,3.3V,5.0V | Current: 3.2A, 3A | Power: Up to 220W

  • 3 independently controlled and isolated outputs: Two 32 V/3.2 A, one 2.5 V / 3.3 V / 5 V / 3.2 A × 1, total 220 W
  • 5 digit Voltage/4 digit Current Display, Minimum Resolution: 1 mV/1 mA (SPD3303X)
  • Timing function provides programmed output steps
  • 4.3 inch true colour TFT- LCD 480 x 272 display
    • 3 types of output modes: independent, series (60 V max), and parallel (6.4 A max)

    Siglent’s SPD3000X Series Programmable Linear DC Power Supply has a 4.3 inch TFT-LCD display, supports Remote Programming and has a Real Time Wave Display. The ‘3000X family has three isolated outputs; two adjustable channels and one selectable channel from 2.5 V, 3.3 V, and 5 V. It also has output short and overload protection and can be used in production and development.

Model Output Voltage Output Current Power Rack/Bench Control Display Price From
SPD3303C CH1: 0-32V
CH2: 0-32V
CH3: 2.5V/3.3V/5.0V		 0-3.2A
0-3.2A
0-3A		 220W Rack / Bench USB Device 4 digit Voltage,
3 digit Current		 £217.00
SPD3303X CH1: 0V-32V
CH2: 0V-32V
CH3: 2.5V/3.3V/5.0V		 0 – 3.2A 220W Rack / Bench USB Device, LAN 5 Digits Voltage, 4 Digits Current £450.00
SPD3303X-E CH1: 0V-32V
CH2: 0V-32V
CH3: 2.5V/3.3V/5.0V		 0 – 3.2A 220W Rack / Bench USB Device, LAN 4 Digits Voltage, 3 Digits Current £316.00
SKUImageChannel OutputsDisplaysResolutionsSetting AccuracyStockPrice

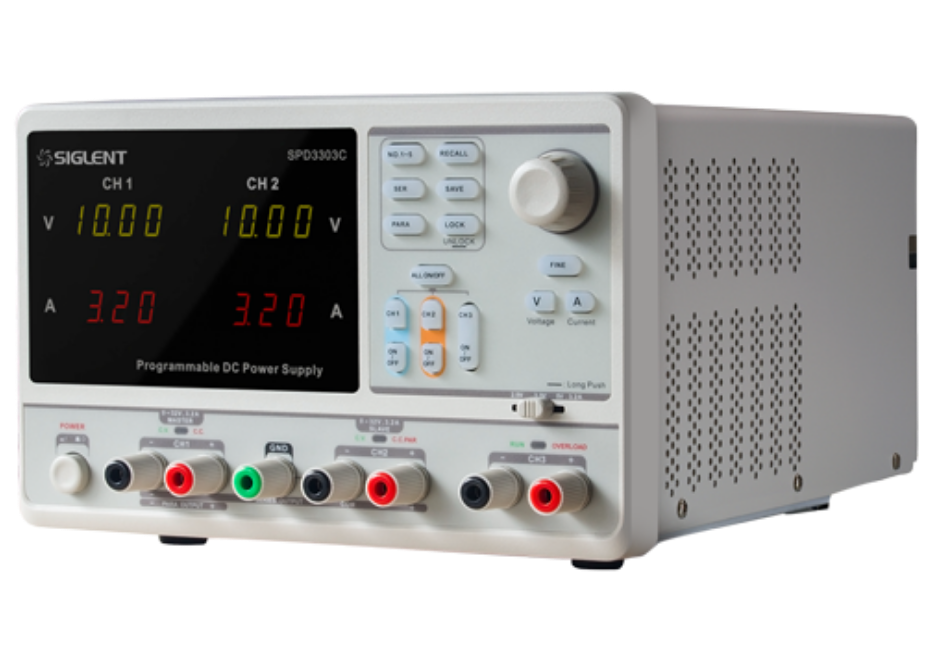

SPD3303CSiglent SPD3303C Programmable Bench DC Power SupplyCH1: Voltage 32V Current 3.2A
CH2: Voltage 32V Current 3.2A
CH3: 2.5/3.3/5.0V Current 3.2A		4.3" color TFT-LCD 4 digit voltage display
3 digit current display		10 mV,
10 mA		Voltage: ± (0.5% of reading + 3 digits)
Current: ± (0.5% of reading + 3 digits)		4£216.00
SPD3303XSiglent SPD3303X 2x 0-32V (3.2A), 2.5V/3.3V/5.0V (3.2A), 220W, Programmable Bench DC Power SupplyCH1: Voltage 32V Current 3.2A
CH2: Voltage 32V Current 3.2A
CH3: 2.5/3.3/5.0V Current 3.2A		4.3" color TFT-LCD 5 digit voltage display
4 digit current display		1 mV,
1 mA		Voltage±(0.03% of reading+10mV)
Current±(0. 3% of reading+10mA)		5+£429.00

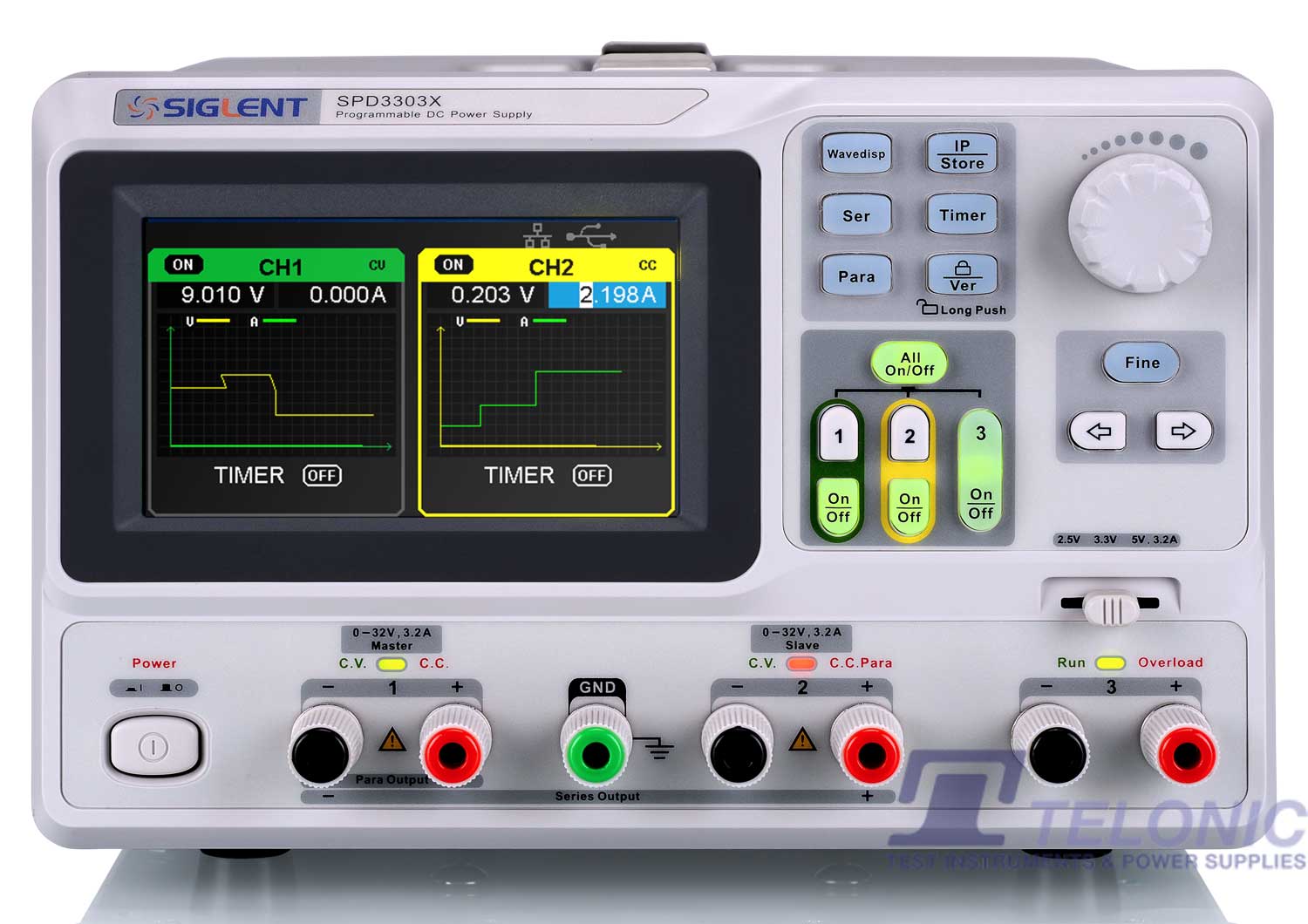

SPD3303X-ESiglent SPD3303X-E 2x 0-32V (3.2A), 2.5V/3.3V/5.0V (3.2A), 220W, Programmable Bench DC Power SupplyCH1: Voltage 32V Current 3.2A
CH2: Voltage 32V Current 3.2A
CH3: 2.5/3.3/5.0V Current 3.2A		4.3" color TFT-LCD 4 digit voltage display
3 digit current display		10 mV,
10 mA		Voltage: ± (0.5% of reading + 2 digits)
Current ± (0.5% of reading + 2 digits)		2£312.00
