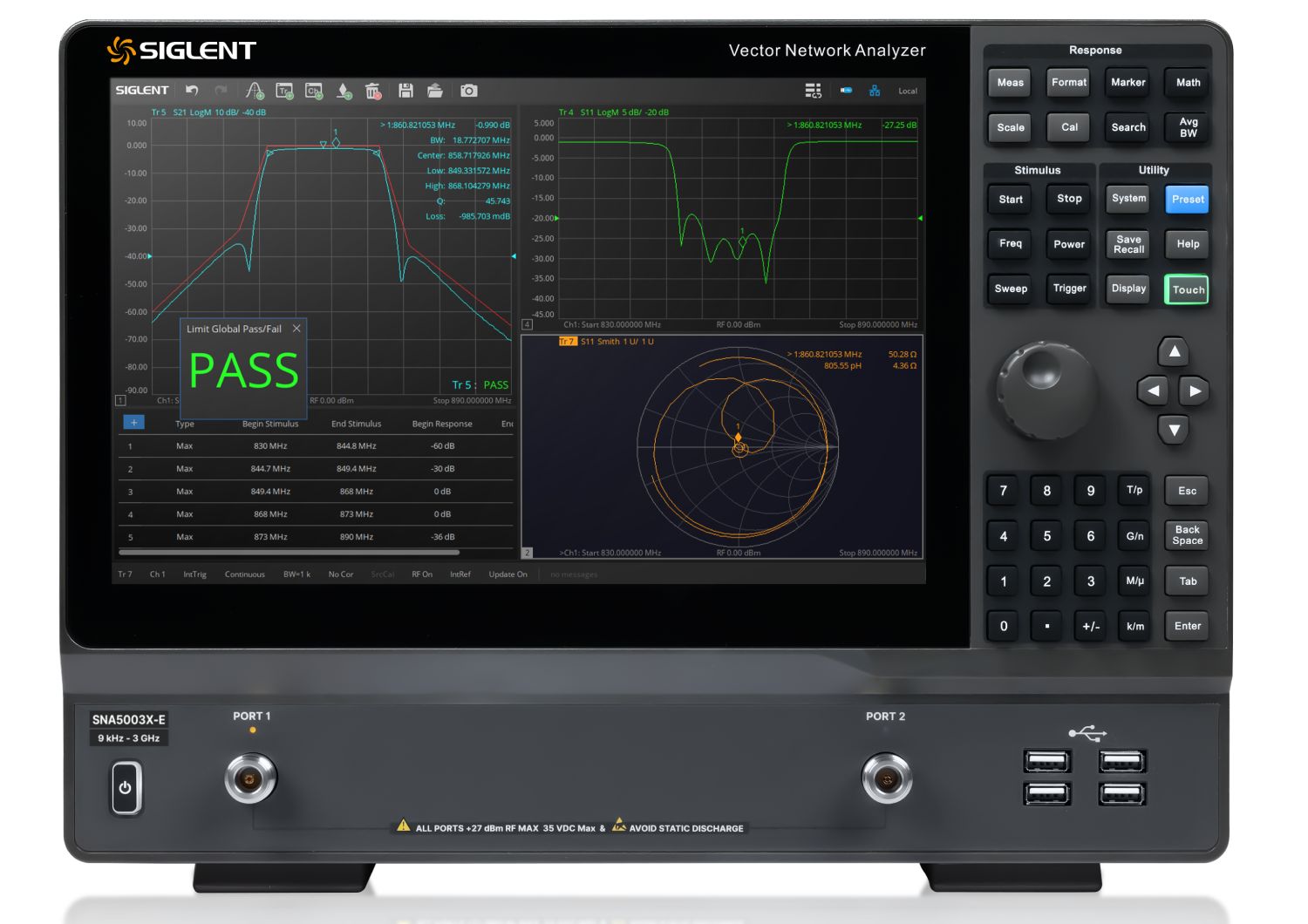

Siglent SNA5003X E TelonicUK

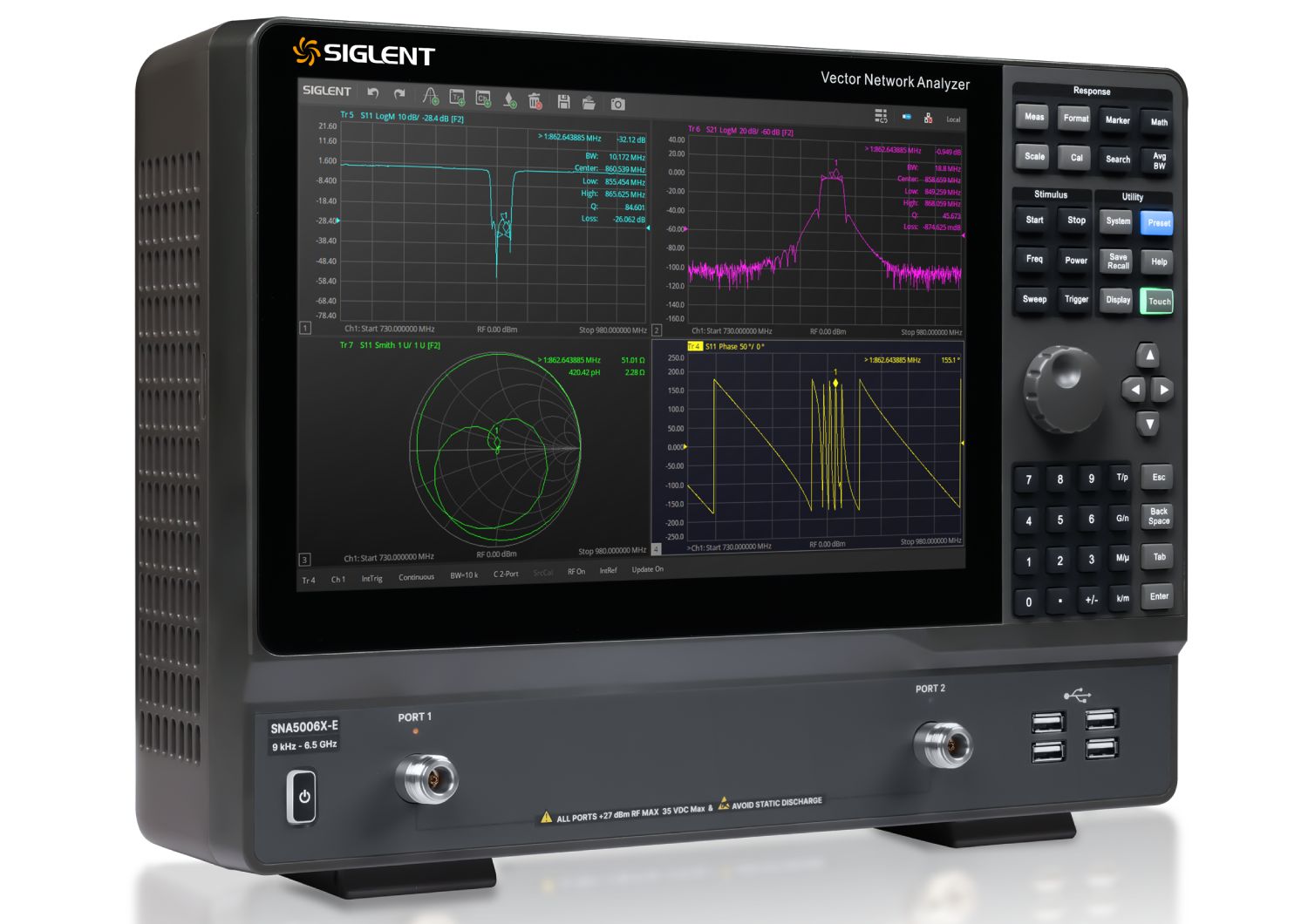

Siglent SNA5000X E Side TelonicUK

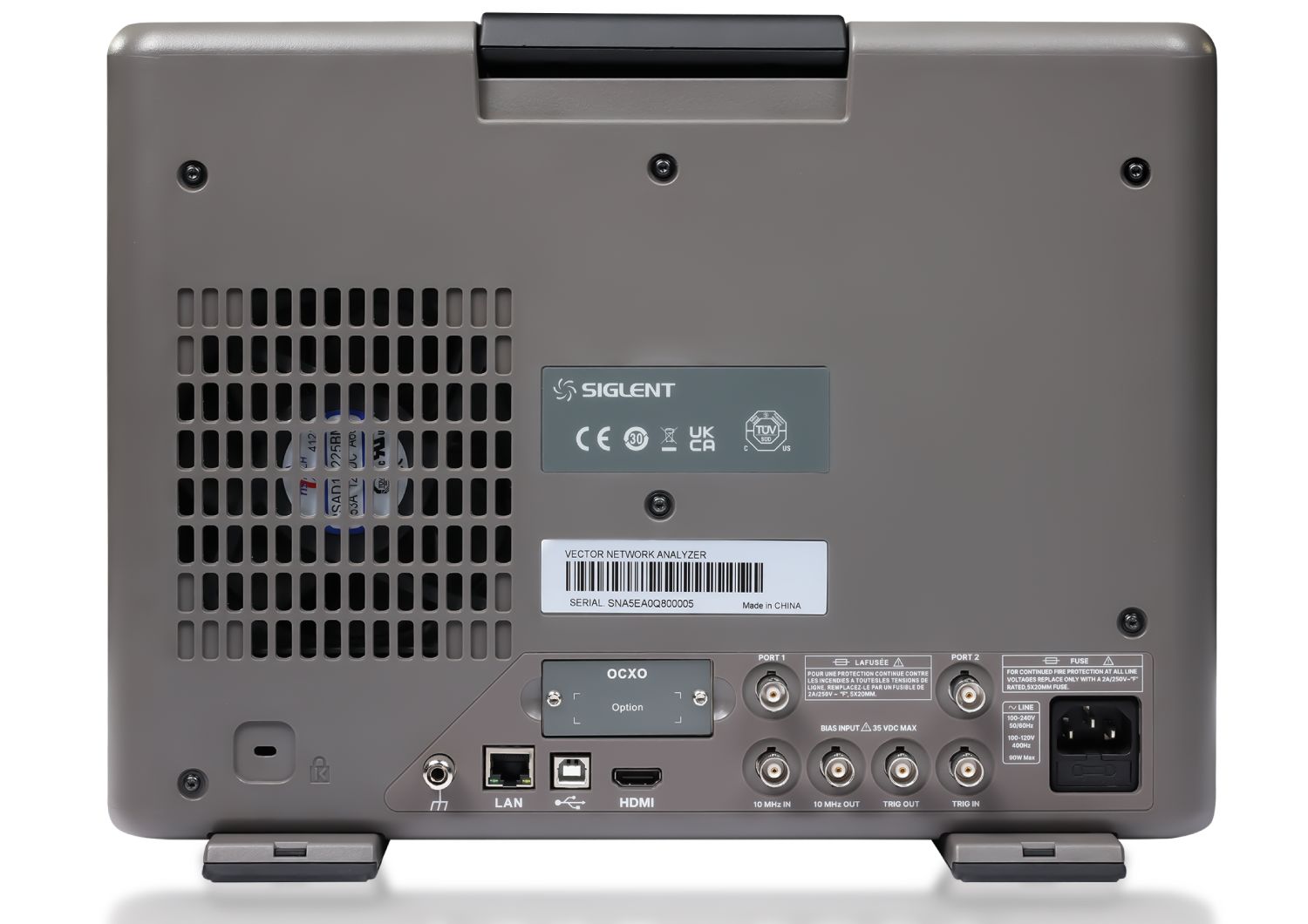

Siglent SNA5000X E Rear TelonicUK

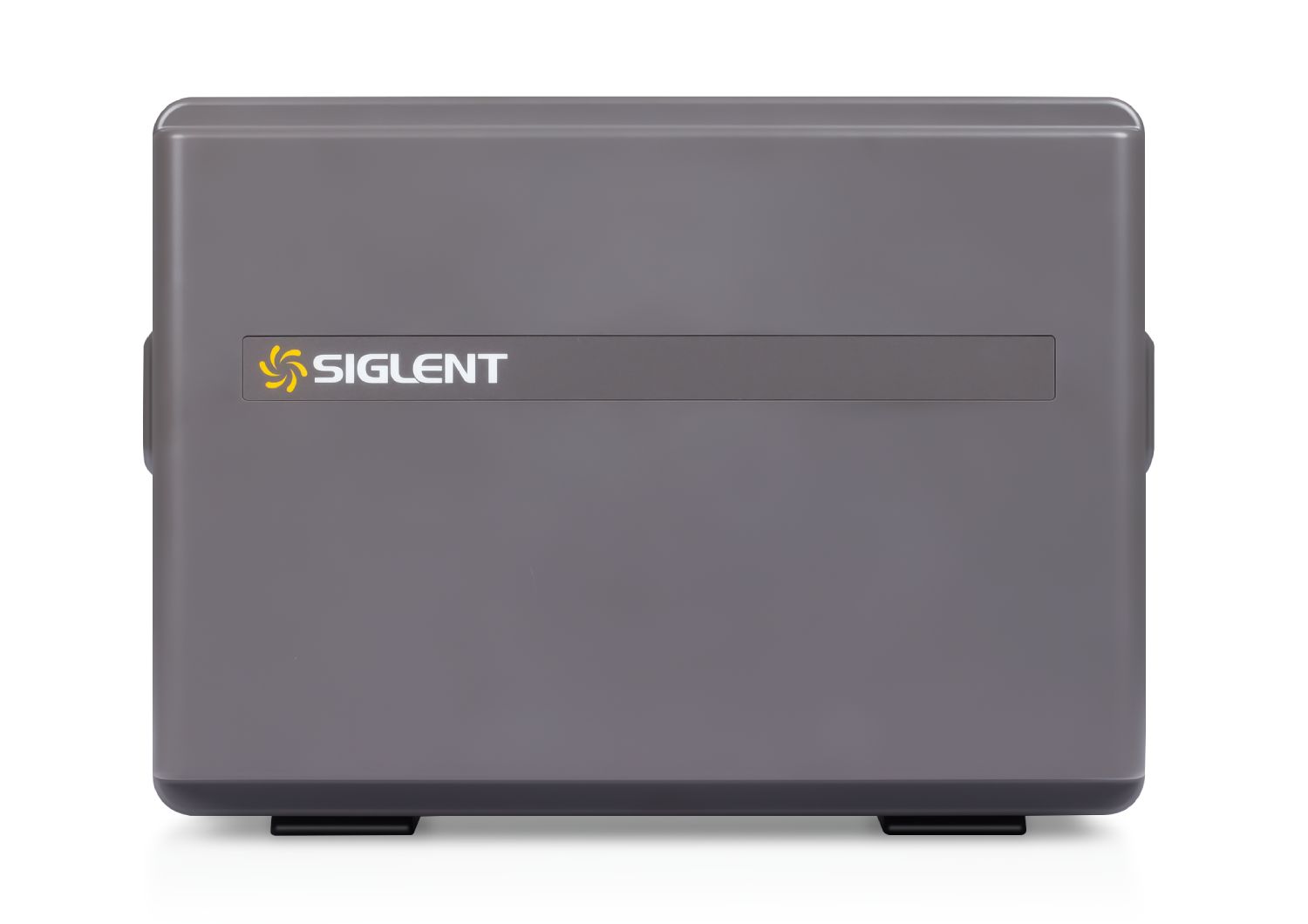

Siglent SNA5000X E Cover TelonicUK

Siglent SNA5003-E 9kHz – 3GHz Vector Network Analyser

£3689.00 (£4426.8 inc VAT)

Available on back-order, delivery normally 1 - 2 weeks

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

SKU: SNA5003X-E Category: Tags: , Brand:

Description


Siglent SNA5003-E Vector Network Analyser

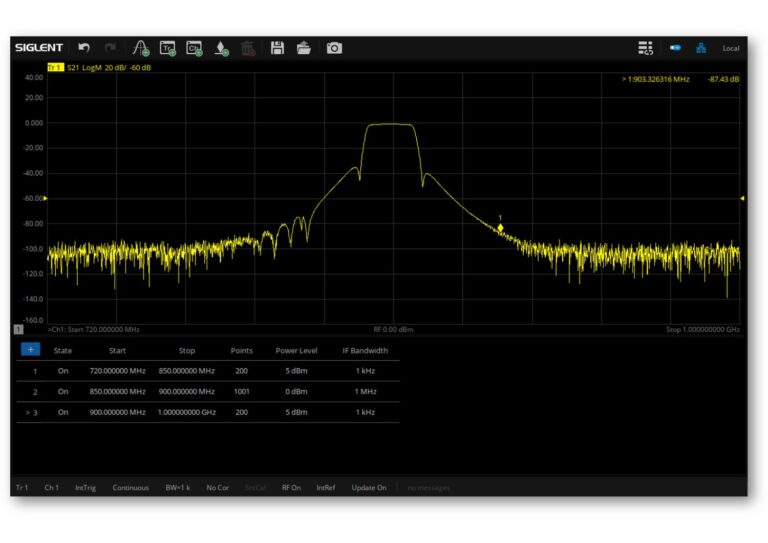

The SNA5003-E VNA, included in the SIGLENT SNA5000X-E series of Vector Network Analysers, has a frequency range of 9 kHz to 3 GHz and supports 2-port scattering-parameter, differential-parameter, and time-domain parameter measurements. The SNA5000X-E series of VNAs is effective instrumentation for determining the Q-factor, bandwidth, and insertion loss of a filter. They feature impedance conversion, movement of the measurement plane, fixture simulation, and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode. The SNA5000X-E series VNAs also support scattering-parameter correction for SOLT, SOLR, TRL, Response, and Enhanced Response, providing increased flexibility in R&D and manufacturing applications.

Product Images

Product Videos

YouTube Video

Additional information

Model SNA5003X-E SNA5006X-E
Frequency range 9 kHz– 3 GHz 9 kHz- 6.5 GHz
Ports 2
Frequency resolution 1 Hz
Level resolution 0.05 dB
Range of IFBW 1 Hz ~ 10 MHz
Number of points 2 ~ 20001
Setting range of output level -40 dBm ~ +10 dBm
Dynamic range 125 dB (typ.)
Types of calibration Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, TRL calibration
Types of measurement Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, impedance conversion, fixture simulation, adapter removal/insertion, enhanced time-domain parameter analysis (TDR), spectrum analysis
Bias-Tees Support
Interface LAN, USB Device, USB Host (USB-GPIB)
Remote control SCPI/ Labview/ IVI based on USB-TMC/ VXI-11/ Socket/ Telnet/ WebServer
Display 12.1-inch touch screen
Video output HDMI
