Siglent SDS7304A 4Ch, 3GHz, 20GSa/s, 12-Bit High Resolution Oscilloscope

The SIGLENT SDS7304A is a cutting-edge digital storage oscilloscope designed to meet the demands of high-performance mixed signal analysis. Part of the SDS7000A series, this oscilloscope is packed with advanced features and capabilities, making it an ideal tool for professionals in fields such as electronics, communications, and engineering.

Key Specifications:

• Bandwidth: Up to 4 GHz (3 GHz for other models)
• Channels: 4 analogue channels with optional 16 digital channels
• Sample Rate: Up to 20 GSa/s

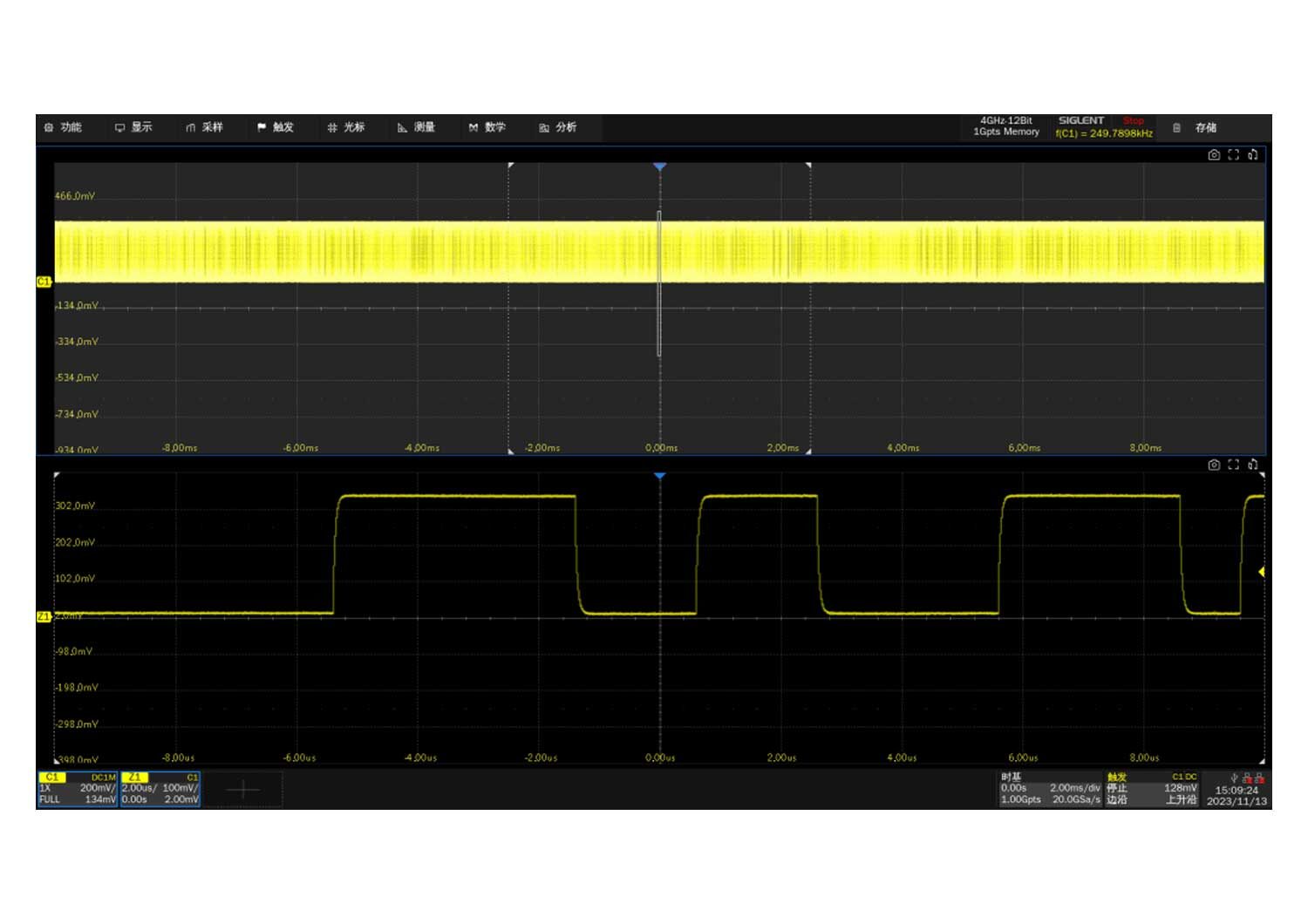

• Memory Depth: 500 Mpts per channel standard, expandable to 1 Gpts per channel
• Vertical Resolution: 12-bit ADC, expandable to 16-bit in ERES mode

Advanced Features:

• High-Resolution ADC: The SDS7304A employs a 12-bit ADC, offering up to 4096 quantization levels for exceptional waveform detail and accuracy. In Enhanced Resolution (ERES) mode, the resolution can be increased to 16-bit, providing even greater detail for critical measurements.
• SPO Technology: This oscilloscope features SIGLENT’s SPO (Super Phosphor Oscilloscope) technology, which enables a maximum waveform capture rate of up to 1,000,000 waveforms per second. This high-speed performance is essential for capturing elusive signal anomalies.
• Low Noise Floor: The SDS7304A boasts a low background noise floor of just 220 μVrms at full 3 GHz bandwidth, ensuring precise and clear signal acquisition.
• Large Touchscreen Display: The oscilloscope is equipped with a large 15.6” capacitive touch screen with a Full HD resolution of 1920 x 1080. The intuitive multi-touch interface enhances operational efficiency, allowing for easy navigation and control.
• Powerful Triggering System: The digital trigger system offers a wide range of intelligent trigger options, including Edge, Slope, Pulse, Window, and more. The Zone Trigger feature simplifies advanced triggering, making it easier to isolate and analyze specific events.

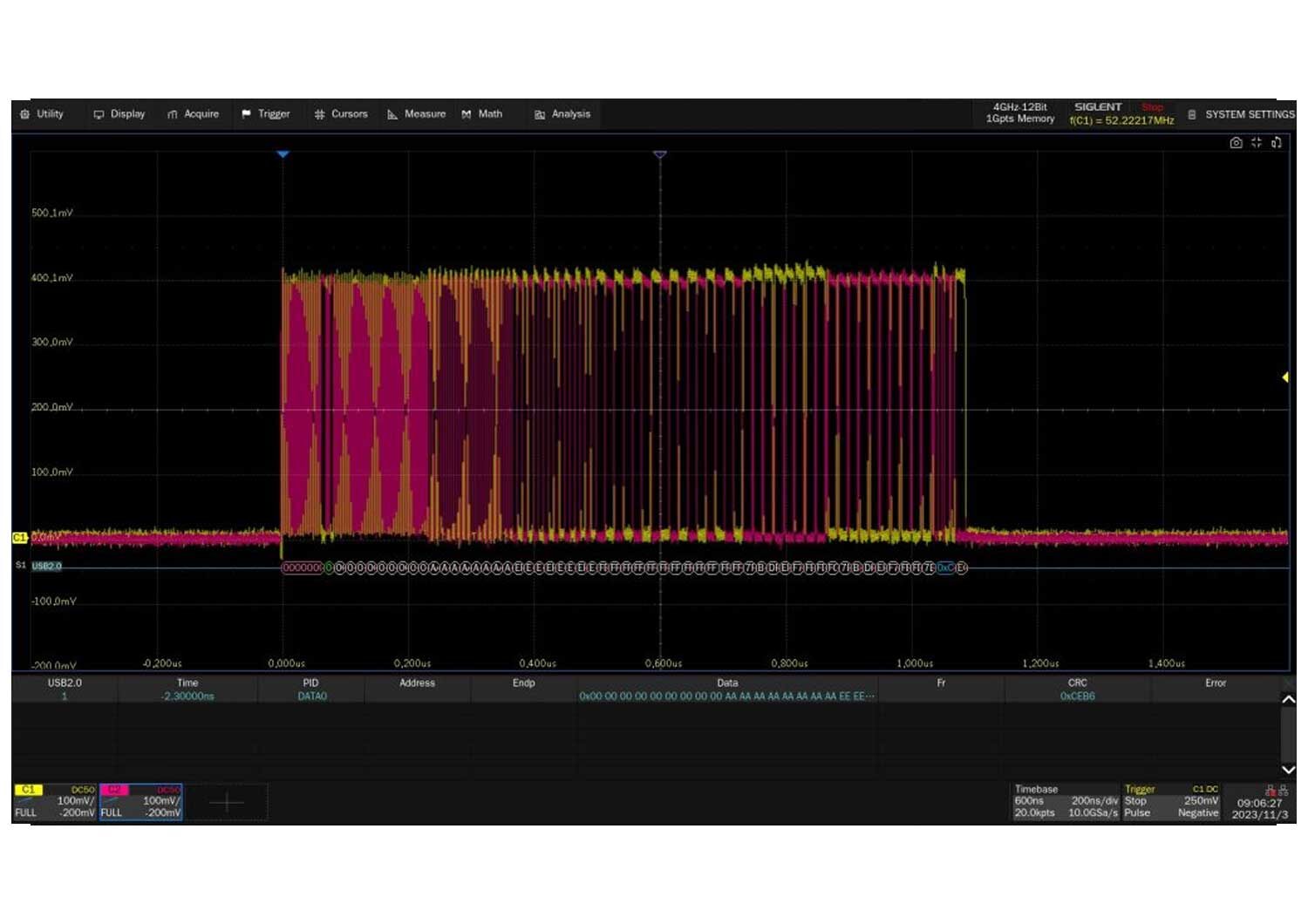

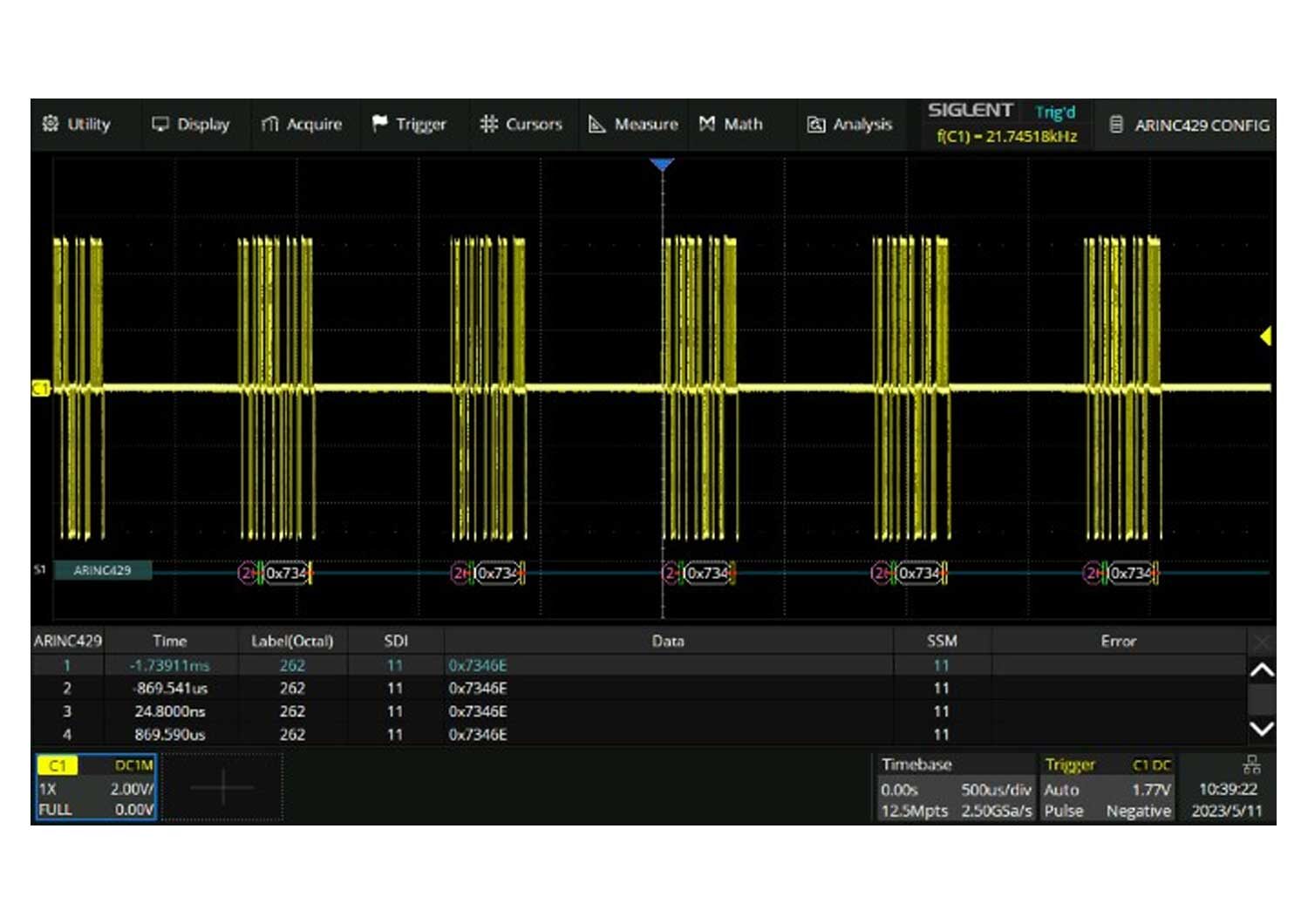

• Extensive Serial Bus Triggering and Decoding: Supports a comprehensive range of protocols, including I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester, ARINC429, and USB 2.0, making it versatile for various applications.
• Segmented Acquisition Mode: Allows the maximum record length to be divided into multiple segments (up to 124,000), optimizing data capture and analysis with minimal dead time.

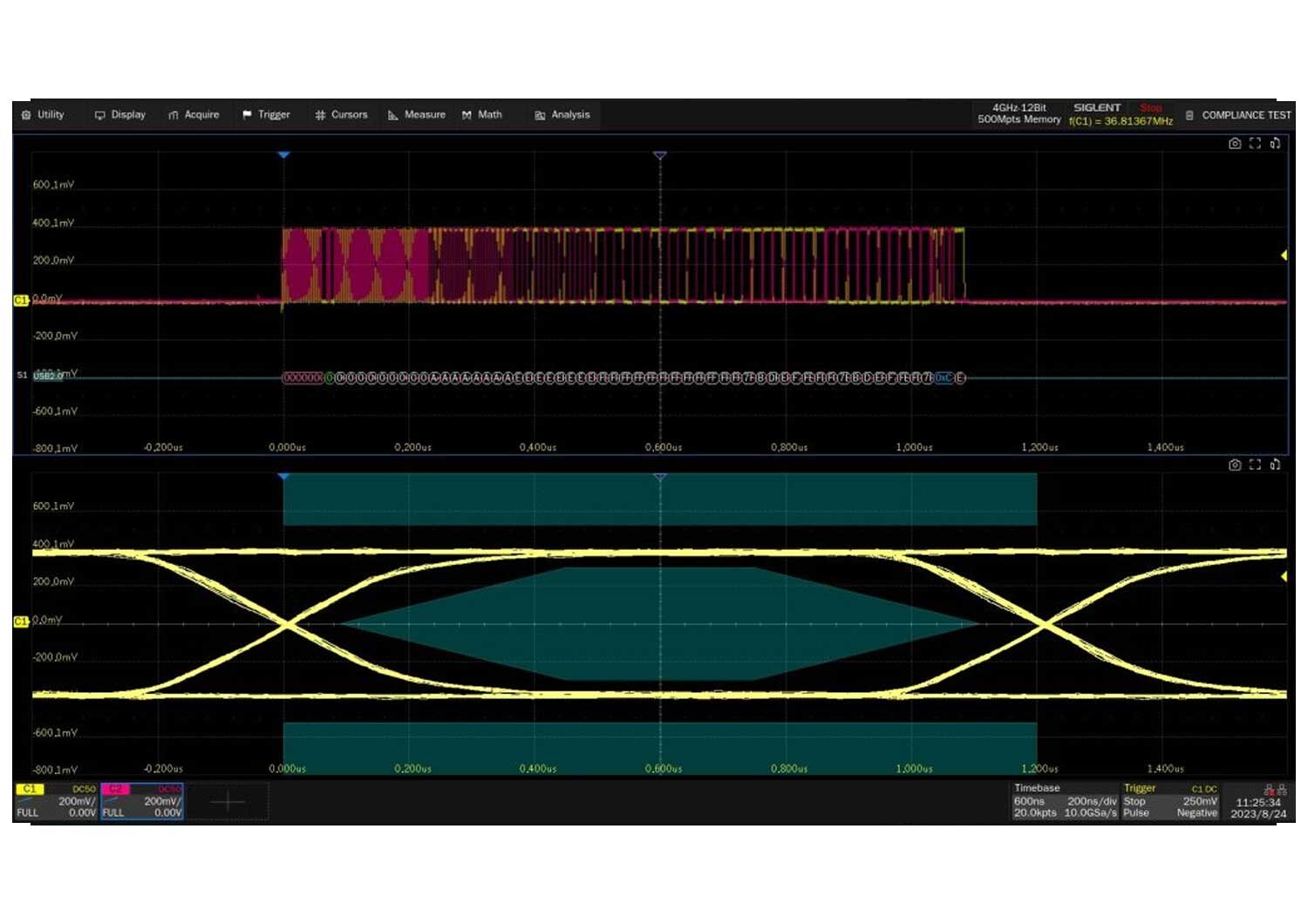

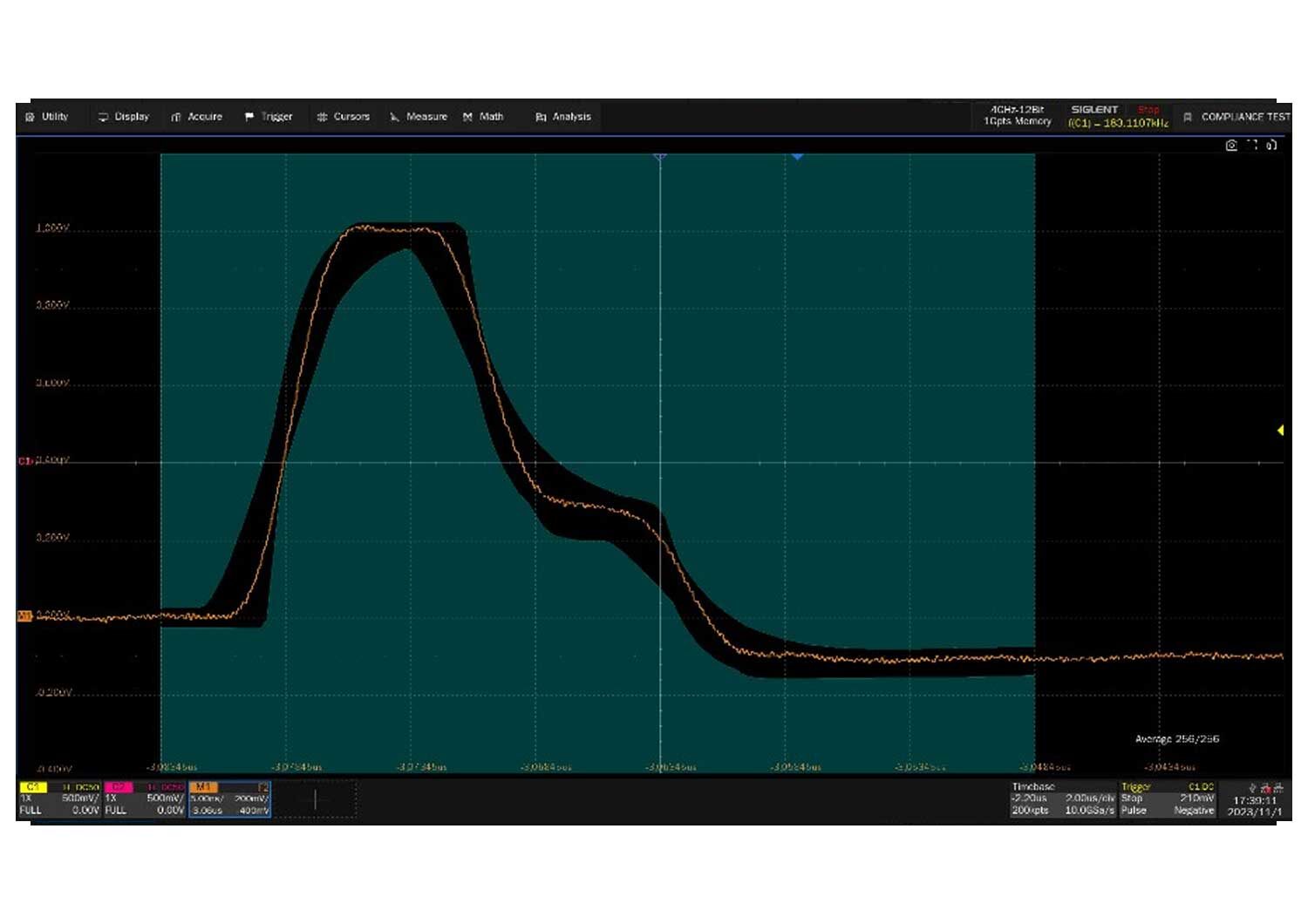

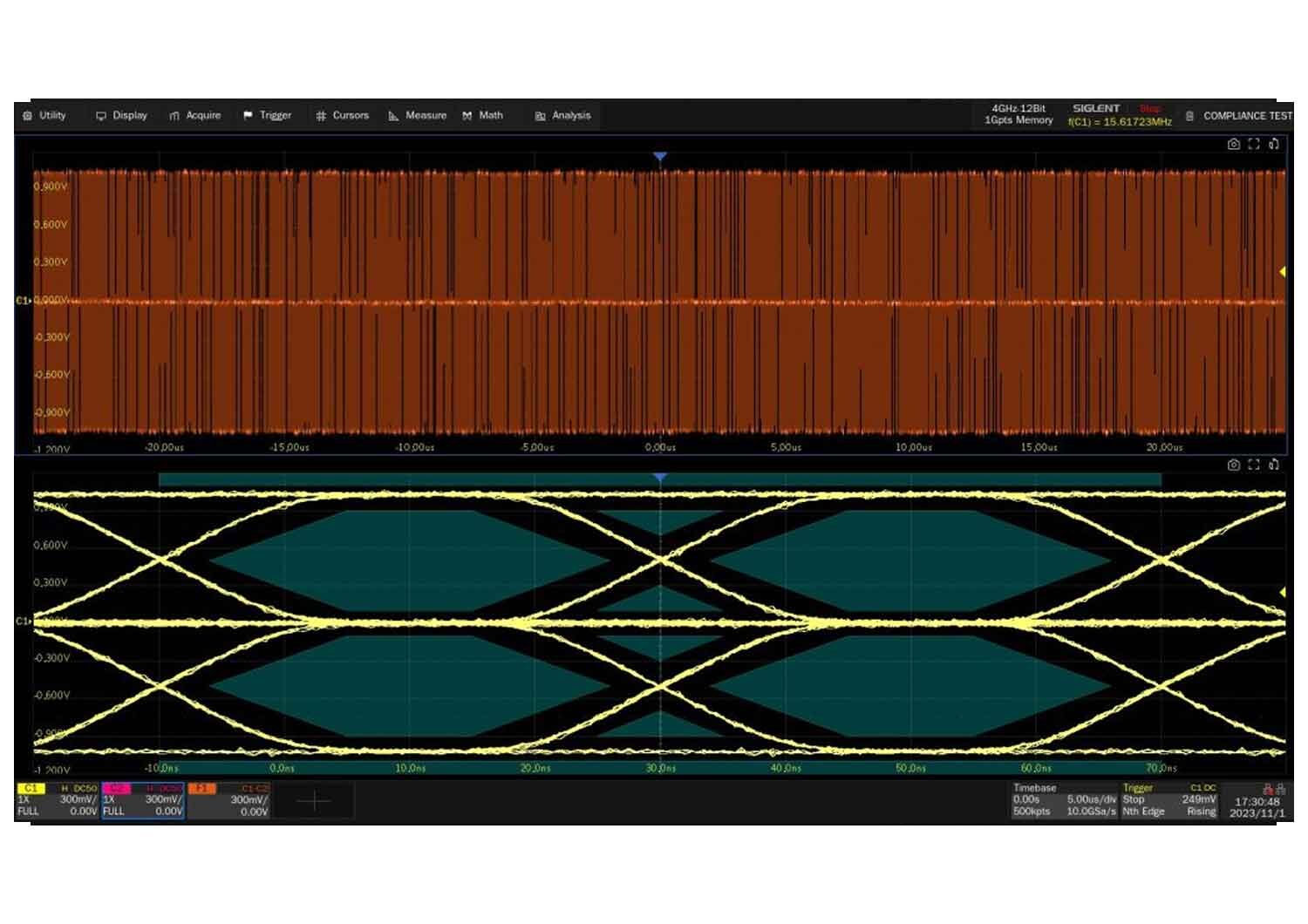

• Comprehensive Data Analysis Tools: The SDS7304A offers an impressive array of data analysis functions, including Search, Navigate, SignalScan, Digital Voltmeter, Counter, Waveform Histogram, Bode Plot, Power Analysis, Eye/Jitter Analysis, and Compliance Test, ensuring thorough signal examination.
• Built-in Waveform Generator: The oscilloscope includes a 50 MHz waveform generator, providing additional functionality for signal testing and simulation.
• Enhanced Connectivity: Features multiple high-speed interfaces, including 4x USB Host 3.1 Gen 1, 2x USB 3.0 Host, 2x 1000M LAN, DVI-D, DP 1.2, HDMI 1.4, and more, ensuring seamless integration into any test setup.
• Remote Control and Web Server: Built-in web server supports remote control over LAN using a web browser, with full SCPI remote control command support. External mouse and keyboard compatibility further enhance user convenience.

The SIGLENT SDS7304A is an advanced oscilloscope offering high bandwidth, deep memory, and exceptional resolution. It is designed to deliver precise and reliable measurements, making it an invaluable tool for engineers and technicians across various industries
