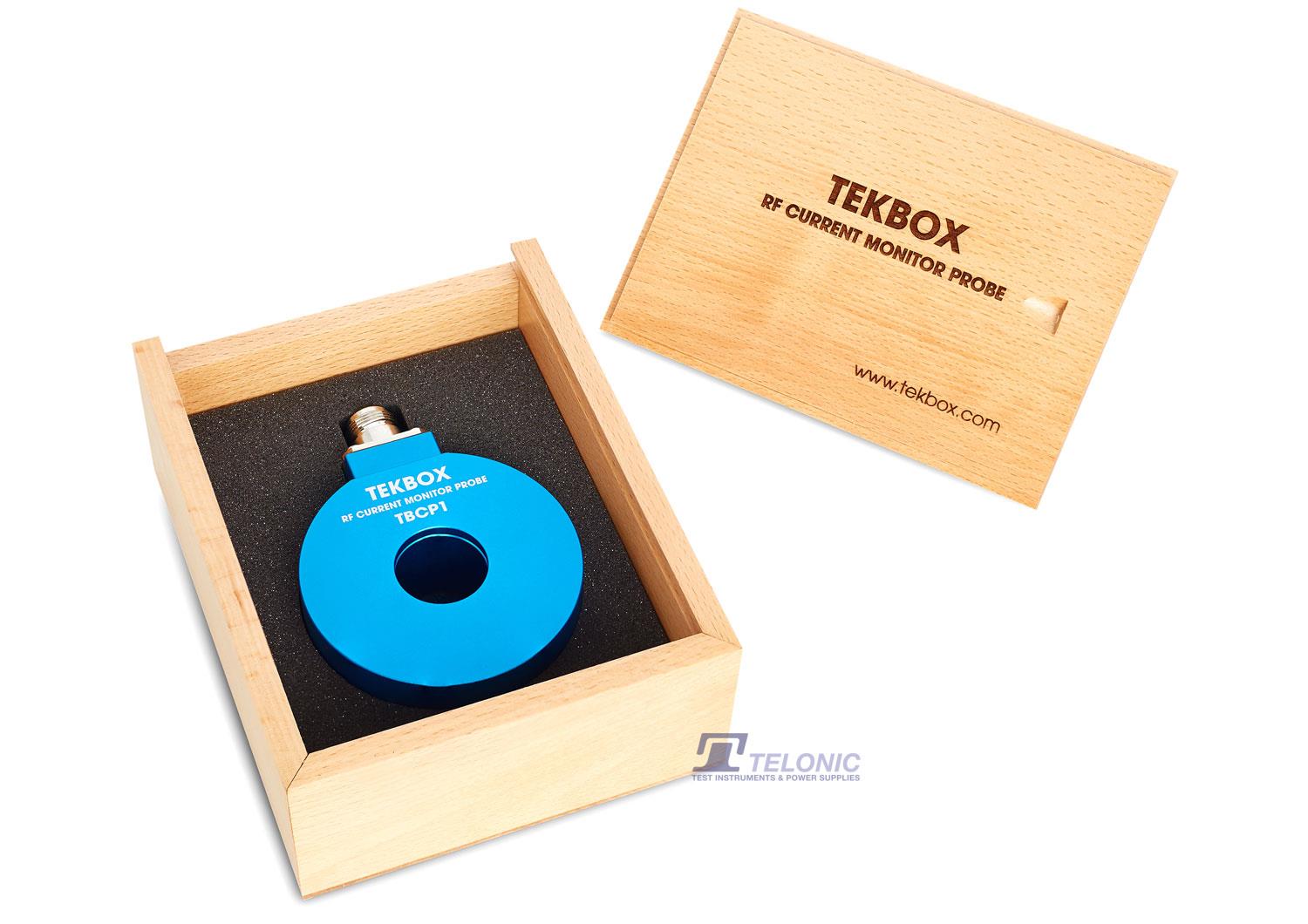

TEKBOX TBCP1-500 RF Current Monitoring Probe

£375.00 (£450 inc VAT)

FREE UK delivery: on all orders above £100+vat

Availability: Stock models delivered next working day (UK only) for orders placed before 15:00 (Mon - Fri)

Only 1 left in stock!

SKU: TBCP1-500 Category:

Description

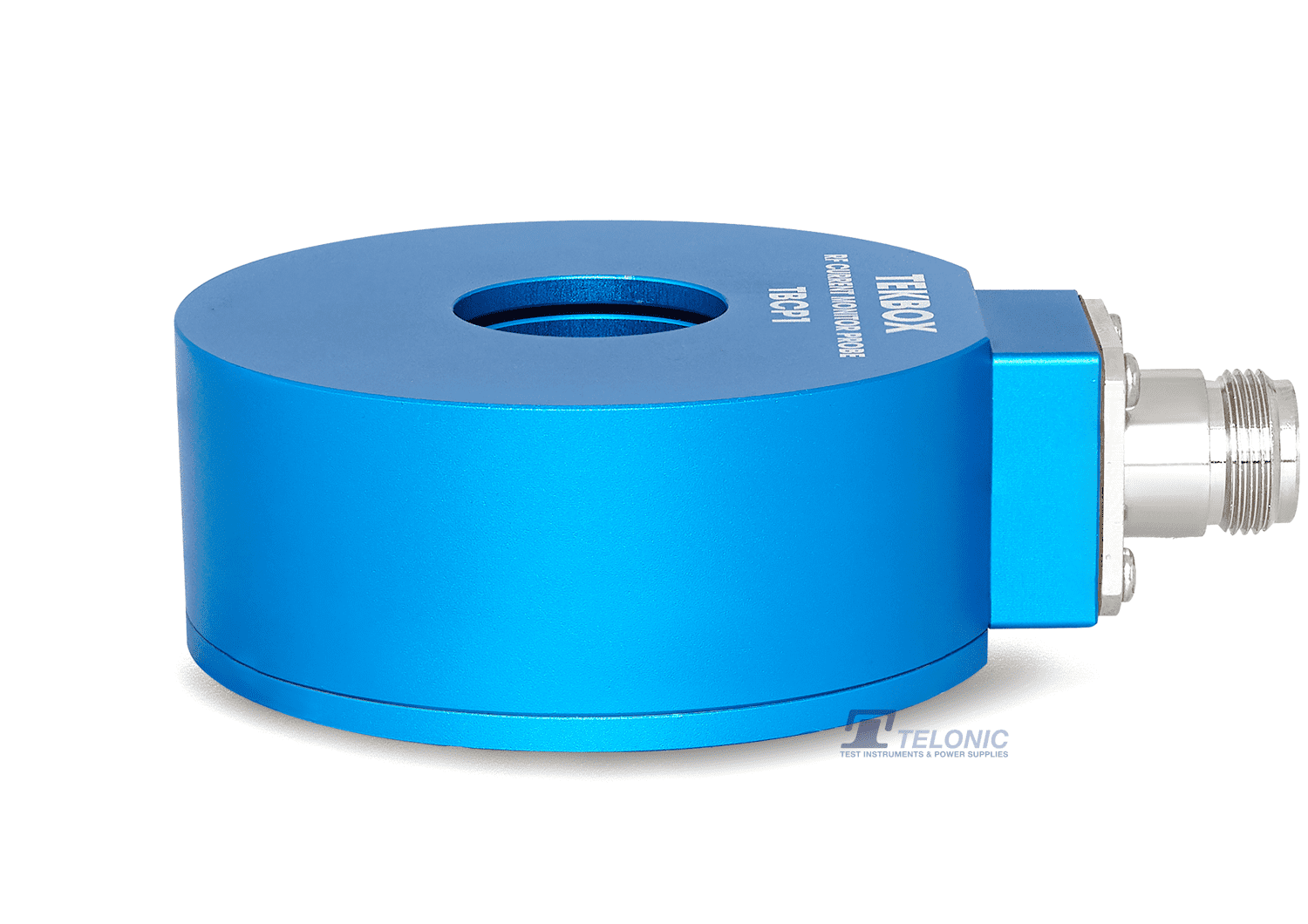

The TBCP1-500 is a 300 kHz to 250MHz fixed aperture RF current monitoring probe. The probe has a very flat response with a 3dB bandwidth of 500 MHz and is characterized and usable over the frequency range from 30kHz to 500 MHz. The aperture of the RF current monitoring probe is 25 mm. Its transfer impedance is > 16 dB Ohm in the range from 300 kHz to 250MHz.

Specification:

  • Characterised Frequency Range : 30kHz to 500MHz
  • Aperture Diameter : 25mm
  • Outside Diameter : 76mm
  • Height : 31mm
  • Weight : 320g
  • Connector Type : N Female
  • Transfer Impedance : -2 to 19dBΩ
  • Max. Primary Current : (DC-400Hz):80A
  • Max. Primary Current : (RF):3A
  • Max Core Temperature : 125°C
