Description
Siglent SDL1020X-E DC Electronic Load
The SDL1020X-E is a 150V, 30A, 200W DC Electronic Load. The SDL1000X/SDL1000X-E series Programmable DC Electronic Load has a 3.5 inch TFT-LCD display, a user friendly interface and superb performance specifications. The SDL1020X/SDL1020X-E models feature an input range of 150V/30A/200W while the SDL1030X/SDL1030X-E have an input range of 150V/30A/300W. The SDL1000X series leads with a measurement resolution of 0.1mV/0.1mA and the base SDL1000X-E series resolution is 1mV/1mA and adjustable current rise times from 0.001 A/ΞΌs~2.5 A/ΞΌs. For remote communication and control, the SDL series includes RS232/USB/LAN interface types. The SDL1000X series delivers stability over a wide range of applications and can meet all kinds of testing requirements. Including Power, battery/handheld device design, industry, LED lighting, automotive electronics, and aerospace.
- SDL1020X (Single channel): DC 150V / 30A, total power up to 200W
- SDL1030X (Single channel): DC 150V / 30A, total power up to 300W
- 4 Static modes/Dynamic mode: CC/CV/CR/CP
- CC Dynamic mode: Continuous, pulsed, toggled
- CC Dynamic mode: 25kHz, CP Dynamic mode: 12.5kHz, CV Dynamic mode: 0.5Hz
- Measuring speed of voltage and current up to 500kHz
- Adjustable current rise time range: 0.001 A/us~2.5 A/us
- Min. readback resolution: 0.1mV, 0.1mA
- Short-circuit, Battery test, CR-LED mode, and factory test functions
- 4-wire SENSE compensation mode function
- List function supports editing as many as 100 steps
- Program function supports 50 groups of steps
- OCP,OVP,OPP,OTP and LRV protection
- External analog control
- Voltage, Current monitoring via 0-10V
- 3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously
- Built-in RS232/USB/LAN communication interface, USB-GPIB module (optional)
- Waveform trend chart and easy-to-use file storage and call functions
- Includes PC software: Supports SCPI, LabView driver
Siglent SDL1000X DC Electronic Load Comparison Table
| Model | Input Voltage/Current/Power | Mode | CC Dynamic Mode Frequency | Measuring Speed | Current Slew Rate | Min. Readback Resolution |
|---|---|---|---|---|---|---|
| SDL1020X-E | 150V / 30A / 200W | CC/CV/CR/CP | 25kHz | Up to 500kHz | 0.001 A/us~2.5 A/us | 1 mV, 1 mA |
| SDL1020X | 150V / 30A / 200W | CC/CV/CR/CP | 25kHz | Up to 500kHz | 0.001 A/us~2.5 A/us | 1 mV, 1 mA |
| SDL1030X-E | 150V / 30A / 300W | CC/CV/CR/CP | 25kHz | Up to 500kHz | 0.001 A/us~2.5 A/us | 1 mV, 1 mA |
| SDL1030X | 150V / 30A / 300W | CC/CV/CR/CP | 25kHz | Up to 500kHz | 0.001 A/us~2.5 A/us | 1 mV, 1 mA |

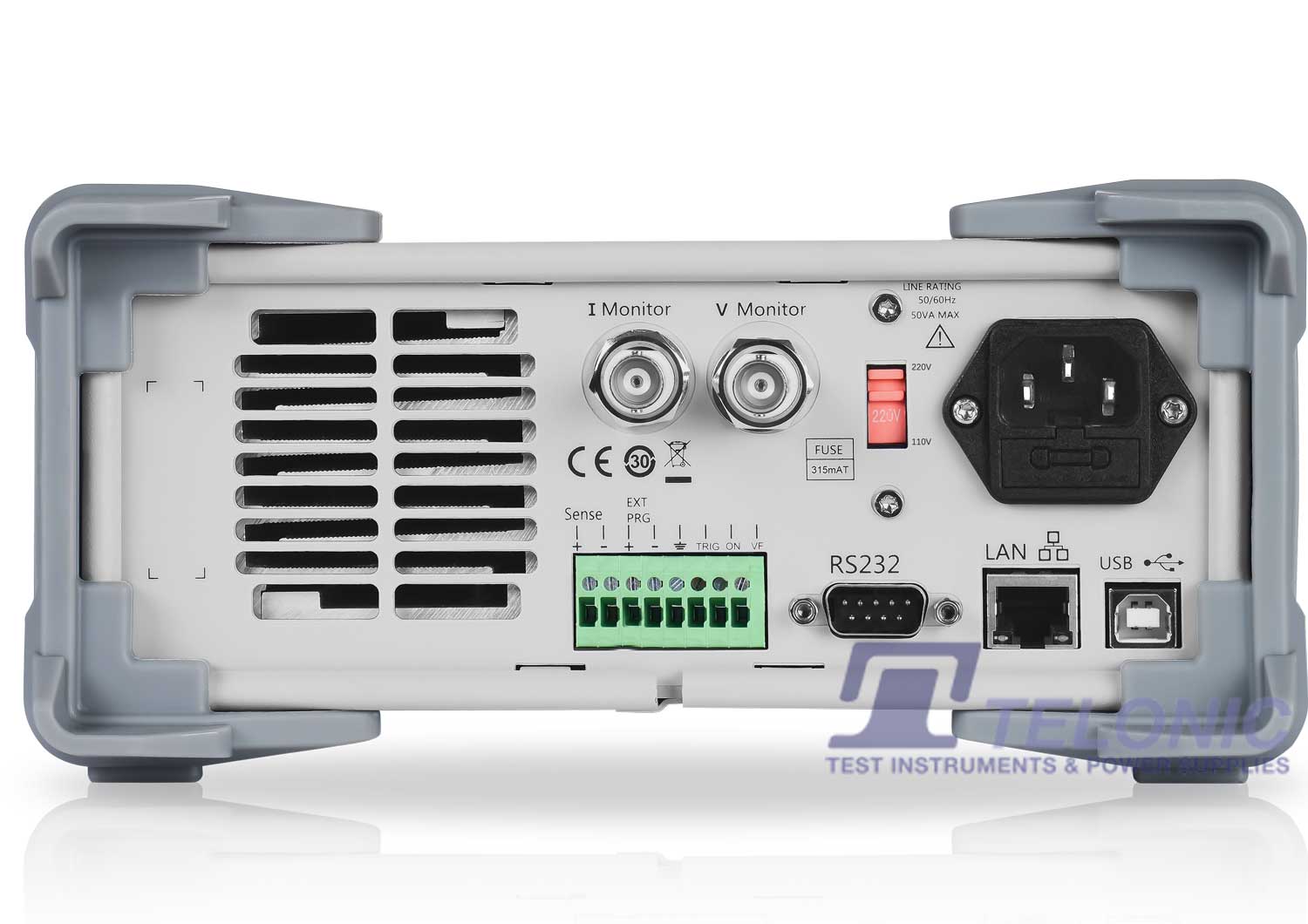

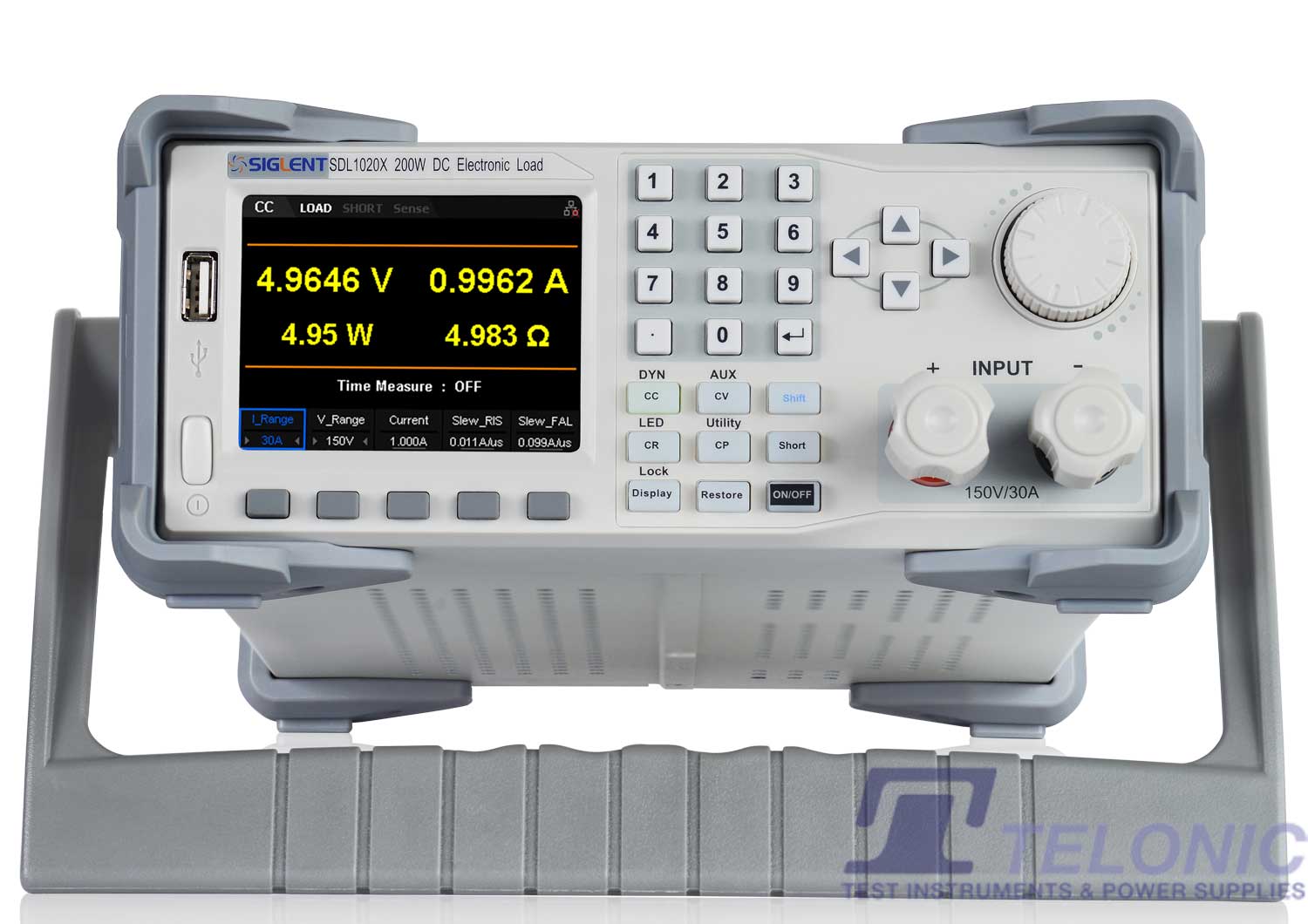

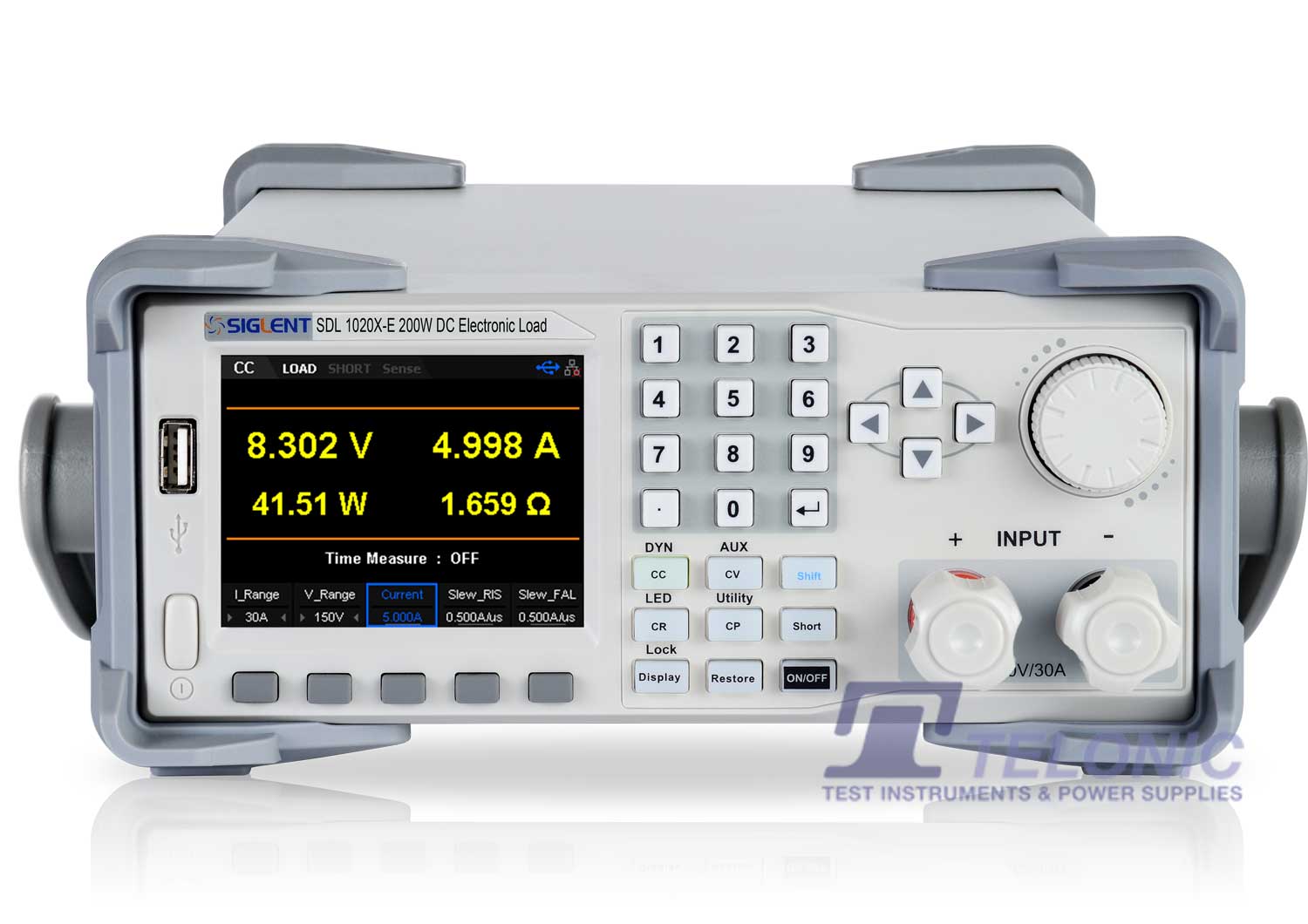

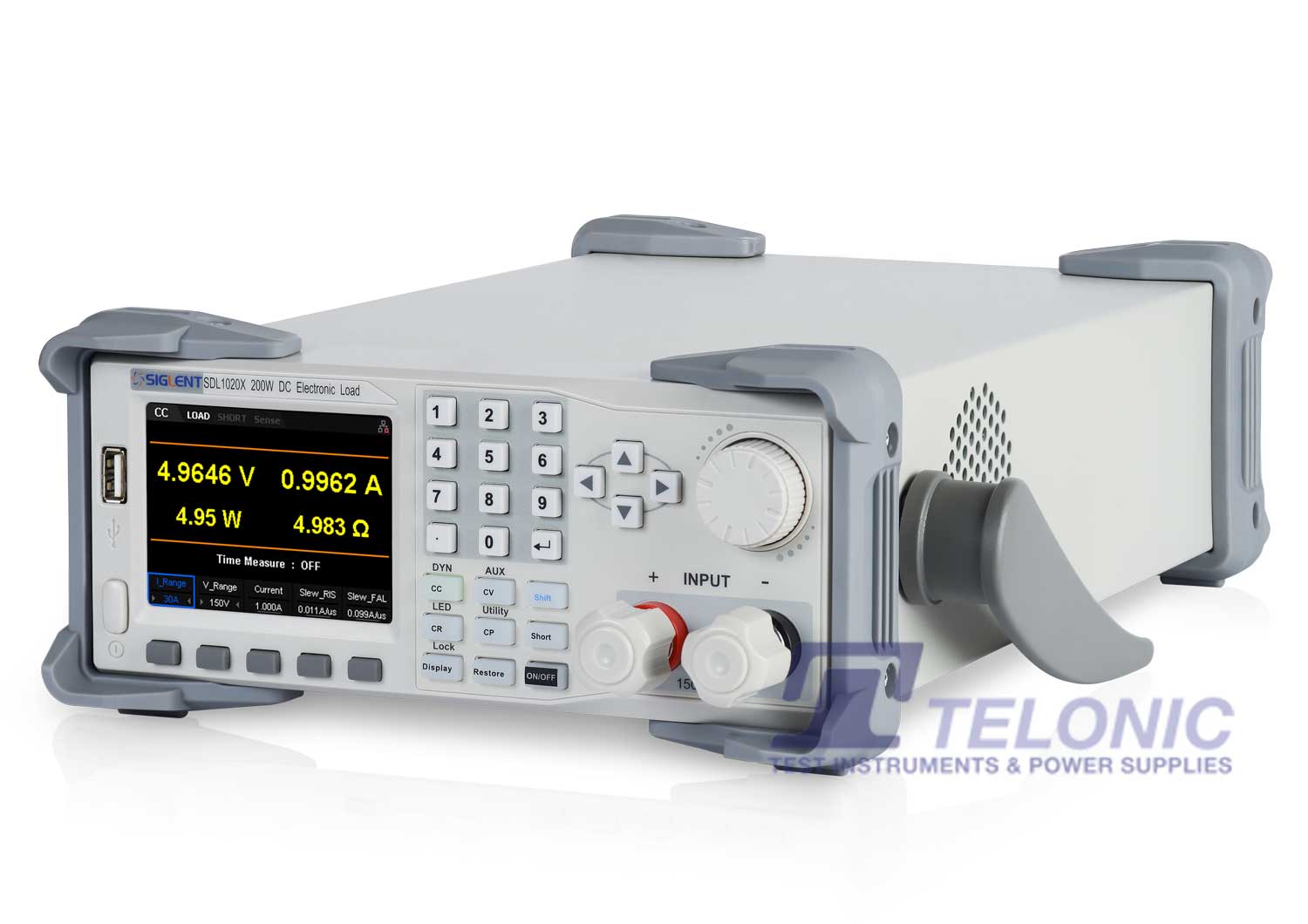

Product Images
Product Videos
Siglent SDL1000X Datasheet
JON WALKER (verified owner) –
Talking to the Telonic team, we needed a couple of medium-high-voltage loads that could be pushed to the limits. These are exceptional for the money and full featured, granted they are not Kikusui quality, but very capable for the money. They were delivered the next day and are up and running with no issues
MWAVE LTD
Doug Lovell –
Thanks Jon, Glad you like them.
john.stigter (verified owner) –
As usual, excellent service from Telonic Instruments. It was delivered within 24 hours of placing the order and arrived well packaged just as I’ve come to expect with all the Siglent test and measurement kit I’ve bought.
This unit meets its specifications with flying colours, also as is usual with Siglent kit and, as a hobbyist, I have not the slightest twinge of “Buyer’s Remorse” (an ever present risk for any hobbyist spending relatively large sums of money on their hobby activities). In short, I’m more than happy with this latest purchase and have only high praise for everyone at Telonic for their swift and courteous service.
