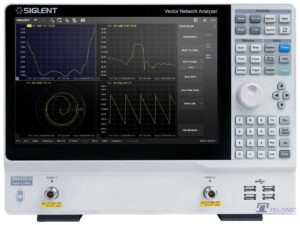

Siglent SNA5000A Vector Network Analyser
Frequency range: 9 kHz – 8.5 GHz and 100 kHz – 26.5 GHz
Frequency resolution: 1 Hz
Setting Range of Output Level: -55 ~ +10 dBm
Dynamic Range: 125 dB
2/4-ports: S-parameters, Balance Measurements, Time Domain
Measure: Q-factor, bandwidth and Insertion Loss
Power source calibration compatible with third party USB power meters
The SIGLENT SNA5000A series of Vector Network Analysers has a frequency range of 9 kHz to 8.5 GHz and 100 kHz to 26.5 GHz, which support 2/4-port scattering parameter, differential-parameter, and time-domain parameter measurements. The SNA5000A series of VNAs is effective instrumentation for determining the Q-factor, bandwidth, and insertion loss of a filter. They feature impedance conversion, movement of the measurement plane, limit testing, ripple test, fixture simulation, and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode, and Segment-Sweep mode. The SNA5000A series VNAs also support scattering-parameter correction of SOLT, SOLR, TRL, Response, and Enhanced Response for increased flexibility in R&D and manufacturing applications.
| SKU | Image | Frequency | CH | Input Dynamic Range | Noise (Vrms) | Output Range | Stock | Price | Category |
|---|---|---|---|---|---|---|---|---|---|
| SHN914A |  | 30kHz-14GHz | 2 | 100 dB | 0.003 dB rms, 0.03° rms | -45 dBm ~ +10 dBm | On Backorder | £12,456.00 | Siglent SHN900A Series Handheld Vector Network Analyser |
| SHN920A | | 30kHz-20GHz | 2 | 100 dB | 0.003 dB rms, 0.03° rms | -45 dBm ~ +10 dBm | On Backorder | £15,069.00 | Siglent SHN900A Series Handheld Vector Network Analyser |
| SHN926A | | 30kHz-26.5GHz | 2 | 100 dB | 0.003 dB rms, 0.03° rms | -45 dBm ~ +10 dBm | On Backorder | £18,692.00 | Siglent SHN900A Series Handheld Vector Network Analyser |
| SNA5002A |  | 9 kHz~4.5 GHz | 2 | 125 dB | 0.003 dB rms,0.03° rms | -55 dBm ~ +10 dBm | On Backorder | £5,563.00 | Siglent SNA5000A Vector Network Analyser |
| SNA5003X-E |  | 9kHz - 3GHz | 2 | 125 dB | 0.002 dB | -40dBm ~ 0dBm | On Backorder | £3,689.00 | Siglent SNA5000X-E Vector Network Analysers |
| SNA5004A |  | 9 kHz~4.5 GHz | 4 | 125 dB | 0.003 dB rms,0.03° rms | -55 dBm ~ +10 dBm | On Backorder | £10,703.00 | Siglent SNA5000A Vector Network Analyser |
| SNA5006X-E | | 9kHz - 6.5GHz | 2 | 125 dB | 0.002 dB | -40dBm ~ 0dBm | On Backorder | £5,413.00 | Siglent SNA5000X-E Vector Network Analysers |
| SNA5012A |  | 9 kHz~8.5 GHz | 2 | 125 dB | 0.003 dB rms,0.03° rms | -55 dBm ~ +10 dBm | On Backorder | £12,389.00 | Siglent SNA5000A Vector Network Analyser |
| SNA5014A |  | 9 kHz~8.5 GHz | 4 | 125 dB | 0.003 dB rms,0.03° rms | -55 dBm ~ +10 dBm | On Backorder | £18,288.00 | Siglent SNA5000A Vector Network Analyser |
| SNA5022A |  | 100 kHz~13.5 GHz | 2 | 125 dB | 0.003 dB rms,0.03° rms | -55 dBm ~ +10 dBm | On Backorder | £21,128.00 | Siglent SNA5000A Vector Network Analyser |
| SNA5032A | | 100 kHz~13.5 GHz | 2 | 125 dB | 0.003 dB rms,0.03° rms | -55 dBm ~ +10 dBm | On Backorder | £25,350.00 | Siglent SNA5000A Vector Network Analyser |
| SNA6022A |  | 100 kHz to 13.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | On Backorder | £28,768.00 | Siglent SNA6000A Vector Network Analyser |
| SNA6024A |  | 100 kHz to 13.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | On Backorder | £38,756.00 | Siglent SNA6000A Vector Network Analyser |
| SNA6032A | | 100 kHz to 26.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | On Backorder | £36,564.00 | Siglent SNA6000A Vector Network Analyser |
| SNA6034A | | 100 kHz to 26.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | On Backorder | £47,108.00 | Siglent SNA6000A Vector Network Analyser |
| SNA6122A | | 100 kHz to 13.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | On Backorder | £32,813.00 | Siglent SNA6000A Vector Network Analyser |
| SNA6124A | | 100 kHz to 13.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | On Backorder | £46,846.00 | Siglent SNA6000A Vector Network Analyser |
| SNA6132A | | 100 kHz to 26.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | On Backorder | £40,609.00 | Siglent SNA6000A Vector Network Analyser |
| SNA6134A | | 100 kHz to 26.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | On Backorder | £55,199.00 | Siglent SNA6000A Vector Network Analyser |
