Siglent SVA1000X Series
Spectrum & Vector Network Analyser

Vector Network Analysis from 100 kHz – 7.5 GHz
Distance-to-fault (Optional)
Frequency Range from 9 kHz to 7.5 GHz
-165 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
1 Hz Minimum Resolution Bandwidth (RBW)

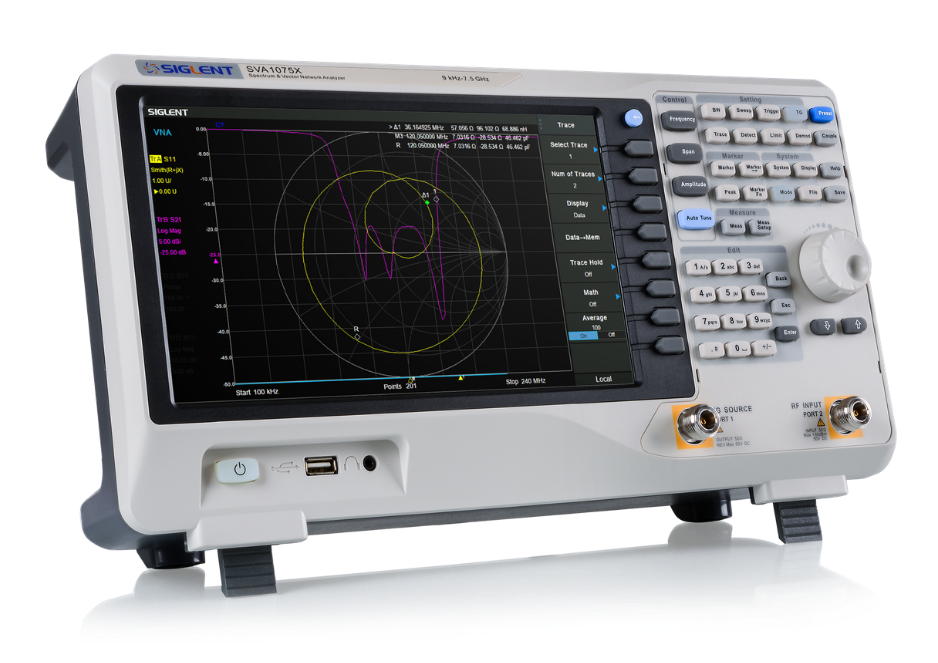

SSMU300X Banner Img

The SIGLENT SVA1000X series spectrum & vector network analysers are powerful and flexible tools for RF signal and network analysis.

With a frequency range up to 7.5 GHz, the analyser delivers reliable automatic measurements and multiple modes of operation: the base model is a spectrum analyser and a vector network analyser; optional functions include a distance-to-fault locator and a vector signal modulation analyser. Applications include broadcast monitoring/evaluation, site surveying, S-parameter measurement, cable and antenna testing, analogue/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.

SKUImageFrequencyRBWPhase Noise @1GHzAmp AccuracyDANLStockPrice
SHA851ASiglent SHA851A Handheld Spectrum/Cable and Antenna Analyser 9 kHz~3.6 GHz9 kHz~3.6 GHz1 Hz ~ 10 MHz
In 1-3-10 sequence		-104 dBc/Hz±0.7 dB-165 dBm/HzOn Backorder£3,295.00
SHA852ASiglent SHA852A Handheld Spectrum/Cable and Antenna Analyser 9 kHz~7.5 GHz9 kHz~7.5 GHz1 Hz ~ 10 MHz
In 1-3-10 sequence		-104 dBc/Hz±0.7 dB-165 dBm/HzOn Backorder£5,460.00
SHA861ASiglent SHA861A Handheld Spectrum/Cable and Antenna Analyser, 9 kHz – 3.6 GHz9 kHz~3.6 GHz1 Hz ~ 10 MHz
In 1-3-10 sequence		-104 dBc/Hz±0.7 dB-165 dBm/HzOn Backorder£7,180.00
SHA862ASiglent SHA862A Handheld Spectrum/Cable and Antenna Analyser, 9 kHz – 7.5 GHz9 kHz~7.5 GHz1 Hz ~ 10 MHz
In 1-3-10 sequence		-104 dBc/Hz±0.7 dB-165 dBm/HzOn Backorder£10,501.00
SSA3015X-PlusSiglent SSA3015X PLUS 9kHz to 1.5GHz Spectrum Analyser + FREE TG Licence9 kHz ~ 1.5 GHz1 Hz~1 MHz< -98 dBc/Hz< 0.7 dB-161 dBm/HzOn Backorder£976.00
SSA3021XSiglent SSA3021X 9kHz to 2.1GHz Spectrum Analyser + FREE TG Licence9 kHz to 2.1 GHz1 Hz to 1 MHz< -98 dBc/Hz± 0.7 dB-161 dBm/Hz2£1,093.00
SSA3021X-PLUSSiglent SSA3021X PLUS 9kHz to 2.1GHz Spectrum Analyser + FREE TG Licence9 kHz ~ 2.1 GHz1 Hz~1 MHz< -98 dBc/Hz< 0.7 dB-161 dBm/HzOn Backorder£1,237.00
SSA3032XSiglent SSA3032X 9kHz to 3.2GHz Spectrum Analyser + FREE TG Licence9 kHz to 3.2 GHz1 Hz to 1 MHz< -98 dBc/Hz± 0.7 dB-161 dBm/HzOn Backorder£1,904.00
SSA3032X-PLUSSSA3032X Plus Touch RF Telonic9 kHz ~ 3.2 GHz1 Hz~1 MHz< -98 dBc/Hz< 0.7 dB-161 dBm/Hz2£2,055.00
ssa3032xrSiglent SSA3032X-R 9kHz to 3.2GHz Real-Time Spectrum Analyser9 kHz~3.2 GHz1 Hz~3 MHz<-98 dBc/Hz< 0.7 dB-165 dBm/HzOn Backorder£3,366.00
SSA3050X-RSiglent SSA3050X-R 9kHz to 5GHz Real-Time Spectrum Analyser9 kHz~5.0 GHz1 Hz~3 MHz<-98 dBc/Hz< 0.7 dB-165 dBm/HzOn Backorder£6,317.00
SSA3075X-PlusSiglent SSA3075X PLUS 9kHz to 7.5GHz Spectrum Analyser + FREE TG Licence9 kHz ~ 7.5 GHz1 Hz~3 MHz< -98 dBc/Hz< 0.7 dB-165 dBm/HzOn Backorder£5,486.00
SSA3075X-RSiglent SSA3075X-R 9kHz to 7.5GHz Real-Time Spectrum Analyser9 kHz~7.5 GHz1 Hz~3 MHz<-98 dBc/Hz< 0.7 dB-165 dBm/HzOn Backorder£7,682.00
SSA5083ASiglent SSA5083A Spectrum Analyser 13.6GHz9 kHz~26.5 GHz1 Hz ~ 10 MHz - - -165 dBm/HzOn Backorder£13,467.00
SSA5085ASiglent SSA5085A Spectrum Analyser 26.5GHz9 kHz~13.6 GHz1 Hz ~ 10 MHz<-105 dBc/Hz<0.5 dB-165 dBm/HzOn Backorder£15,777.00
SVA1015XSiglent SVA1015X 9kHz to 1.5GHz Spectrum / Vector Network Analyser + FREE VNA & TG Licence9 kHz to 1.5 GHz1 Hz to 1 MHz< -98 dBc/Hz<0.7 dB-161 dBm/H4£1,145.00

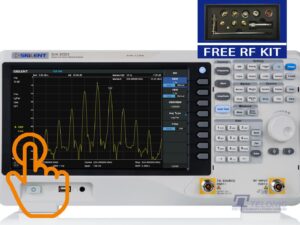

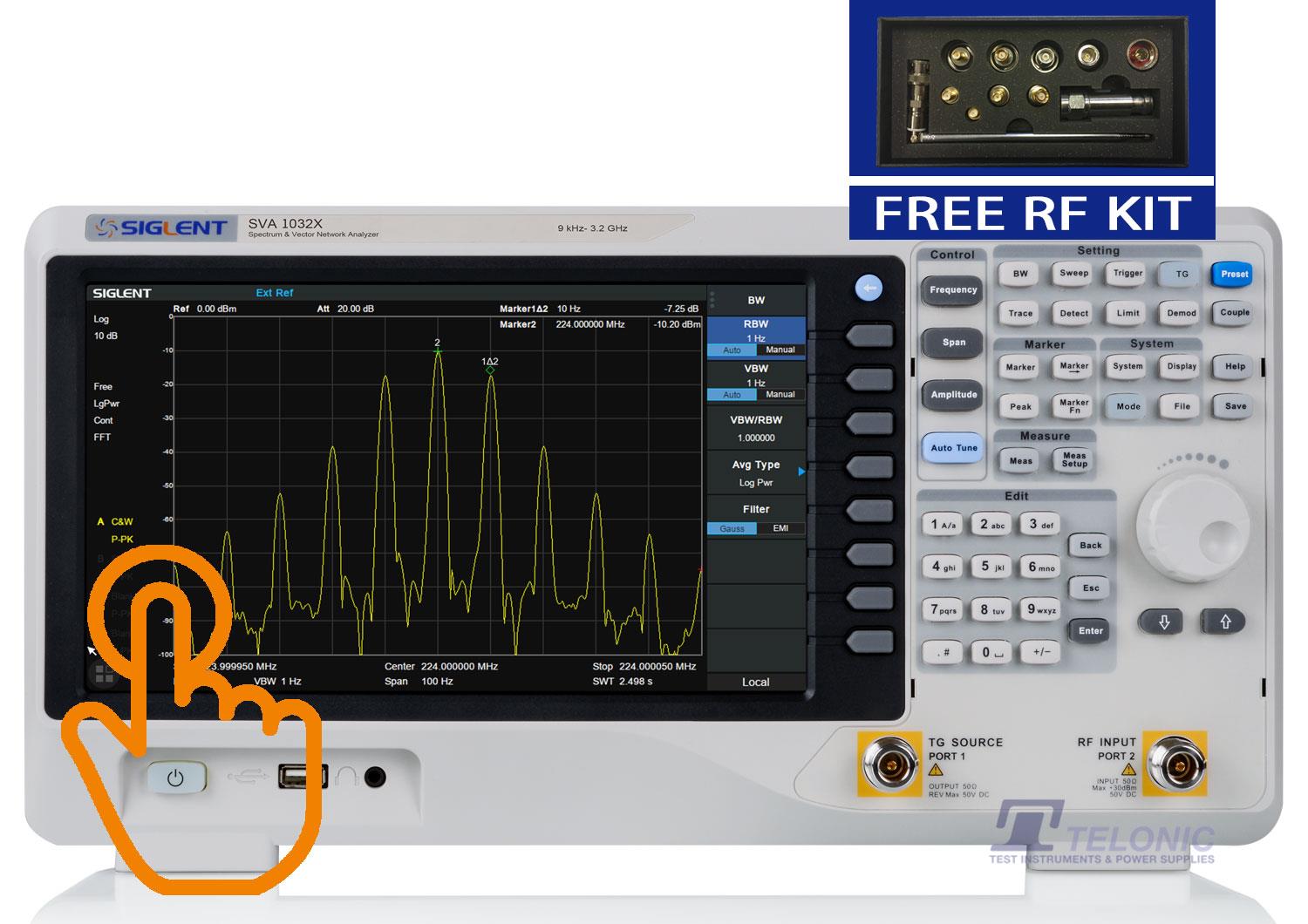

SVA1032XSVA1032X Touch RF Telonic9 kHz to 3.2 GHz1 Hz to 1 MHz< -98 dBc/Hz<0.7 dB-161 dBm/H1£2,502.00
SVA1075XSiglent SVA1075X 9kHz to 7.5GHz Spectrum / Vector Network Analyser + FREE VNA & TG Licence9 kHz to 7.5 GHz1 Hz to 3 MHz< -98 dBc/Hz<0.7 dB-165 dBm/HzOn Backorder£6,412.00
