Siglent SSA5000A Series Spectrum Analyser
Frequency Range from 9 kHz up to 13.6 /26.5 GHz
-165 dBm/Hz Displayed Average Noise Level (Typ.)
-105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
25 MHz/40 MHz Real Time Analysis Bandwidth (opt)
Analog Modulation Analysis and Vector Digital Modulation Analysis (opt)
Channel power, ACPR, OBW, Harmonic, TOI measurement etc. (opt)
Web Browser Remote Control on PC and Mobile Terminals and File Operation
The SIGLENT SSA5000A spectrum analysers are powerful and flexible tools for complex RF spectrum and signal analysis. With the capability of real-time spectrum analysis, the analyser can provide multi-dimensional data displays and advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, and spectrum interference.
Applications include broadcast monitoring/evaluation, cellular site, IoT, WLAN and Bluetooth surveying, research and development, education, production, and maintenance.
| SKU | Image | Frequency | RBW | Phase Noise @1GHz | Amp Accuracy | DANL | Stock | Price | Category |
|---|---|---|---|---|---|---|---|---|---|
| SHA851A |  | 9 kHz~3.6 GHz | 1 Hz ~ 10 MHz In 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | On Backorder | £3,295.00 | Siglent SHA850A Handheld Spectrum/Cable and Antenna Analysers |
| SHA852A | | 9 kHz~7.5 GHz | 1 Hz ~ 10 MHz In 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | On Backorder | £5,460.00 | Siglent SHA850A Handheld Spectrum/Cable and Antenna Analysers |
| SHA861A |  | 9 kHz~3.6 GHz | 1 Hz ~ 10 MHz In 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | On Backorder | £7,180.00 | Siglent SHA860A Handheld Spectrum/Cable and Antenna Analysers |
| SHA862A |  | 9 kHz~7.5 GHz | 1 Hz ~ 10 MHz In 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | On Backorder | £10,501.00 | Siglent SHA860A Handheld Spectrum/Cable and Antenna Analysers |
| SSA3015X-Plus |  | 9 kHz ~ 1.5 GHz | 1 Hz~1 MHz | < -98 dBc/Hz | < 0.7 dB | -161 dBm/Hz | On Backorder | £976.00 | Siglent SSA3000X PLUS Series Spectrum Analyser |
| SSA3021X |  | 9 kHz to 2.1 GHz | 1 Hz to 1 MHz | < -98 dBc/Hz | ± 0.7 dB | -161 dBm/Hz | 2 | £1,093.00 | Siglent SSA3000X Series Spectrum Analysers |
| SSA3021X-PLUS |  | 9 kHz ~ 2.1 GHz | 1 Hz~1 MHz | < -98 dBc/Hz | < 0.7 dB | -161 dBm/Hz | On Backorder | £1,237.00 | Siglent SSA3000X PLUS Series Spectrum Analyser |
| SSA3032X |  | 9 kHz to 3.2 GHz | 1 Hz to 1 MHz | < -98 dBc/Hz | ± 0.7 dB | -161 dBm/Hz | On Backorder | £1,904.00 | Siglent SSA3000X Series Spectrum Analysers |
| SSA3032X-PLUS |  | 9 kHz ~ 3.2 GHz | 1 Hz~1 MHz | < -98 dBc/Hz | < 0.7 dB | -161 dBm/Hz | 2 | £2,055.00 | Siglent SSA3000X PLUS Series Spectrum Analyser |
| ssa3032xr |  | 9 kHz~3.2 GHz | 1 Hz~3 MHz | <-98 dBc/Hz | < 0.7 dB | -165 dBm/Hz | On Backorder | £3,366.00 | Siglent SSA3000X-R Real-Time Spectrum Analyser with VNA |
| SSA3050X-R | | 9 kHz~5.0 GHz | 1 Hz~3 MHz | <-98 dBc/Hz | < 0.7 dB | -165 dBm/Hz | On Backorder | £6,317.00 | Siglent SSA3000X-R Real-Time Spectrum Analyser with VNA |
| SSA3075X-Plus |  | 9 kHz ~ 7.5 GHz | 1 Hz~3 MHz | < -98 dBc/Hz | < 0.7 dB | -165 dBm/Hz | On Backorder | £5,486.00 | Siglent SSA3000X PLUS Series Spectrum Analyser |
| SSA3075X-R | | 9 kHz~7.5 GHz | 1 Hz~3 MHz | <-98 dBc/Hz | < 0.7 dB | -165 dBm/Hz | On Backorder | £7,682.00 | Siglent SSA3000X-R Real-Time Spectrum Analyser with VNA |
| SSA5083A |  | 9 kHz~26.5 GHz | 1 Hz ~ 10 MHz | - | - | -165 dBm/Hz | On Backorder | £13,467.00 | Siglent SSA5000A Series Spectrum Analyser |
| SSA5085A | | 9 kHz~13.6 GHz | 1 Hz ~ 10 MHz | <-105 dBc/Hz | <0.5 dB | -165 dBm/Hz | On Backorder | £15,777.00 | Siglent SSA5000A Series Spectrum Analyser |
| SVA1015X |  | 9 kHz to 1.5 GHz | 1 Hz to 1 MHz | < -98 dBc/Hz | <0.7 dB | -161 dBm/H | 4 | £1,145.00 | Siglent SVA1000X Series Spectrum / Vector Network Analysers |
| SVA1032X |  | 9 kHz to 3.2 GHz | 1 Hz to 1 MHz | < -98 dBc/Hz | <0.7 dB | -161 dBm/H | 1 | £2,502.00 | Siglent SVA1000X Series Spectrum / Vector Network Analysers |
| SVA1075X |  | 9 kHz to 7.5 GHz | 1 Hz to 3 MHz | < -98 dBc/Hz | <0.7 dB | -165 dBm/Hz | On Backorder | £6,412.00 | Siglent SVA1000X Series Spectrum / Vector Network Analysers |
Showing all 2 results
-

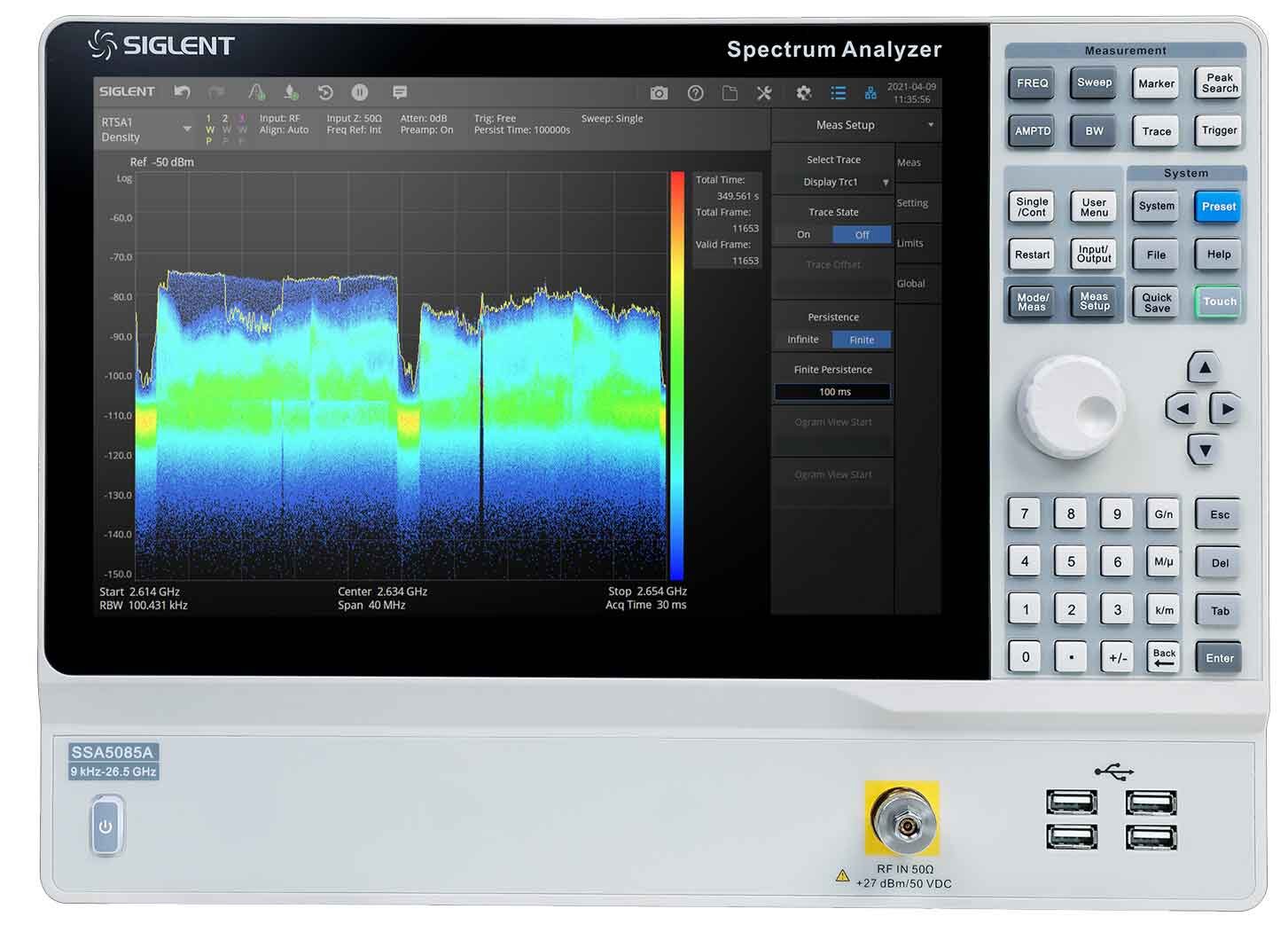

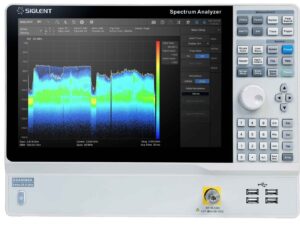

Siglent SSA5083A Spectrum Analyser 13.6GHz
£13,467.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SSA5085A Spectrum Analyser 26.5GHz
£15,777.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket
