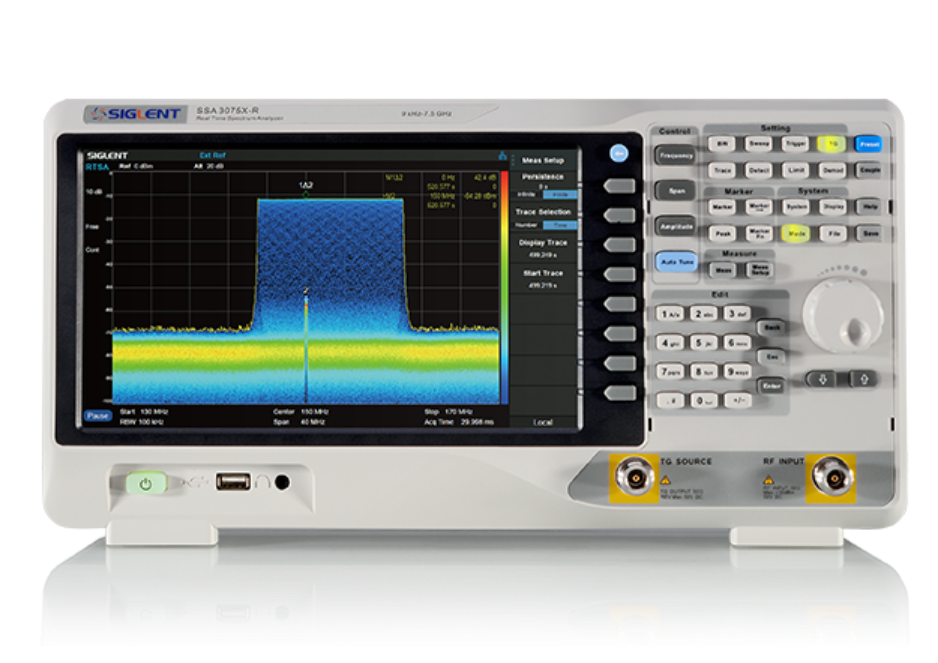

Siglent SSA3000X-R Real-Time Spectrum Analyser with VNA
Spectrum Analyser Frequency Range from 9 kHz up to 3.2 GHz / 5.0 GHz / 7.5 GHz
Now with VNA and DTF functions, free!
-165 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
Level Measurement Uncertainty
The SIGLENT SSA3000X-R real-time spectrum analysers are powerful and flexible tools for complex RF signal monitoring and analysis. With a capability of 40 MHz analysis bandwidth and 7.2 µs 100% POI, the analyser can provide multi-dimensional data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. They also provide a standard tracking generator for network analysis, optional wideband digital modulation analysis, and an EMI pre-compliance test.
Applications include broadcast monitoring/evaluation, cellular site, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance.
| SKU | Image | Frequency | RBW | Phase Noise @1GHz | Amp Accuracy | DANL | Stock | Price | Category |
|---|---|---|---|---|---|---|---|---|---|
| SHA851A |  | 9 kHz~3.6 GHz | 1 Hz ~ 10 MHz In 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | On Backorder | £3,295.00 | Siglent SHA850A Handheld Spectrum/Cable and Antenna Analysers |
| SHA852A | | 9 kHz~7.5 GHz | 1 Hz ~ 10 MHz In 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | On Backorder | £5,460.00 | Siglent SHA850A Handheld Spectrum/Cable and Antenna Analysers |
| SHA861A |  | 9 kHz~3.6 GHz | 1 Hz ~ 10 MHz In 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | On Backorder | £7,180.00 | Siglent SHA860A Handheld Spectrum/Cable and Antenna Analysers |
| SHA862A |  | 9 kHz~7.5 GHz | 1 Hz ~ 10 MHz In 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | On Backorder | £10,501.00 | Siglent SHA860A Handheld Spectrum/Cable and Antenna Analysers |
| SSA3015X-Plus |  | 9 kHz ~ 1.5 GHz | 1 Hz~1 MHz | < -98 dBc/Hz | < 0.7 dB | -161 dBm/Hz | On Backorder | £976.00 | Siglent SSA3000X PLUS Series Spectrum Analyser |
| SSA3021X |  | 9 kHz to 2.1 GHz | 1 Hz to 1 MHz | < -98 dBc/Hz | ± 0.7 dB | -161 dBm/Hz | 2 | £1,093.00 | Siglent SSA3000X Series Spectrum Analysers |
| SSA3021X-PLUS |  | 9 kHz ~ 2.1 GHz | 1 Hz~1 MHz | < -98 dBc/Hz | < 0.7 dB | -161 dBm/Hz | On Backorder | £1,237.00 | Siglent SSA3000X PLUS Series Spectrum Analyser |
| SSA3032X |  | 9 kHz to 3.2 GHz | 1 Hz to 1 MHz | < -98 dBc/Hz | ± 0.7 dB | -161 dBm/Hz | On Backorder | £1,904.00 | Siglent SSA3000X Series Spectrum Analysers |

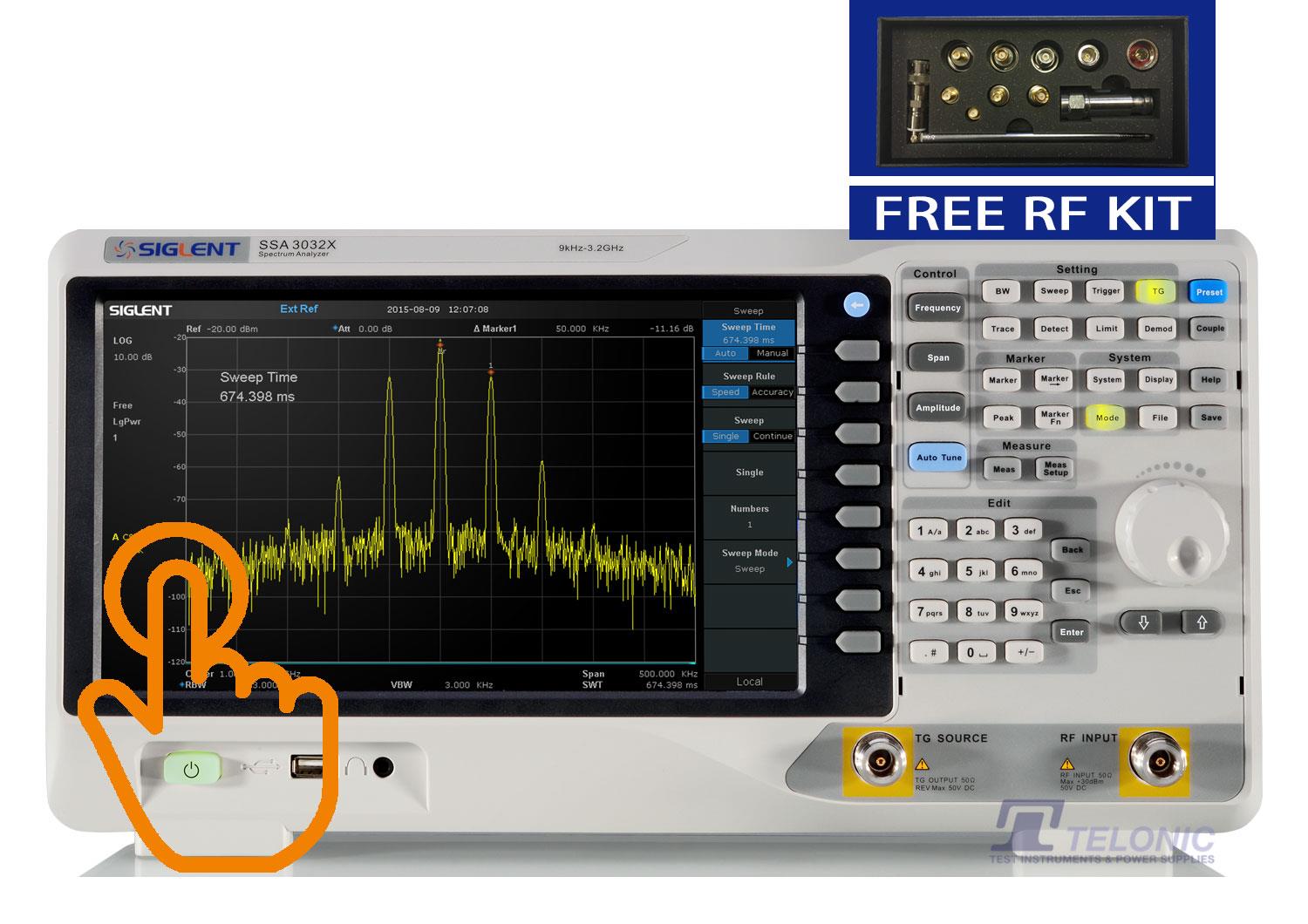

| SSA3032X-PLUS |  | 9 kHz ~ 3.2 GHz | 1 Hz~1 MHz | < -98 dBc/Hz | < 0.7 dB | -161 dBm/Hz | 2 | £2,055.00 | Siglent SSA3000X PLUS Series Spectrum Analyser |
| ssa3032xr |  | 9 kHz~3.2 GHz | 1 Hz~3 MHz | <-98 dBc/Hz | < 0.7 dB | -165 dBm/Hz | On Backorder | £3,366.00 | Siglent SSA3000X-R Real-Time Spectrum Analyser with VNA |
| SSA3050X-R | | 9 kHz~5.0 GHz | 1 Hz~3 MHz | <-98 dBc/Hz | < 0.7 dB | -165 dBm/Hz | On Backorder | £6,317.00 | Siglent SSA3000X-R Real-Time Spectrum Analyser with VNA |
| SSA3075X-Plus |  | 9 kHz ~ 7.5 GHz | 1 Hz~3 MHz | < -98 dBc/Hz | < 0.7 dB | -165 dBm/Hz | On Backorder | £5,486.00 | Siglent SSA3000X PLUS Series Spectrum Analyser |
| SSA3075X-R | | 9 kHz~7.5 GHz | 1 Hz~3 MHz | <-98 dBc/Hz | < 0.7 dB | -165 dBm/Hz | On Backorder | £7,682.00 | Siglent SSA3000X-R Real-Time Spectrum Analyser with VNA |
| SSA5083A |  | 9 kHz~26.5 GHz | 1 Hz ~ 10 MHz | - | - | -165 dBm/Hz | On Backorder | £13,467.00 | Siglent SSA5000A Series Spectrum Analyser |
| SSA5085A | | 9 kHz~13.6 GHz | 1 Hz ~ 10 MHz | <-105 dBc/Hz | <0.5 dB | -165 dBm/Hz | On Backorder | £15,777.00 | Siglent SSA5000A Series Spectrum Analyser |
| SVA1015X |  | 9 kHz to 1.5 GHz | 1 Hz to 1 MHz | < -98 dBc/Hz | <0.7 dB | -161 dBm/H | 4 | £1,145.00 | Siglent SVA1000X Series Spectrum / Vector Network Analysers |
| SVA1032X |  | 9 kHz to 3.2 GHz | 1 Hz to 1 MHz | < -98 dBc/Hz | <0.7 dB | -161 dBm/H | 1 | £2,502.00 | Siglent SVA1000X Series Spectrum / Vector Network Analysers |
| SVA1075X |  | 9 kHz to 7.5 GHz | 1 Hz to 3 MHz | < -98 dBc/Hz | <0.7 dB | -165 dBm/Hz | On Backorder | £6,412.00 | Siglent SVA1000X Series Spectrum / Vector Network Analysers |
Showing all 3 results
-
Siglent SSA3032X-R 9kHz to 3.2GHz Real-Time Spectrum Analyser
£3,366.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SSA3050X-R 9kHz to 5GHz Real-Time Spectrum Analyser
£6,317.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SSA3075X-R 9kHz to 7.5GHz Real-Time Spectrum Analyser
£7,682.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket
