RF Signal Generators

SIGLENT RF signal generators deliver exceptional performance for a wide range of applications. They offer output frequencies extending up to 40 GHz, coupled with a substantial maximum output power of +26 dBm. Engineers can rely on their high-purity signals, featuring phase noise as low as -135 dBc/Hz, ensuring precise and reliable test results.

These generators incorporate a robust internal baseband source with a bandwidth of 500 MHz, providing ample capability for complex signal creation. They support a comprehensive array of modulation methods, including common analogue modulations like AM, FM, and PM, as well as pulse modulation and sophisticated IQ modulation. For advanced wireless communication testing, certain configurations or models feature a built-in IQ baseband source, enabling the generation of widely used digital modulation signals such as 5G NR, WLAN, LTE, WCDMA, GSM, CDMA, and Bluetooth.

CategoryImageFrequency RangeFrequency ResolutionAmplitude ResolutionPhase NoiseI/Q ModulationPrice From

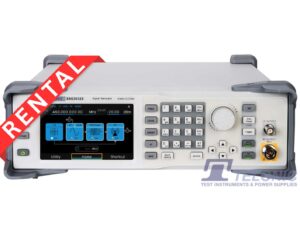

Siglent SSG3000X Series RF Signal Generators9 kHz~3.2 GHz0.01 Hz0.01 dB-110 dBc/Hz @1 GHz , offset 20 kHz (typ.)YES / NO£1,684.00
Siglent SSG5000A Series RF Signal Generators9 kHz~13.6/20 GHz0.001 Hz0.01 dB-120 dBc/Hz @1 GHz, offset 20 kHz （typ.）NO£12,995.00
Siglent SSG5000X Series RF Signal Generators9 kHz~6 GHz0.001 Hz0.01 dB-120 dBc/Hz @1 GHz, offset 20 kHz (typ.)YES / NO£4,465.00
SSG6000A Series Microwave Analogue Signal Generator100 kHz~40 GHz0.01 Hz0.01 dB-135 dBc/Hz @1 GHz, offset 20 kHz （typ.）NO£17,740.00
SSG6082A-V Series RF Vector Signal Generator9 kHz~8 GHz0.001 Hz0.01 dB-132 dBc/Hz @ 1 GHz， offset 10 kHz (typ.)YES£23,937.00
