Siglent SHS1000X Series Handheld Digital Oscilloscopes
Siglent SHS1000X Series
Handheld Oscilloscope
Isolation voltage: CATIII 600 Vrms, CATII 1000 Vrms
Integrated oscilloscope, serial trigger and decoder, spectrum analysis, data logger, and multimeter functions into a convenient and portable design
100 MHz or 200 MHz bandwidth models
Sample rate of 1 GSa/s (single-channel)/500 MSa/s (two-channels)
Record length up to 12 Mpts.
Hardware-based true RMS multimeter
IP51 dust/water resistance certified
The SHS1000X series features full isolation between the two oscilloscope channels, one multimeter channel, a power adapter and the USB host/device port. including 200 MHz and 100 MHz models.A single ADC with 1 GSa/s maximum sample rate, and a single memory module with 12 Mpts memory depth. When two channels are enabled, each channel has a sample rate of 500 MSa/s and a standard record length of 6 Mpts. When only a single channel is activated, the maximum sample rate is 1 GSa/s and the maximum record length is 12 Mpts. For ease of use, the most commonly used functions can be accessed with its user-friendly front panel design. The full isolation makes it ideal for both laboratory and floating signal measurement because it reduces the risk of accidental short circuits.
| SKU | Image | CH | BW | Sample Rate(s) | Memory (Mpts) | Rate of Capture | Stock | Price |
|---|---|---|---|---|---|---|---|---|
| SDS1102X HD |  | 2 + EXT | 100 MHz | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s | 5 | £808.00 |
| SDS1104 XHD |  | 4 + EXT | 100 MHz | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s | 1 | £926.00 |
| SDS1104X-E |  | 4 | 100 MHz | 1 GSa/s | 7 Mpts/CH (not interleave mode) 14 Mpts/CH (interleave mode) | 100000 wfm/s (Normal Mode) 400000 wfm/s (Sequence mode) | 4 | £361.00 |
| SDS1104X-U |  | 4 | 100MHz | 1GSa/s (1 Channel) 500MSa/s (2 Channels) 250MSa/s (4 Channels) | 14Mpts | 400,000wfm/s (Sequence Mode) 100,000wfm/s (Normal Mode) | On Backorder | £303.00 |
| SDS1202X HD | | 2 + EXT | 200 MHz | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s | 3 | £926.00 |
| SDS1202X-E |  | 2+EXT | 200 MHz | 1 GSa/s | 7 Mpts/CH (not interleave mode) 14 Mpts/CH (interleave mode) | 100000 wfm/s (Normal Mode) 400000 wfm/s (Sequence mode) | On Backorder | £285.00 |
| SDS1204X HD | | 4 + EXT | 200 MHz | 2 GSa/s | 100 Mpts/ch | 500,000 wfm/s | On Backorder | £1,093.00 |
| SDS1204X-E | | 4 | 200 MHz | 1 GSa/s | 7 Mpts/CH (not interleave mode) 14 Mpts/CH (interleave mode) | 100000 wfm/s (Normal Mode) 400000 wfm/s (Sequence mode) | 5+ | £555.00 |
| SDS2102X-PLUS |  | 2+EXT | 100 MHz | 2 GSa/s | 200 Mpts/ch | 120,000 wfm/s | 1 | £757.00 |
| SDS2104X-PLUS |  | 4+EXT | 100 MHz | 2 GSa/s | 200 Mpts/ch | 120,000 wfm/s | On Backorder | £1,011.00 |
| SDS2204X-HD |  | 4+EXT | 200 MHz | 2 GSa/s | 200 Mpts/ch | 500,000 wfm/s (Sequence mode) | On Backorder | £1,921.00 |
| SDS2204X-PLUS |  | 4+EXT | 200 MHz | 2 GSa/s | 200 Mpts/ch | 120,000 wfm/s | 1 | £1,600.00 |
| SDS2354X-HD |  | 4+EXT | 350 MHz | 2 GSa/s | 200 Mpts/ch | 500,000 wfm/s (Sequence mode) | On Backorder | £2,426.00 |
| SDS2354X-Plus |  | 4+EXT | 350 MHz | 2 GSa/s | 200 Mpts/ch | 120,000 wfm/s | 1 | £2,190.00 |

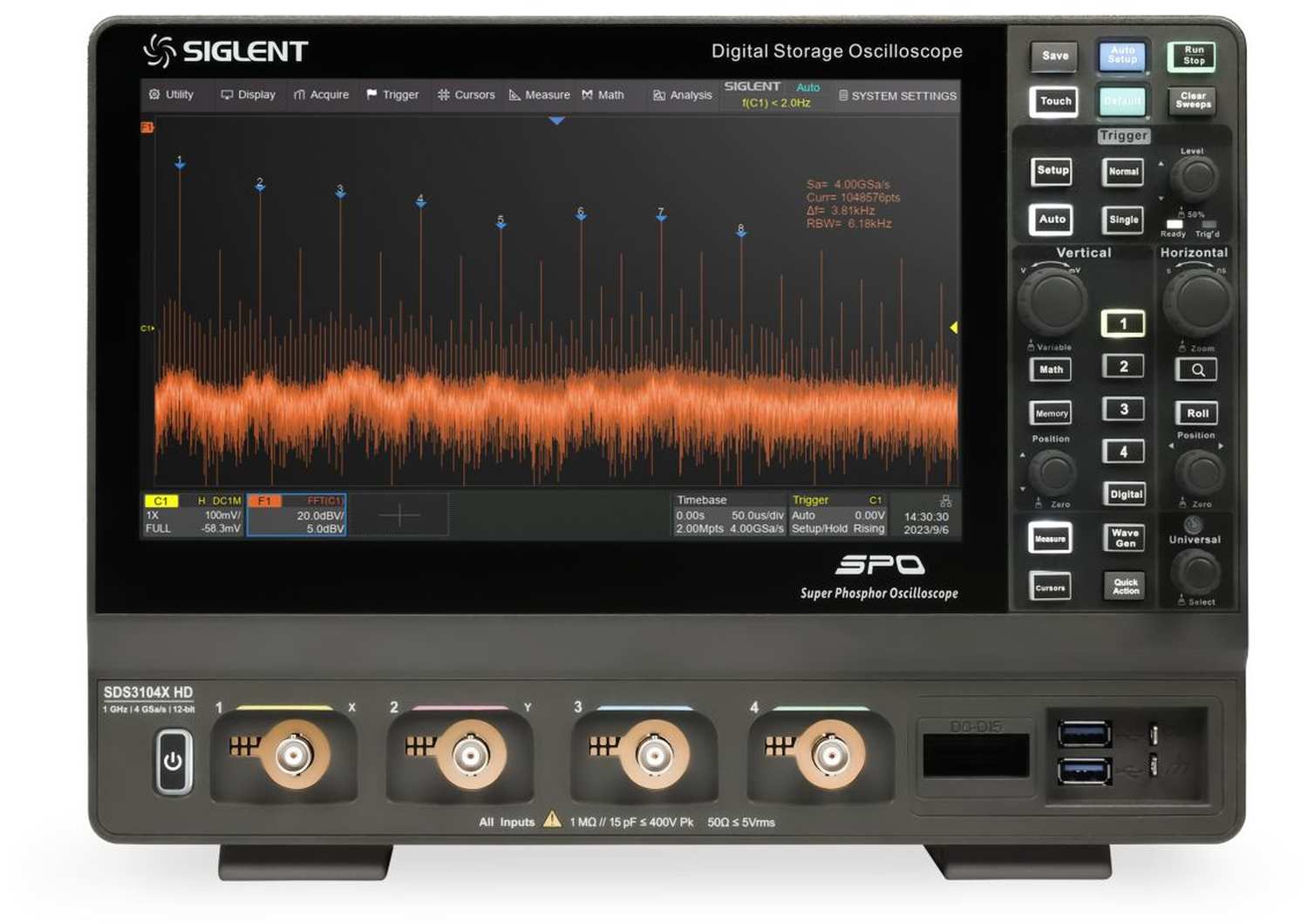

| SDS3034X HD |  | 4 + EXT | 350 MHz | 4 GSa/s | 400 Mpts/ch | 890,000 wfm/s | 1 | £2,848.00 |
| SDS3054X HD |  | 4 + EXT | 500 MHz | 4 GSa/s | 400 Mpts/ch | 890,000 wfm/s | On Backorder | £3,944.00 |
| SDS3104X HD | | 4 + EXT | 1 GHz | 4 GSa/s | 400 Mpts/ch | 890,000 wfm/s | On Backorder | £5,039.00 |
| SDS5034X |  | 4+EXT | 350 MHz | 5 GSa/s (single-channel) 2.5 GSa/s (dual-channel) | 250 Mpts (single-channel) 125 Mpts (dual-channel) | 110,000 wfm/s (normal mode) 500,000 wfm/s (sequence mode) | On Backorder | £2,418.00 |
| SDS5034X-HD |  | 4 + EXT | 350 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £6,540.00 |
| SDS5036X-HD |  | 6 + EXT | 350 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £7,189.00 |
| SDS5038L |  | 8 + EXT | 350 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £7,754.00 |
| SDS5038X-HD |  | 8 + EXT | 350 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £8,074.00 |
| SDS5054X |  | 4+EXT | 500 MHz | 5 GSa/s (single-channel) 2.5 GSa/s (dual-channel) | 250 Mpts (single-channel) 125 Mpts (dual-channel) | 110,000 wfm/s (normal mode) 500,000 wfm/s (sequence mode) | On Backorder | £4,179.00 |
| SDS5054X-HD | | 4 + EXT | 500 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £7,838.00 |
| SDS5056X-HD |  | 6 + EXT | 500 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £9,127.00 |
| SDS5058L | | 8 + EXT | 500 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £9,692.00 |
| SDS5058X-HD | | 8 + EXT | 500 MHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £10,501.00 |
| SDS5104X |  | 4+EXT | 1 GHz | 5 GSa/s (single-channel) 2.5 GSa/s (dual-channel) | 250 Mpts (single-channel) 125 Mpts (dual-channel) | 110,000 wfm/s (normal mode) 500,000 wfm/s (sequence mode) | On Backorder | £5,358.00 |
| SDS5104X-HD |  | 4 + EXT | 1 GHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £10,265.00 |
| SDS5106X-HD |  | 6 + EXT | 1 GHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £12,119.00 |
| SDS5108L | | 8 + EXT | 1 GHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £12,693.00 |
| SDS5108X-HD |  | 8 + EXT | 1 GHz | 5 GSa/s | 2.5 Gpts | 650,000 wfm/s | On Backorder | £13,501.00 |
| SDS6054A |  | 4 + EXT | 500 MHz | 5 GSa/s (10 GSa/s ESR) per channel | Normal mode: 170,000 wfm/s Sequence mode: 750,000 wfm/s | 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) | On Backorder | £5,460.00 |
| SDS6054L |  | 4 + EXT | 500 MHz | 5 GSa/s (10 GSa/s ESR) @ each channel | 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) | 170,000 wfm/s (Normal mode) 750,000 wfm/s (Sequence mode) | On Backorder | £6,220.00 |
| SDS6058L | | 8 + EXT | 500 MHz | 5 GSa/s (10 GSa/s ESR) @ each channel | 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) | 170,000 wfm/s (Normal mode) 750,000 wfm/s (Sequence mode) | On Backorder | £14,227.00 |
| SDS6104 | | 4 + EXT | 1 GHz | 5 GSa/s (10 GSa/s ESR) per channel | Normal mode: 170,000 wfm/s Sequence mode: 750,000 wfm/s | 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) | On Backorder | £6,640.00 |
| SDS6104L | | 4 + EXT | 1 GHz | 5 GSa/s (10 GSa/s ESR) @ each channel | 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) | 170,000 wfm/s (Normal mode) 750,000 wfm/s (Sequence mode) | On Backorder | £8,917.00 |
| SDS6108L | | 8 + EXT | 1 GHz | 5 GSa/s (10 GSa/s ESR) @ each channel | 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) | 170,000 wfm/s (Normal mode) 750,000 wfm/s (Sequence mode) | On Backorder | £19,282.00 |
| SDS6204A | | 4 + EXT | 2 GHz | 5 GSa/s (10 GSa/s ESR) per channel | Normal mode: 170,000 wfm/s Sequence mode: 750,000 wfm/s | 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) | On Backorder | £8,411.00 |
| SDS6204L | | 4 + EXT | 2 GHz | 5 GSa/s (10 GSa/s ESR) @ each channel | 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) | 170,000 wfm/s (Normal mode) 750,000 wfm/s (Sequence mode) | On Backorder | £11,193.00 |
| SDS6208L | | 8 + EXT | 2 GHz | 5 GSa/s (10 GSa/s ESR) @ each channel | 500 Mpts/ch (single-channel) 250 Mpts/ch (dual-channel) 125 Mpts/ch (3 or 4 channels) | 170,000 wfm/s (Normal mode) 750,000 wfm/s (Sequence mode) | On Backorder | £24,677.00 |
| SDS7304A |  | 4 + EXT | 3 GHz | 20 GSa/s (dual-channel) | Standard: 500 Mpts/ch Optional: 1 Gpts/ch | 1,000,000 wfm/s | On Backorder | £16,004.00 |
| SDS7404A | | 4 + EXT | 4 GHz | 20 GSa/s (dual-channel) | Standard: 500 Mpts/ch Optional: 1 Gpts/ch | 1,000,000 wfm/s | On Backorder | £20,808.00 |
| SDS7604A | | 4 + EXT | 6 GHz | 20 GSa/s (dual-channel) | Standard: 500 Mpts/ch Optional: 1 Gpts/ch | 1,000,000 wfm/s | On Backorder | £30,078.00 |
| SDS7604AP | | 4 + EXT | 6 GHz | 20 GSa/s (dual-channel) | Standard: 1 Gpts/ch Optional: 2 Gpts/ch | 1,000,000 wfm/s | On Backorder | Call us |
| SDS7804A |  | 4 + EXT | 8 GHz | 20 GSa/s (dual-channel) | Standard: 500 Mpts/ch Optional: 1 Gpts/ch | 1,000,000 wfm/s | On Backorder | Call us |
| SDS7804AP | | 4 + EXT | 8 GHz | 20 GSa/s (dual-channel) | Standard: 1 Gpts/ch Optional: 2 Gpts/ch | 1,000,000 wfm/s | On Backorder | Call us |
| SDS802X HD |  | 2 | 70 MHz | 2 GSa/s | 500,000 wfm/s | 50 Mpts/ch | 5 | £303.00 |
| SDS804X HD |  | 4 | 70 MHz | 2 GSa/s | 500,000 wfm/s | 50 Mpts/ch | On Backorder | £344.00 |
| SDS812X HD | | 2 | 100 MHz | 2 GSa/s | 500,000 wfm/s | 50 Mpts/ch | 5+ | £344.00 |
| SDS814X HD | | 4 | 100 MHz | 2 GSa/s | 500,000 wfm/s | 50 Mpts/ch | 5+ | £420.00 |
| SDS822X HD |  | 2 | 200 MHz | 2 GSa/s | 500,000 wfm/s | 100 Mpts/ch | On Backorder | £454.00 |
| SDS824X HD |  | 4 | 200 MHz | 2 GSa/s | 500,000 wfm/s | 100 Mpts/ch | 3 | £588.00 |
| SHS1102X |  | 2 | 100 MHz | 1 GSa/s | 12 Mpts | 100,000 wfm/s (normal mode) 400,000 wfm/s (sequence mode) | On Backorder | £1,178.00 |
| SHS1202X | | 2 | 200 MHz | 1 GSa/s | 12 Mpts | 100,000 wfm/s (normal mode) 400,000 wfm/s (sequence mode) | On Backorder | £1,431.00 |
| SHS810X |  | 2 | 100 MHz | 1 GSa/s | 12 Mpts | 100,000 wfm/s (normal mode) 400,000 wfm/s (sequence mode) | On Backorder | £580.00 |
| SHS820X | | 2 | 200 MHz | 1 GSa/s | 12 Mpts | 100,000 wfm/s (normal mode) 400,000 wfm/s (sequence mode) | On Backorder | £757.00 |
Showing all 2 results
-
Siglent SHS1102X 2CH, 100MHz, 1GSa/s Isolated Input Handheld Digital Oscilloscopes
£1,178.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SHS1202X 2CH, 200MHz, 1GSa/s Isolated Input Handheld Digital Oscilloscopes
£1,431.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket
