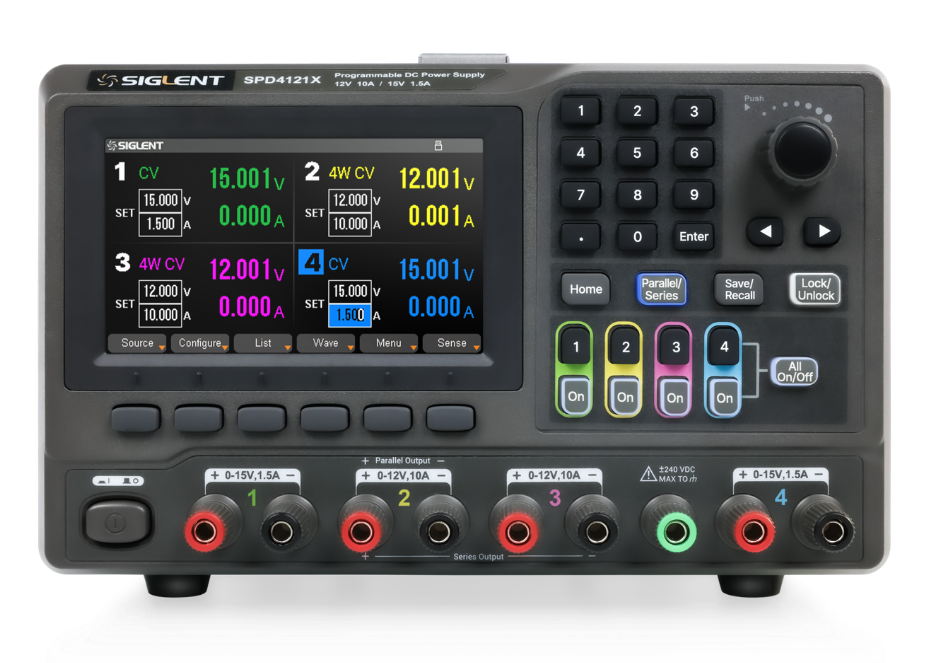

SPD4000X Series Programmable Four Outputs Linear DC Power Supply
Four independent outputs
Rated output power: 240W, 285W, 400W
5-digit voltage and current display with minimum resolution of 1mV, 1mA
Clear graphical interface with waveform and timer display modes
Support remote voltage compensation sense function
The SPD4000X series programmable linear DC power supply is equipped with a 4.3-inch TFT-LCD display, a friendly human-machine interface, and excellent performance indicators. Real-time waveform display provides engineers with an informative user interface.
The SPD4000X series consists of three models with up to four independent outputs with rated output voltage values of 32V, 12V, or 30V and the total output power of 240W, 285W or 400W. The minimum resolution can be set to 1mV/1mA. The SPD4000X is equipped with overvoltage protection and overcurrent protection for device protection. Together, these capabilities make the SPD4000X a high-precision, low noise, and highly reliable power solution suitable for use from production to research. The instrument is also equipped with a LAN/USB communication interface and a remote web page control function to meet different application scenarios.
| SKU | Image | Channel Outputs | Displays | Resolutions | Setting Accuracy | Stock | Price | Category |
|---|---|---|---|---|---|---|---|---|
| SPD1168X |  | Output Voltage: 0 to 16 V Output Current: 0 to 8 A | 2.8 inch true colour TFT-LCD 5 digit voltage/4 digit current | 1 mV/1 mA | Voltage: ±(0.03% of reading+10 mV) Current: ±(0. 3% of reading+10 mA) | On Backorder | £198.00 | Siglent SPD1000X Series Programmable DC Power Supplies |
| SPD1305X |  | Output Voltage: 0 to 30 V Output Current: 0 to 5 A | 2.8 inch true colour TFT-LCD 5 digit voltage/4 digit current | 1 mV/1 mA | Voltage: ±(0.03% of reading+10 mV) Current: ±(0. 3% of reading+10 mA) | On Backorder | £216.00 | Siglent SPD1000X Series Programmable DC Power Supplies |
| SPD3303C |  | CH1: Voltage 32V Current 3.2A CH2: Voltage 32V Current 3.2A CH3: 2.5/3.3/5.0V Current 3.2A | 4.3" color TFT-LCD 4 digit voltage display 3 digit current display | 10 mV, 10 mA | Voltage: ± (0.5% of reading + 3 digits) Current: ± (0.5% of reading + 3 digits) | On Backorder | £216.00 | SPD3000C/X/X-E Programmable Bench DC Power Supply |
| SPD3303X |  | CH1: Voltage 32V Current 3.2A CH2: Voltage 32V Current 3.2A CH3: 2.5/3.3/5.0V Current 3.2A | 4.3" color TFT-LCD 5 digit voltage display 4 digit current display | 1 mV, 1 mA | Voltage±(0.03% of reading+10mV) Current±(0. 3% of reading+10mA) | 2 | £429.00 | SPD3000C/X/X-E Programmable Bench DC Power Supply |
| SPD3303X-E |  | CH1: Voltage 32V Current 3.2A CH2: Voltage 32V Current 3.2A CH3: 2.5/3.3/5.0V Current 3.2A | 4.3" color TFT-LCD 4 digit voltage display 3 digit current display | 10 mV, 10 mA | Voltage: ± (0.5% of reading + 2 digits) Current ± (0.5% of reading + 2 digits) | On Backorder | £312.00 | SPD3000C/X/X-E Programmable Bench DC Power Supply |
| SPD4121X |  | CH1: Voltage 15V Current 1.5A CH2: Voltage 12V Current 10A CH3: Voltage 12V Current 10A CH4: Voltage 15V Current 1.5A | 4.3" TFT-LCD 5-digit voltage and current display | 1mV, 1mA | Voltage:±(0.03% of reading+10) mV Current:±(0.3% of reading+10) mA | 3 | £607.00 | SPD4000X Series Programmable Four Outputs Linear DC Power Supply |
| SPD4306X | | CH1: Voltage 15V Current 1.5A CH2: Voltage 30V Current 6A CH3: Voltage 30V Current 6A CH4: Voltage 15V Current 1A | 4.3" TFT-LCD 5-digit voltage and current display | 1mV, 1mA | Voltage:±(0.03% of reading+10) mV Current:±(0.3% of reading+10) mA | On Backorder | £767.00 | SPD4000X Series Programmable Four Outputs Linear DC Power Supply |
| SPD4323X | | CH1: Voltage 6V Current 3.2A CH2: Voltage 32V Current 3.2A CH3: Voltage 32V Current 3.2A CH4: Voltage 6V Current 3.2A | 4.3" TFT-LCD 5-digit voltage and current display | 1mV, 1mA | Voltage:±(0.03% of reading+10) mV Current:±(0.3% of reading+10) mA | On Backorder | £530.00 | SPD4000X Series Programmable Four Outputs Linear DC Power Supply |
| SPS5041X |  | One Channel,40V/30A/360W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±30mA | 1 | £707.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5042X |  | One Channel,40V/60A/720W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±60mA | On Backorder | £867.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5043X |  | One Channel,40V/90A/1080W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±100mA | On Backorder | £1,128.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5044X | | Two Channels,40V/30A/720W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±30mA | On Backorder | £1,330.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5045X | | Three Channels,40V/30A/1080W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±30mA | On Backorder | £1,583.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5051X |  | One Channel,50V/10A/180W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±10mA | On Backorder | £663.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5081X |  | One Channel,80V/15A/360W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±10mA | On Backorder | £841.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5082X | | One Channel,80V/30A/720W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±30mA | On Backorder | £1,044.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5083X | | One Channel,80V/45A/1080W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±40mA | On Backorder | £1,365.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5084X |  | Two Channels,80V/15A/720W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±10mA | On Backorder | £1,465.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5085X | | Three Channels,80V/15A/1080W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±10mV current:0.1%±10mA | On Backorder | £1,760.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5161X | | One Channel,160V/7.5A/360W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±100mV current:0.1%±5mA | On Backorder | £841.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5162X | | One Channel,160V/15A/720W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±100mV current:0.1%±15mA | On Backorder | £1,044.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5163X |  | One Channel,160V/22.5A/1080W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±100mV current:0.1%±20mA | On Backorder | £1,365.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5164X | | Two Channels,160V/7.5A/720W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±100mV current:0.1%±5mA | On Backorder | £1,465.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS5165X | | Three Channels,160V/7.5A/1080W | 2.4-inch OLED Screen | 1mV/1mA | voltage:0.1%±100mV current:0.1%±5mA | On Backorder | £1,760.00 | Siglent SPS5000X Series DC Power Supplies |
| SPS6150X |  | One Channel, 100V/50A/1500W | 3.12-inch OLED Screen | 10mV/10mA | voltage:0.1%±10mV current:0.2%±30mA | On Backorder | £1,500.00 | Siglent SPS6000X Series Wide Range Programmable Switching DC Power Supply |
| SPS6225X | | One Channel, 200V/25A/1500W | 3.12-inch OLED Screen | 10mV/10mA | voltage:0.1%±10mV current:0.2%±30mA | 1 | £1,500.00 | Siglent SPS6000X Series Wide Range Programmable Switching DC Power Supply |
Showing all 3 results
-
Siglent SPD4121X Programmable Four Outputs Bench DC Power Supply
£607.003 in stock (can be backordered)
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPD4306X Programmable Bench DC Power Supply
£767.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket -
Siglent SPD4323X Programmable Four Outputs Bench DC Power Supply
£530.00Available on back-order, delivery normally 1 - 2 weeks
Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)
Add to basket
