Siglent SPS6000X Plus Series

Wide Range Programmable Switching DC Power Supply

Rated Voltage: 200 V / 100 V
Rated Current: 25 A / 50 A
Rated power: 1500 W
Setting and readback resolution: 10 mV, 10 mA
OVP, OCP, LPP, OTP protection

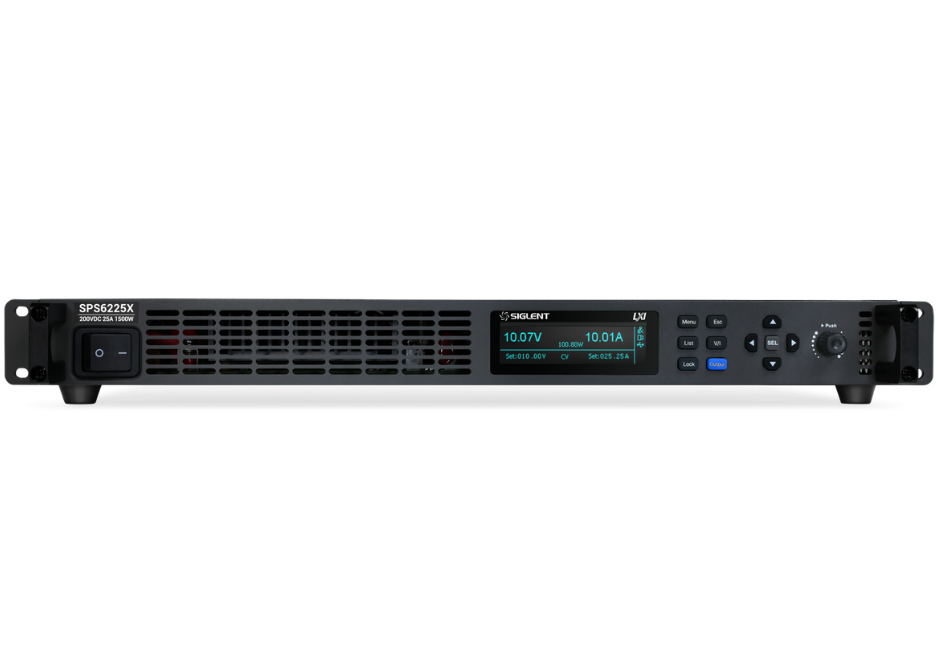

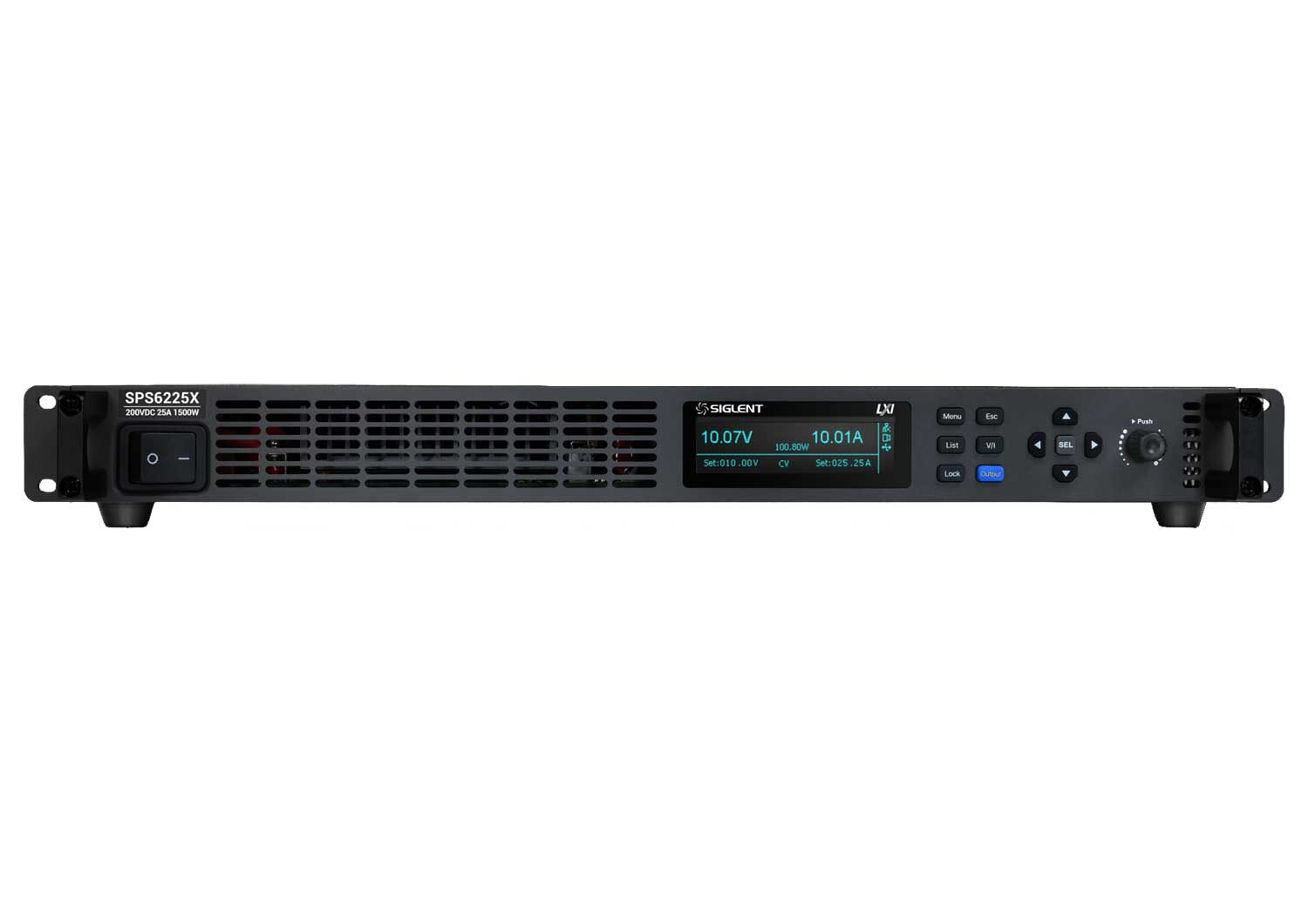

The SPS6000X Series is a programmable switching DC power supply with a wide range of single-output and constant power features. This series includes two models, the SPS6225X and SPS6150X, which feature rated output voltages and currents of 200 V / 25 A and 100 V / 50 A, with a maximum output power of 1500 W. Users can connect up to five SPS6000X chassis of the same model in parallel to expand the output power to meet different application requirements.

SKU	Channel Outputs	Displays	Resolutions	Setting Accuracy	Stock	Price
SPD1168X	Output Voltage: 0 to 16 V Output Current: 0 to 8 A	2.8 inch true colour TFT-LCD 5 digit voltage/4 digit current	1 mV/1 mA	Voltage: ±(0.03% of reading+10 mV) Current: ±(0. 3% of reading+10 mA)	On Backorder	£198.00
SPD1305X	Output Voltage: 0 to 30 V Output Current: 0 to 5 A	2.8 inch true colour TFT-LCD 5 digit voltage/4 digit current	1 mV/1 mA	Voltage: ±(0.03% of reading+10 mV) Current: ±(0. 3% of reading+10 mA)	On Backorder	£216.00

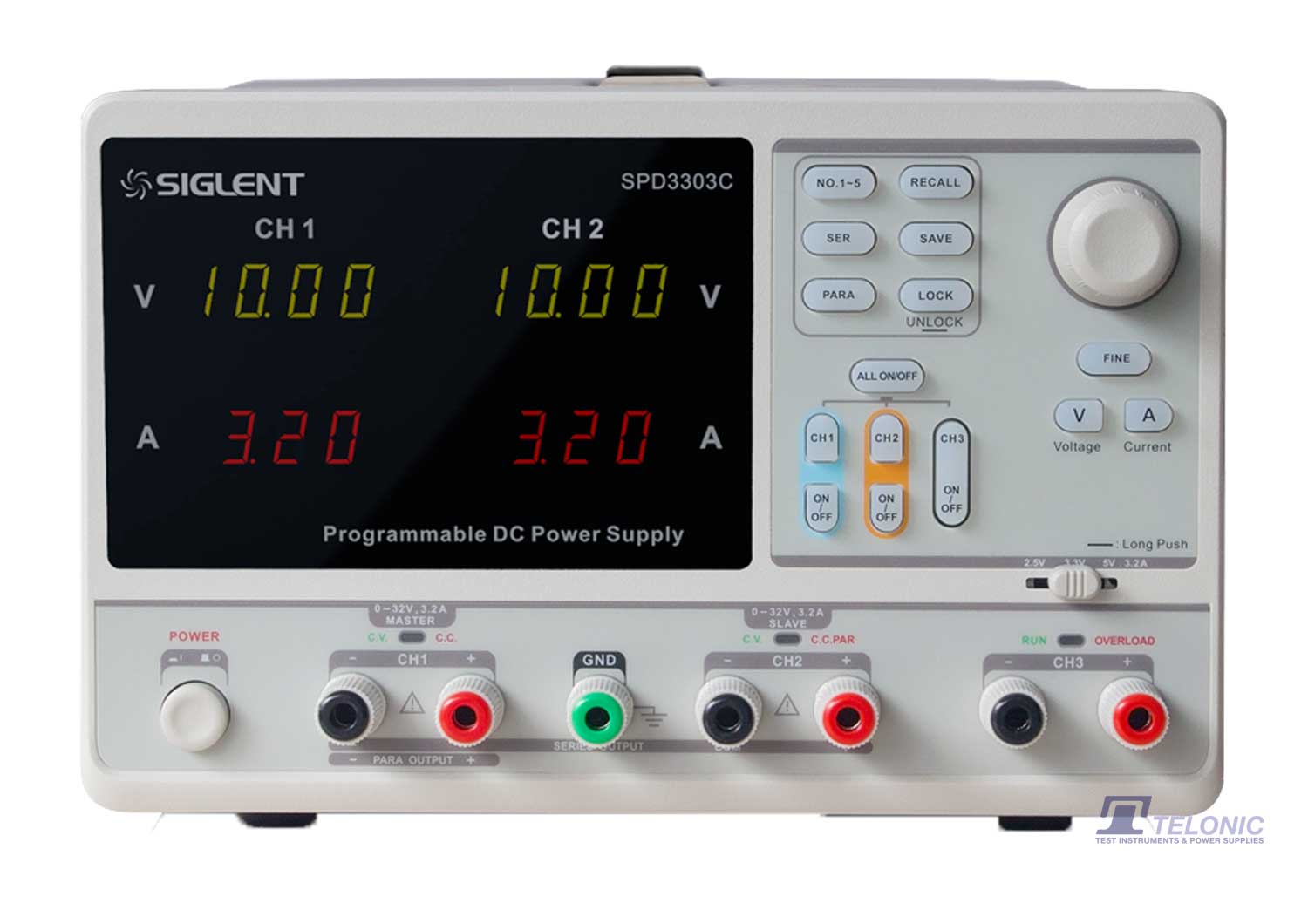

SPD3303C	CH1: Voltage 32V Current 3.2A CH2: Voltage 32V Current 3.2A CH3: 2.5/3.3/5.0V Current 3.2A	4.3" color TFT-LCD 4 digit voltage display 3 digit current display	10 mV, 10 mA	Voltage: ± (0.5% of reading + 3 digits) Current: ± (0.5% of reading + 3 digits)	5+	£216.00
SPD3303X	CH1: Voltage 32V Current 3.2A CH2: Voltage 32V Current 3.2A CH3: 2.5/3.3/5.0V Current 3.2A	4.3" color TFT-LCD 5 digit voltage display 4 digit current display	1 mV, 1 mA	Voltage±(0.03% of reading+10mV) Current±(0. 3% of reading+10mA)	1	£429.00
SPD3303X-E	CH1: Voltage 32V Current 3.2A CH2: Voltage 32V Current 3.2A CH3: 2.5/3.3/5.0V Current 3.2A	4.3" color TFT-LCD 4 digit voltage display 3 digit current display	10 mV, 10 mA	Voltage: ± (0.5% of reading + 2 digits) Current ± (0.5% of reading + 2 digits)	On Backorder	£312.00
SPD4121X	CH1: Voltage 15V Current 1.5A CH2: Voltage 12V Current 10A CH3: Voltage 12V Current 10A CH4: Voltage 15V Current 1.5A	4.3" TFT-LCD 5-digit voltage and current display	1mV, 1mA	Voltage:±(0.03% of reading+10) mV Current:±(0.3% of reading+10) mA	3	£607.00
SPD4306X	CH1: Voltage 15V Current 1.5A CH2: Voltage 30V Current 6A CH3: Voltage 30V Current 6A CH4: Voltage 15V Current 1A	4.3" TFT-LCD 5-digit voltage and current display	1mV, 1mA	Voltage:±(0.03% of reading+10) mV Current:±(0.3% of reading+10) mA	On Backorder	£767.00
SPD4323X	CH1: Voltage 6V Current 3.2A CH2: Voltage 32V Current 3.2A CH3: Voltage 32V Current 3.2A CH4: Voltage 6V Current 3.2A	4.3" TFT-LCD 5-digit voltage and current display	1mV, 1mA	Voltage:±(0.03% of reading+10) mV Current:±(0.3% of reading+10) mA	On Backorder	£530.00
SPS5041X	One Channel,40V/30A/360W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±10mV current:0.1%±30mA	1	£707.00
SPS5042X	One Channel,40V/60A/720W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±10mV current:0.1%±60mA	On Backorder	£867.00
SPS5043X	One Channel,40V/90A/1080W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±10mV current:0.1%±100mA	On Backorder	£1,128.00
SPS5044X	Two Channels,40V/30A/720W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±10mV current:0.1%±30mA	On Backorder	£1,330.00
SPS5045X	Three Channels,40V/30A/1080W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±10mV current:0.1%±30mA	On Backorder	£1,583.00
SPS5051X	One Channel,50V/10A/180W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±10mV current:0.1%±10mA	On Backorder	£663.00
SPS5081X	One Channel,80V/15A/360W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±10mV current:0.1%±10mA	On Backorder	£841.00
SPS5082X	One Channel,80V/30A/720W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±10mV current:0.1%±30mA	On Backorder	£1,044.00
SPS5083X	One Channel,80V/45A/1080W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±10mV current:0.1%±40mA	On Backorder	£1,365.00
SPS5084X	Two Channels,80V/15A/720W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±10mV current:0.1%±10mA	On Backorder	£1,465.00
SPS5085X	Three Channels,80V/15A/1080W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±10mV current:0.1%±10mA	On Backorder	£1,760.00
SPS5161X	One Channel,160V/7.5A/360W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±100mV current:0.1%±5mA	On Backorder	£841.00
SPS5162X	One Channel,160V/15A/720W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±100mV current:0.1%±15mA	On Backorder	£1,044.00
SPS5163X	One Channel,160V/22.5A/1080W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±100mV current:0.1%±20mA	On Backorder	£1,365.00
SPS5164X	Two Channels,160V/7.5A/720W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±100mV current:0.1%±5mA	On Backorder	£1,465.00
SPS5165X	Three Channels,160V/7.5A/1080W	2.4-inch OLED Screen	1mV/1mA	voltage:0.1%±100mV current:0.1%±5mA	On Backorder	£1,760.00
SPS6150X	One Channel, 100V/50A/1500W	3.12-inch OLED Screen	10mV/10mA	voltage:0.1%±10mV current:0.2%±30mA	On Backorder	£1,500.00
SPS6225X	One Channel, 200V/25A/1500W	3.12-inch OLED Screen	10mV/10mA	voltage:0.1%±10mV current:0.2%±30mA	1	£1,500.00
