TEKBOX TBCP1-200 10kHz to 200MHz RF Current Monitoring Probe

(1 customer review)

£280.57 (£336.68 inc VAT)

3 in stock (can be backordered)

Availability: Stock models delivered next working day (UK only) for orders placed before 16:30 (Mon - Fri)

Free Shipping Price Match Guarantee
SKU: TBCP1-200 Categories: , , ,

Description

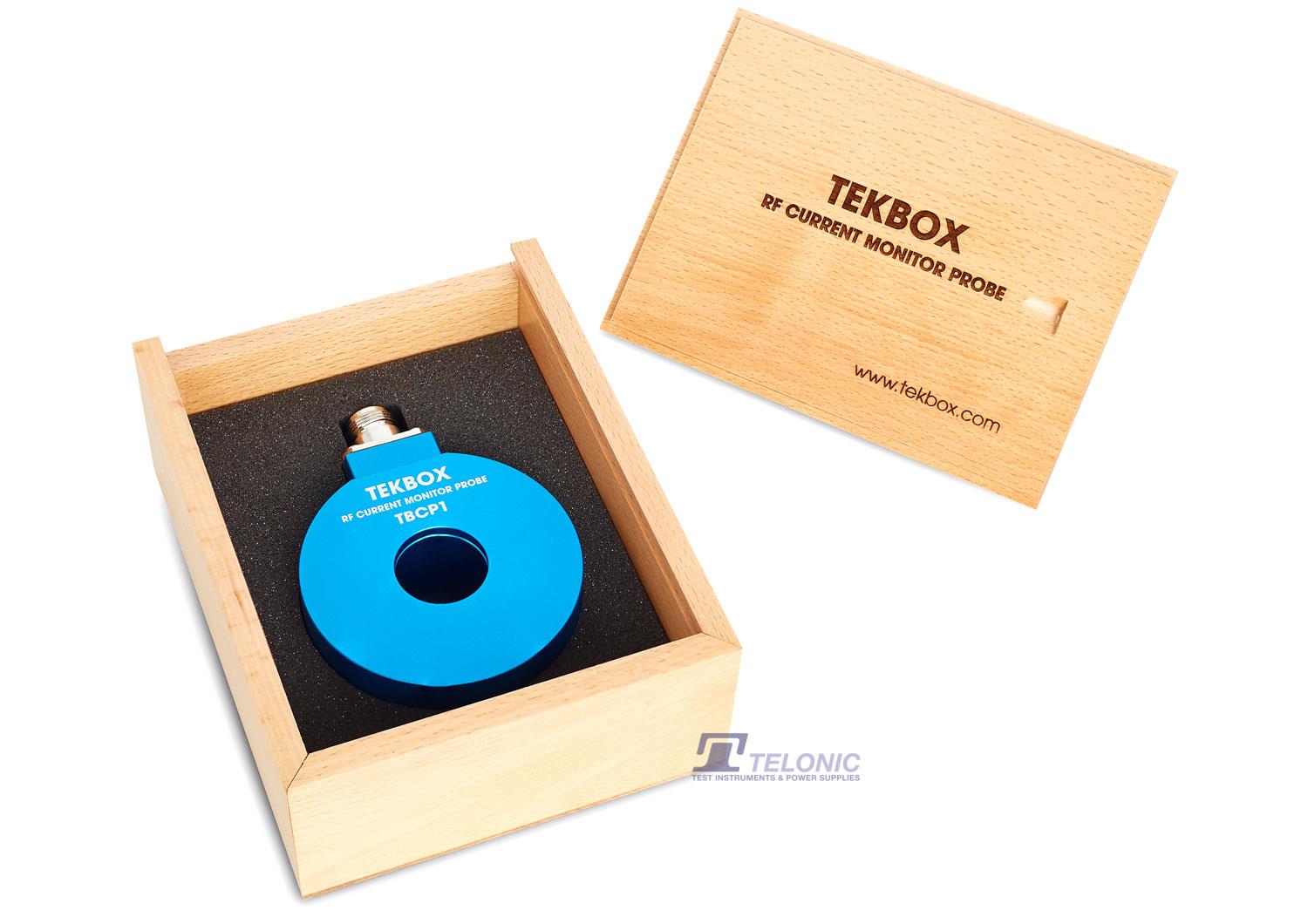

Tekbox TBCP1-200 RF Probe

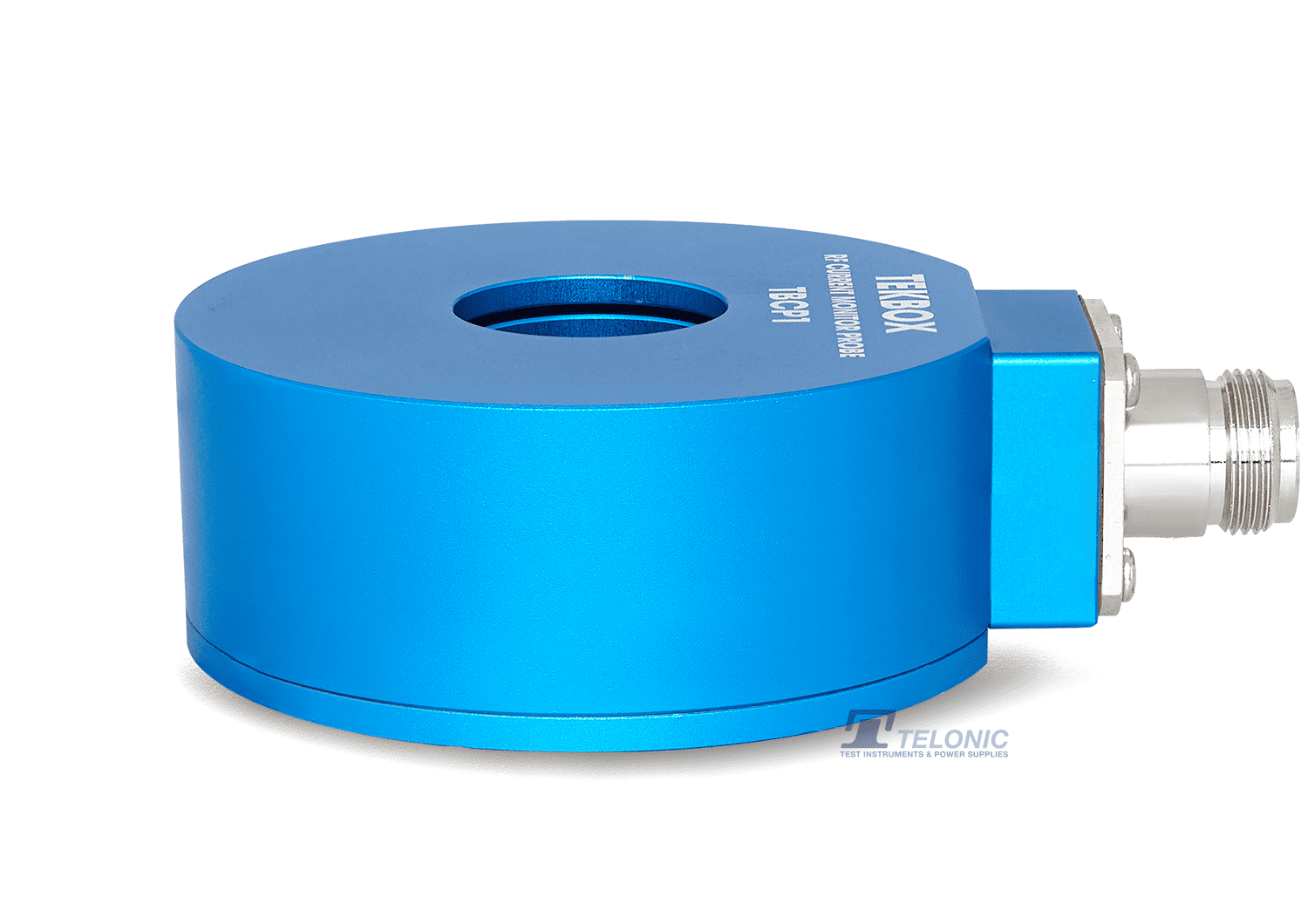

The TBCP1-200 is a 10kHz to 200MHz fixed aperture RF current monitoring probe. expanding the Tekbox product range of affordable EMC pre-compliance test equipment.
The probe has a 3dB bandwidth of approximately 200MHz and is characterised and usable over the frequency range from 10kHz to 200MHz.

Specification:

  • Characterised Frequency Range : 10kHz to 200MHz
  • Aperture Diameter : 25mm
  • Outside Diameter : 76mm
  • Height : 31mm
  • Weight : 320g
  • Connector Type : N Female
  • Transfer Impedance : 3 to 17 dBΩ
  • Max. Primary Current : (DC – 400Hz): 80A
  • Max. Primary Current : (RF): 3A
  • Max. Core Temperature : 125°C

Documentation

User Manual

Tekbox TBCP1-200 User Manual


Specifications
Characterised frequency range10 kHz to 500 MHz
Aperture diameter25 mm
Outside diameter76 mm
Height31mm
Weight320g
Connector typeN female
Transfer impedance3 to 17 dBΩ
Max. primary current (DC – 400 Hz)80 A
Max. primary current (RF)3A
Max. core temperature125 °C



Frequency (MHz)Transfer Impedance (dBΩ)Frequency (MHz)Transfer Impedance (dBΩ)
0.012.794017.30
0.029.345017.20
0.0312.866017.06
0.0415.477016.87
0.0516.688016.63
0.0617.289016.49
0.0717.5410016.38
0.0817.7411016.21
0.0917.8212016.08
0.117.8913015.93
0.217.9614015.77
0.317.9615015.61
0.417.9316015.43
0.517.9117015.28
0.617.8718015.08
0.717.8519014.77
0.817.8220014.41
0.917.8121013.93
117.7822013.36
217.6223012.71
317.5524012.01
417.5725011.38
517.5226010.82
617.5128010.19
717.4730010.03
817.463509.47
917.444008.27
1017.434506.88
2017.335005.08
3017.32



1 review for TEKBOX TBCP1-200 10kHz to 200MHz RF Current Monitoring Probe

  1. David H –

    The probe, as usual with all TEKBOX products, was well made and presented. The cost is way down on anything comparable. Only down side if any is that it is not a split type so the cables must be passed through it, for me this is no problem.
    If you need to pass a typical IEC cordset through it, the IEC connector will need trimming down slightly to pass through.
    Performing very well and together with FastPass EMC tips it is giving excellent results.
