TEKBOX TBCCP1-2K70 2 kHz to 70 MHz Coaxial RF Current Monitoring Probe

Description

Tekbox TBCCP1-2K70 RF Current Probe

The TBCCP1-2K70 is a coaxial RF current monitoring probe, expanding the Tekbox product range of affordable EMC pre-compliance test equipment.

The probe has a very flat response from 2 kHz to 70 MHz and is characterized over the frequency range from 10 Hz to 100 MHz.

The TBCCP1-2K70 is designed to be used as transducer for large loop antennas or for applications that need to measure RF currents in coaxial cables. With a trans-impedance of 0 dBΩ, it is compliant with the specifications for large loop antennas (LLA) in CISPR 15 (EN 555015) and CISPR 16-1-4

Specification:

• Characterized frequency range: 10 Hz to 100 MHz
• Transfer impedance: 0 dBΩ when loaded with 50Ω
• 3 dB bandwidth: 2 kHz to 70 MHz, typ.
• Dimensions: 76 mm x 102 x 69 mm
• Weight: 450 g
• Connector type: N female
• Max. primary current (RF): 12 A
• Max. core temperature: 125 °C

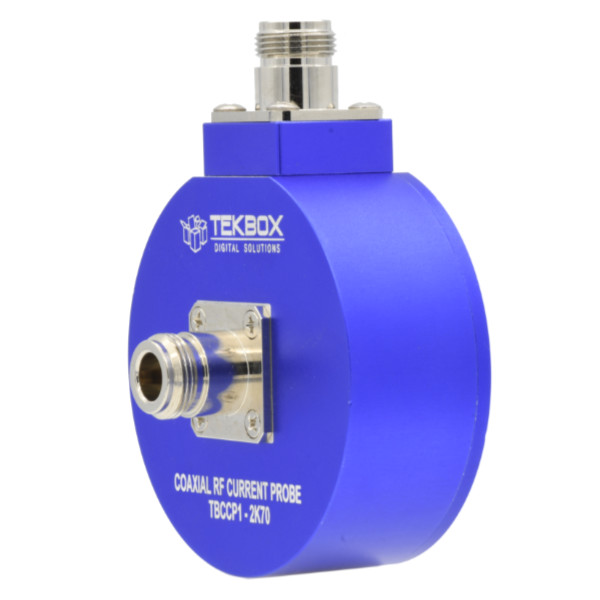

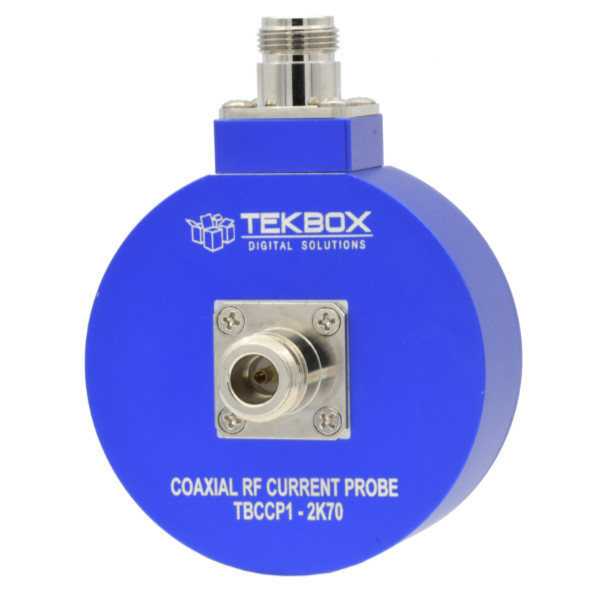

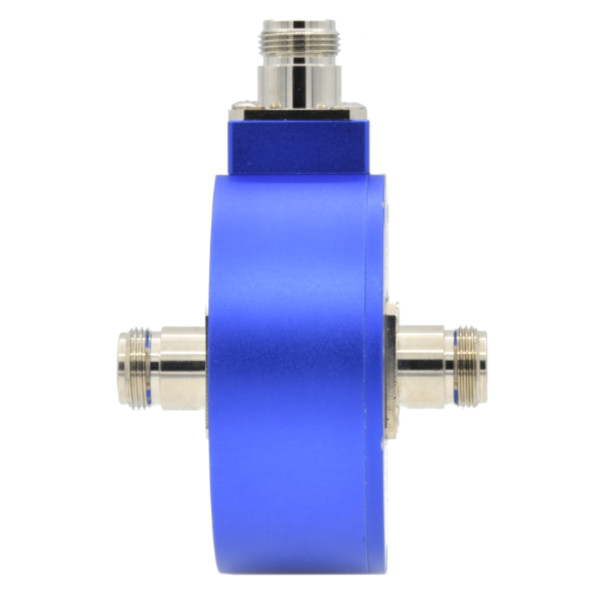

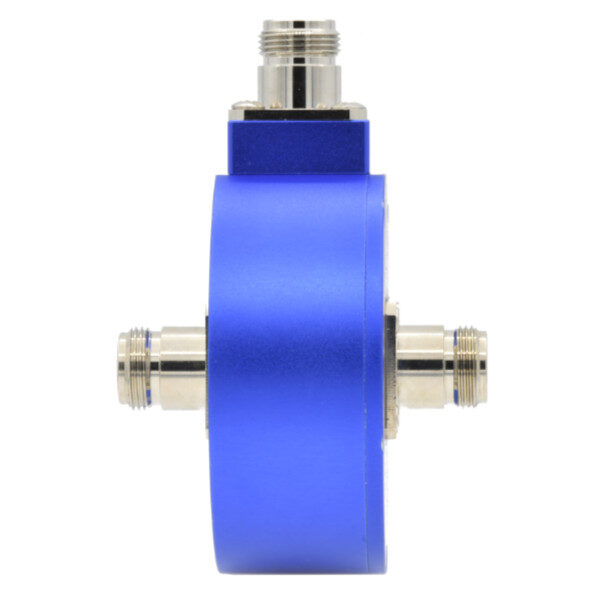

Product Images

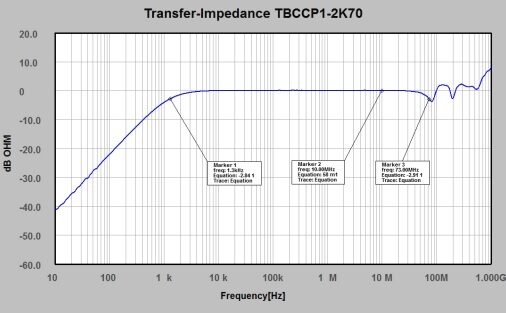

Transfer Impedance

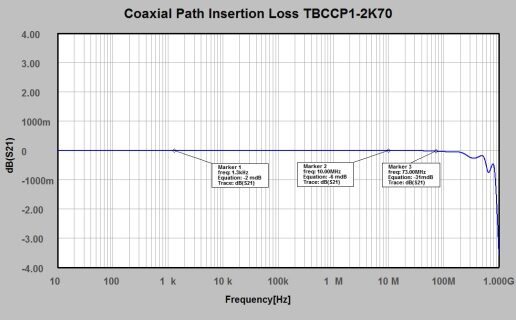

Coaxial Path Insertion Loss

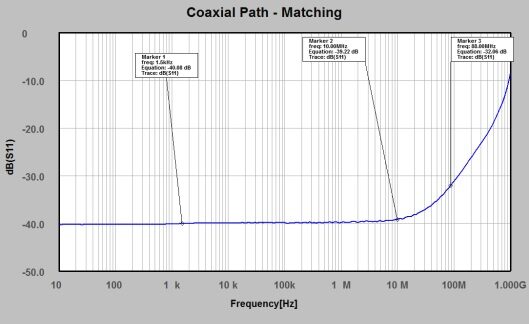

Coaxial Path - Matching

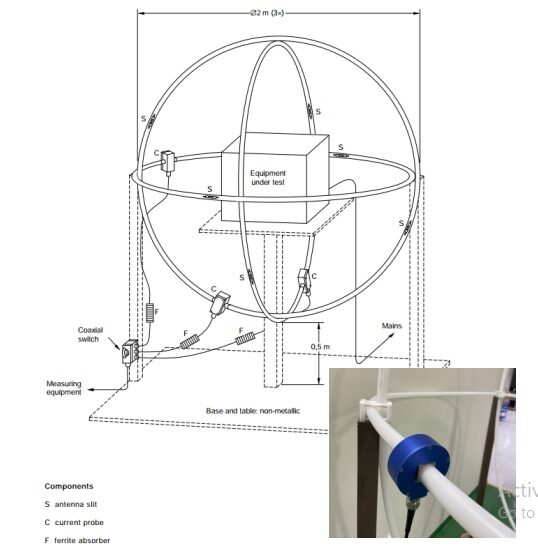

CISPR 16-1-4 / CISPR 15 large loop antenna
